iStarUSA Inc. D-260HNRD-C246-1 2U barebone server
2U rackmount barebones server with six hot-swap 3.5″ bays, dual Intel gigabit LAN, and LGA 1151 socket for Xeon E-2100 CPUs up to 64 GB DDR4 ECC
- Form Factor2U Rackmount
- MaterialZinc-Coated Steel
- WorkloadEdge Server
- CPU TypeSupports Intel Xeon E-2100 Processors
- CPU SocketLGA 1151
- North BridgeIntel C246
- Ready for Intel Xeon E-2100 CPUs via LGA 1151 socket
- Dual-channel DDR4 ECC support up to 64 GB capacity
- Six trayless hot-swap 3.5" bays for quick drive changes
- Eight SATA 600 ports handled by the Intel C246 chipset
- Three PCIe 3.0 slots at x16, x8 and x4 widths
Edge server barebone for Intel Xeon E-2100

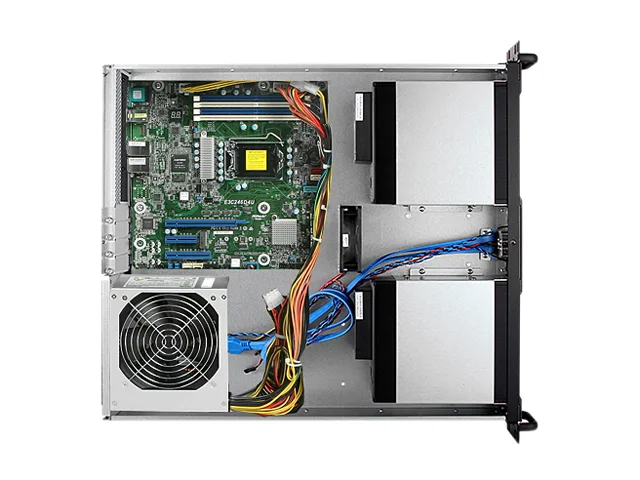

The D-260HNRD-C246-1 is a 2U rackmount chassis that accepts LGA 1151 Xeon E-2100 processors on an Intel C246 platform. It targets edge workloads where a compact, redundant storage front end is required. No memory or drives are included, so the builder chooses capacity and ECC configuration.
Zinc-coated steel frame

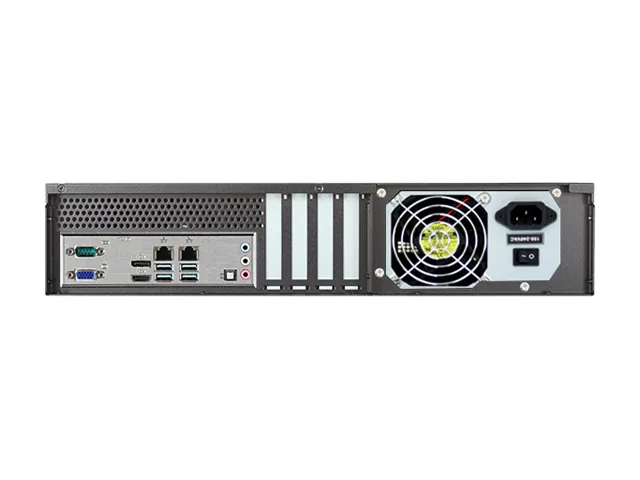

Six 3.5-inch bays allow drive insertion without tools while the system runs, and a single internal 3.5-inch bay adds fixed storage. Dual Intel i210 and I219LM controllers provide two RJ45 ports at 1 Gigabit. Rear I/O adds four USB 3.0 ports, COM, VGA, HDMI and DisplayPort.
500 watt single supply and three PCIe 3.0 slots
A 500W unit powers the board, six hot-swap drives and add-in cards. Expansion consists of one x16, one x8 and one x4 slot, all PCIe 3.0, for NICs, RAID controllers or accelerators. Four 288-pin slots support dual-channel DDR4 up to 64GB with ECC or non-ECC UDIMMs at 2666 or 2400. Builders needing more than six hot-swap bays or a second power supply must choose a different chassis.
Highlights
- Ready for Intel Xeon E-2100 CPUs via LGA 1151 socket
- Dual-channel DDR4 ECC support up to 64 GB capacity
- Six trayless hot-swap 3.5" bays for quick drive changes
- Eight SATA 600 ports handled by the Intel C246 chipset
- Three PCIe 3.0 slots at x16, x8 and x4 widths
Specifications
| Brand | iStarUSA |
|---|---|
| Model | D-260HNRD-C246-1 |
| Form Factor | 2U Rackmount |
| Material | Zinc-Coated Steel |
| Workload | Edge Server |
| CPU Type | Supports Intel Xeon E-2100 Processors |
| CPU Socket | LGA 1151 |
| North Bridge | Intel C246 |
| Memory Slots | 4 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | No |
| Serial ATA | 8 x SATA 600 |
| PCI Express | 1 x PCIe 3.0 x16 1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 |
| First LAN | 2 x RJ45 GLAN by Intel® i210&I219LM |
| Max. LAN Speed | 1 Gigabit |
| 3.5" Bays | 1 |
| Hot-Swap Bays | 6 |
| COM | 1 |
| VGA | 1 |
| Rear USB | 4 x USB 3.0 |
| RJ45 | 2 |
| Other Ports | 1 x HDMI, 1 x DisplayPort |
| Max. Power | 500W Single |
| Features | 2U Rackmount with 500W PSU 6 x 3.5" Trayless Hot-Swappable Drive Bays Supports Intel Xeon E-2100 Processors Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 64 GB Support 8x SATA3 by C246 Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x4 Supports Intel i210&i219LM Supoorts 4 x Half Height Expansion Slot |
| Dimensions | 3.48" x 20.66" x 19.00" |
| Weight | 30.00 lbs. |
| Shipping weight | 15.88 kg |
| Package size | 610 × 584 × 203 mm |
Questions about this item
Does the Intel C246 chipset limit the SATA ports to 6 Gb/s?
The eight SATA ports run at SATA 600, which is the 6 Gb/s ceiling for the C246 chipset.
Will a standard 3.5-inch drive fit the trayless hot-swap bays?
The six front bays accept 3.5-inch drives directly without caddies; a single internal 3.5-inch bay is also present.
Is any BIOS step required for the Xeon E-2100 CPU to be recognised?
Install the LGA 1151 processor, populate DDR4 ECC or non-ECC UDIMMs in pairs for dual channel, then power on — the C246 chipset detects the Xeon E-2100 automatically.
