Blue 2U rackmount barebone server, zinc-coated steel, six hot-swap drive bays, 500W PSU

iStarUSA Inc.

iStarUSA Inc. D-260HNBL-C246-1 2U barebone server

SKU CH-DKH4-M4CPD MPN D-260HNBL-C246-1

2U rackmount barebone with six hot-swap 3.5" bays, Intel C246 chipset, LGA 1151 socket for Xeon E-2100 CPUs, four DDR4 slots up to 64 GB ECC, eight SATA 600 ports, three PCIe 3.0 slots.

  • Form Factor2U Rackmount
  • MaterialZinc-Coated Steel
  • WorkloadEdge Server
  • CPU TypeSupports Intel Xeon E-2100 Processors
  • CPU SocketLGA 1151
  • North BridgeIntel C246
  • Supports Xeon E-2100 CPUs via LGA 1151 socket
  • Dual-channel DDR4 ECC memory up to 64 GB
  • Six trayless hot-swap 3.5 inch drive bays
  • Three PCIe 3.0 expansion slots for add-in cards
  • Dual Intel Gigabit LAN with i210 and I219LM controllers

Edge server barebone

This 2U rackmount barebone is built for edge deployments that need dense storage and Intel Xeon E-2100 processing. It targets system integrators and IT teams assembling custom appliances without starting from a blank chassis.

Capacity and headroom

Four 288-pin slots accept DDR4 2400 or 2666 ECC and non-ECC UDIMMs up to 64 GB total in dual-channel mode. Six trayless hot-swap 3.5-inch bays plus one fixed 3.5-inch bay provide eight SATA 600 ports, while expansion stops at one PCIe 3.0 x16, one x8 and one x4 slot.

Bundled impact

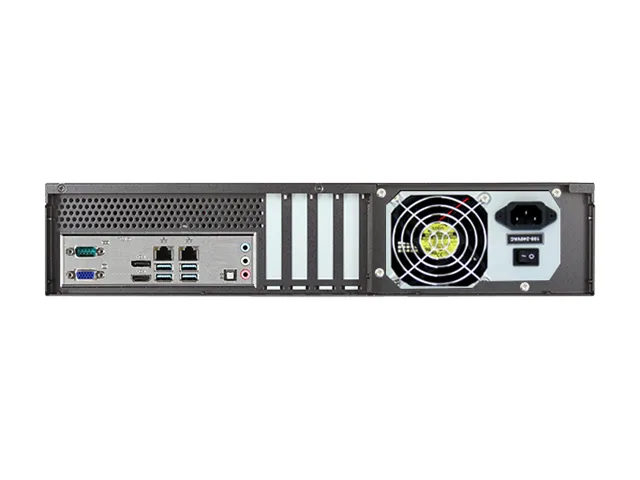

The included 500 W single power supply and zinc-coated steel frame deliver the mechanical and electrical baseline so integrators only add CPU, memory and drives. Rear I/O supplies dual Intel gigabit LAN, four USB 3.0 ports, VGA, HDMI, DisplayPort and a COM port for headless management.

Highlights

  • Supports Xeon E-2100 CPUs via LGA 1151 socket
  • Dual-channel DDR4 ECC memory up to 64 GB
  • Six trayless hot-swap 3.5 inch drive bays
  • Three PCIe 3.0 expansion slots for add-in cards
  • Dual Intel Gigabit LAN with i210 and I219LM controllers

Specifications

BrandiStarUSA
ModelD-260HNBL-C246-1
Form Factor2U Rackmount
MaterialZinc-Coated Steel
WorkloadEdge Server
CPU TypeSupports Intel Xeon E-2100 Processors
CPU SocketLGA 1151
North BridgeIntel C246
Memory Slots4 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory Supported64GB
Channel SupportedDual Channel
ECC SupportedYes
RegisteredNo
Serial ATA8 x SATA 600
PCI Express1 x PCIe 3.0 x16
1 x PCIe 3.0 x8
1 x PCIe 3.0 x4
First LAN2 x RJ45 GLAN by Intel® i210&I219LM
Max. LAN Speed1 Gigabit
3.5" Bays1
Hot-Swap Bays6
COM1
VGA1
Rear USB4 x USB 3.0
RJ452
Other Ports1 x HDMI, 1 x DisplayPort
Max. Power500W Single
Features2U Rackmount with 500W PSU
6 x 3.5" Trayless Hot-Swappable Drive Bays
Supports Intel Xeon E-2100 Processors
Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 64 GB
Support 8x SATA3 by C246
Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x4
Supports Intel i210&i219LM
Supoorts 4 x Half Height Expansion Slot
Dimensions3.48" x 20.66" x 19.00"
Weight30.00 lbs.
Shipping weight15.88 kg
Package size610 × 584 × 203 mm

Questions about this item

Will my existing DDR4 2666 ECC UDIMMs work in the four 288-pin slots of this D-260HNBL-C246-1 barebone?

Yes, the board supports dual-channel DDR4 2666/2400 ECC and non-ECC UDIMMs up to 64 GB across the four 288-pin slots.

How can I verify the dual Intel i210 and I219LM gigabit ports are operating at full 1 Gbps after installation?

Check the link LEDs on each RJ45 port and confirm 1 Gbps full-duplex in the OS network adapter settings or switch port status.

Which components are included and which must be purchased separately for this 2U rackmount barebone?

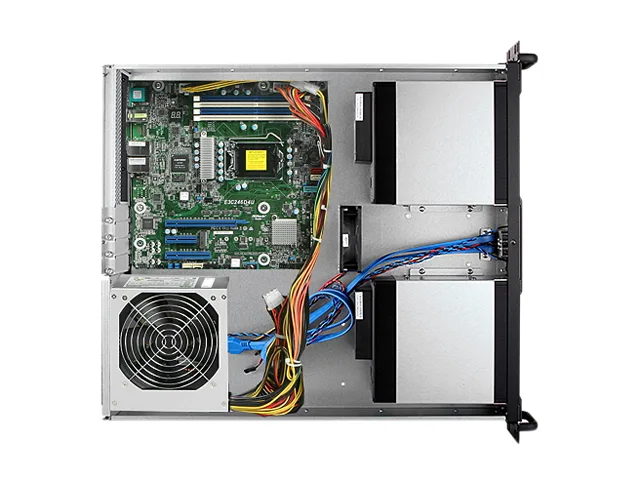

The chassis, C246 motherboard, 500 W PSU, six 3.5" hot-swap trays, one fixed 3.5" bay, and rear I/O panel are included; CPU, memory, drives and rails are not.
