Black 2U rackmount server barebone with six front hot-swap drive trays

iStarUSA Inc.

iStarUSA Inc. D-260HNBK-C246-1 2U barebone server

SKU CH-V9TP-3VHHZ MPN D-260HNBK-C246-1

A 2U rackmount barebone for edge workloads with six hot-swap bays, dual-channel DDR4 ECC support up to 64 GB and a 500 W supply

  • Form Factor2U Rackmount
  • MaterialZinc-Coated Steel
  • WorkloadEdge Server
  • CPU TypeSupports Intel Xeon E-2100 Processors
  • CPU SocketLGA 1151
  • North BridgeIntel C246
  • Supports Intel Xeon E-2100 processors for edge workloads
  • Intel C246 chipset enables dual-channel DDR4 ECC up to 64GB
  • Six trayless hot-swap 3.5-inch bays plus eight SATA 600 ports
  • Three PCIe 3.0 slots: x16, x8 and x4 for expansion cards
  • Dual Intel gigabit LAN with i210 and i219LM controllers

2U rackmount barebone with Xeon E-2100 support

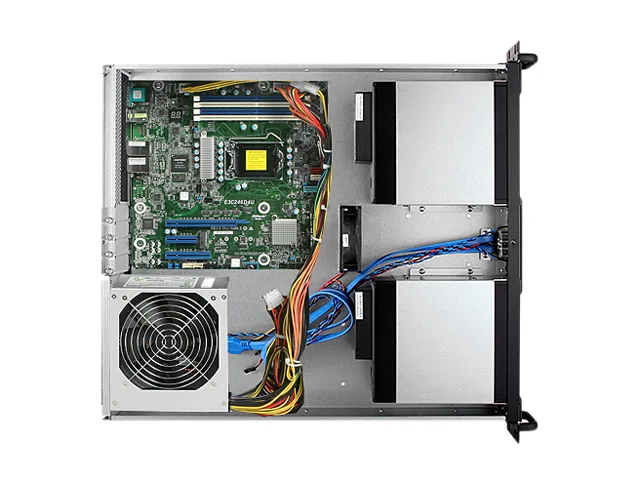

This 2U server barebone accepts Intel Xeon E-2100 processors in an LGA 1151 socket on the Intel C246 chipset. Four DDR4 slots support up to 64 GB of ECC or non-ECC memory in dual-channel mode. A 500 W single power supply is included, and the chassis is built from zinc-coated steel for edge workloads.

Suited for single-socket edge deployments needing

The six trayless hot-swap bays plus one internal 3.5-inch bay serve workloads that demand quick drive replacement. Builders who require dual-processor capability, redundant power supplies or more than three PCIe slots should consider a different platform.

Single 500 W power supply limits redundancy

Only one 500 W unit is fitted, so the system has no fail-over if that supply fails. Organisations that mandate redundant power for uptime guarantees cannot meet that requirement with this barebone.

Highlights

  • Supports Intel Xeon E-2100 processors for edge workloads
  • Intel C246 chipset enables dual-channel DDR4 ECC up to 64GB
  • Six trayless hot-swap 3.5-inch bays plus eight SATA 600 ports
  • Three PCIe 3.0 slots: x16, x8 and x4 for expansion cards
  • Dual Intel gigabit LAN with i210 and i219LM controllers

Specifications

BrandiStarUSA
ModelD-260HNBK-C246-1
Form Factor2U Rackmount
MaterialZinc-Coated Steel
WorkloadEdge Server
CPU TypeSupports Intel Xeon E-2100 Processors
CPU SocketLGA 1151
North BridgeIntel C246
Memory Slots4 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory Supported64GB
Channel SupportedDual Channel
ECC SupportedYes
RegisteredNo
Serial ATA8 x SATA 600
PCI Express1 x PCIe 3.0 x16
1 x PCIe 3.0 x8
1 x PCIe 3.0 x4
First LAN2 x RJ45 GLAN by Intel® i210&I219LM
Max. LAN Speed1 Gigabit
3.5" Bays1
Hot-Swap Bays6
COM1
VGA1

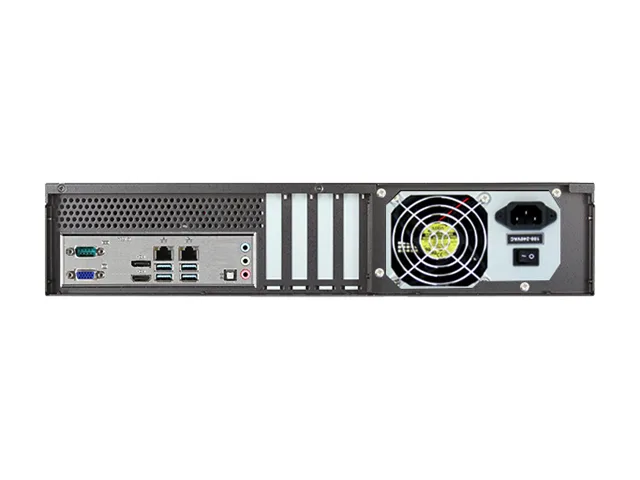

Rear USB4 x USB 3.0
RJ452
Other Ports1 x HDMI, 1 x DisplayPort
Max. Power500W Single
Features2U Rackmount with 500W PSU
6 x 3.5" Trayless Hot-Swappable Drive Bays
Supports Intel Xeon E-2100 Processors
Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 64 GB
Support 8x SATA3 by C246
Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x4
Supports Intel i210&i219LM
Supoorts 4 x Half Height Expansion Slot
Dimensions3.48" x 20.66" x 19.00"
Weight30.00 lbs.
Shipping weight15.88 kg
Package size610 × 584 × 203 mm

Questions about this item

How do I install a CPU into the LGA 1151 socket on this 2U barebone?

Align the Intel Xeon E-2100 processor notches with the socket keys, lower the retention lever gently, and ensure the cooler mounting holes match the board layout before securing the heatsink.

What memory maintenance or replacement will the 4 x 288Pin slots need later?

The board supports dual-channel DDR4 2666/2400 ECC or non-ECC UDIMMs up to 64GB total; replace failed sticks with identical speed and ECC type to keep dual-channel operation.

What limit appears first when the 500W single PSU runs sustained loads?

The 500W power budget caps combined CPU, memory, eight SATA 600 drives, and PCIe 3.0 cards; exceeding it triggers shutdown before thermal limits are reached.
