iStarUSA Inc. BPU-230HD-RED 2×5.25″ to 3×3.5″ Hot-swap Rack server accessory
Converts two 5.25″ bays into three hot-swap 3.5″ bays for 2.5″ and 3.5″ SAS or SATA drives with 12Gb/s transfer, a 70mm fan and LED status indicators
- TypeHot-swap Rack
- SpecificationsRoHS Compliance: Yes Standard Drive Bays: 3 x 3.5" Hotswap 2
- FeaturesStylish aluminum color handle and heat-sink body Support Hot
- Hot-swap three 3.5″ drives from two 5.25″ bays
- 12Gb/s transfer rate for SAS and SATA drives
- Aluminum chassis with conductive grooves aids heat dissipation
- 70mm fan with speed control switch for cooling
- Power, drive, fan and high-temperature LED indicators
Drive-bay conversion
The BPU-230HD-RED fits two standard 5.25-inch bays and provides three hot-swap trays for 2.5-inch or 3.5-inch drives. It accepts SAS I/II/III and SATA I/II/III devices at up to 12Gb/s. The aluminium chassis and bezel are finished in red and black.
Fixed-bay replacement
This rack replaces static internal cages that require tools and system shutdown for drive changes. The jump is worth it when uptime matters and drives must be swapped while the server stays online. A separate RAID controller is required for hardware RAID arrays.
Sustained-load behaviour

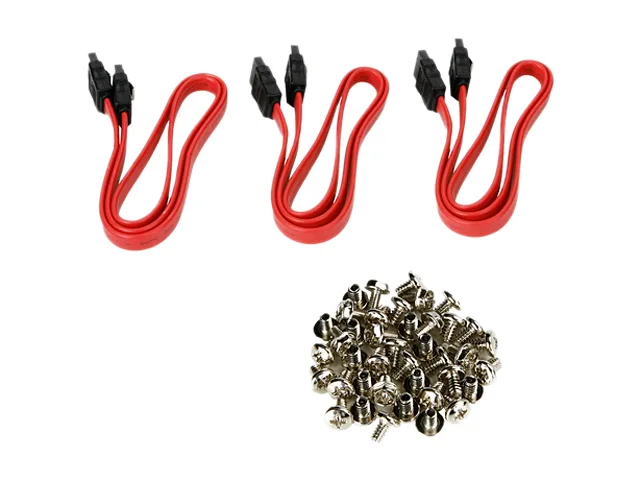

A single 70mm fan with a speed-control switch moves air through conductive dissipation grooves in the aluminium body. Front LEDs show power, drive activity, fan status and high-temperature warnings. Three SATA cables are included for host connection.
Highlights
- Hot-swap three 3.5″ drives from two 5.25″ bays
- 12Gb/s transfer rate for SAS and SATA drives
- Aluminum chassis with conductive grooves aids heat dissipation
- 70mm fan with speed control switch for cooling
- Power, drive, fan and high-temperature LED indicators
Specifications
| Brand | iStarUSA |
|---|---|
| Model | BPU-230HD-RED |
| Type | Hot-swap Rack |
| Specifications | RoHS Compliance: Yes Standard Drive Bays: 3 x 3.5" Hotswap 2 x 5.25" Drives Hotswap HDD Type: 2.5" & 3.5" SAS I/II/III & SATA I/II/III Indicators: Power, HDD, fan, and high temperature Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves Color of Front Bezel: Red Color of Main Chassis: Black Package Content: SATA Cable Included (3pcs) Cooling Fan: 1 x 70mm Dimensions: 3.39" x 5.75" x 8.22" |
| Features | Stylish aluminum color handle and heat-sink body Support Hot-Swap & RAID Configuration (need an additional RAID controller) Aluminum Design with Conductive Dissipation Grooves Power, fan and high temperature LED indicators High Performance Transfer Rate up to 12Gb/s Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD / SSD Equipped with Fan Speed Control Switch 14TB Hard Drives Compatible |
| Shipping weight | 1.36 kg |
| Package size | 254 × 178 × 127 mm |
Questions about this item
Will this rack fit into two standard 5.25″ front-panel bays?
Yes, the unit occupies exactly two 5.25″ bays and measures 3.39″ high, 5.75″ wide and 8.22″ deep.
Which cables and screws are required to install the three drives and the cooling fan?
Three SATA cables are included; mount each 2.5″ or 3.5″ drive in its tray, slide the tray in until it clicks, then connect the 70 mm fan to a motherboard or controller header.
When should the 70 mm cooling fan be cleaned or replaced?
Clean the fan intake whenever dust builds up; replace the fan if it becomes noisy or the high-temperature LED stays lit during normal operation.
