iStarUSA Inc. BPN-DE350HD-BLUE 5×3.5″ Hot-swap Rack server accessory
Holds five 3.5″ SAS or SATA drives in three 5.25″ bays with hot-swap trays, 12 Gb/s transfer, an 80 mm fan and a key-locked blue aluminium front
- TypeHDD Hot-swap Rack
- SpecificationsRoHS Compliance: Yes Standard Drive Bays: 5 x 3.5" Hotswap 3
- FeaturesAluminum Frame, designed for heavy-duty purpose Supports SAS
- Holds five 3.5″ drives in three 5.25″ bays
- 12Gb/s transfer speed with SAS and SATA drives
- Blue power LED and purple access LED show status at a glance

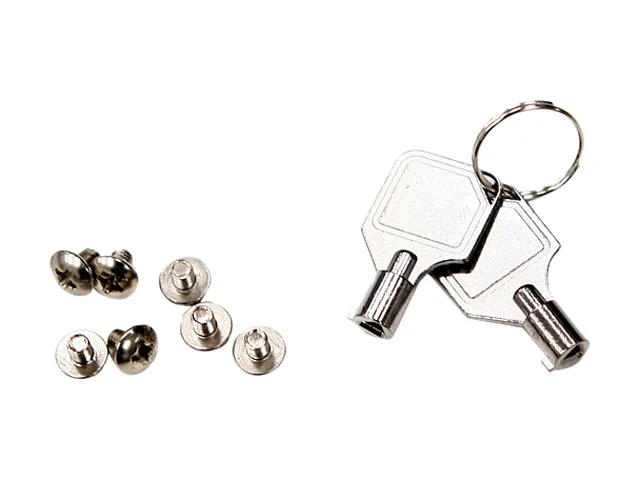

- Key-locked aluminium front bezel secures every drive
- 80 mm fan with removable cover cools drives and simplifies cleaning
5×3.5″ hot-swap rack

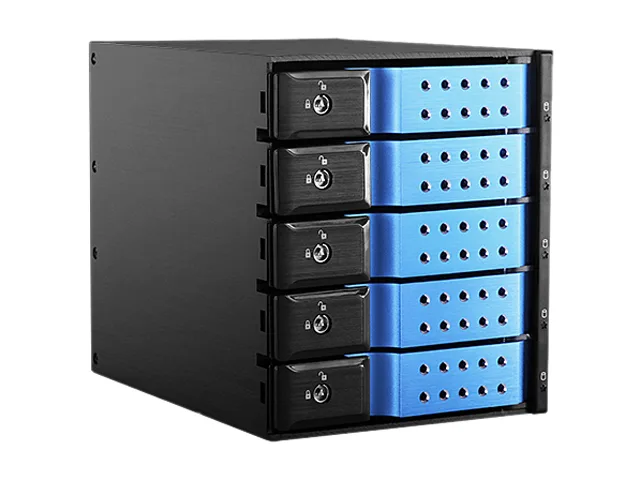

The iStarUSA BPN-DE350HD-BLUE fits three 5.25″ bays and provides five trayless 3.5″ drive slots. It accepts SAS I/II/III and SATA I/II/III hard drives with a transfer rate up to 12Gb/s. An 80 mm fan and all-aluminium construction keep the drives cool. A key lock and blue front bezel secure the installation.
Server builders adding dense 3.5″ storage
This rack suits administrators who need hot-swap 3.5″ drives in a standard 5.25″ footprint and want SAS or SATA support. Builders requiring 2.5″ drive bays or a different bay count should look elsewhere. The single 80 mm fan may not meet the airflow needs of very high-density deployments.
12Gb/s SAS and SATA interface
The backplane delivers up to 12Gb/s across SAS I/II/III and SATA I/II/III connections, so the host controller must support that speed to use the full bandwidth. Drives larger than 14TB are not validated for this unit.
Highlights
- Holds five 3.5″ drives in three 5.25″ bays
- 12Gb/s transfer speed with SAS and SATA drives
- Blue power LED and purple access LED show status at a glance
- Key-locked aluminium front bezel secures every drive
- 80 mm fan with removable cover cools drives and simplifies cleaning
Specifications
| Brand | iStarUSA |
|---|---|
| Model | BPN-DE350HD-BLUE |
| Type | HDD Hot-swap Rack |
| Specifications | RoHS Compliance: Yes Standard Drive Bays: 5 x 3.5" Hotswap 3 x 5.25" Drives Hotswap HDD Type: 3.5" SAS I/II/III & SATA I/II/III Indicators: Blue for Power on / Purple for HDD Access Security: Key Lock Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: Aluminum Color of Front Bezel: Blue Color of Main Chassis: Black Cooling Fan: 1 x 80mm Dimensions: 4.92" x 5.71" x 7.79" |
| Features | Aluminum Frame, designed for heavy-duty purpose Supports SAS I/II/III and SATA I/II/III Hard Drives Integrative shaping aluminum design for quickest heat sink High Performance Transfer Rate up to 12Gb/s Aluminum front bezel with metal key lock mechanism for double safety Removable fan cover for easy maintenance Multi-functional LED Indication Support Hot-Swap & RAID Configuration (need an additional RAID controller) 14TB Hard Drives Compatible |
| Shipping weight | 1.36 kg |
| Package size | 267 × 178 × 178 mm |
Questions about this item
How many 5.25" drive bays does the BPN-DE350HD-BLUE occupy in the chassis?
It fits into three standard 5.25" bays, converting them into five hot-swap 3.5" slots.
Which cable connections are required to enable hot-swap on the five drive slots?

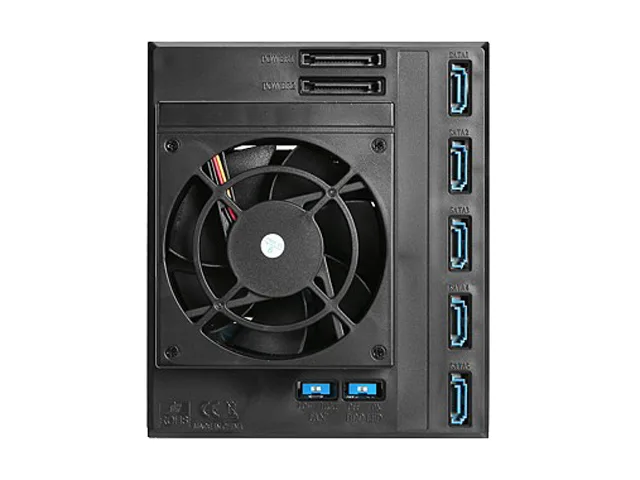

Connect a SAS or SATA backplane cable to the rear ports and plug the 80 mm fan into a motherboard or fan controller header.
What maintenance does the 80 mm cooling fan require over time?
The fan cover is removable; unclip it to clean dust from the blades or replace the fan if it becomes noisy.
