iStarUSA Inc.
iStarUSA Inc. BPN-DE340HD-BLUE 4x3.5" 3x5.25" 12Gb/s server accessory
Hot-swap rack holds four 3.5" drives in three 5.25" bays with 12Gb/s SAS and SATA support
- TypeHDD Hot-swap Rack
- ColorBlue
- SpecificationsRoHS Compliance: Yes Standard Drive Bays: 4 x 3.5" Hotswap 3
- FeaturesAluminum Frame, designed for heavy-duty purpose Supports SAS
- Hot-swap four 3.5" drives from three 5.25" bays
- 12Gb/s throughput supports SAS and SATA drives
- Aluminium chassis and bezel dissipate heat quickly
- Blue power and purple access LEDs show status
- Key lock and 80mm fan secure and cool drives
Drive density and interface

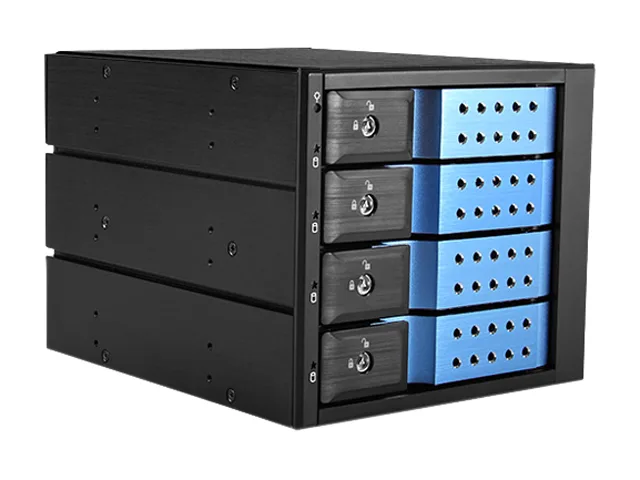

The iStarUSA BPN-DE340HD-BLUE converts three 5.25-inch bays into four hot-swap 3.5-inch drive slots. It accepts SAS I/II/III and SATA I/II/III drives at up to 12Gb/s. The aluminium frame and key lock suit server builds that need physical security and tool-less drive changes.
Sustained thermal behaviour

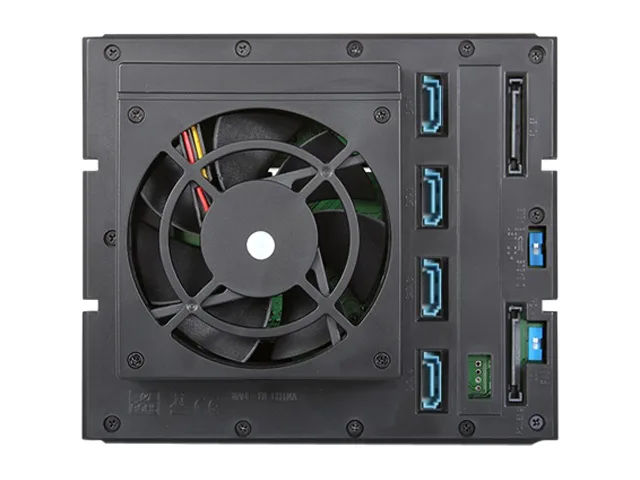

An integrative aluminium chassis acts as a large heat sink for all four drives during continuous operation. A single 80mm fan pulls air across the trays while the removable cover simplifies cleaning without breaking the airflow path. This layout keeps temperatures stable during long RAID rebuilds or backup windows.
Build and daily mounting

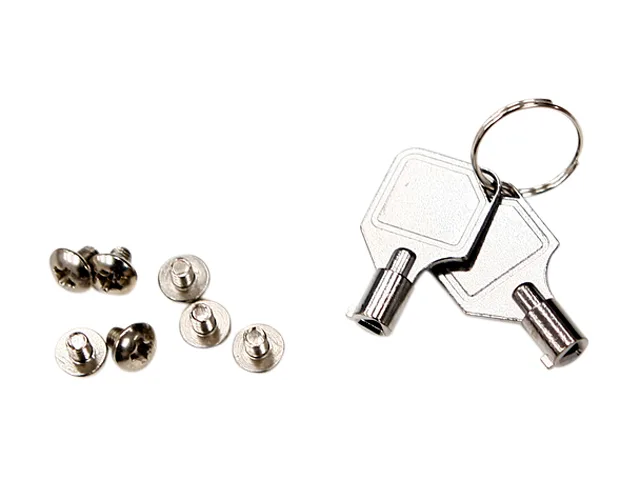

The front bezel, handle and main chassis are all aluminium with a blue bezel and black body. Blue and purple LEDs show power and access status at a glance. The key lock secures the trays, and the unit fits the standard three-bay footprint measured at 4.92 by 5.71 by 7.79 inches.
Highlights
- Hot-swap four 3.5" drives from three 5.25" bays
- 12Gb/s throughput supports SAS and SATA drives
- Aluminium chassis and bezel dissipate heat quickly
- Blue power and purple access LEDs show status
- Key lock and 80mm fan secure and cool drives
Specifications
| Brand | iStarUSA |
|---|---|
| Model | BPN-DE340HD-BLUE |
| Type | HDD Hot-swap Rack |
| Color | Blue |
| Specifications | RoHS Compliance: Yes Standard Drive Bays: 4 x 3.5" Hotswap 3 x 5.25" Drives Hotswap HDD Type: 3.5" SAS I/II/III & SATA I/II/III Indicators: Blue for Power on / Purple for HDD Access Security: Key Lock Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: Aluminum Color of Front Bezel: Blue Color of Main Chassis: Black Cooling Fan: 1 x 80mm Dimensions: 4.92" x 5.71" x 7.79" |
| Features | Aluminum Frame, designed for heavy-duty purpose Supports SAS I/II/III and SATA I/II/III Hard Drives Integrative shaping aluminum design for quickest heat sink High Performance Transfer Rate up to 12Gb/s Aluminum front bezel with metal key lock mechanism for double safety Removable fan cover for easy maintenance Multi-functional LED Indication Support Hot-Swap & RAID Configuration (need an additional RAID controller) 14TB Hard Drives Compatible |
| Shipping weight | 1.36 kg |
| Package size | 267 × 178 × 178 mm |
Questions about this item
How loud and hot does the 80mm fan run when the rack operates continuously?
The single 80mm fan draws cool air through the aluminium chassis, which acts as a heat sink; noise and temperature depend on the installed drives and case airflow.
Which host interface and controller do I need to use the four hot-swap bays?
Each 3.5" bay connects via SAS I/II/III or SATA I/II/III; a compatible backplane cable and a RAID controller are required for RAID configurations.
Will my existing 3.5" SAS or SATA drives fit and run at 12Gb/s in this unit?
The rack accepts 3.5" SAS I/II/III and SATA I/II/III drives up to 14TB; 12Gb/s transfer is supported when the drive, cable and controller all operate at that speed.
