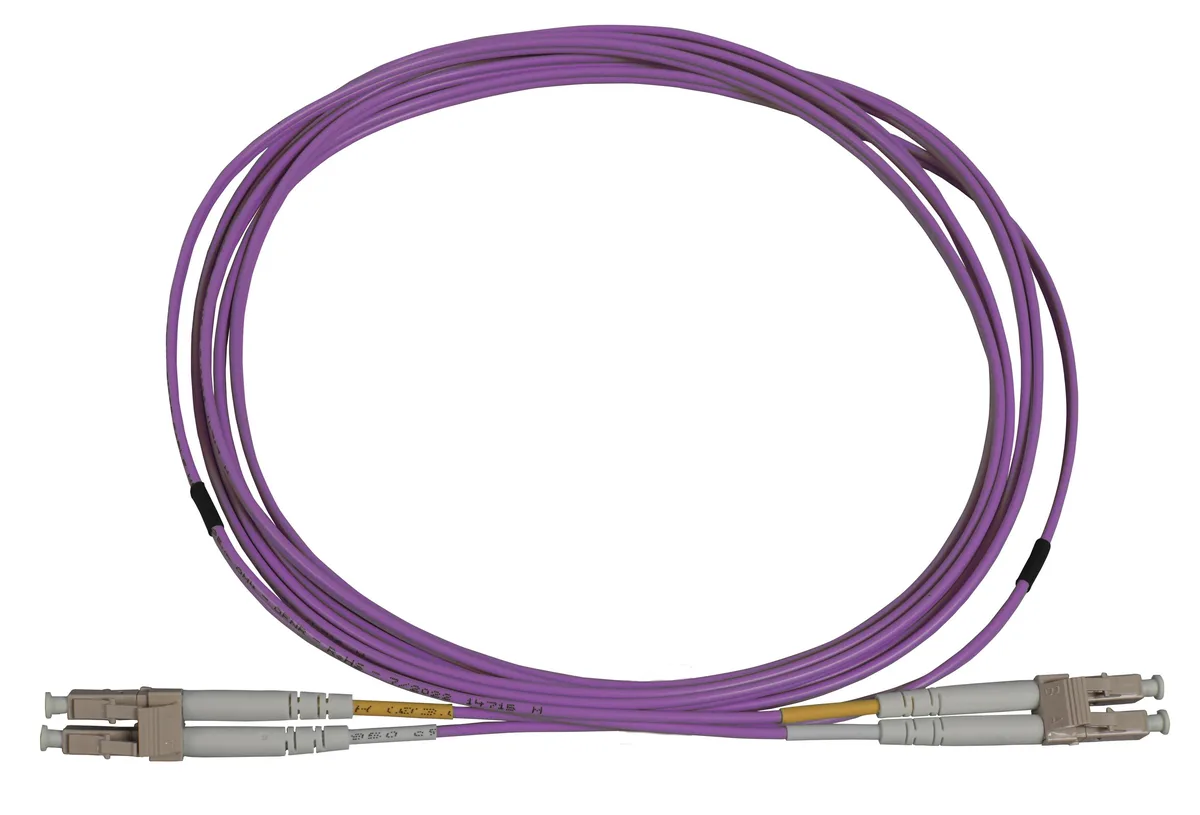

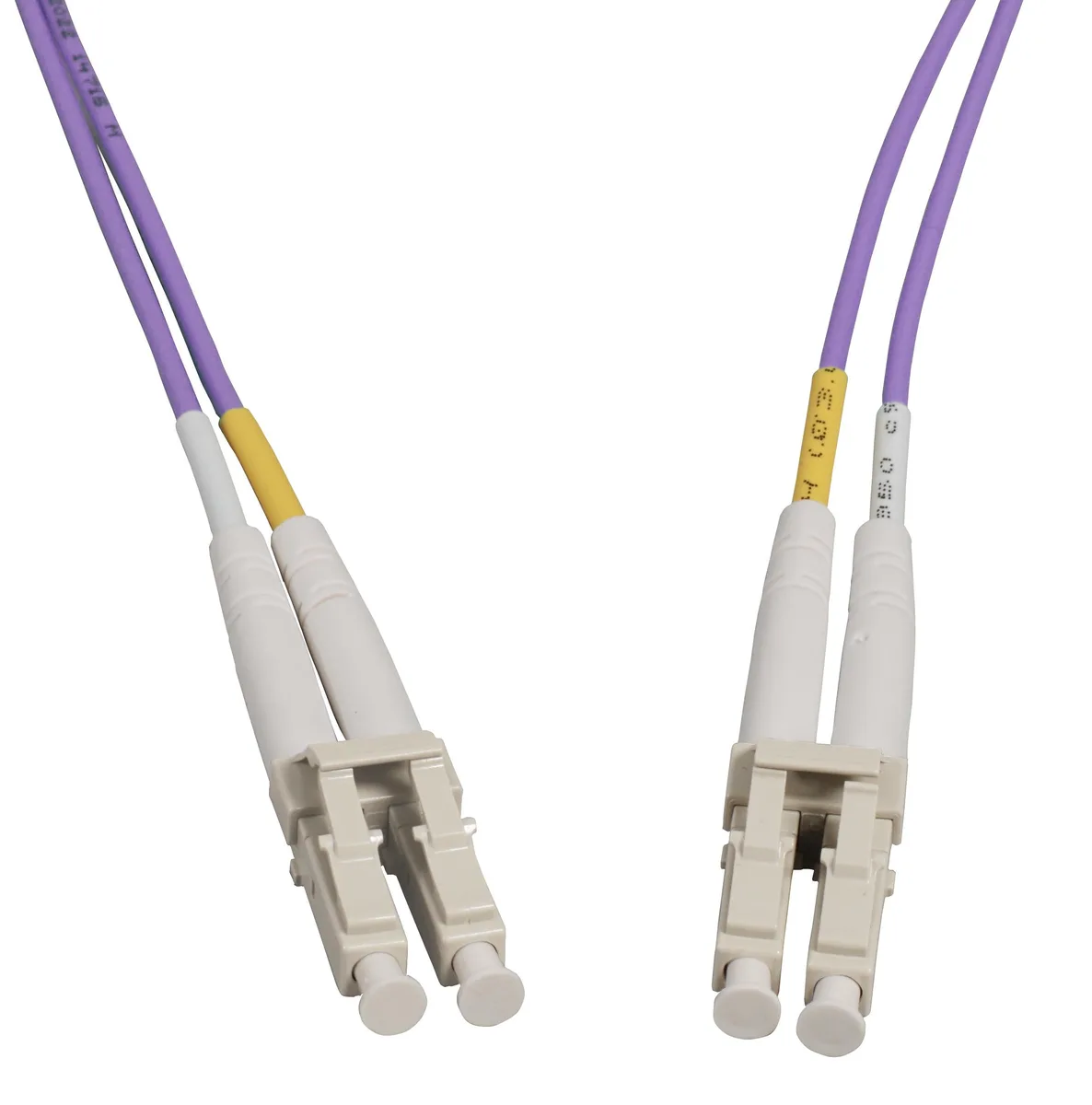

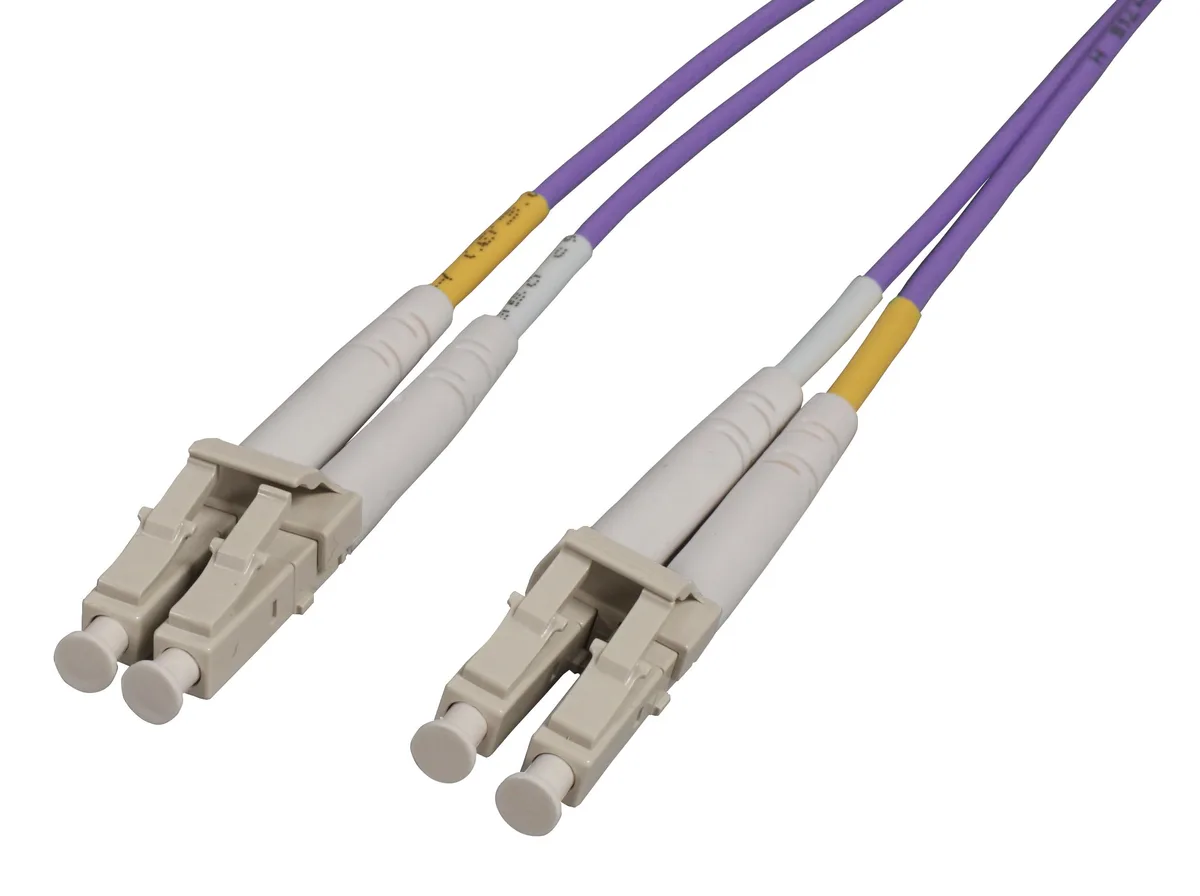

Violet duplex fiber patch cable with LC connectors on both ends, 4 m length

Intellinet Network Solutions

Intellinet Network Solutions OM4 Multimode Duplex LC/LC 4 m Violet 50/125 µm BIMMF UPC

SKU CH-HX9J-GS9EM

4 m OM4 duplex LC/LC patch cord with bend-insensitive 50/125 µm fiber, UPC polish and Corning glass for 10/40/100 G Ethernet

  • TypeFiber
  • Connector ALC
  • Connector BLC
  • Length4 m
  • ColorViolet
  • ShieldedNo
  • OM4 multimode fiber supports 40G and 100G Ethernet speeds
  • UPC connectors provide improved return loss for reliable signal quality
  • Bend-insensitive design reduces attenuation when cables are twisted or bent
  • Corning ultra-pure glass fiber ensures low attenuation and high bandwidth
  • Each cable includes a test report verifying performance standards

4 m OM4 Duplex LC/LC Patch Cable

This violet 4 m duplex patch cable uses OM4 multimode fibre with 50/125 µm core/cladding and UPC-polished LC connectors on both ends. It is built for short to medium-range, high-speed links in enterprise networks, data centres and telecommunications rooms. Bend-insensitive multimode fibre reduces attenuation when routed around tight corners. Each unit ships with a factory test report.

Installation and Common Issues

The LC duplex connectors snap into standard SFP, SFP+ or QSFP transceivers without tools, and the 2.0 mm jacket is flexible enough for dense patch panels. UPC end-faces must be inspected and cleaned before mating; dirty or damaged ferrules are the main cause of excess insertion loss. Bend-insensitive fibre tolerates tighter routing, but sharp kinks should still be avoided to preserve the 40G and 100G performance envelope.

Compatibility Check Before Ordering

Verify that both ends of your link use LC duplex ports and that the active equipment supports OM4 multimode at the desired data rate. Confirm the required polarity (A-to-B or A-to-A) for your transceiver pair, as this cable is wired straight through. Ensure the OFNR jacket rating meets your local fire-code requirements for indoor riser runs.

Highlights

  • OM4 multimode fiber supports 40G and 100G Ethernet speeds
  • UPC connectors provide improved return loss for reliable signal quality
  • Bend-insensitive design reduces attenuation when cables are twisted or bent
  • Corning ultra-pure glass fiber ensures low attenuation and high bandwidth
  • Each cable includes a test report verifying performance standards

Specifications

BrandIntellinet Network Solutions
ModelOM4 Multimode Duplex
TypeFiber
Connector ALC
Connector BLC
Length4 m
ColorViolet
ShieldedNo
Features50/125 µm, Bend Insensitive Multimode Fiber (BIMMF), UPC

Questions about this item

How can I verify the 4 m LC-to-LC cable is performing correctly after installation?

Each cable ships with a factory test report showing measured attenuation and return loss for the OM4 50/125 µm BIMMF; compare those figures with your link budget to confirm the link is within spec.

What comes in the box and what must I purchase separately?

The package contains the 4 m violet duplex patch cord with LC/UPC connectors on both ends and the test report; transceivers, patch panels, cleaning tools and any mounting hardware are not included.

Which OM4 duplex length should I choose for a 40G Ethernet run inside a rack?

The 4 metre (13 ft) violet OM4 duplex assembly is rated for 40G and 100G Ethernet over short distances and its bend-insensitive 2.0 mm jacket eases routing in dense racks.
