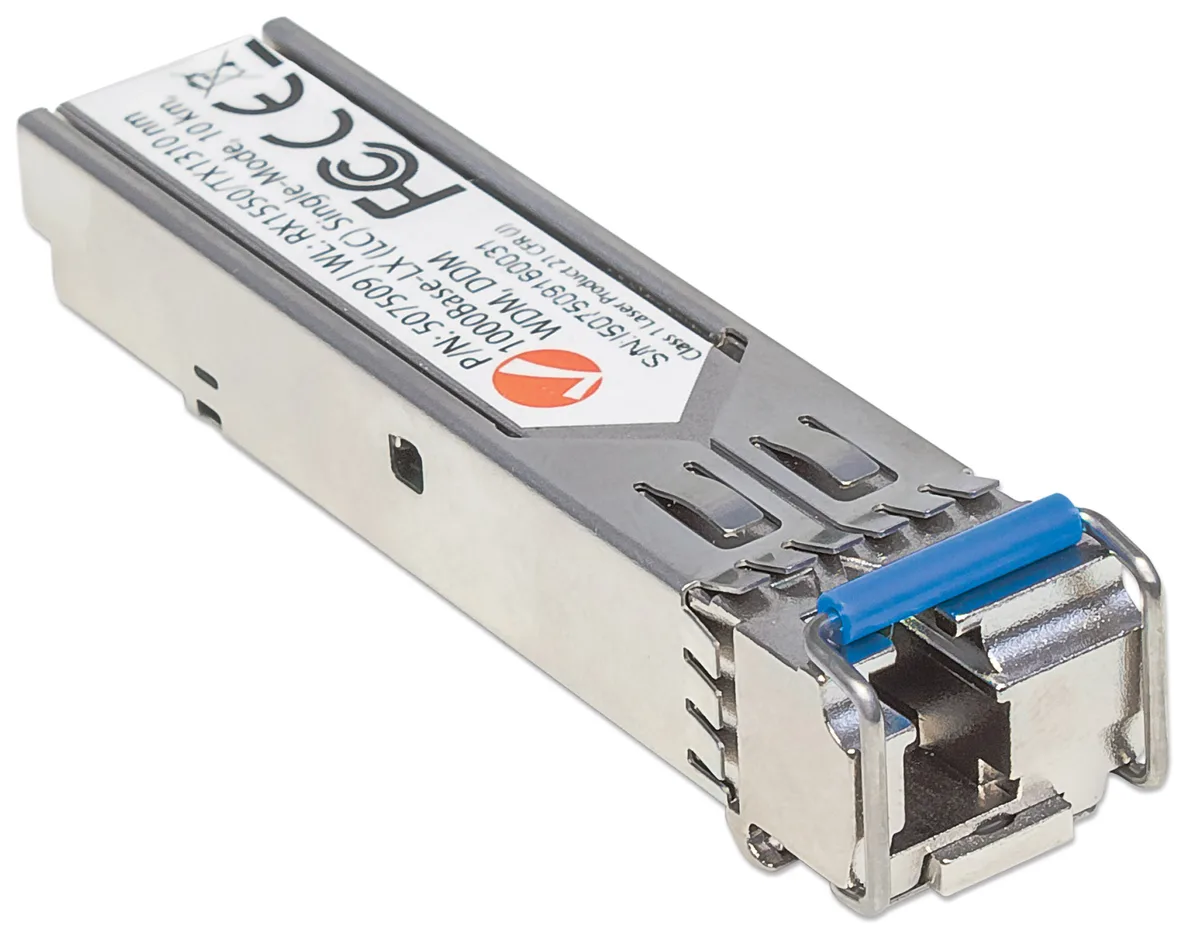

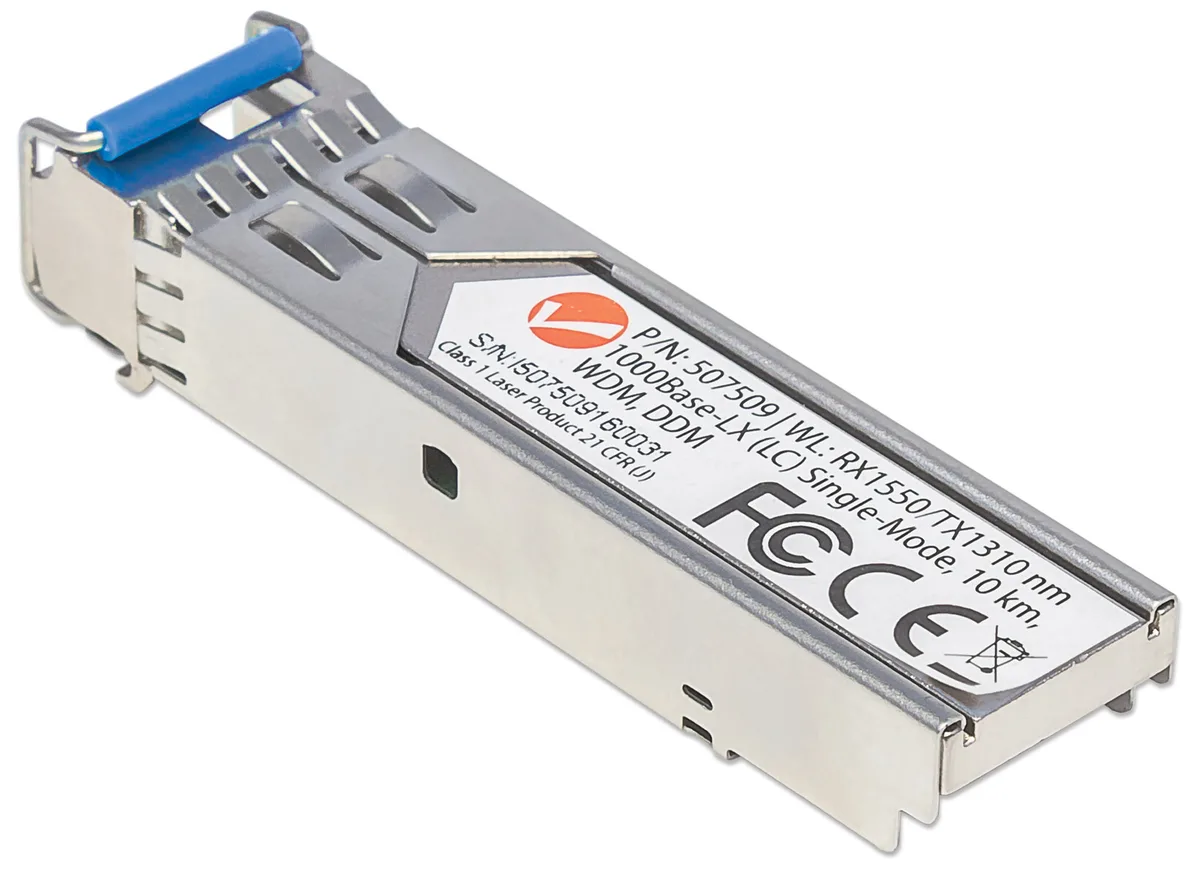

Small metal SFP transceiver module with LC port and label

Intellinet Network Solutions

Intellinet Network Solutions 507509 SFP transceiver 1000Base-LX 10 km RX 1550 TX 1310 server accessory

SKU CH-1WW1-CPBKW MPN 507509

Single-mode SFP transceiver delivers 1000 Mbps over one fibre strand up to 10 km (6.2 mi.) using RX 1550 nm and TX 1310 nm wavelengths

  • Single-strand fiber cuts cabling cost by half using WDM RX 1550 nm TX 1310 nm
  • Reaches 10 km (6.2 mi) on single-mode fiber at 1000 Mbps
  • Hot-pluggable SFP installs without switch reboot for continuous uptime
  • MSA and Cisco GLC-BX-U compliant works with Intellinet 507486 or Cisco GLC-BX-D
  • Metal housing reduces EMI and increases durability in dense cabinets

Single-strand gigabit fiber link

This bidirectional SFP transceiver carries 1000 Mbps over a single single-mode fiber up to 10 km. It receives at 1550 nm and transmits at 1310 nm through an LC connector. The module is hot-pluggable and built to the SFP MSA for broad switch compatibility.

For networks needing WDM pair deployment

Suits operators extending gigabit links over existing single-strand fiber where a matching opposite-wavelength module is already in place. Not for links that require dual-strand fiber, multi-mode cable, or distances beyond the rated 10 km reach.

Must pair with RX 1310 / TX 1550 module

This unit only works when the far end uses a transceiver with the complementary wavelengths — specifically the Intellinet 507486 or Cisco GLC-BX-D. Without that matched pair the link will not establish.

Highlights

  • Single-strand fiber cuts cabling cost by half using WDM RX 1550 nm TX 1310 nm
  • Reaches 10 km (6.2 mi) on single-mode fiber at 1000 Mbps
  • Hot-pluggable SFP installs without switch reboot for continuous uptime
  • MSA and Cisco GLC-BX-U compliant works with Intellinet 507486 or Cisco GLC-BX-D
  • Metal housing reduces EMI and increases durability in dense cabinets

Specifications

No published specifications for this item yet.

Questions about this item

Does the 507509 transceiver require any scheduled maintenance or cleaning of its LC port?

The LC single-mode port on the 507509 has no user-serviceable parts; keep the dust cap on when not cabled and clean the ferrule with a lint-free wipe and isopropyl alcohol before each insertion.

What is the first limit reached when the module runs at 1000 Mbps continuously over a 10 km link?

The optical link budget for 10 km at 1310 nm TX and 1550 nm RX is the primary constraint; signal attenuation beyond the rated distance will cause errors before any thermal or electrical limit appears.

How much heat does the 507509 generate inside a switch chassis during all-day operation?

The metal-housed SFP module dissipates low single-digit watts and relies on the host switch’s airflow; it adds negligible heat compared to the switch’s own ASICs and power supply.
