Intel X550-T2 dual-port 10GbE PCIe network card

Intel

Intel X550-T2 network card

SKU CH-RS3Z-FKK1N GTIN 735858307369

Dual-port 10GbE RJ45 adapter with PCIe 3.0 interface supporting Cat6 up to 55m and Cat6A up to 100m

  • InterfacePCIe v3.0 (8.0 GT/s)
  • Weight1
  • Autonegotiation supports 1GbE, 2.5GbE, 5GbE and 10GbE for smooth migration
  • RJ45 Category 6 reaches up to 55 metres for flexible deployment
  • Category 6A cabling extends reach to 100 metres for ToR architectures
  • PCIe v3.0 8.0 GT/s interface delivers high throughput for 10GbE workloads
  • Low-cost copper solution enables 10GbE using existing CAT6 and CAT6A infrastructure

Dual-port 10GbE adapter

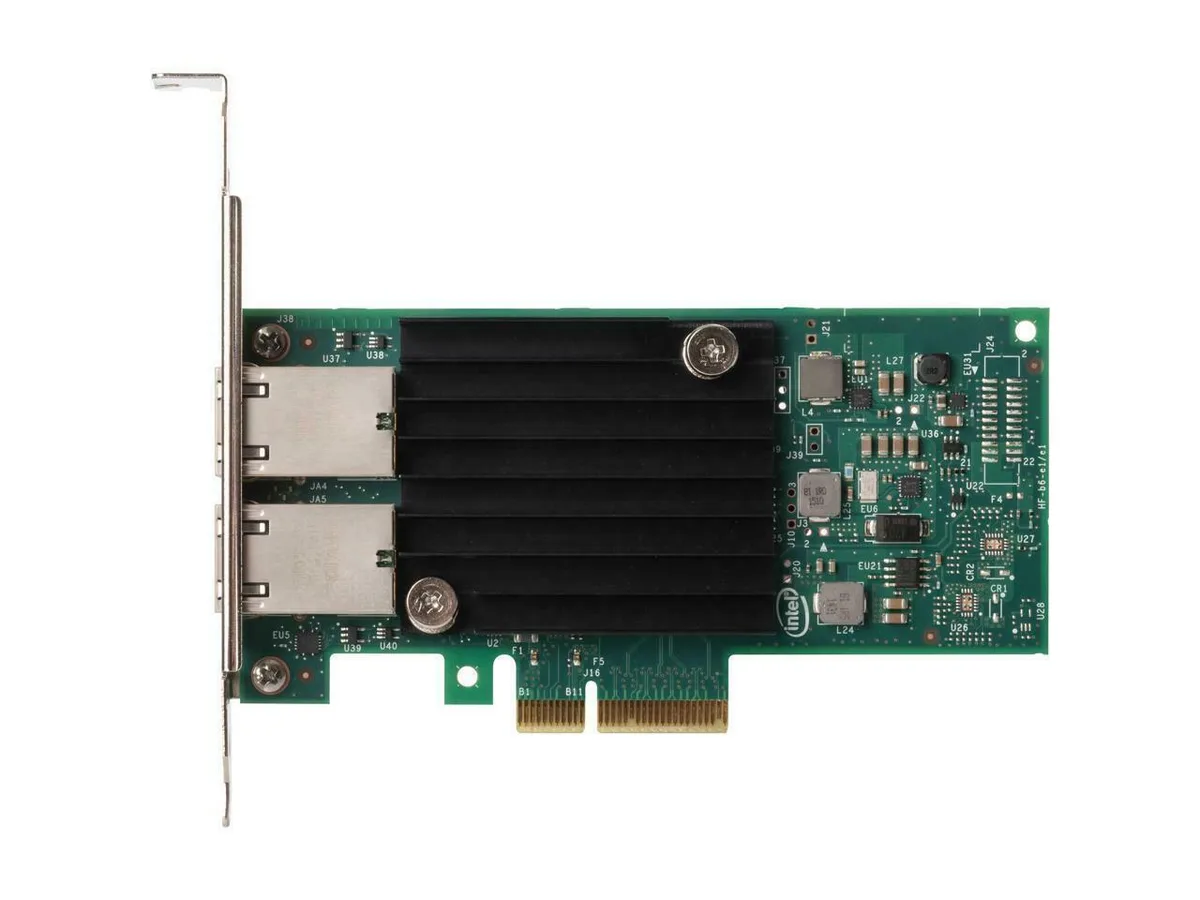

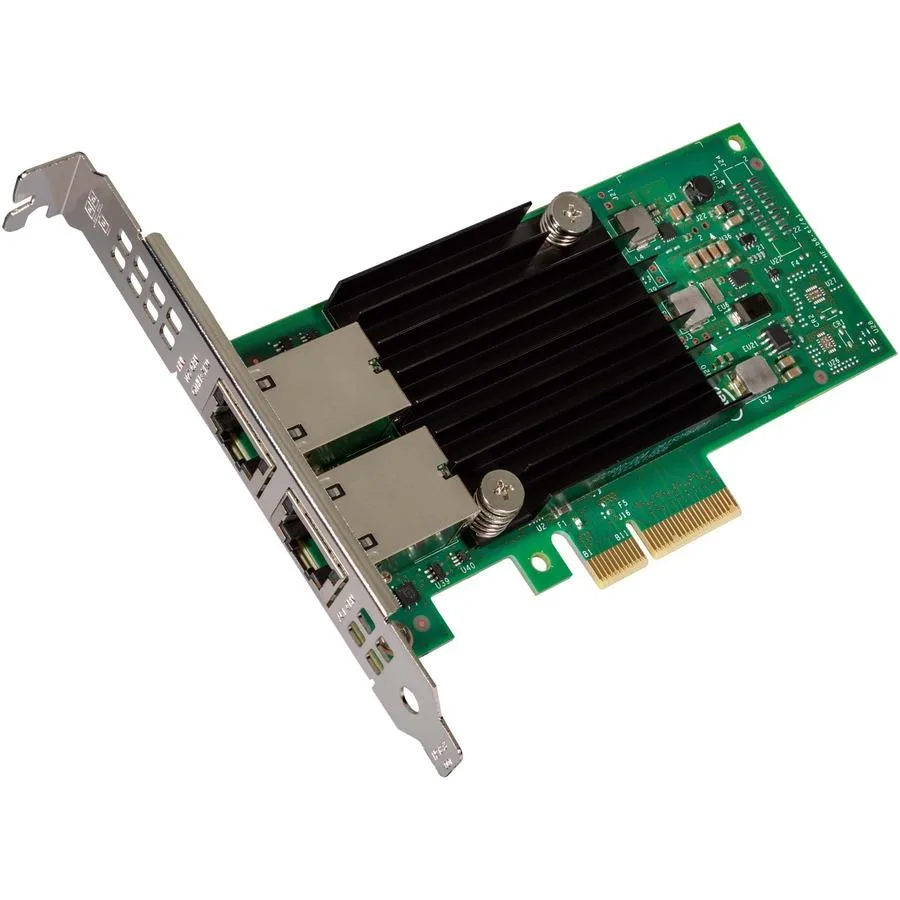

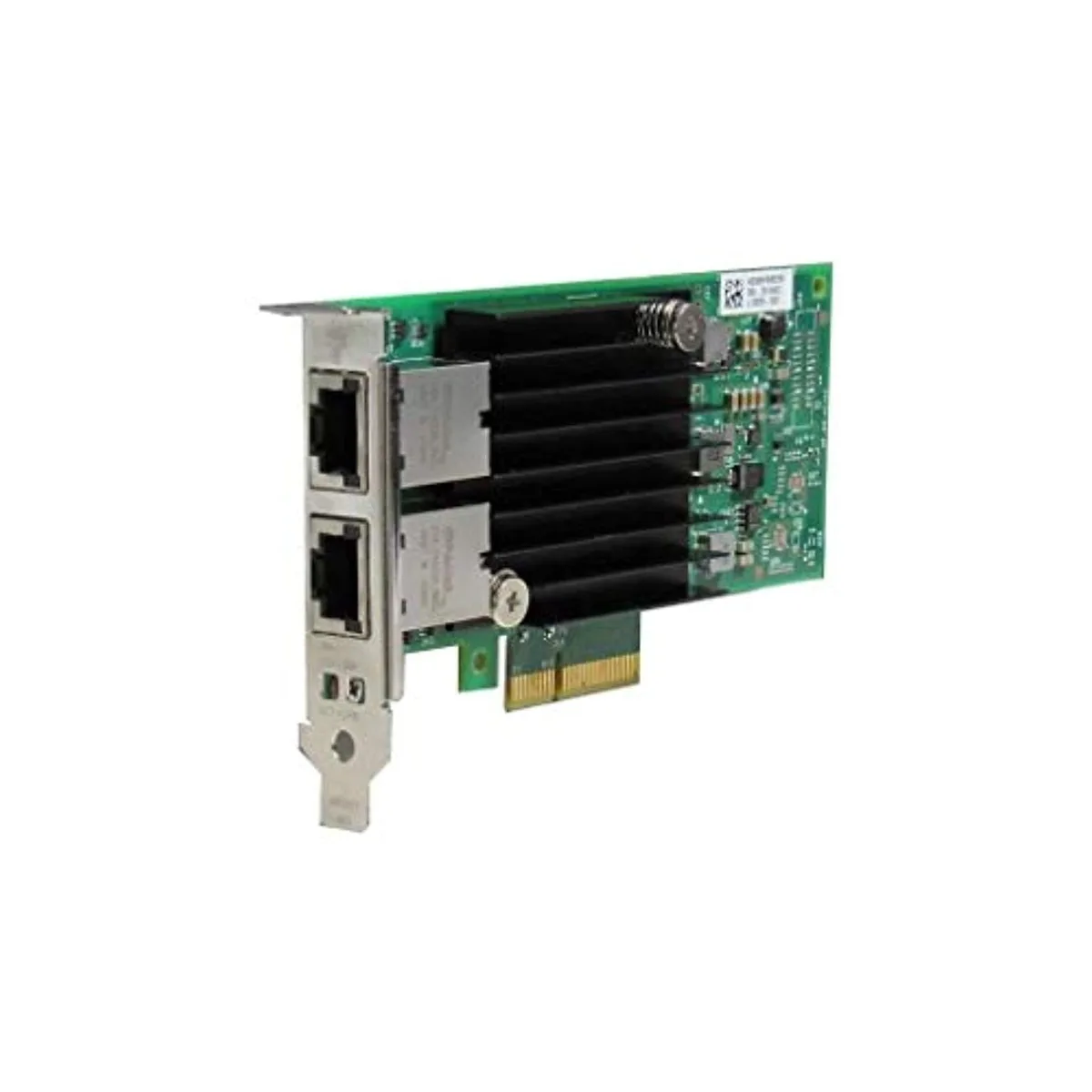

The Intel X550-T2 adds two RJ45 ports that autonegotiate between 1GbE, 2.5GbE, 5GbE and 10GbE. It targets servers and workstations that need copper 10GbE without replacing existing CAT6 or CAT6A runs. The card plugs into a PCIe 3.0 x8 slot and presents a standard Ethernet interface to the operating system. No optical transceivers or proprietary cabling are required.

Fits standard server builds

A single PCIe 3.0 lane group at 8.0 GT/s supplies the bandwidth both ports need at line rate. CAT6 cabling reaches 55 metres at 10GbE while CAT6A extends that to 100 metres, supporting ToR, MoR and EoR topologies. The adapter frees upstream switch ports by consolidating two 10GbE links into one add-in card. It works with existing copper patch panels and structured wiring plants.

Low-profile thermal design

The board draws modest power typical for a dual-port 10GbE controller and relies on chassis airflow across its heatsink. No onboard fan means acoustic output is limited to the system fans already present in rackmount or tower enclosures. Passive cooling keeps the adapter within spec in normal data-centre inlet temperatures. Power consumption scales with link speed and traffic load on the two ports.

Highlights

  • Autonegotiation supports 1GbE, 2.5GbE, 5GbE and 10GbE for smooth migration
  • RJ45 Category 6 reaches up to 55 metres for flexible deployment
  • Category 6A cabling extends reach to 100 metres for ToR architectures
  • PCIe v3.0 8.0 GT/s interface delivers high throughput for 10GbE workloads
  • Low-cost copper solution enables 10GbE using existing CAT6 and CAT6A infrastructure

Specifications

BrandIntel Corporation
ModelX550T2
Part NumberX550T2
InterfacePCIe v3.0 (8.0 GT/s)
Weight1
Shipping weight0.25 kg
Package size224 × 142 × 30 mm

Questions about this item

How far can the Intel X550-T2 reliably carry a 10GbE signal over Cat 6 cabling?

The adapter supports RJ45 Category 6 up to 55 metres for 10GbE links.

What is the typical power draw of the X550-T2 when running 10GbE continuously?

Intel rates the X550T2 at 10 watts typical power consumption under load.

Which PCIe slot generation and width does the X550-T2 require for full 10GbE throughput?

It needs a PCIe 3.0 x8 slot (8.0 GT/s) to deliver dual-port 10GbE line rate.
