Mini SAS HD SFF-8643 plug to four SATA connectors, 3.3 ft

HANNORD

HANNORD SFF-8643 to 4 SATA Cable 3.3 ft

SKU CH-VD1R-EMXJD

Connects a Mini SAS HD SFF-8643 host port on a controller or motherboard to four SATA drives with labeled breakout connectors and locking latches over 3.3 ft

  • TypeCable Connectors

Length 3.3 ft.

  • Connects RAID controller to four SATA drives via SFF-8643 host port
  • Supports 12 Gb raw SAS cable for high-throughput data access
  • Labeled breakout ends simplify cable management and drive identification
  • Locking connector latches ensure stable connection under vibration
  • 3 ft length fits typical chassis routing without excess slack

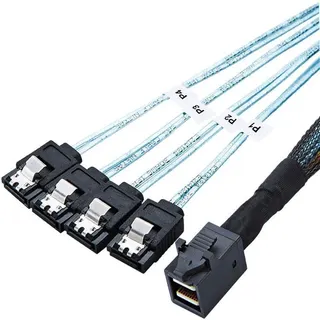

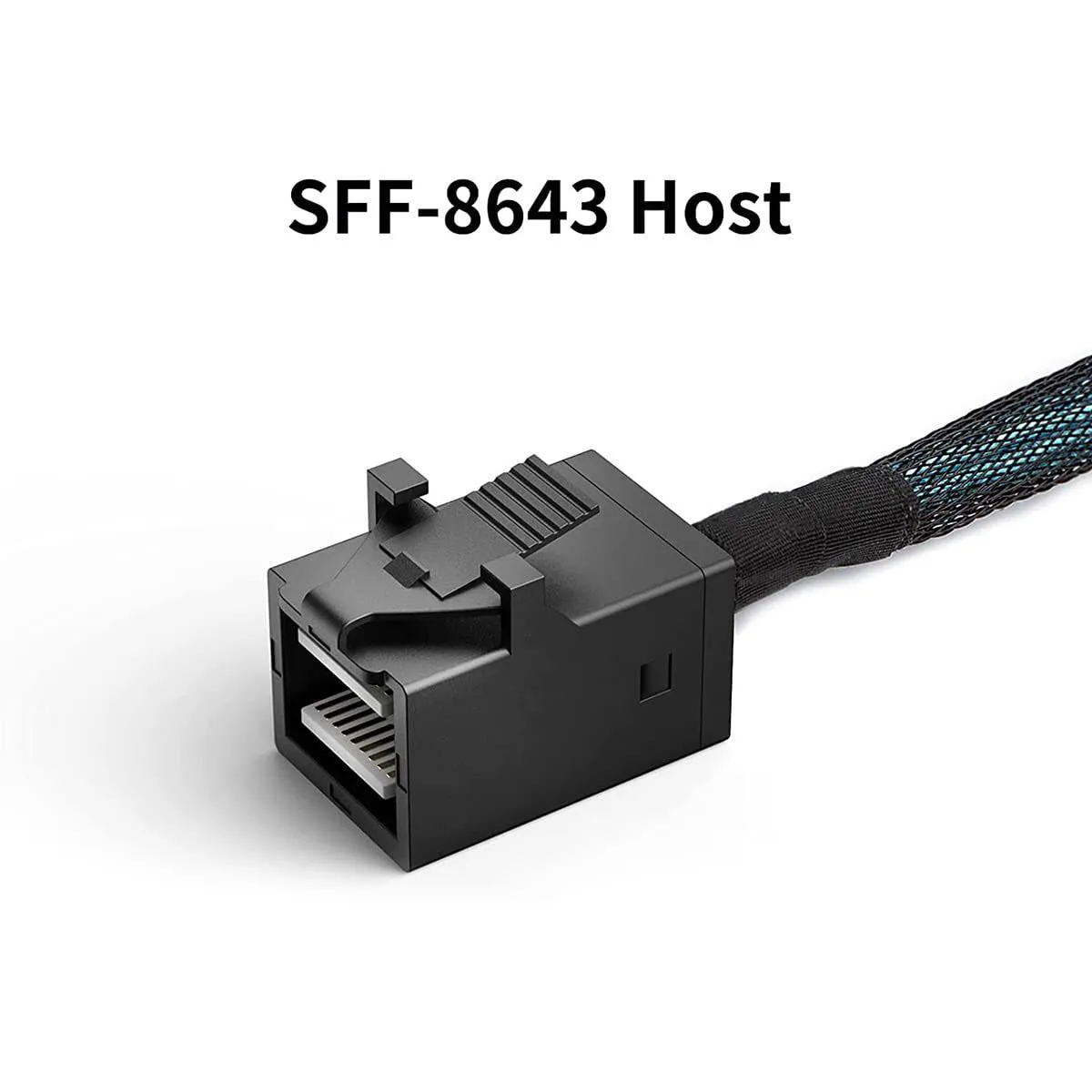

Host-side SFF-8643 breakout cable

This HANNORD cable connects a single SFF-8643 Mini SAS HD port on a motherboard or RAID controller to four SATA hard drives. The SFF-8643 end acts as the host interface while the four 7-pin SATA connectors serve as targets for storage devices. It is built for internal use in servers or workstations that need to expand drive capacity through a SAS controller.

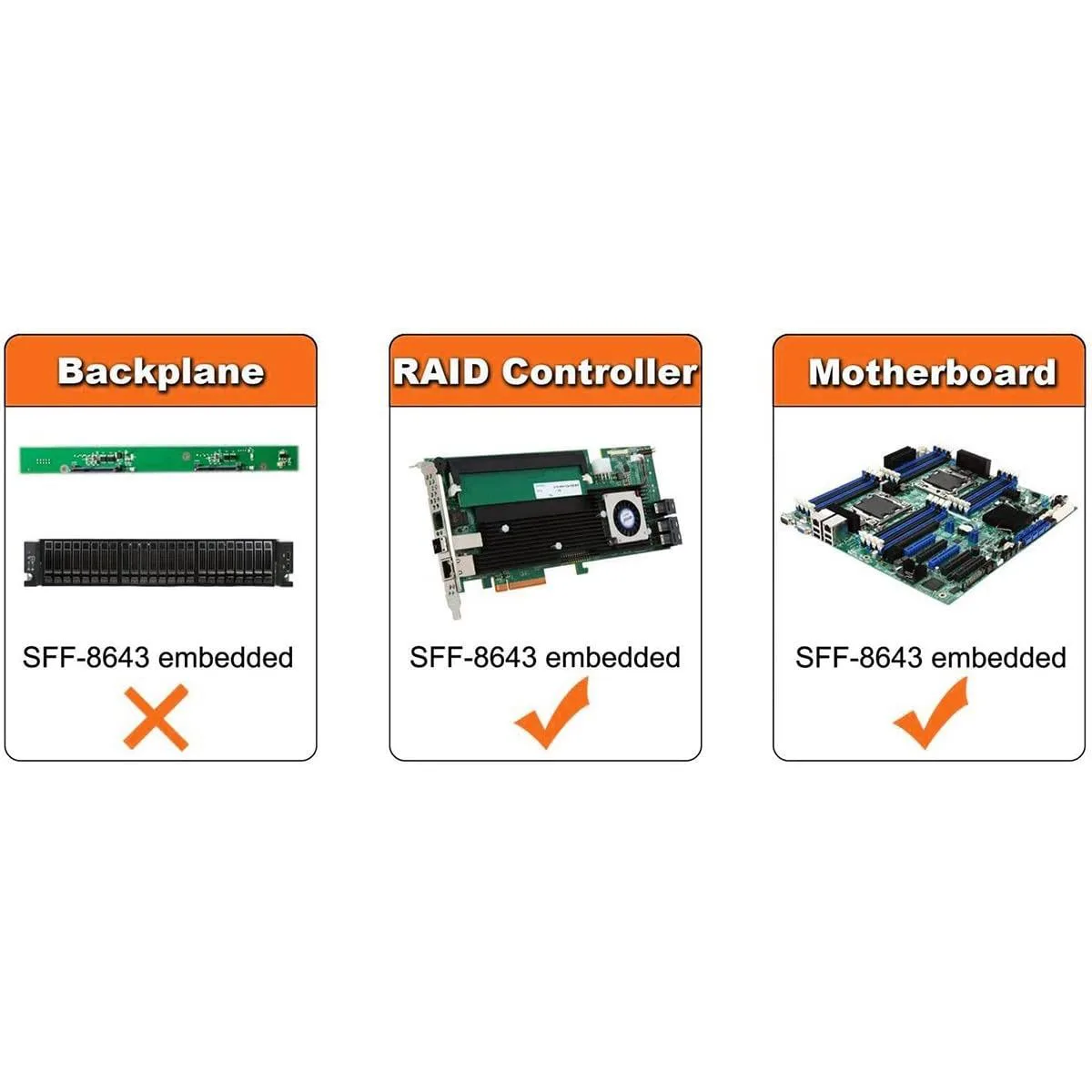

Connector orientation is the critical spec

The cable only works when the SFF-8643 port resides on the host side such as a controller or motherboard. If the SFF-8643 connector is located on a backplane instead, the cable will not function. Buyers must verify the port location before purchase because the pinout is not reversible.

Four SATA drives at 12 Gb/s raw link speed

Each of the four SATA targets supports SATA I, II and III drives and the assembly uses UL-listed 12 Gb raw SAS cable stock. Actual throughput depends on the connected controller and drives. The 3.3 ft length provides enough reach for typical chassis routing while the labeled breakout and locking latches simplify cable management.

Highlights

  • Connects RAID controller to four SATA drives via SFF-8643 host port
  • Supports 12 Gb raw SAS cable for high-throughput data access
  • Labeled breakout ends simplify cable management and drive identification
  • Locking connector latches ensure stable connection under vibration
  • 3 ft length fits typical chassis routing without excess slack

Specifications

BrandHANNORD
ModelSFF-8643 to 4 Sata
TypeCable Connectors

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 12 Gb raw SAS rating mean when the cable is installed in my system?

The 12 Gb raw SAS rating is the maximum signalling rate of the cable itself; actual throughput will be limited by the SAS controller and the SATA drives you attach.

Which interface standard does the SFF-8643 connector follow and what speed ceiling does it impose?

The SFF-8643 connector follows the SAS interface and supports up to 12 Gb raw SAS signalling; the SATA targets are compatible with SATA I and II drives.

What physical space and mounting features does the 3.3 ft breakout cable require?

The cable is 3.3 ft long with a compact SFF-8643 host connector that saves PCB space, four labelled SATA female connectors for drives, and locking latches on each end for secure mounting.
