GigaIPC QBiX-Lite-AMDA1605H-A1 barebone server, AMD Ryzen V1605B, 4 HDMI, 2 LAN
A compact barebones server with a 25 W quad-core AMD Ryzen Embedded V1605B processor, dual-channel DDR4 SO-DIMM slots up to 32 GB, four HDMI 2.0 outputs for 4096×2160 @ 60 Hz, dual 1 Gbps LAN.
- ColorBlack
- CPU TypeAMD Ryzen V1605B Embedded Processor 14nm, 4 cores, 8 threads
- Memory installedNo Memory
- Memory slot2 x 260Pin SO-DIMM
- Memory Type SupportedDDR4 2400
- Max Memory Supported32GB
- Four 4K displays driven by one compact system
- Dual gigabit LAN ports for redundant networking
- Embedded Ryzen V1605B delivers 4 cores at 25 W TDP
- Dual-channel DDR4 SO-DIMM slots support up to 32 GB
- M.2 and Mini PCIe slots accept Wi-Fi, LTE or storage add-ons
Embedded Ryzen V1605B barebone server

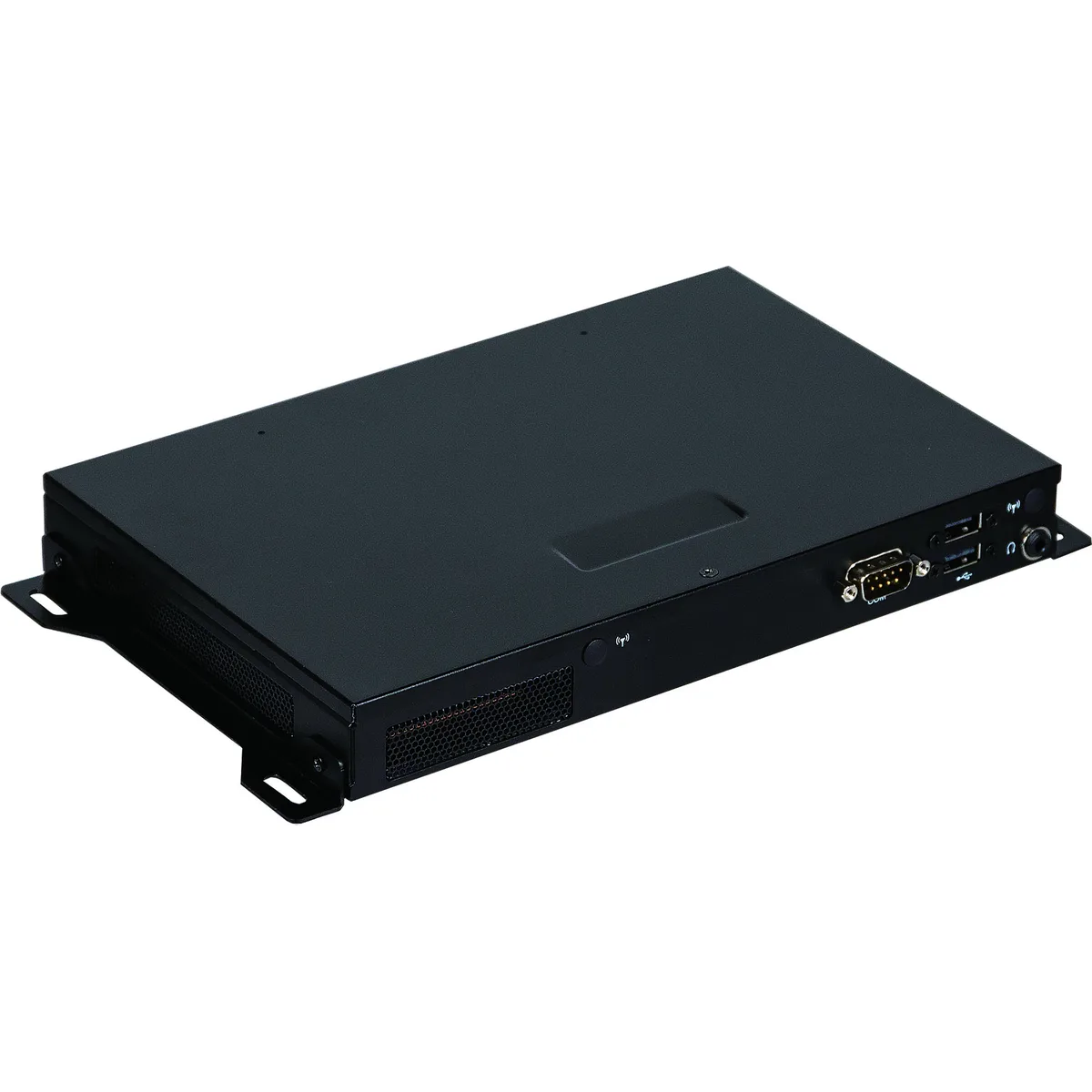

The GigaIPC QBiX-Lite-AMDA1605H-A1 is a fan-cooled barebone system built around an AMD Ryzen V1605B embedded processor with four cores and eight threads. It targets integrators deploying digital signage, thin-client fleets, or edge appliances that require quad-display output from a compact chassis. No memory or storage is included, so the builder chooses capacity to match the workload.
Sustained-load thermal behaviour
The processor operates at a 25 W TDP within an operating range of 0 to 50 °C and up to 90 % non-condensing humidity. Dual-channel DDR4 2400 SO-DIMM slots accept up to 32 GB, allowing memory bandwidth to scale with persistent compute tasks. An onboard fan dissipates heat continuously rather than relying on burst-only cooling, supporting steady throughput for video-wall or kiosk workloads.
Four independent HDMI 2.0 outputs
The defining specification is the quartet of HDMI 2.0 ports, each capable of 4096 x 2160 at 60 Hz with EDID emulation via the AMD driver. This makes the unit suitable only for installations that need four simultaneous displays from a single system; buyers requiring fewer outputs or a different video interface should select an alternative platform.
Highlights
- Four 4K displays driven by one compact system
- Dual gigabit LAN ports for redundant networking
- Embedded Ryzen V1605B delivers 4 cores at 25 W TDP
- Dual-channel DDR4 SO-DIMM slots support up to 32 GB
- M.2 and Mini PCIe slots accept Wi-Fi, LTE or storage add-ons
Specifications
| Brand | GIGAIPC |
|---|---|
| Model | QBiX-Lite-AMDA1605H-A1 |
| Color | Black |
| CPU Type | AMD Ryzen V1605B Embedded Processor 14nm, 4 cores, 8 threads, up to 3 6GHz, TDP 25W 2MB of shared L 2 plus 4MB of shared L3 total |
| Memory installed | No Memory |
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory Type Supported | DDR4 2400 |
| Max Memory Supported | 32GB |
| Dual Channel Memory Supported | Yes |
| Other | 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Storage Installed | No Hard Drive |
| M.2 Slot | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) |
| Integrated Graphics | *Suppport EDID emulation with AMD graphic driver/utility |
| Onboard Audio | Realtek Audio Codec |
| LAN | Realtek RTL8111HS |
| Max LAN Speed | Dual 1Gbps |
| 2.5" Internal Bays | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Front USB | 2 x USB 3.2 Gen 1 2 x USB 2.0 |
| Other Front Ports | 2 x RJ45 LAN Ports 4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz *Support EDID emulation with AMD Graphic driver/utility (4 independent display outputs) 1 x Power button with LED 1 x HDD LED 1 x Screw type DC Jack |
| Rear USB | 2 x USB 2.0 |
| Rear Audio Ports | 1 x Line out phone jack |
| Other Rear Ports | 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x Line out phone Jack |
| Power Supply | +9V~36VDC (Adapter 19V/65W) |
| Dimensions | 9.21" x 6.1" x 1.18" |
| Packaging | Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R PSU ADP 19V 65W 100-240VAC x 1 : 25EP1-100650-A3S |
| Shipping weight | 1.81 kg |
| Package size | 337 × 286 × 89 mm |
Questions about this item
How much heat does the 25W AMD Ryzen V1605B generate when the server runs continuously?
The embedded processor has a 25W TDP and the chassis uses a fan design to dissipate heat during 24/7 operation.
Which DDR4 SO-DIMM modules must I supply to reach the 32GB maximum?
You need two 260-pin DDR4 2400 SO-DIMMs; the board supports dual-channel up to 32GB total.
Will the four HDMI 2.0 ports drive 4K displays alongside my older 1080p monitors?
Each HDMI 2.0 output supports up to 4096x2160 at 60Hz and EDID emulation lets mixed-resolution displays work simultaneously.
