GIGABYTE S472-Z30 4U rackmount barebone server, 50-bay, DDR4-3200, 16 DIMM, dual 1600W PSU
4U rackmount storage barebone with 50 hot-swap bays, 16 DDR4-3200 slots, dual 1600W 80 PLUS Platinum PSUs, and SP3 socket for AMD EPYC 7003 or 7002 CPUs
- Form Factor4U Rackmount
- WorkloadStorage Server
- CPU TypeSupports AMD EPYC 7003 processors with AMD 3D V-Cache Techno
- CPU SocketSocket SP3
- Installed CPUNo CPU Installed
- Max Processors1
- Supports AMD EPYC 7003 and 7002 series processors for flexible CPU choice
- 16 DDR4-3200 memory slots enable up to 4 TB capacity
- 50 hot-swap bays accommodate 3.5", 2.5" SATA, SAS and NVMe drives
- Dual 1600 W 80 PLUS Platinum PSUs deliver redundant power
- PCIe 4.0 x16 slots plus 2 M.2 slots provide high-speed expansion
50-Bay Storage Server Barebone

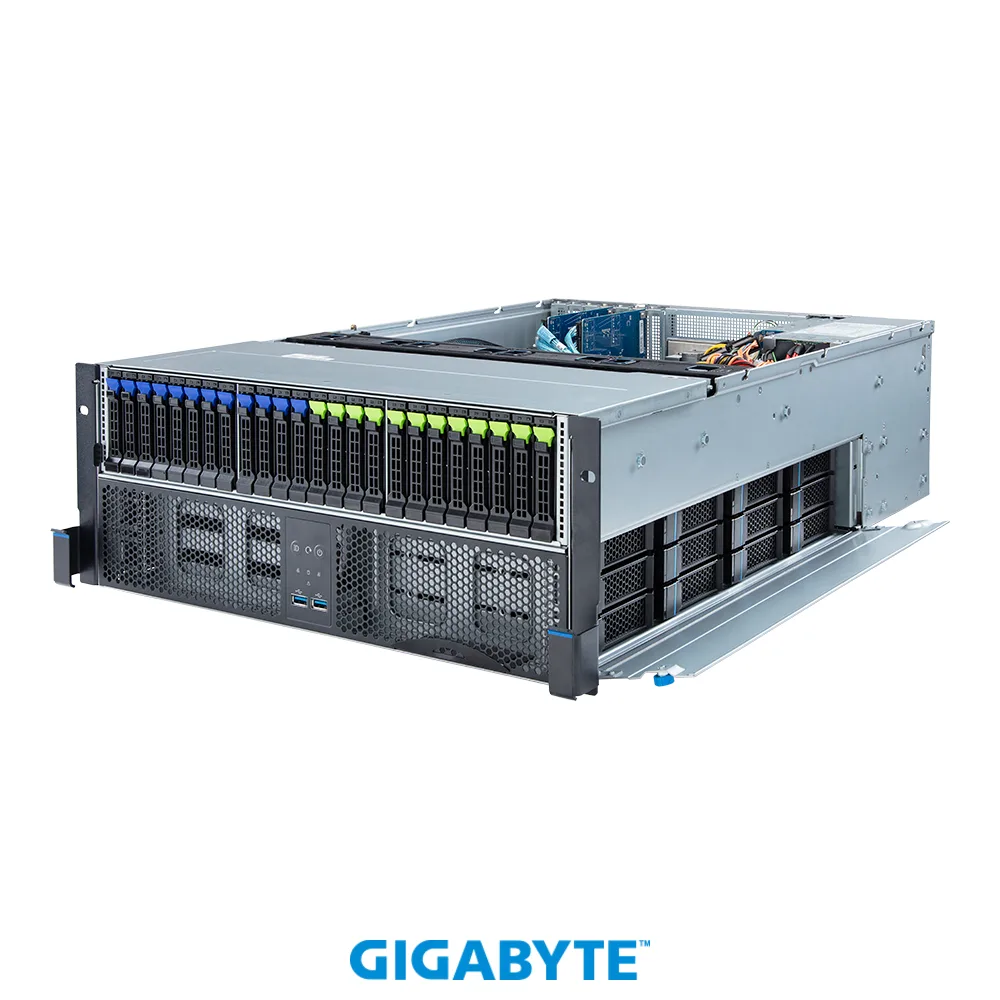

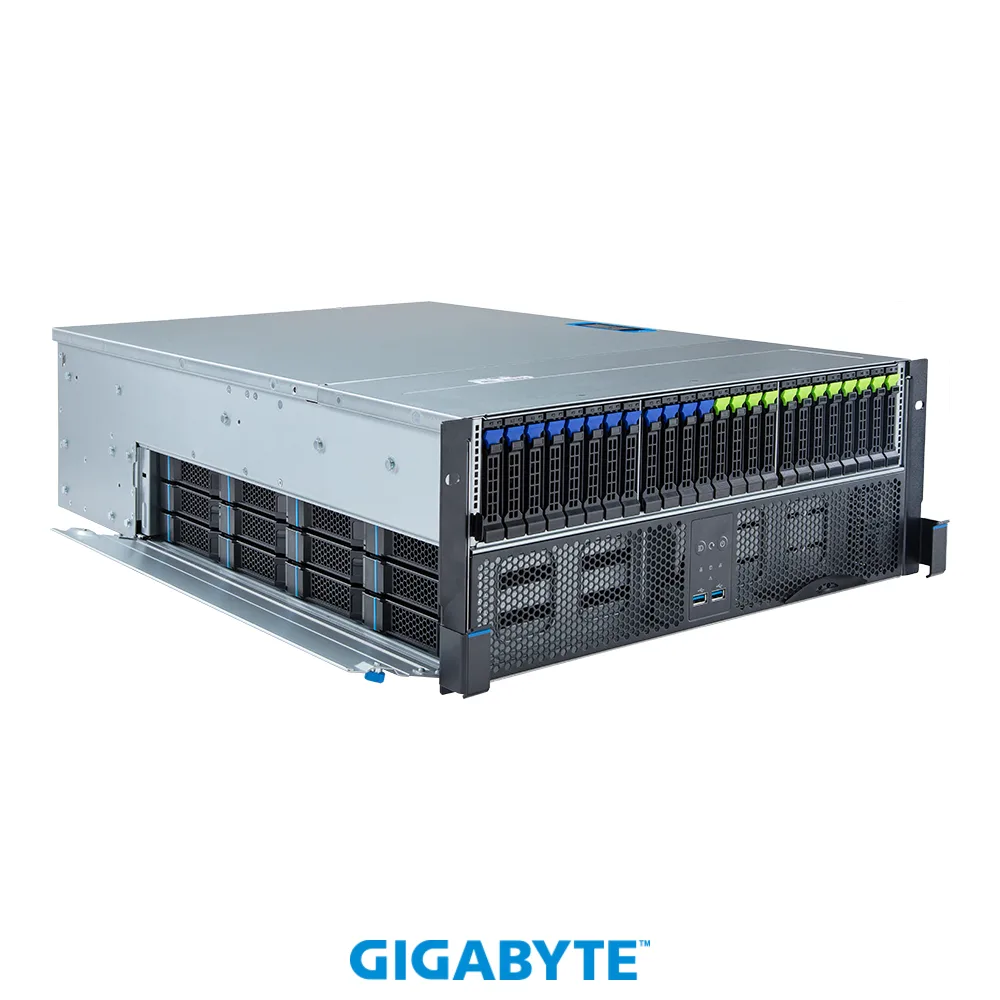

The GIGABYTE S472-Z30 is a 4U rackmount barebone designed for storage-heavy workloads. It supports a single AMD EPYC 7003 or 7002 series processor in an SP3 socket and provides sixteen DDR4-3200 memory slots across eight channels. Two 1600W 80 PLUS Platinum power supplies deliver redundant power. The chassis fits up to fifty hot-swap drives across 3.5-inch and 2.5-inch bays with SATA, SAS and NVMe support.
Suited For High-Density Storage.
This platform suits builders who need maximum drive count in a single-socket 4U form factor. It is not for buyers who require dual-processor scaling, additional PCIe expansion beyond the provided NVMe HBA slots, or integrated networking beyond 1 Gigabit Ethernet. The Aspeed AST2500 provides basic display output only, so GPU compute workloads are not supported.
Single Socket SP3 With One Processor Limit
The board accepts exactly one AMD EPYC processor in the SP3 socket, capping the system at sixty-four cores and 128 PCIe 4.0 lanes from that single CPU. Memory capacity reaches four terabytes across the sixteen DIMM slots. All fifty drive bays and both M.2 slots share the CPU's lane budget, so storage density is the defining constraint.
Highlights
- Supports AMD EPYC 7003 and 7002 series processors for flexible CPU choice
- 16 DDR4-3200 memory slots enable up to 4 TB capacity
- 50 hot-swap bays accommodate 3.5", 2.5" SATA, SAS and NVMe drives
- Dual 1600 W 80 PLUS Platinum PSUs deliver redundant power
- PCIe 4.0 x16 slots plus 2 M.2 slots provide high-speed expansion
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | S472-Z30 |
| Form Factor | 4U Rackmount |
| Workload | Storage Server |
| CPU Type | Supports AMD EPYC 7003 processors with AMD 3D V-Cache Technology Supports AMD EPYC 7003 series processor family Compatible with AMD EPYC 7002 series processor family |
| CPU Socket | Socket SP3 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| Memory Slots | 16 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR4 3200 |
| Channel Supported | 8 Channel |
| Installed HDD | No Storage Installed |
| M.2 | 2 x M.2 slots: - M-key - PCIe Gen4 x4 - Supports NGFF-2242/2260/2280 cards |
| GPU/VPU | Aspeed AST2500 |
| PCI Express | Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, occupied by CNV3134, 4 x Gen4 NVMe HBA Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot occupied by CNV3134, 4 x Gen4 NVMe HBA Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4) |
| First LAN | Intel I350-AM2 |
| Max. LAN Speed | 1 Gigabit |

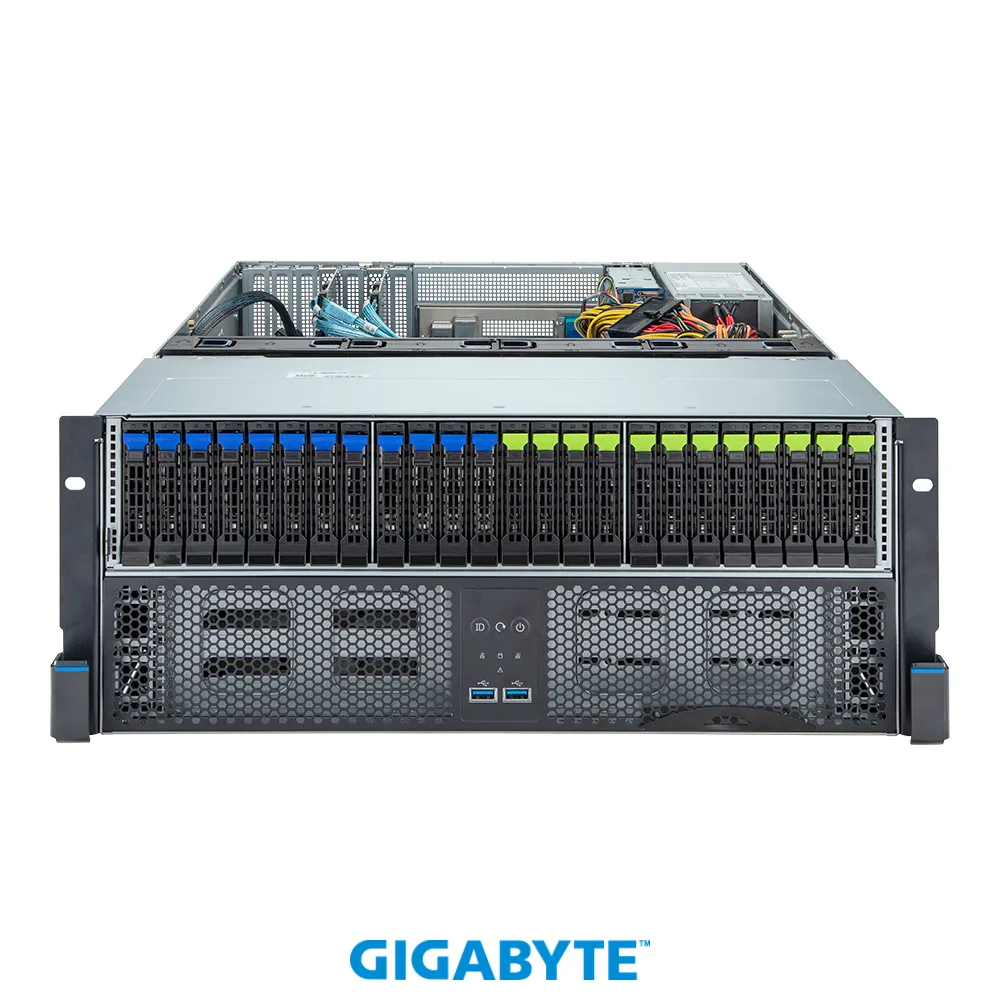

| Hot-Swap Bays | 24 x 3.5" SATA/SAS hot-swap HDD/ SSD bays (right side & left side) 24 x 2.5" SATA/SAS/NVMe hot-swap SSD bays (front side) - 12 x 2.5" SATA/SAS hot-swap SSD bays - 4 x 2.5" SATA/SAS/NVMe hybrid hot-swap SSD bays - 8 x 2.5" NVMe hot-swap SSD bays 2 x 2.5" SATA hot-swap SSD bays (rear side) |
| Front USB | 2 x USB 3.0 |
| COM | 1 |
| VGA | 1 |
| Rear USB | 3 x USB 3.0 |
| RJ45 | 2 x RJ45 1 x MLAN |
| Other Ports | Internal I/O 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x M.2 slots 2 x CPU fan headers 5 x System fan headers 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer |
| Max. Power | 2 x 1600W redundant PSUs, 80 PLUS Platinum |
| System Compatibility | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 8.3 ( x64) or later Red Hat Enterprise Linux 9 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 22.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 18.98" x 6.89" x 27.43" |
| Shipping weight | 32.66 kg |
| Package size | 991 × 686 × 330 mm |
Questions about this item
Should I choose the 24-bay 3.5-inch side configuration or the 24-bay 2.5-inch front configuration for maximum capacity?
The chassis provides 50 hot-swap bays total: 24 x 3.5-inch SATA/SAS bays on the sides and 26 x 2.5-inch bays at the front (12 SATA/SAS plus 4 hybrid plus 8 NVMe/SATA/SAS and 2 M.2 slots).
What does the 128 PCIe 4.0 lanes figure mean once the server is built?
A single AMD EPYC 7003 processor delivers up to 128 PCIe 4.0 lanes, feeding the 4 x Gen4 NVMe HBA cards in slots 4 and 6, the x16 slot 5 at x8, the 2 x M.2 PCIe 4.0 x4 slots and the Aspeed AST2500 BMC.
Which interface standard caps the 2.5-inch front bays in practice?
The front bays support SATA, SAS and NVMe; the 4 hybrid bays and 8 NVMe/SATA/SAS bays run at PCIe 4.0 x4 per drive, while the 12 standard 2.5-inch bays are limited to SATA/SAS speeds.
