GIGABYTE S453-S70-AAV1 barebone server 4U 36-bay dual Xeon

4U 36-bay storage server for dense data workloads

This GIGABYTE S453-S70-AAV1 barebones chassis targets organisations that need maximum drive density in a standard rack footprint. It accepts two 4th or 5th generation Intel Xeon Scalable processors and up to 1.5 TB of DDR5 RDIMM across 16 slots. The platform suits backup, archive and software-defined storage clusters where capacity per rack unit is the primary design constraint.

Hot-swap bays front and rear plus dual 10 GbE

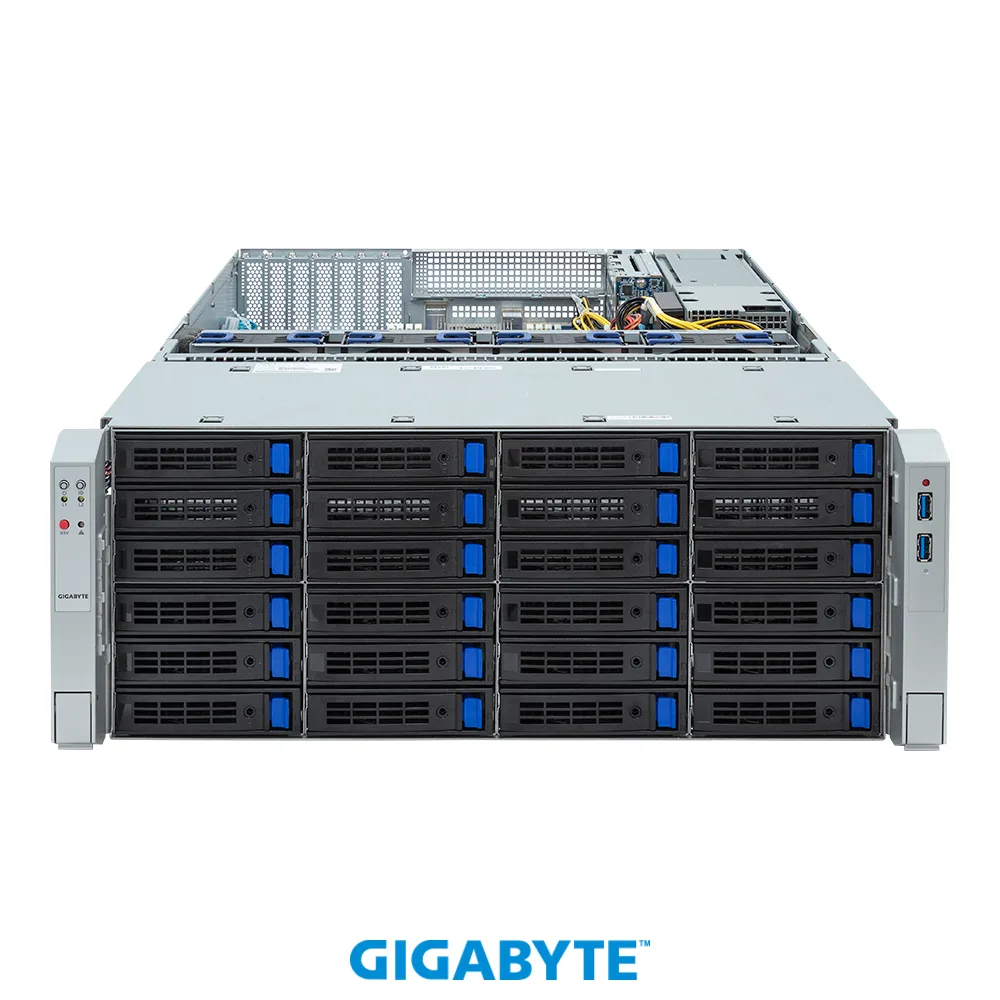

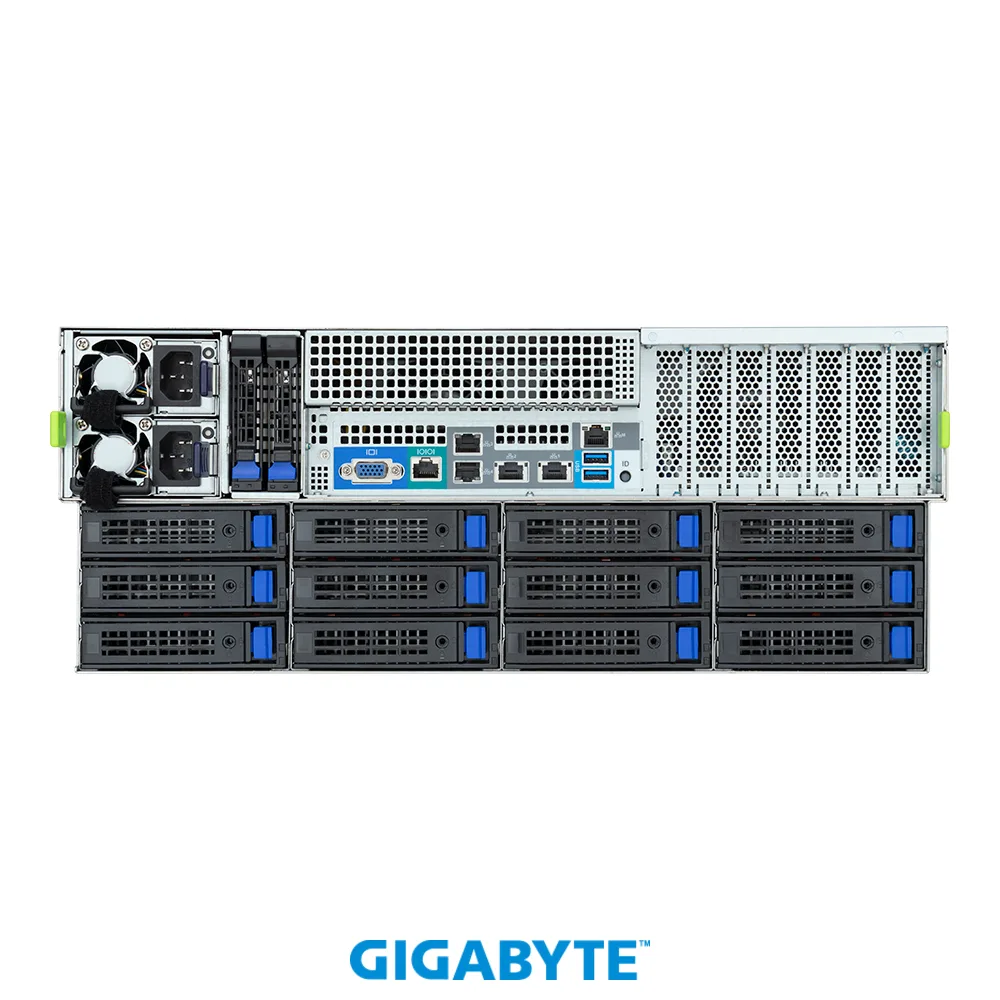

Twenty-four 3.5 or 2.5 inch SATA/SAS bays sit behind the front door and twelve more line the rear, all served by a 12 Gb/s SAS expander for simultaneous drive activity. Two additional 2.5 inch rear bays handle boot devices without consuming front capacity. Dual 10 Gb/s ports from an Intel X710-AT2 and dual 1 Gb/s ports from an Intel I210-AT give flexible network segmentation. Six low-profile PCIe Gen5 x16 slots and two M.2 M-key slots fed from CPU 0 leave room for HBAs, NICs or accelerators.

Dual 270 W CPU headroom in a 4U airflow path

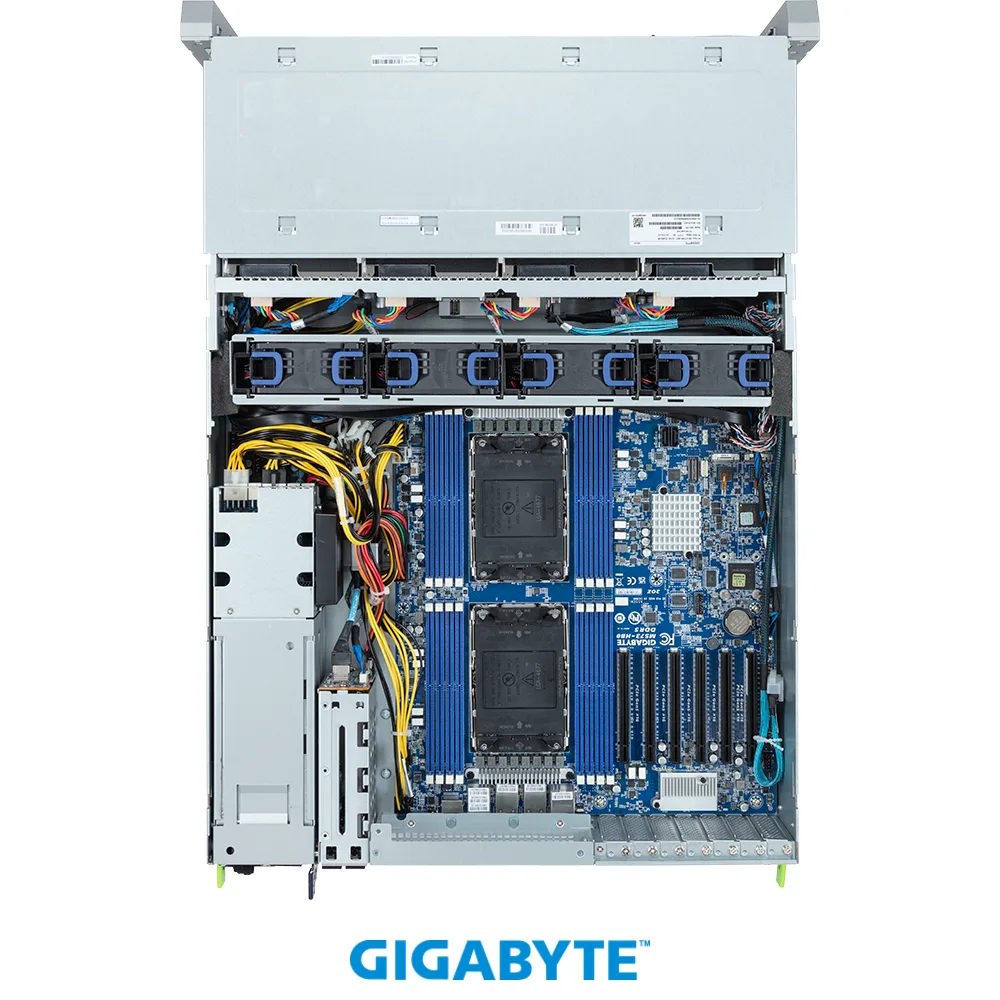

The board and chassis are rated for processors up to 270 W each, so the cooling subsystem must move significant heat through the 4U enclosure when both sockets are populated. Eight-channel memory per socket adds further thermal load under sustained compute. Builders should plan fan curves and rack airflow to match the chosen CPU SKUs, as the barebones unit ships without processors, memory or storage installed.
