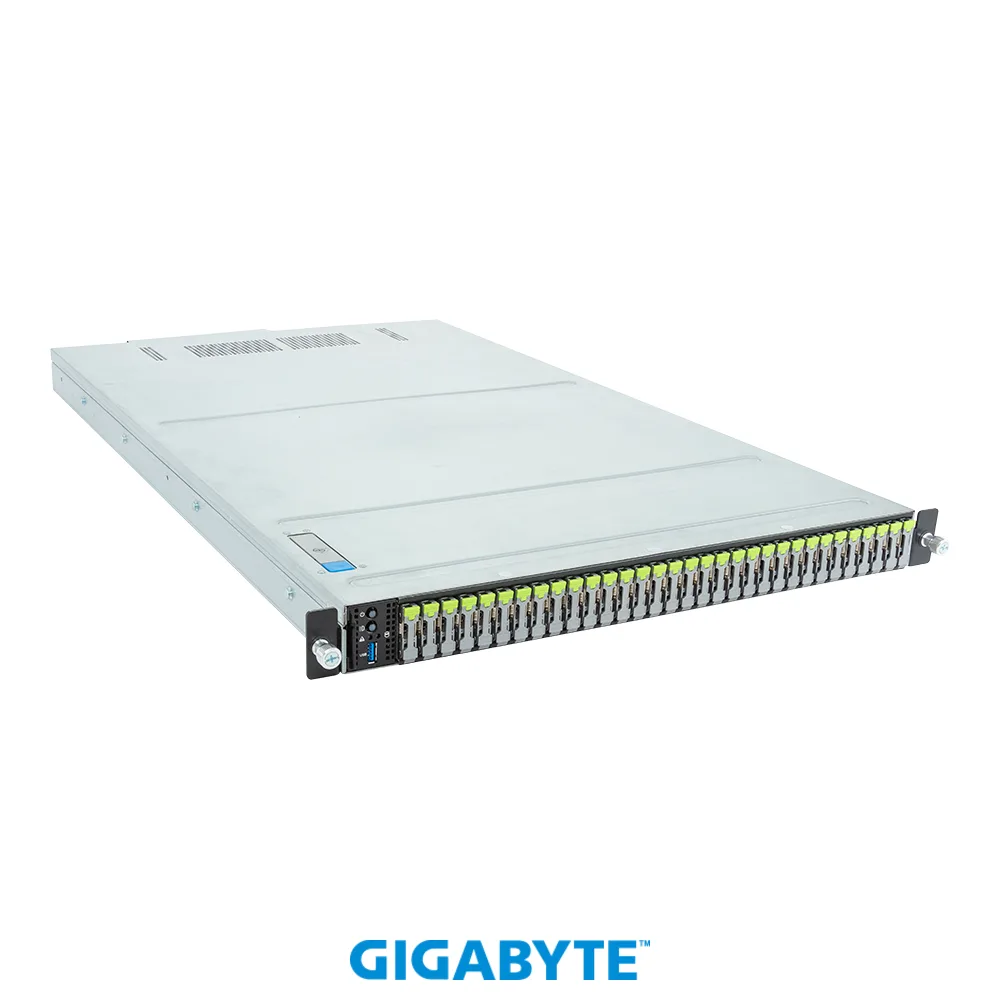

GIGABYTE S183-SH0-AAJ1 barebone server 1U 32-bay E1.S NVMe 2000W
1U rackmount barebone supports dual Xeon Scalable or Max Series CPUs with 32 E1.S NVMe hot-swap bays and 2000W power
- Form Factor1U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeSupports 4th/5th Intel Xeon Scalable and Intel Xeon CPU Max
- CPU SocketLGA 4677
- Installed CPUNo CPU Installed
- Max Processors2
- Dual 4th/5th Gen Xeon scalable processors supported
- 32 E1.S NVMe hot-swap bays in 1U
- 32 DDR5 RDIMM slots across 8 channels
- 3 FHHL PCIe Gen5 x16/x8 expansion slots
- 2000W redundant power supply included
1U 32-Bay E1.S NVMe Storage Server
The GIGABYTE S183-SH0-AAJ1 is a 1U rackmount barebone designed for dense NVMe storage workloads. It accommodates dual LGA 4677 processors from the supported Intel Xeon families. The platform targets deployments that prioritise high drive count in minimal rack space.
Capacity and Headroom

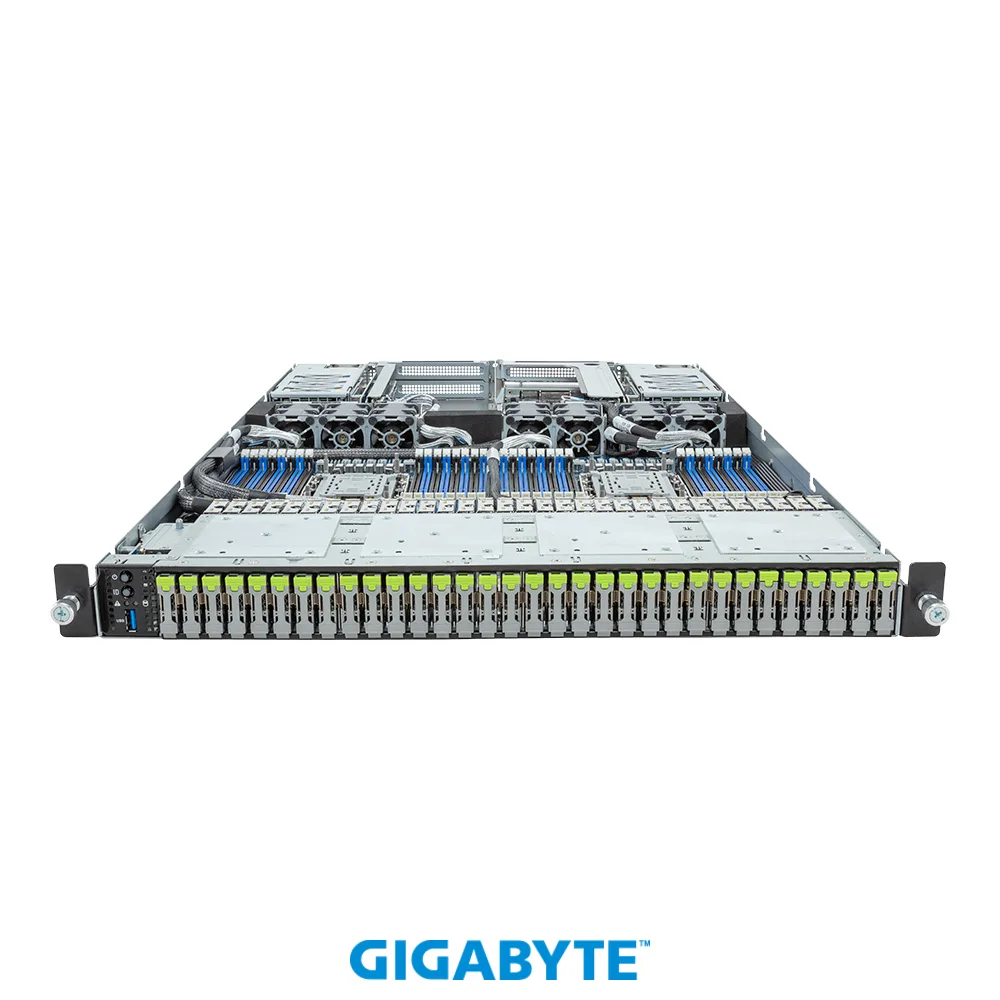

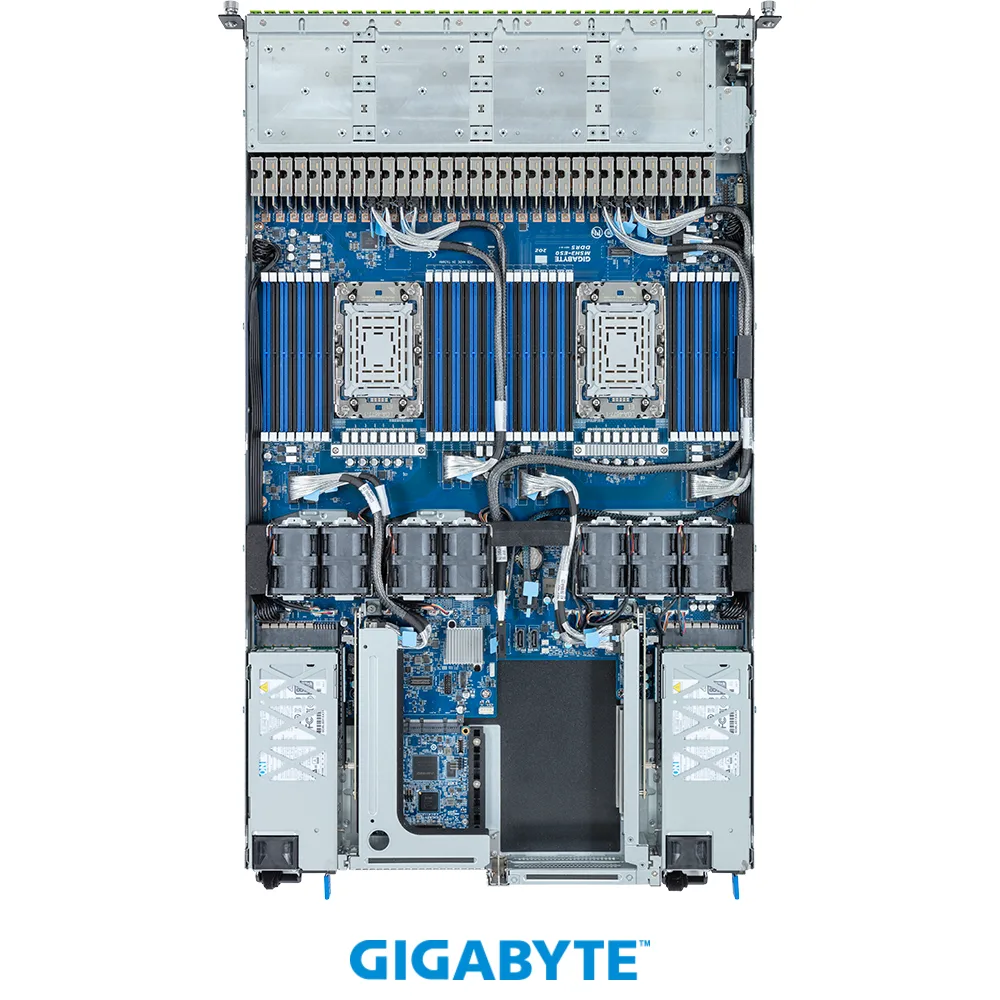

Thirty-two hot-swap E1.S bays provide the primary storage tier with direct NVMe connectivity. Two internal M.2 slots accept 2280 or 22110 modules using PCIe Gen3 x4 or SATA interfaces. Memory capacity scales across 32 DDR5 RDIMM slots operating in eight channels per processor. Three full-height PCIe Gen5 expansion slots add further I/O flexibility for networking or acceleration cards. Builders needing 2.5-inch or 3.5-inch drive support must look elsewhere as the chassis only accepts E1.S form factor devices.
Thermals Noise and Power
A 2000W redundant power supply delivers power to both CPUs, all memory slots and the full complement of NVMe drives. The 1U height constrains airflow to high-velocity fans that move air front-to-back across the drive cage and processor heatsinks. Under typical storage workloads the fans run at elevated speeds to maintain thermal limits for the dense drive population. Acoustic output reflects the small form factor and high airflow requirement.
Highlights
- Dual 4th/5th Gen Xeon scalable processors supported
- 32 E1.S NVMe hot-swap bays in 1U
- 32 DDR5 RDIMM slots across 8 channels
- 3 FHHL PCIe Gen5 x16/x8 expansion slots
- 2000W redundant power supply included
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | S183-SH0-AAJ1 |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Supports 4th/5th Intel Xeon Scalable and Intel Xeon CPU Max Series Processors |
| CPU Socket | LGA 4677 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| North Bridge | Intel C741 |
| Memory Slots | 32 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | 5th Gen Intel Xeon: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel Xeon: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel Xeon Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Channel Supported | 8 Channel |
| Registered | Yes |
| Installed HDD | No Storage Installed |
| SATA RAID | RAID 0/1/5/6/10 |
| M.2 | Internal M.2 (CMTP0C0): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH Internal M.2 (CMTP0C1): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH |
| PCI Express | 3 x FHHL PCIe Gen5 x16 and x8 slots |
| First LAN | Intel I350-AM2 |
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | Front hot-swap: 32 x 9.5mm E1.S NVMe - (16 x NVMe from CPU_0, 16 x NVMe from CPU_1) |
| LEDs | 1 x Power button with LED 1 x ID button with LED 1 x Storage activity LED 1 x System status LED |
| Front USB | 1 x USB 3.2 Gen1 port (Type-A) |
| DisplayPort | 1 x Mini DisplayPort |

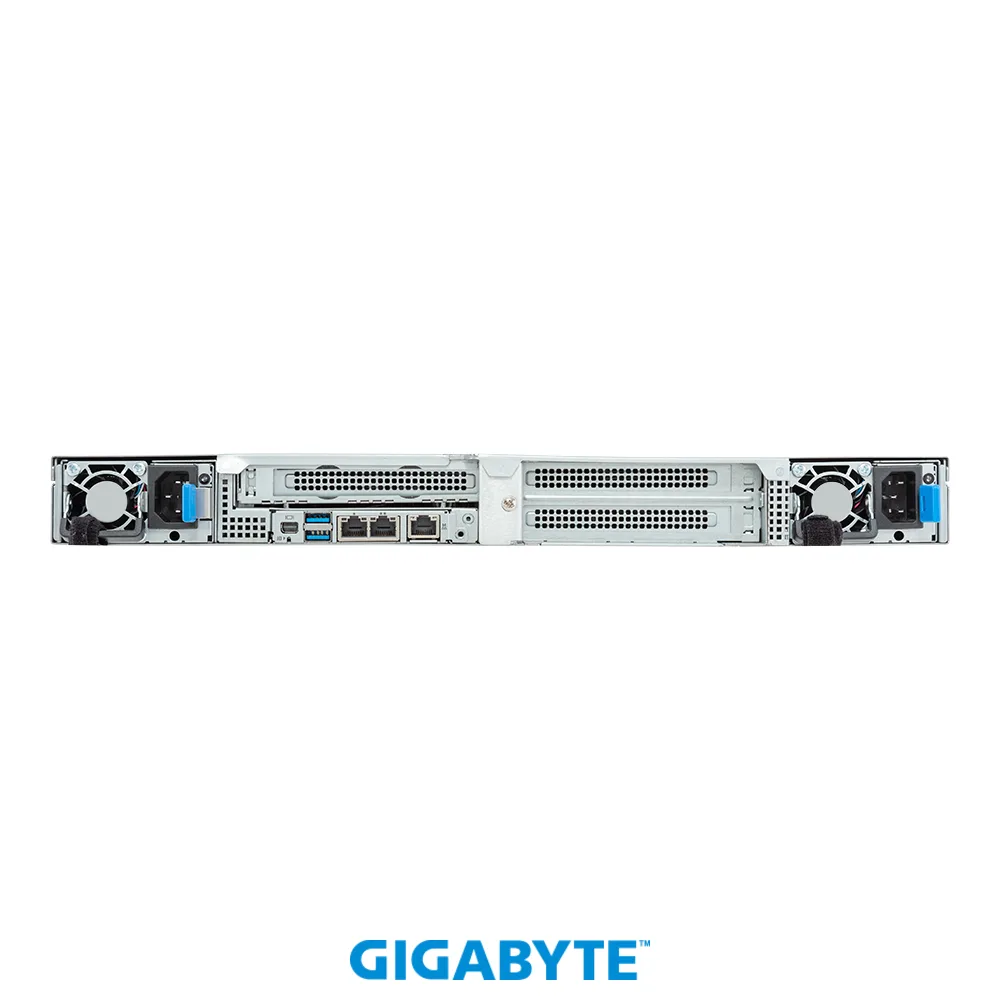

| Rear USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| RJ45 | 2 |
| Max. Power | 1+1 2000W 80 PLUS Titanium redundant power supplies |
| Fans | 7 x 40x40x56mm (32,000rpm) |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 1.71" x 17.24" x 28.74 |
| Package Contents | 1 x S183-SH0-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit |
| Shipping weight | 30.00 kg |
| Package size | 985 × 588 × 250 mm |
Questions about this item
Will the 32 E1.S NVMe bays work with my existing PCIe Gen3 NVMe drives?
The 32 E1.S bays provide PCIe Gen5 x4 lanes each; Gen3 drives will operate at Gen3 speeds without configuration changes.
How can I verify the dual 1 Gb/s LAN ports from the Intel I350-AM2 are active after first boot?
Check the front-panel link/activity LEDs and confirm two 1 Gb/s interfaces appear in the OS network manager or BIOS hardware inventory.
Which components ship inside the 1U chassis and which must I source separately?
The barebone includes the chassis, motherboard with C741 chipset, 2000 W power supplies, 32 E1.S backplanes, two M.2 slots and three FHHL PCIe Gen5 slots; CPUs, DDR5 RDIMMs and all storage drives are not included.
