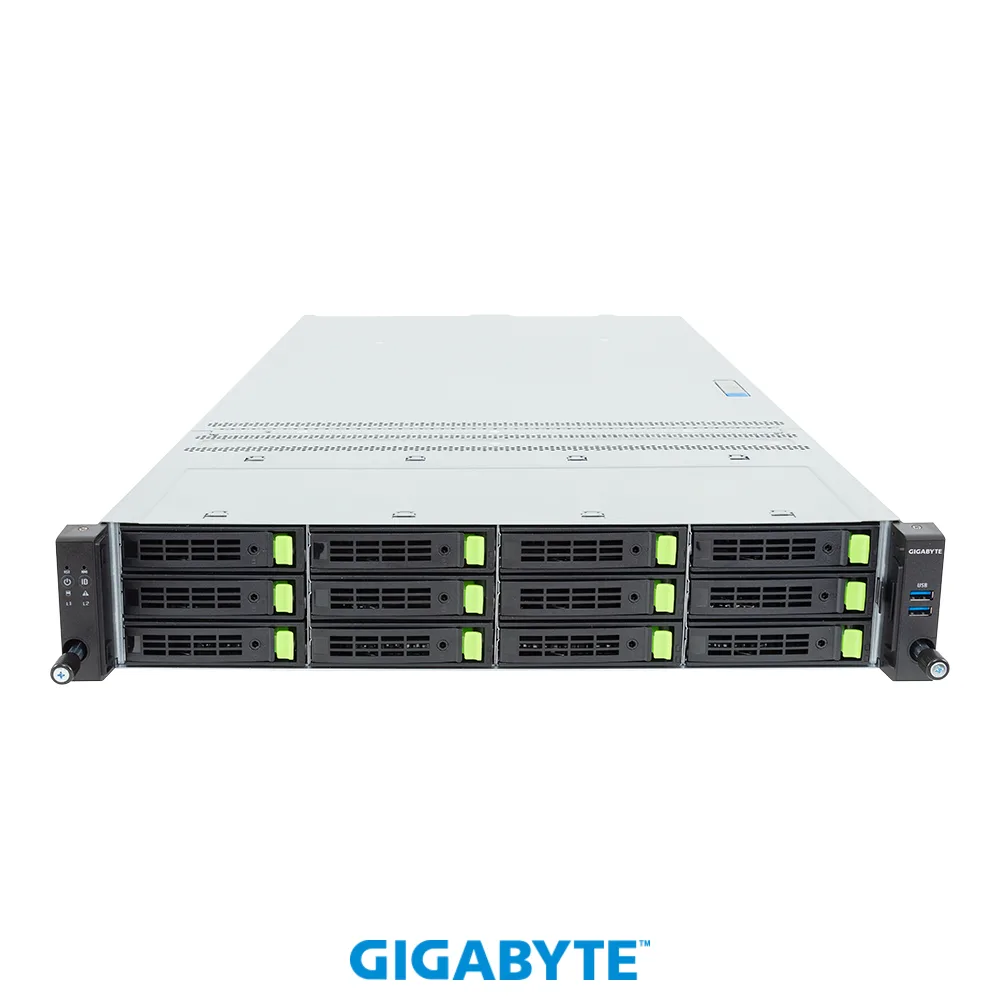

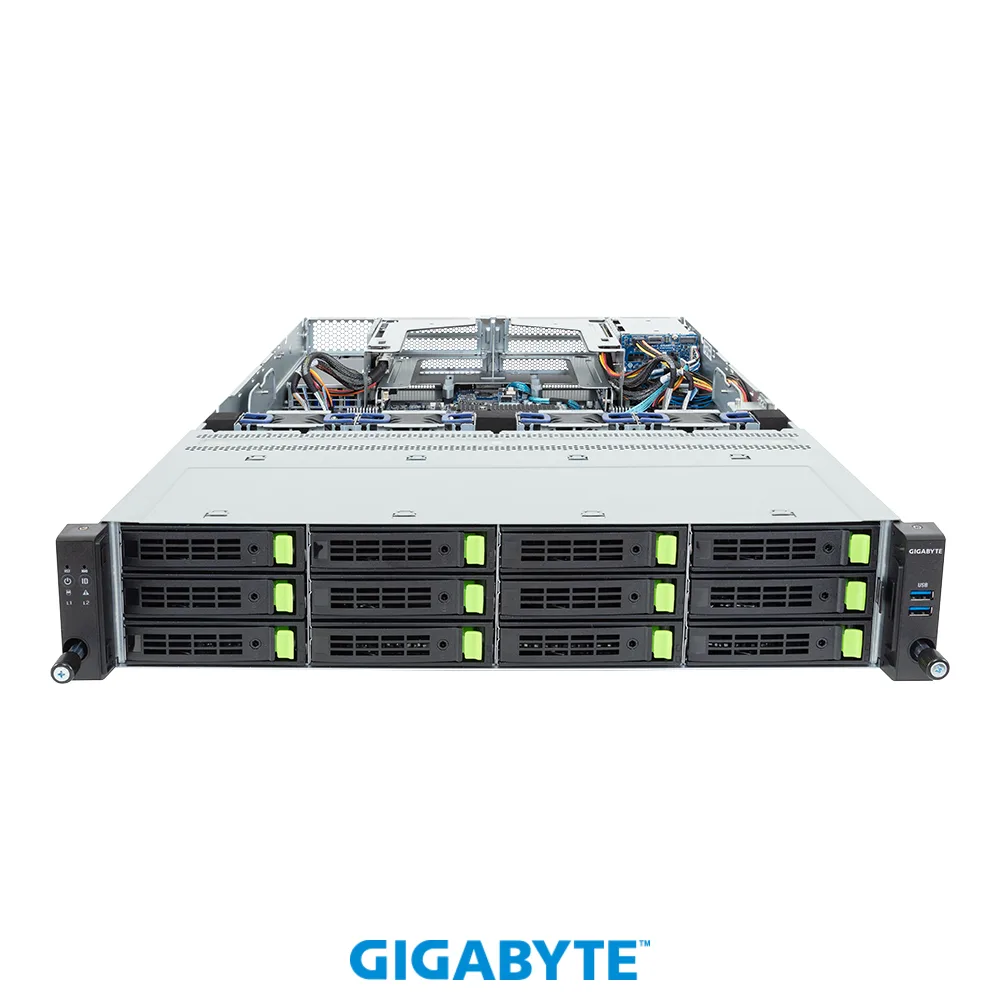

Silver 2U rackmount server chassis with twelve front drive bays and two rear bays

GIGABYTE

GIGABYTE R284-S90-AAJ1 barebone server 2U 12+2-bay

SKU CH-8KDH-4CC4B MPN R284-S90-AAJ1

A 2U rackmount barebones server supporting dual Intel Xeon 6 processors, 32 DDR5 memory slots, 12 front hot-swap bays and two rear hot-swap bays

  • Form Factor2U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeIntel Xeon 6 Processors - Intel Xeon 6700-Series Processors
  • CPU SocketLGA 4710
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Dual Xeon 6 processors handle heavy workloads
  • 32 DDR5 slots support RDIMM and MRDIMM memory
  • 12 front hot-swap bays accept NVMe, SATA, SAS drives
  • 2 rear hot-swap bays add extra storage capacity
  • 2 dual-slot PCIe Gen5 x16 slots enable GPU acceleration

2U Dual-Socket Server for Intel Xeon 6

The GIGABYTE R284-S90-AAJ1 is a 2U rackmount barebone system built for general-purpose workloads. It supports dual Intel Xeon 6 processors on LGA 4710 sockets with TDPs up to 350W each. No CPU or memory is installed, letting integrators choose exact components.

Suits builders needing dense storage

This chassis fits deployments that demand front hot-swap bays for 3.5-inch and 2.5-inch drives plus rear 2.5-inch bays. It is not for operators who require 10 Gigabit or faster onboard networking, nor for sites limited to single-processor configurations or lower memory capacity.

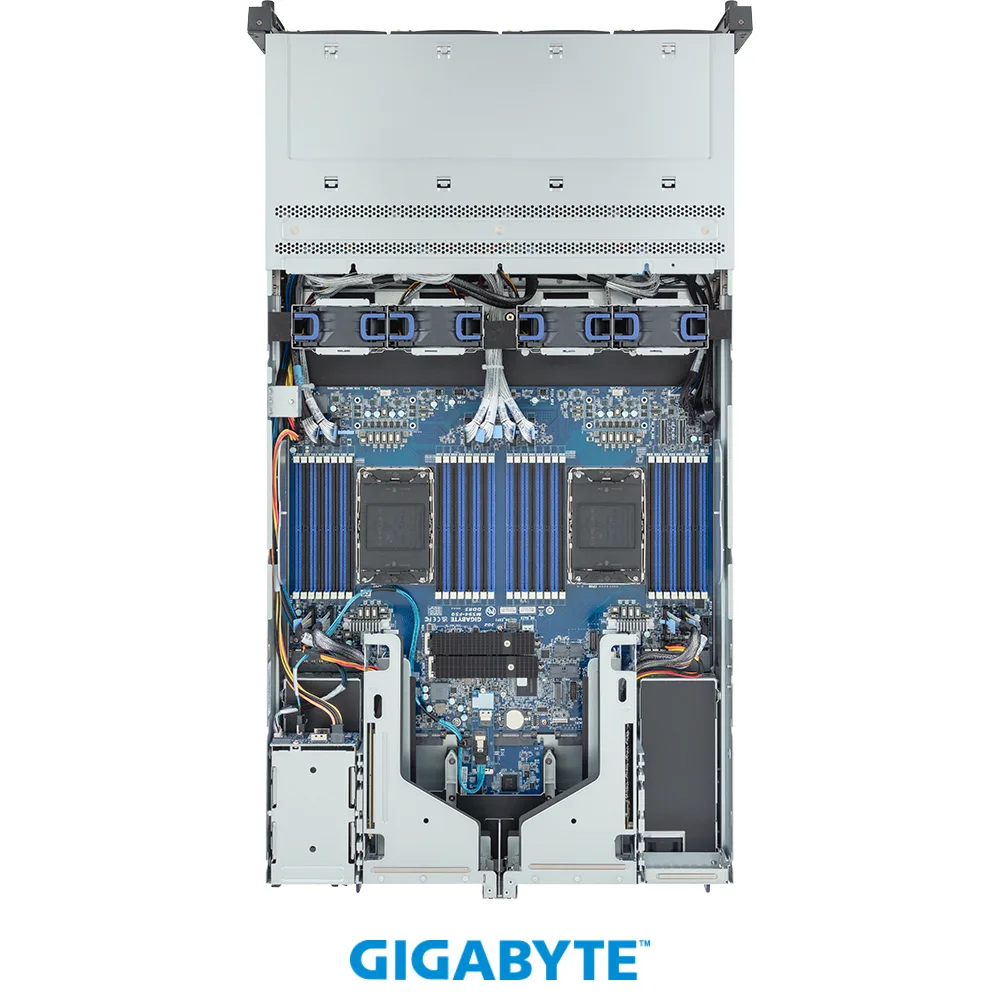

32 DDR5 slots with eight-channel architecture

Memory scales across 32 x 288-pin DIMM slots running eight channels per processor. Supported speeds reach 6400 MT/s for RDIMM at 1DPC, 5200 MT/s at 2DPC, and 8000 MT/s for MRDIMM. This density decides whether the platform meets your memory-bandwidth target.

Highlights

  • Dual Xeon 6 processors handle heavy workloads
  • 32 DDR5 slots support RDIMM and MRDIMM memory
  • 12 front hot-swap bays accept NVMe, SATA, SAS drives
  • 2 rear hot-swap bays add extra storage capacity
  • 2 dual-slot PCIe Gen5 x16 slots enable GPU acceleration

Specifications

BrandGIGABYTE
ModelR284-S90-AAJ1
Form Factor2U Rackmount
WorkloadGeneral Purpose Server
CPU TypeIntel Xeon 6 Processors
- Intel Xeon 6700-Series Processors
- Intel Xeon 6500-Series Processors
CPU SocketLGA 4710
Installed CPUNo CPU Installed
Max Processors2
CPU FeaturesDual processor, TDP up to 350W
Memory Slots32 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedRDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
Channel Supported8 Channel
RegisteredYes
Installed HDDNo Storage Installed
M.2Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA
GPU/VPUAspeed AST2600
PCI Express2 x FHHL Dual-slot PCIe Gen5 x16 slots
2 x FHHL Single-slot PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
First LANIntel I350-AM2
Max. LAN Speed1 Gigabit
Hot-Swap BaysFront hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)

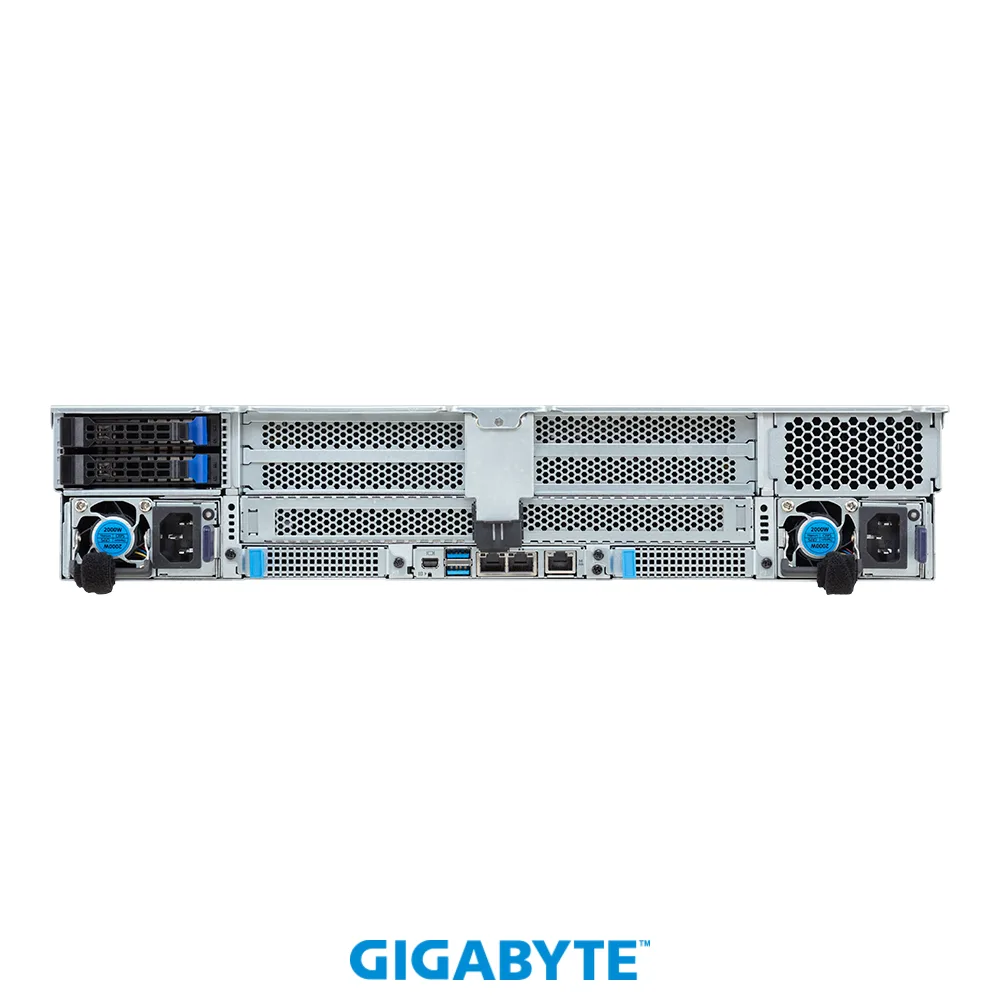

Rear hot-swap:
2 x 2.5" SATA/SAS-4
- (SATA from CPU_0, through I/O board)
Buttons1 x NMI button
1 x Reset button
LEDs1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED
Front USB2 x USB 3.2 Gen1 ports (Type-A)
DisplayPort1 x Mini DisplayPort
Rear USB2 x USB 3.2 Gen1 ports (Type-A)
RJ452
Other Ports1 x MLAN
Max. Power1+1 2000W 80 PLUS Titanium redundant power supplies
Fans4 x 80x80x38mm (16,000rpm)
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions3.44" x 17.24" x 32.09"
Package Contents1 x R284-S90-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x Carriers
1 x 2-Section Rail kit
Shipping weight30.00 kg
Package size1077 × 679 × 300 mm

Questions about this item

How much heat can the dual Xeon 6 processors generate when running at full load all day?

Each processor can reach a TDP of 350W, so the pair may produce up to 700W of heat under sustained workloads.

Which components must I supply before the server can boot?

You need to install up to two LGA 4710 Xeon 6 CPUs and registered DDR5 RDIMM or MRDIMM modules across the 32 DIMM slots; no drives are included.

Can I keep using my existing 3.5-inch SAS drives in the front bays?

Yes, the 12 front hot-swap bays accept 3.5-inch SAS-4, SATA or Gen5 NVMe drives, so current SAS media will work.
