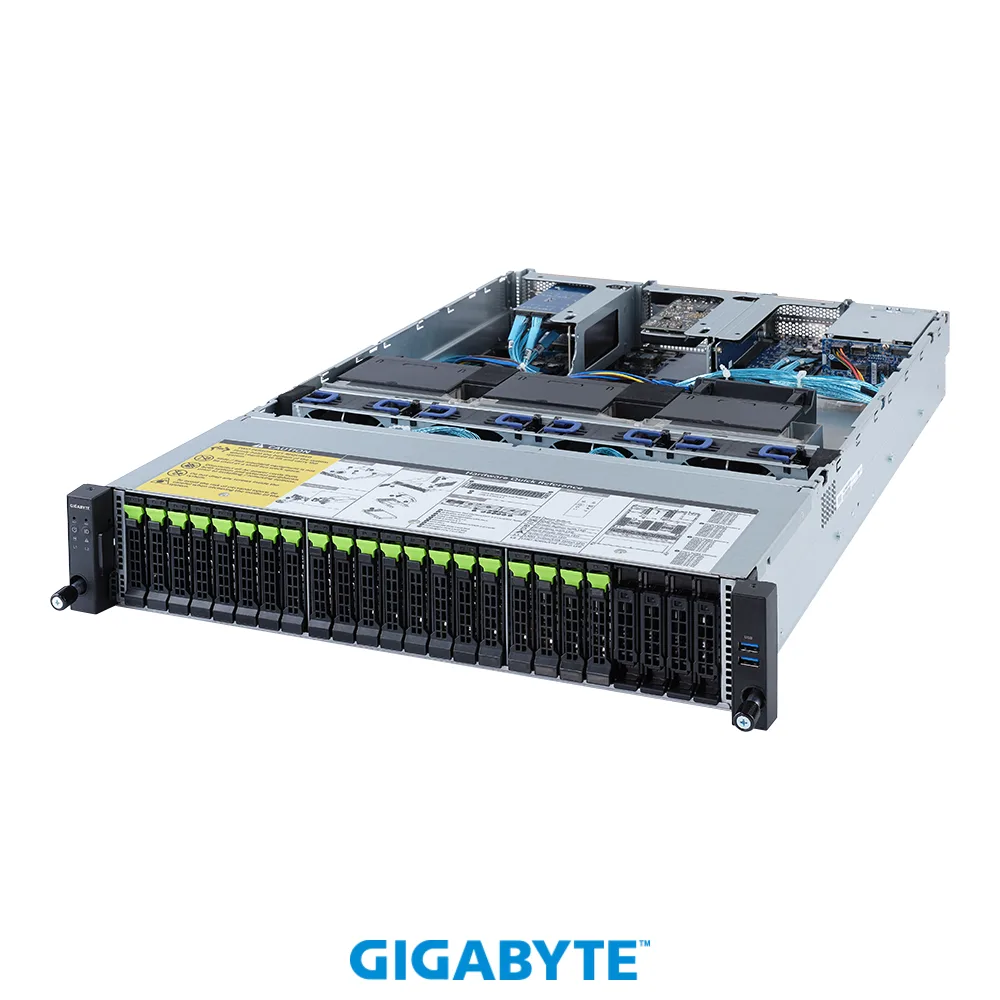

Silver 2U rackmount barebone chassis with twenty front 2.5-inch NVMe hot-swap bays

GIGABYTE

GIGABYTE R282-Z9G 2U barebone server 20 NVMe bays 32 DIMM slots

SKU CH-A2WN-99WT9 MPN R282-Z9G

A 2U rackmount barebone server supporting dual AMD EPYC 7003 processors with 32 DDR4 DIMM slots, 20 front Gen4 NVMe hot-swap bays and a GRAID SupremeRAID SR-1000 card

  • Form Factor2U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports AMD EPYC 7003 series processor family
  • CPU SocketSocket SP3
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Supports dual AMD EPYC 7003 processors for high core counts
  • 32 DDR4 DIMM slots enable up to 4 TB memory capacity
  • 20 front Gen4 NVMe hot-swap bays deliver dense all-flash storage
  • GRAID SupremeRAID SR-1000 offloads RAID to a dedicated AI processor
  • 128 lanes of PCIe 4.0 provide massive I/O bandwidth

AMD EPYC 7003 dual-socket 2U barebone

The GIGABYTE R282-Z9G is a 2U rackmount server barebone that accommodates up to two AMD EPYC 7003 series processors in Socket SP3. It provides 32 DDR4 DIMM slots across eight memory channels per processor and includes a pre-installed GRAID SupremeRAID SR-1000 card for NVMe RAID. The chassis is delivered without CPUs, memory or storage.

20 front Gen4 NVMe bays plus rear SATA/SAS

This platform suits deployments that need dense, high-speed NVMe storage directly attached to the CPU PCIe 4.0 lanes and hardware-assisted RAID offload. It is not intended for builds that require GPU compute, 10 Gigabit or faster networking on the motherboard, or single-socket configurations with lower core counts.

32 DIMM slots and 20 hot-swap NVMe bays

The system comfortably handles memory capacities up to the platform maximum across all 32 slots and sustains full Gen4 NVMe performance on 20 front bays with the GRAID card managing RAID 0, 1, 5, 6, 10. Headroom ends when dual 225 W TDP processors are installed alongside an M.2 device, which forces a CPU power limit, or when storage needs exceed the 20 NVMe plus two rear SATA/SAS bays.

Highlights

  • Supports dual AMD EPYC 7003 processors for high core counts
  • 32 DDR4 DIMM slots enable up to 4 TB memory capacity
  • 20 front Gen4 NVMe hot-swap bays deliver dense all-flash storage
  • GRAID SupremeRAID SR-1000 offloads RAID to a dedicated AI processor
  • 128 lanes of PCIe 4.0 provide massive I/O bandwidth

Specifications

BrandGIGABYTE
ModelR282-Z9G
Form Factor2U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports AMD EPYC 7003 series processor family
CPU SocketSocket SP3
Installed CPUNo CPU Installed
Max Processors2
Memory Slots32 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedUp to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
Channel Supported8 Channel
Installed HDDNo Storage Installed
SATA RAIDEquipped GRAID SupremeRAID SR-1000 NVMe/NVMe-oF RAID Card
Support RAID 0, 1, 10, 5, 6
Maximum 32 physical drives
Support NVMe/SAS/SATA SSD and SAS/SATA HDD
M.21 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
GPU/VPUAspeed AST2500
First LANIntel I350-AM2
Max. LAN Speed1 Gigabit
Hot-Swap BaysFront side: 20 x 2.5" Gen4 NVMe hot-swappable HDD/SSD bays
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays, from onboard SATA ports
Front USB2 x USB 3.0
VGA1
Rear USB2 x USB 3.0
RJ452 x RJ45
1 x MLAN
Max. Power2 1600W redundant PSUs, 80 PLUS Platinum
System CompatibilityWindows Server 2019
Red Hat Enterprise Linux 8.3, 8.4, 8.5 ( x64)
CentOSLinux 8.3, 8.4, 8.5 ( x64)
SUSE Linux Enterprise Server 15 SP2, SP3 ( x64)
openSUSE Leap Server 15.2, 15.3 ( x64)
Ubuntu 20.04 LTS (x64)
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions17.24" x 3.43" x 28.74"
Shipping weight30.39 kg
Package size991 × 584 × 254 mm

Questions about this item

Do I need to supply my own AMD EPYC 7003 series processors for the R282-Z9G?

Yes, the barebone ships with no CPU installed; you must provide up to two Socket SP3 EPYC 7003 series processors, each limited to 225 W TDP if the M.2 slot is used.

Can I keep my existing DDR4-2933 RDIMMs and populate all 32 slots?

The board supports up to 3200 MHz with 2 DIMMs per channel per the QVL, so DDR4-2933 modules will run at their rated speed across all 32 slots.

How do I verify the GRAID SupremeRAID SR-1000 card is active after assembly?

The card presents a virtual NVMe controller to the OS; confirm it appears in the device list and that the RAID volumes you configured show healthy status in the management utility.
