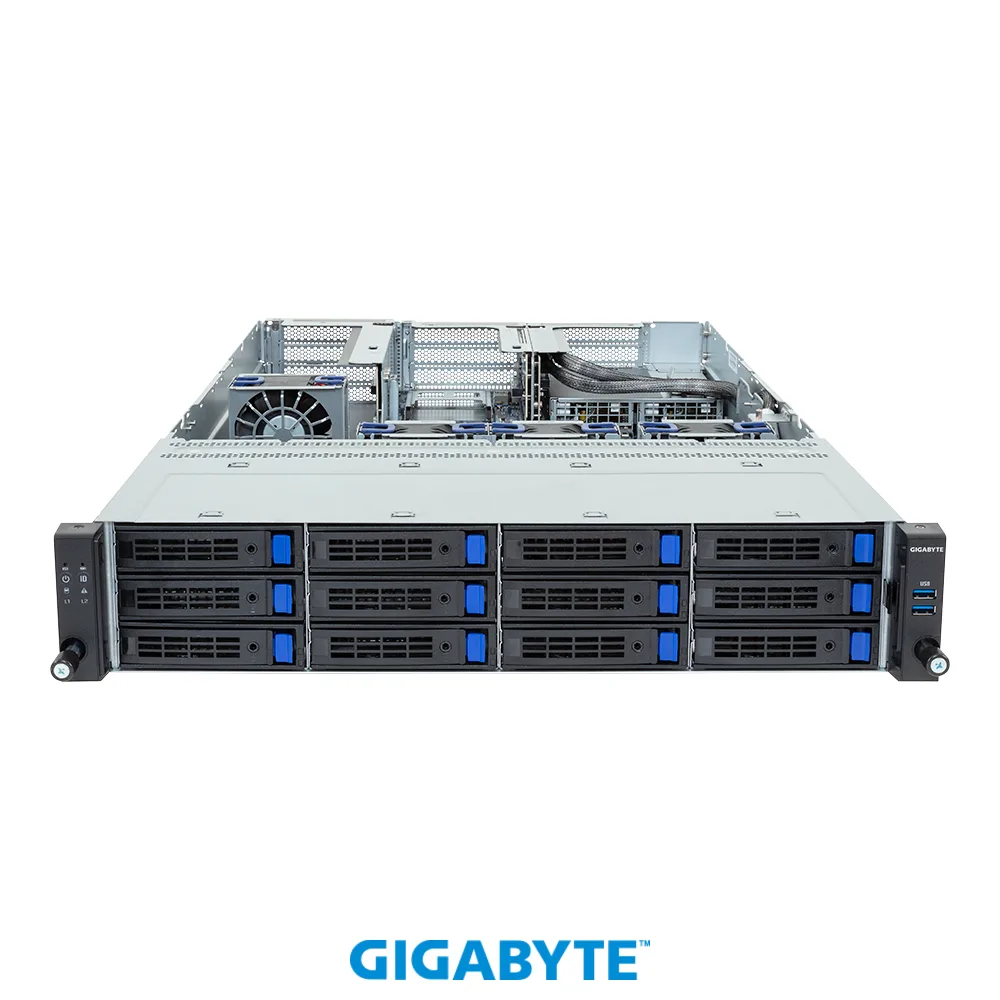

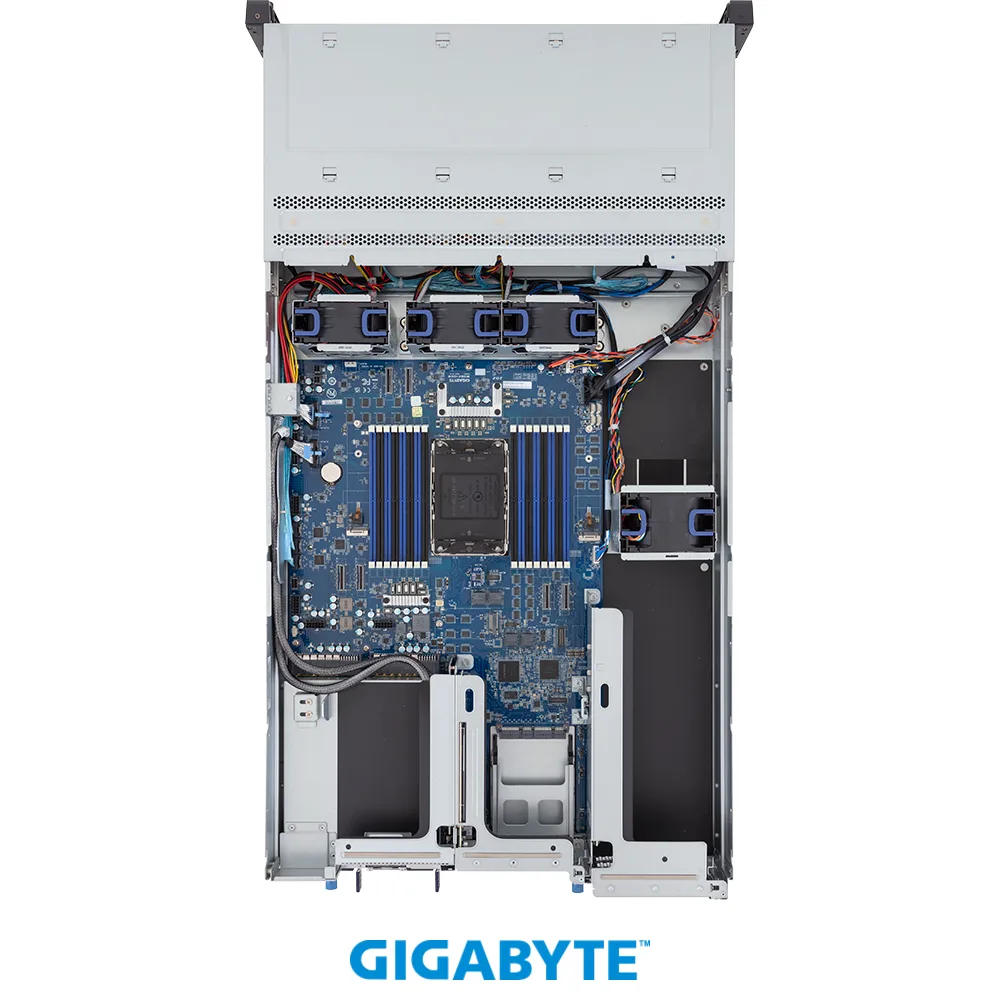

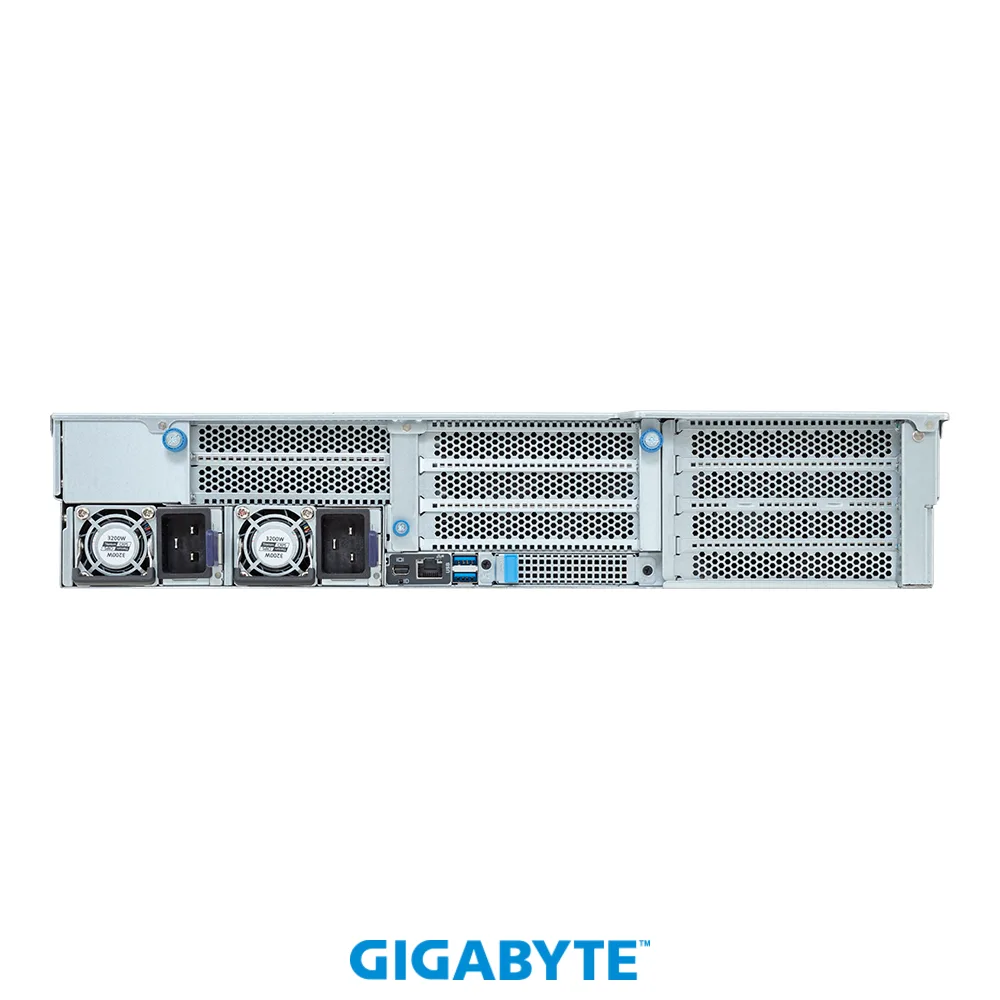

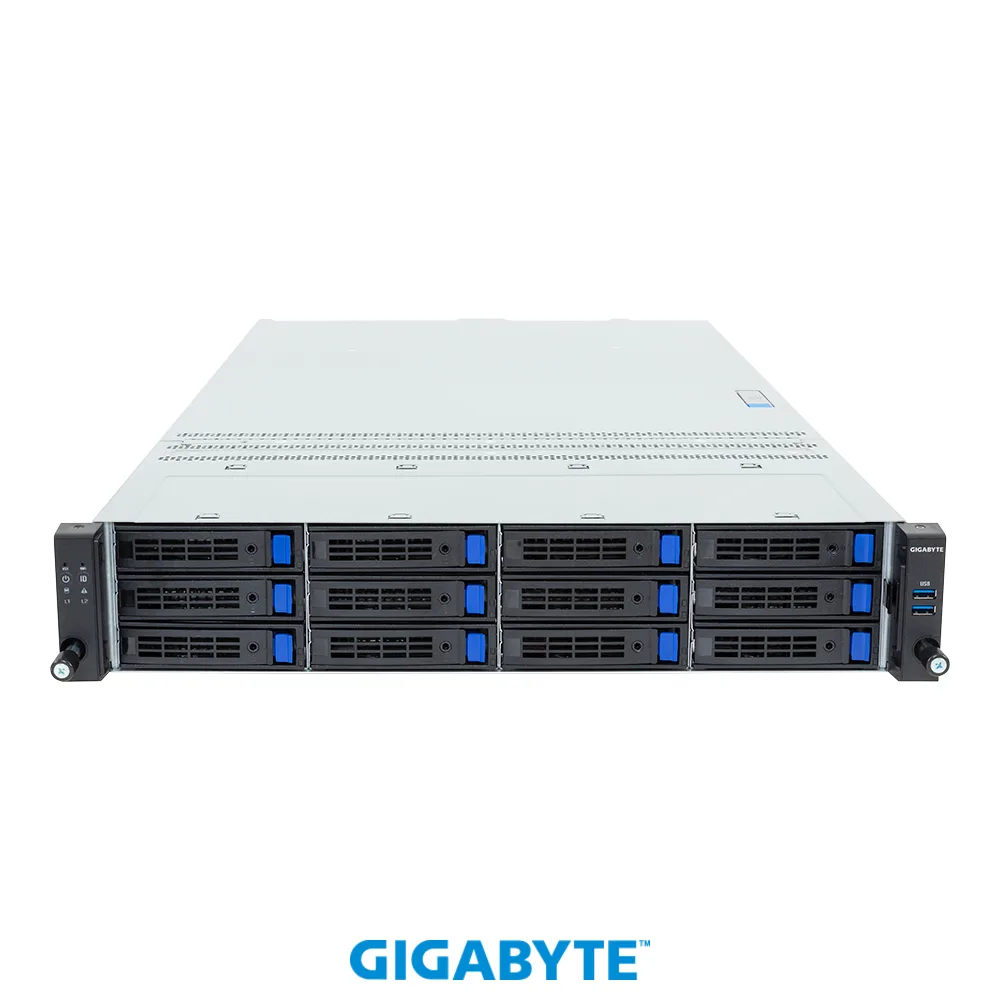

GIGABYTE R264-SG0-AAS1 barebone server 2U 12-bay 16-DIMM 4-GPU
A 2U rackmount barebone with 12 hot-swap 3.5"/2.5" SATA/SAS-4 bays, 16 DDR5 DIMM slots, and four PCIe Gen5 x16 slots for dual-slot GPUs
- Form Factor2U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeIntel Xeon 6 Processors - Intel Xeon 6700-Series Processors
- CPU SocketLGA 4710
- Installed CPUNo CPU Installed
- Max Processors1
- Supports up to four dual-slot Gen5 GPUs via four full-height PCIe x16 slots
- Single Intel Xeon 6 processor with up to 350 W TDP in LGA 4710 socket
- 16 DDR5 DIMM slots across eight channels for RDIMM at 6400 MT/s or MRDIMM at 8000 MT/s
- Twelve front hot-swap bays accepting 3.5 or 2.5 inch SATA and SAS drives
- Two M.2 slots with PCIe Gen5 x2, one shared with SATA
2U barebone for Xeon 6 and four GPUs
The GIGABYTE R264-SG0-AAS1 is a 2U rackmount barebone designed for Intel Xeon 6 processors in the LGA 4710 socket. It targets workloads that need dense GPU acceleration alongside high memory capacity. The platform supports a single processor with a thermal design power up to 350W. No CPU or memory is installed from the factory.
Eighteen expansion slots and twelve drive bays
Four full-height full-length PCIe Gen5 x16 slots accept dual-slot GPUs for compute or rendering tasks. An OCP NIC 3.0 PCIe Gen5 x16 slot provides networking flexibility. Twelve front hot-swap bays accept 3.5 or 2.5 inch SATA and SAS-4 drives. Two M.2 sockets (2280/22110) with PCIe Gen5 x2 interfaces add boot or cache storage, one shared with a SATA connection. Sixteen 288-pin DDR5 slots run in eight channels with MRDIMM support up to 8000 MT/s.
Dual ROM and Aspeed graphics for management
The Aspeed AST2600 GPU handles baseboard management and video output without using a PCIe slot. Dual ROM architecture adds firmware redundancy for platform stability. A single Gigabit LAN port provides basic connectivity. The 2U chassis uses front-to-rear airflow to cool the processor, memory, GPUs and storage bays under sustained load.
Highlights
- Supports up to four dual-slot Gen5 GPUs via four full-height PCIe x16 slots
- Single Intel Xeon 6 processor with up to 350 W TDP in LGA 4710 socket
- 16 DDR5 DIMM slots across eight channels for RDIMM at 6400 MT/s or MRDIMM at 8000 MT/s
- Twelve front hot-swap bays accepting 3.5 or 2.5 inch SATA and SAS drives
- Two M.2 slots with PCIe Gen5 x2, one shared with SATA
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | R264-SG0-AAS1 |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Intel Xeon 6 Processors - Intel Xeon 6700-Series Processors - Intel Xeon 6500-Series Processors |
| CPU Socket | LGA 4710 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| CPU Features | Single processor, TDP up to 350W |
| Memory Slots | 16 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | MRDIMM supported RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s |
| Channel Supported | 8 Channel |
| Registered | Yes |
| Installed HDD | No Storage Installed |
| M.2 | 1 x M.2 (2280/22110), PCIe Gen5 x2 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA |
| GPU/VPU | Aspeed AST2600 |
| PCI Express | 4 x FHFL PCIe Gen5 x16 slots for GPUs 1 x OCP NIC 3.0 PCIe Gen5 x16 slot |
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | Front side: 12 x 3.5"/2.5" SATA/SAS-4 |
| Buttons | 1 x NMI button 1 x Reset button |
| LEDs | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED |
| Front USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| DisplayPort | 1 x Mini DisplayPort |
| Rear USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| RJ45 | 1 |
| Other Ports | 1 x MLAN |
| Max. Power | 1+1 3200W 80 PLUS Titanium redundant power supplies |
| Fans | 3 x 80x80x38mm (18,300rpm) 1 x 80x80x56mm (15,500rpm) |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 3.44" x 17.24" x 32.09" |
| Package Contents | 1 x R264-SG0-AAS1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 250mm) 2 x GPU power cables (12VHPWR, 450mm) 1 x GPU power cable (12VHPWR, 550mm) 2 x Carriers 1 x 2-Section Rail kit |
| Shipping weight | 30.00 kg |
| Package size | 989 × 594 × 279 mm |
Questions about this item
How much power can the single Xeon 6 processor draw before thermal throttling becomes the first sustained-use limit?
The LGA 4710 socket supports one Xeon 6500-Series or 6700-Series processor with a TDP up to 350W, which defines the thermal ceiling under continuous load.
What noise and heat should be expected when four dual-slot GPUs and a 350W CPU run all day in the 2U chassis?
Four FHFL PCIe Gen5 x16 GPUs plus a 350W Xeon 6 processor will push the 2U cooling system hard; expect high fan speeds and significant exhaust heat in sustained operation.
Which memory modules and drive trays must already be on hand to populate the 16 DIMM slots and 12 hot-swap bays?
You need 288-pin DDR5 RDIMM or MRDIMM modules for the 16 slots and 3.5" or 2.5" SATA/SAS-4 drive carriers for the 12 front bays.
