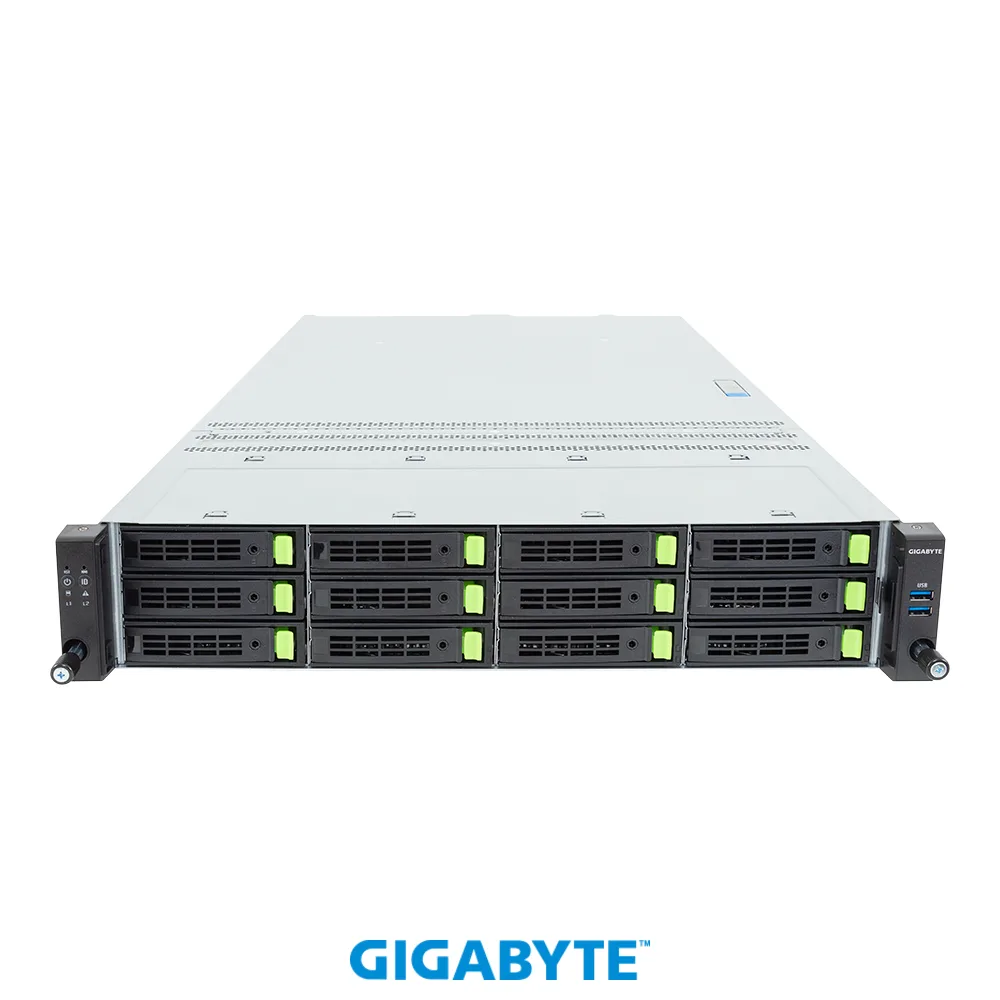

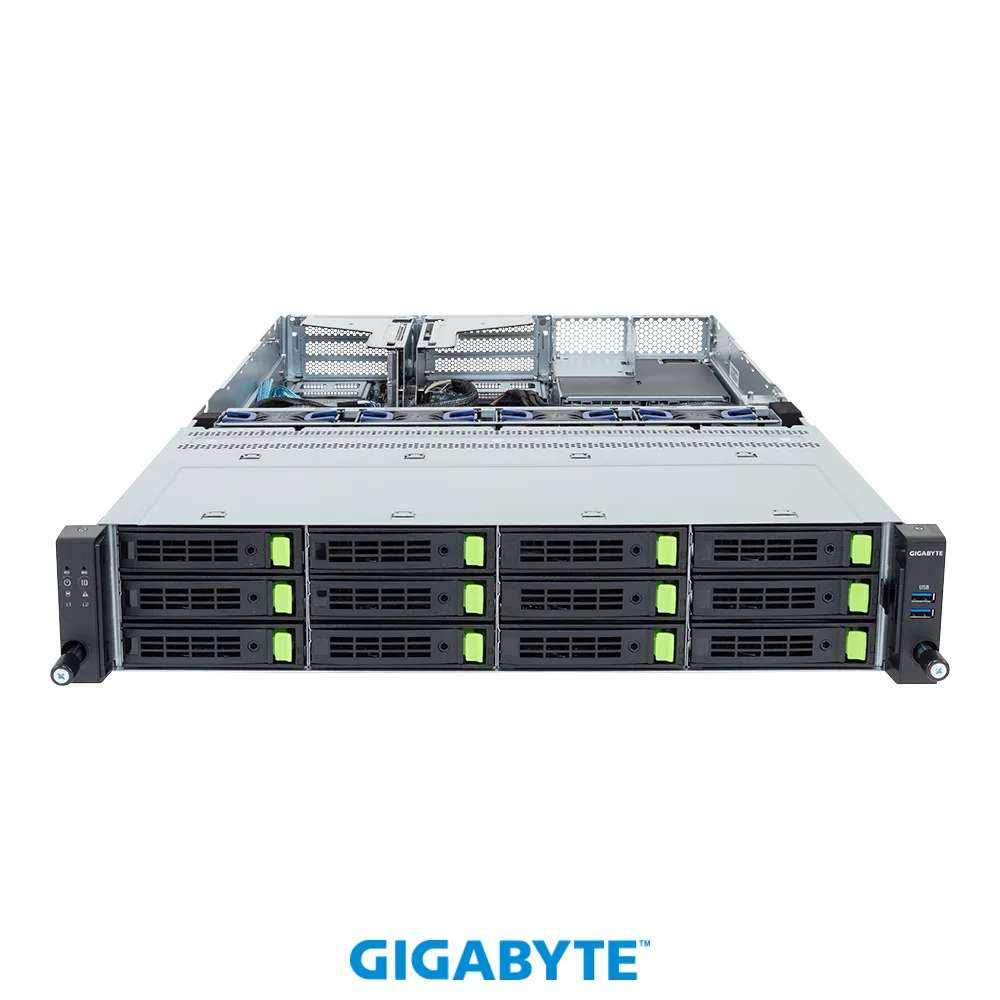

Silver 2U rackmount chassis with twelve front drive bays

GIGABYTE

GIGABYTE R264-S30-AAV1 barebone server 2U 12-bay LGA 4710 16 DIMM

SKU CH-7FP1-R1H3G MPN R264-S30-AAV1

2U rackmount barebone with twelve 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays, single LGA 4710 Xeon 6 up to 350W, sixteen DDR5 RDIMM/MRDIMM slots in eight channels.

  • Form Factor2U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeIntel Xeon 6 Processors - Intel Xeon 6700-Series Processors
  • CPU SocketLGA 4710
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Intel Xeon 6 processors up to 350W TDP for high compute density
  • 16 DDR5 DIMM slots across 8 channels with MRDIMM up to 8000 MT/s
  • 12 front hot-swap bays supporting 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 drives
  • Dual M.2 slots with PCIe Gen5 x2, one shared with SATA
  • FHHL PCIe Gen5 x16 plus OCP NIC 3.0 Gen5 x16 expansion slots

2U barebone with 12 front bays

This 2U rackmount barebone accepts a single Intel Xeon 6 processor in an LGA 4710 socket with a thermal design power up to 350 W. Twelve hot-swap bays support 3.5" or 2.5" drives using Gen5 NVMe, SATA or SAS-4 interfaces. No CPU, memory or storage are installed.

Suits integrators building custom Xeon 6 servers

The platform targets system builders who want to select their own Xeon 6700 or 6500 series processor, DDR5 RDIMM or MRDIMM modules and storage devices. Buyers needing a complete system with operating system, pre-tested configuration or redundant power supplies should look at fully assembled servers.

Single LGA 4710 processor limit

Only one CPU socket is present, so the server cannot scale beyond a single Xeon 6 chip. This constraint fixes the maximum core count, thread count and memory capacity at the single-processor level for this chassis.

Highlights

  • Intel Xeon 6 processors up to 350W TDP for high compute density
  • 16 DDR5 DIMM slots across 8 channels with MRDIMM up to 8000 MT/s
  • 12 front hot-swap bays supporting 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 drives
  • Dual M.2 slots with PCIe Gen5 x2, one shared with SATA
  • FHHL PCIe Gen5 x16 plus OCP NIC 3.0 Gen5 x16 expansion slots

Specifications

BrandGIGABYTE
ModelR264-S30-AAV1
Form Factor2U Rackmount
WorkloadGeneral Purpose Server
CPU TypeIntel Xeon 6 Processors
- Intel Xeon 6700-Series Processors
- Intel Xeon 6500-Series Processors
CPU SocketLGA 4710
Installed CPUNo CPU Installed
Max Processors1
CPU FeaturesSingle processor, TDP up to 350W
Memory Slots16 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedMRDIMM supported
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
Channel Supported8 Channel
RegisteredYes
Installed HDDNo Storage Installed
M.21 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA
GPU/VPUAspeed AST2600
PCI Express1 x FHHL PCIe Gen5 x16 slot
1 x OCP NIC 3.0 PCIe Gen5 x16 slot
First LANIntel I210-AT
Max. LAN Speed1 Gigabit
Hot-Swap BaysFront side:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
Buttons1 x NMI button
1 x Reset button
LEDs1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED
Front USB2 x USB 3.2 Gen1 ports (Type-A)
DisplayPort1 x Mini DisplayPort
Rear USB2 x USB 3.2 Gen1 ports (Type-A)
RJ451
Other Ports1 x MLAN
Max. Power1+1 1600W 80 PLUS Titanium redundant power supplies
Fans4 x 80x80x38mm (18,300rpm)
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions3.44" x 17.24" x 27.95"
Package Contents1 x R264-S30-AAV1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
2 x Carriers
1 x 2-Section Rail kit
Shipping weight30.00 kg
Package size989 × 594 × 279 mm

Questions about this item

What does the 350W TDP limit mean for CPU choice?

The single LGA 4710 socket accepts one Intel Xeon 6700-Series or 6500-Series processor with a thermal design power up to 350W; cooling must handle that envelope.

How fast can the 12 front bays run in practice?

Each 3.5"/2.5" bay is wired for Gen5 NVMe, SATA or SAS-4, so NVMe drives can use the full PCIe Gen5 x4 link while SATA and SAS devices operate at their native speeds.

What clearance does the 2U chassis need for the FHHL PCIe Gen5 x16 slot?

The full-height half-length slot fits standard PCIe add-in cards up to the 2U height limit; verify card bracket and cooler height against the 2U form factor.
