GIGABYTE R263-Z30-AAC2 barebone server 2U 12-bay EPYC 9004/9005
2U barebone server holds twelve 3.5" or 2.5" hot-swap drives and supports single AMD EPYC 9004/9005 CPU with twelve-channel DDR5
- Form Factor2U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeAMD EPYC 9005 & 9004 Series
- CPU SocketSocket SP5
- Installed CPUNo CPU Installed
- Max Processors1
- Supports AMD EPYC 9004 and 9005 series processors
- 12-channel DDR5 RDIMM memory up to 4800 MT/s
- 4 front Gen4 NVMe/SATA/SAS plus 8 SATA/SAS hot-swap bays
- 2 FHHL PCIe Gen5 x16 and 2 OCP NIC 3.0 Gen5 x16 slots
- Dual ROM architecture with Aspeed AST2600 graphics
2U barebone for EPYC 9004 and 9005

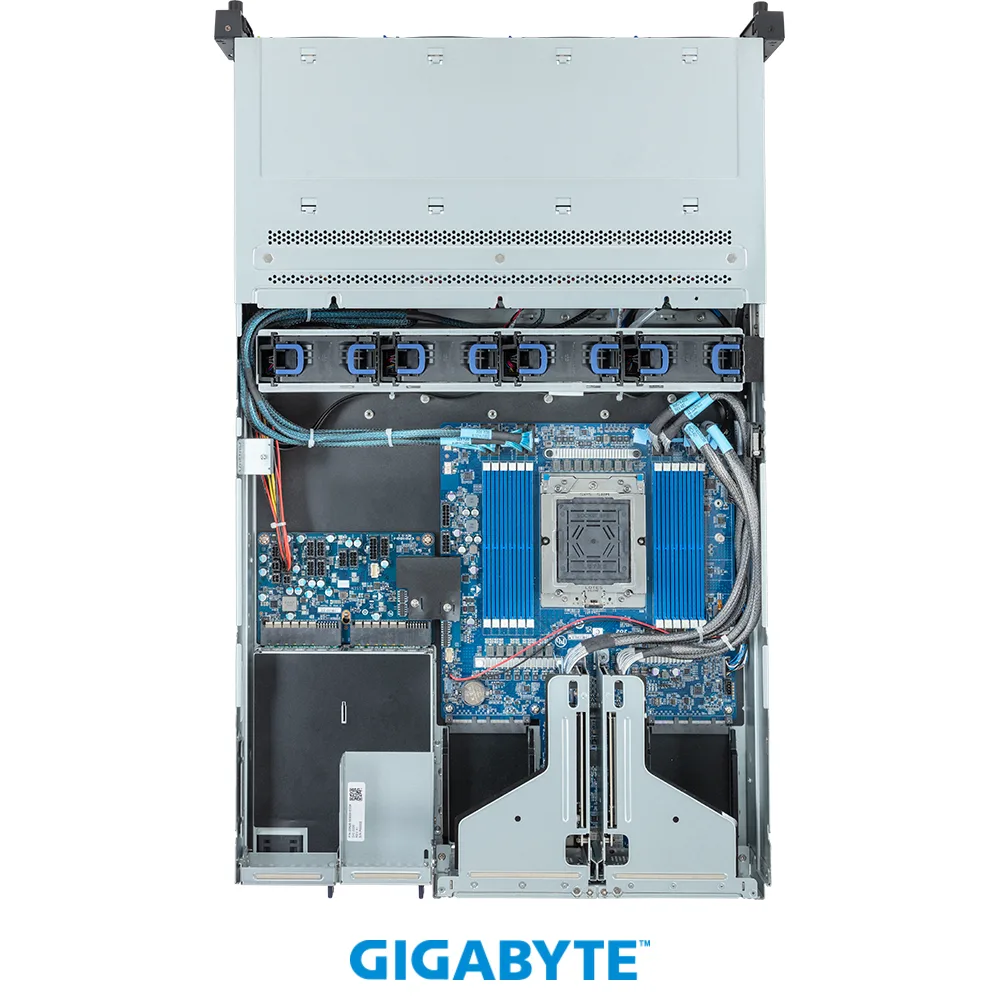

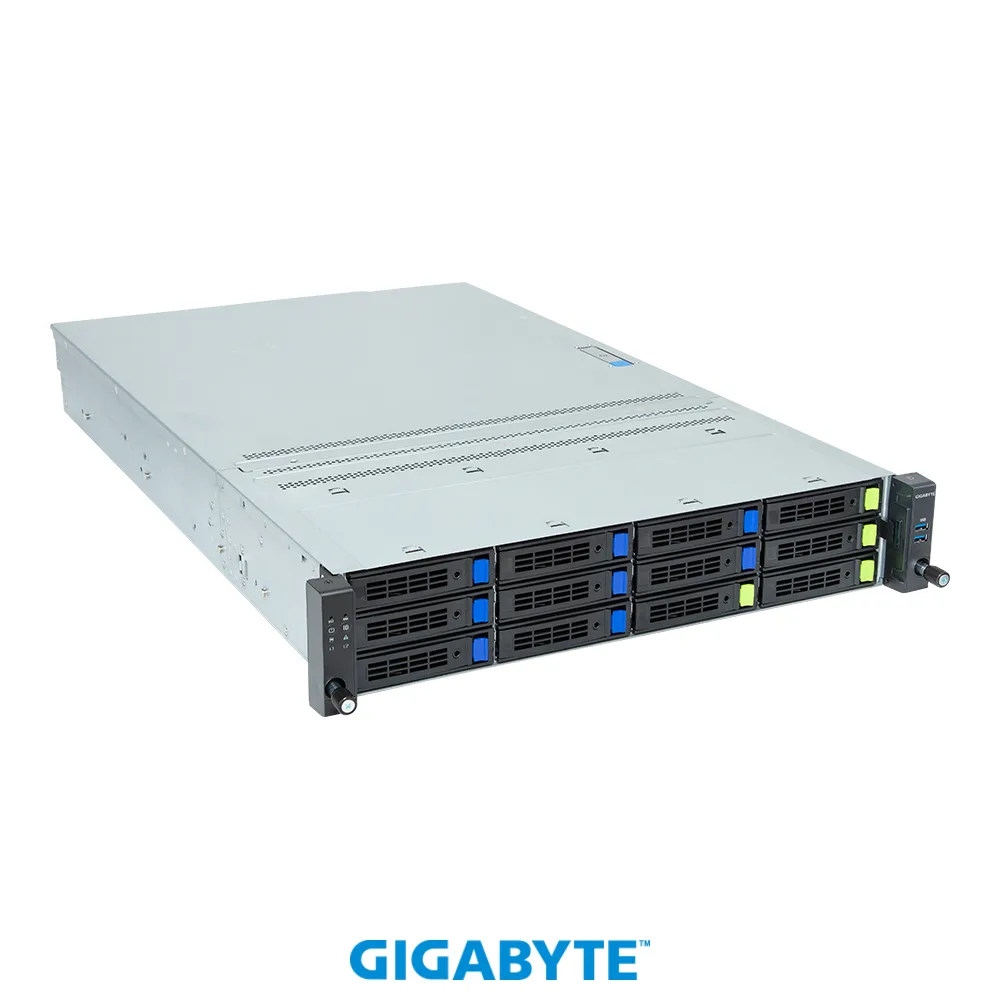

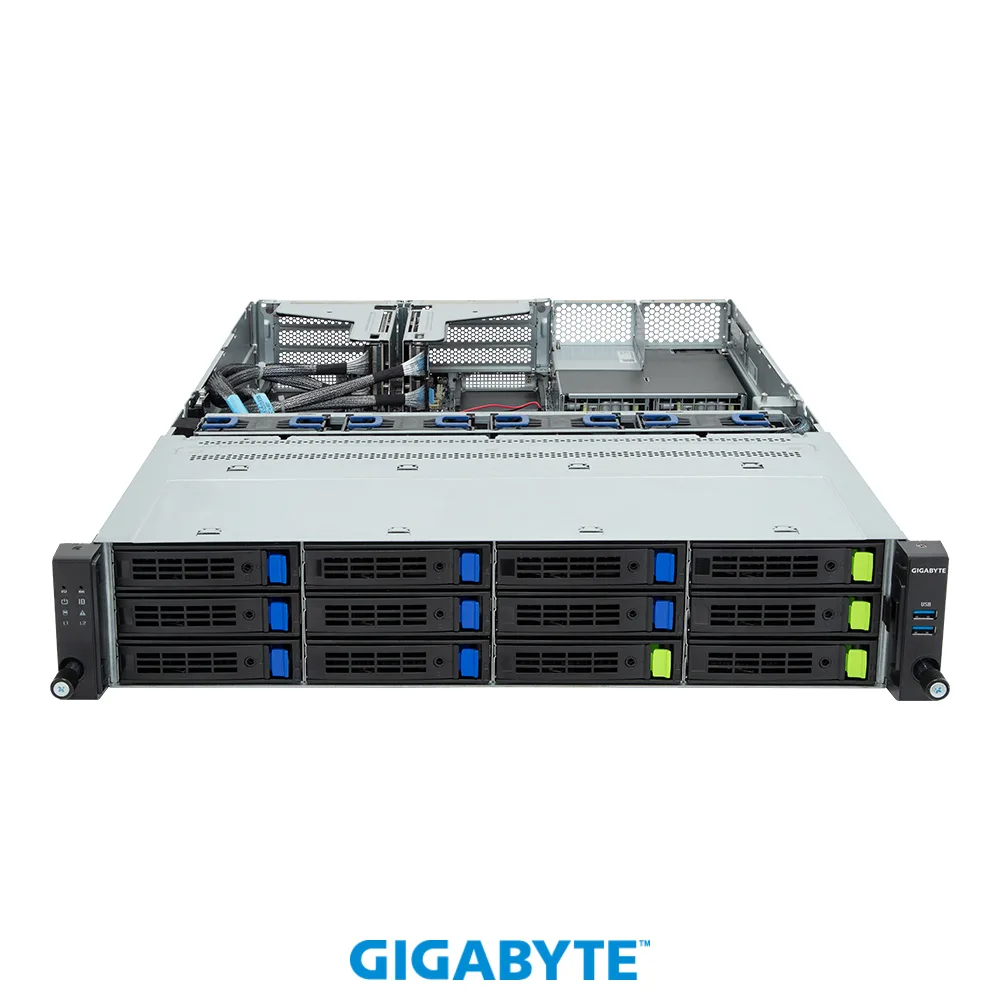

The GIGABYTE R263-Z30-AAC2 is a 2U rack-mount barebone server that accepts a single AMD EPYC 9004 or 9005 series processor in an SP5 socket. It provides twelve DDR5 RDIMM slots running up to 4800 MT/s across twelve channels. No CPU or memory is installed, so the builder supplies both. Front drive bays include four bays that support Gen4 NVMe, SATA or SAS and eight bays for SATA or SAS drives.
Suits single-socket general-purpose deployments
This platform fits workloads that need one high-core-count processor, large memory capacity and a mix of NVMe and SAS storage in a 2U form factor. It is not for buyers who require dual-processor scaling, GPU compute density beyond the two full-height PCIe Gen5 x16 slots, or onboard networking faster than 1 Gigabit.
Verify SP5 cooler clearance and PSU rating
Confirm that your chosen EPYC cooler fits the 2U height and matches the processor cTDP of 300 W, or 400 W at 30 °C ambient. Ensure the power supply can deliver enough 12 V current for the CPU, twelve DIMMs, twelve front drives and any add-in cards. Check that M.2 2280 or 22110 modules are PCIe Gen3 x4 compatible.
Highlights
- Supports AMD EPYC 9004 and 9005 series processors
- 12-channel DDR5 RDIMM memory up to 4800 MT/s
- 4 front Gen4 NVMe/SATA/SAS plus 8 SATA/SAS hot-swap bays
- 2 FHHL PCIe Gen5 x16 and 2 OCP NIC 3.0 Gen5 x16 slots
- Dual ROM architecture with Aspeed AST2600 graphics
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | R263-Z30-AAC2 |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | AMD EPYC 9005 & 9004 Series |
| CPU Socket | Socket SP5 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| CPU Features | Single processor, cTDP up to 300W - At 30°C ambient, cTDP up to 400W |
| Memory Slots | 12 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | RDIMM: Up to 4800 MT/s |
| Channel Supported | 12 Channel |
| Registered | Yes |
| Installed HDD | No Storage Installed |
| M.2 | 1 x M.2 (2280/22110), PCIe Gen3 x4 |
| GPU/VPU | Aspeed AST2600 |

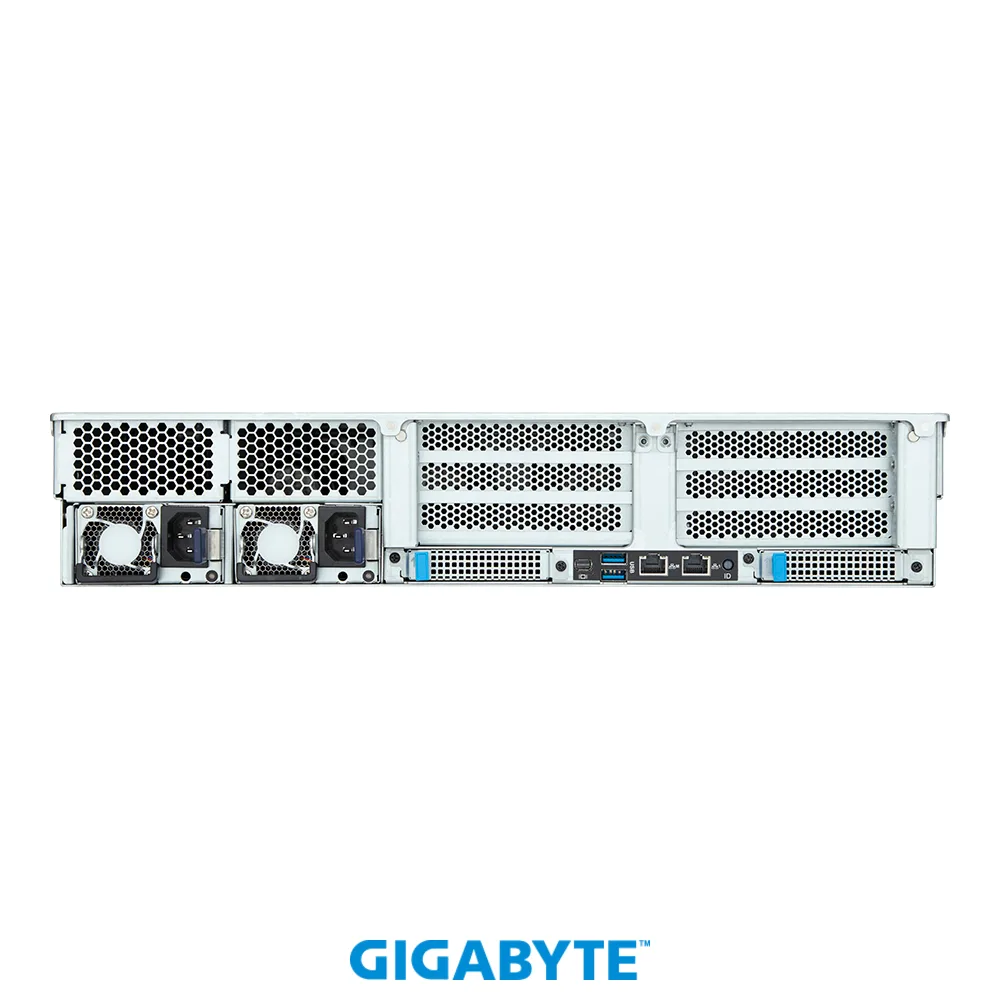

| PCI Express | 2 x FHHL PCIe Gen5 x16 slots 3 x FHHL PCIe Gen4 x16 and x8 slots 2 x OCP NIC 3.0 PCIe Gen5 x16 slots |
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | Front side: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS 8 x 3.5"/2.5" SATA/SAS |
| Buttons | 1 x NMI button 1 x Reset button |
| LEDs | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (1 x LED disabled) 1 x Storage activity LED 1 x System status LED |
| Front USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| DisplayPort | 1 x Mini DisplayPort |
| Rear USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| RJ45 | 1 |
| Other Ports | 1 x MLAN |
| Max. Power | 1+1 1300W 80 PLUS Platinum redundant power supplies |
| Fans | 4 x 80x80x38mm (18,300rpm) |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 3.44" x 17.24" x 27.95" |
| Package Contents | 1 x R263-Z30-AAC2 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit |
| Shipping weight | 30.00 kg |
| Package size | 989 × 594 × 279 mm |
Questions about this item
What CPU and memory must I supply to make this barebones server operational?
You need one AMD EPYC 9004 or 9005 series processor for the SP5 socket and up to twelve DDR5 RDIMMs running at 4800 MT/s across the 12-channel memory architecture.
Will my existing SATA or SAS drives fit the front bays alongside the four Gen4 NVMe slots?
Yes, the front panel provides four bays that accept Gen4 NVMe, SATA or SAS drives and eight additional bays for SATA or SAS drives, all hot-swappable in 3.5" or 2.5" form factors.
How can I confirm the system is posting and running correctly after installing components?
Watch the front-panel power LED and ID LED for normal operation, check the storage activity LED for drive access, and use the Aspeed AST2600 BMC for remote console and sensor monitoring.
