Silver 1U rackmount server chassis with forty front drive bays

GIGABYTE

GIGABYTE R262-ZA0-rev-A00 barebone server 1U SP3 DDR4 3200 40-bay

SKU CH-0S73-SRQHH MPN R262-ZA0-rev-A00

A 1U rackmount barebone supporting dual AMD EPYC 7002/7003 CPUs with 16 DDR4 3200 slots, 40 hot-swap 2.5-inch SATA/SAS bays plus 2 Gen4 U.2 bays, and dual PCIe 4.0 x16 slots

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports AMD EPYC 7003 series processor family Compatible wi
  • CPU SocketSocket SP3
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Supports up to 64 cores per AMD EPYC 7003 processor
  • 8-channel DDR4 3200 across 16 DIMM slots for high memory bandwidth
  • 40 hot-swap 2.5" SATA/SAS bays plus 2 Gen4 U.2 bays for dense storage
  • Dual 1 GbE Intel I350-AM2 LAN with dedicated management port
  • Hardware root of trust built into silicon for platform security

1U dual-socket EPYC barebone

This 1U rackmount barebone supports one or two AMD EPYC 7002 or 7003 series processors in Socket SP3. It is built for general-purpose server workloads that need high core counts and dense storage in a single rack unit. No CPU or memory is installed, so integrators can choose exact specifications.

16 DDR4-3200 slots and 40 hot-swap bays

Sixteen 288-pin slots run eight-channel DDR4-3200 for large memory capacity. The chassis provides 40 hot-swappable 2.5-inch drive bays: 24 front SATA/SAS, 8 rear SATA/SAS, 2 rear Gen4 U.2 NVMe, and 8 internal SATA/SAS. An onboard 12Gb/s SAS expander is included; a SAS card is required to enable all drive connections.

Two PCIe 4.0 x16 slots and dual OCP mezzanines

Expansion includes two full-height PCIe 4.0 x16 slots, one OCP 3.0 Gen4 x16 mezzanine slot, and one OCP 2.0 Gen3 x8 mezzanine slot. Networking uses dual 1 Gigabit Intel I350-AM2 ports plus a dedicated management port. Buyers needing higher-speed networking or additional accelerator slots should verify the provided I/O meets their requirements.

Highlights

  • Supports up to 64 cores per AMD EPYC 7003 processor
  • 8-channel DDR4 3200 across 16 DIMM slots for high memory bandwidth
  • 40 hot-swap 2.5" SATA/SAS bays plus 2 Gen4 U.2 bays for dense storage
  • Dual 1 GbE Intel I350-AM2 LAN with dedicated management port
  • Hardware root of trust built into silicon for platform security

Specifications

BrandGIGABYTE
ModelR262-ZA0-rev-A00
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports AMD EPYC 7003 series processor family
Compatible with AMD EPYC 7002 series processor family
CPU SocketSocket SP3
Installed CPUNo CPU Installed
Max Processors2
Memory Slots16 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedDDR4 3200
Channel Supported8 Channel
Installed HDDNo Storage Installed
Serial ATAFront side_CBP20O8: 24 x SATA/SAS ports
Rear side_CBP10A5: 8 x SATA/SAS, 2 x U.2 ports
Internal_CBP2080: 8 x SATA/SAS ports
GPU/VPUAspeed AST2500
PCI Express2 x PCIe Gen4 x16 expansion slots
1 x OCP 3.0 Gen4 x16 mezzanine slot
1 x OCP 2.0 Gen3 x8 mezzanine slot
First LANIntel I350-AM2
Max. LAN Speed1 Gigabit
Hot-Swap BaysFront side: 24 x 2.5" SATA/ SAS hot-swappable SSD bays
Rear side: 8 x 2.5" SATA/ SAS, 2 x 2.5" Gen4 U.2 hot-swappable SSD bays
Internal: 8 x 2.5" SATA/ SAS hot-swappable SSD bays
SAS card is required to enable the drive bays
Front USB2 x USB 3.0
VGA1
Rear USB2 x USB 3.0
RJ452 x 1GbE LAN ports (1 x Intel I350-AM2)
1 x 10/100/1000 management LAN
Other PortsInternal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x OCP 3.0 mezzanine slot
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Max. Power2 x 1200W redundant PSUs, 80 PLUS Platinum

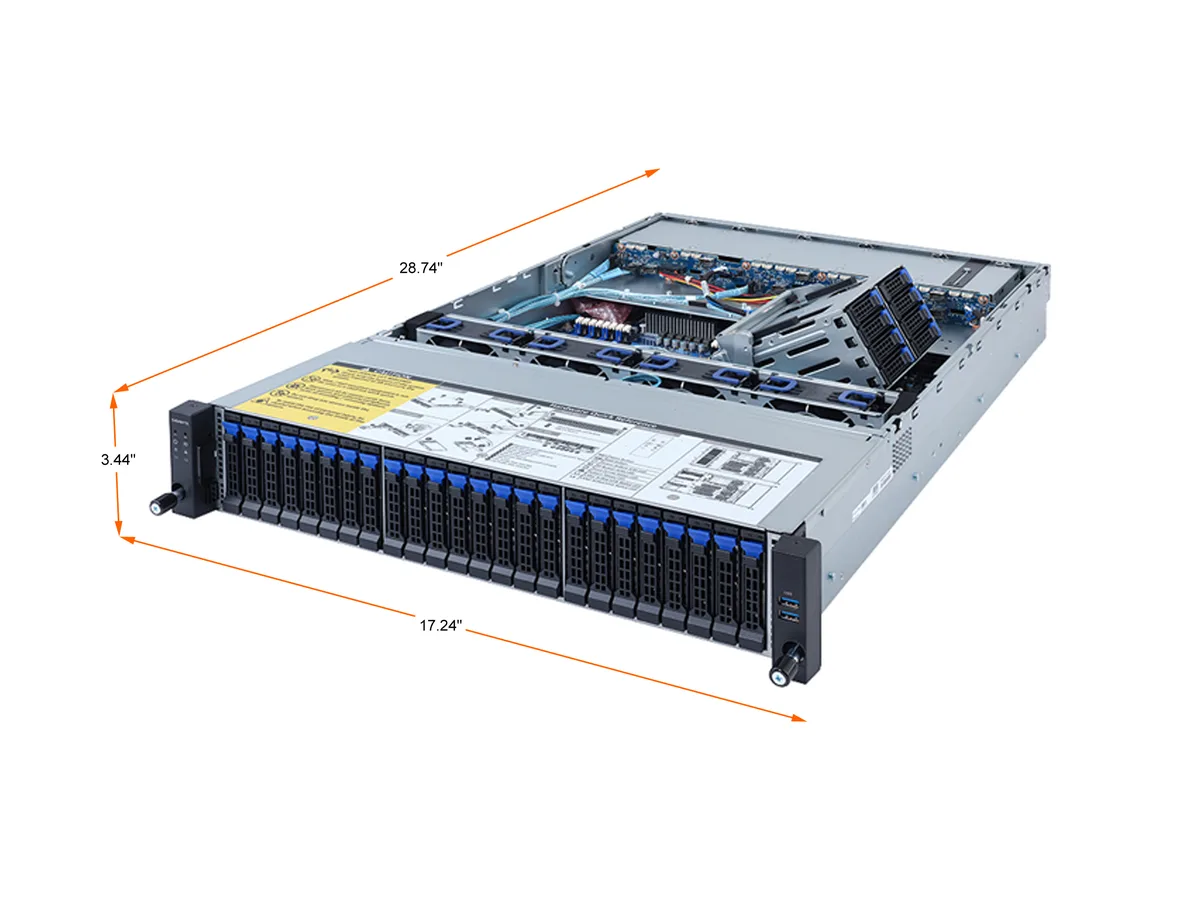

Dimensions17.24" x 3.44" x 28.74"
Package Contents1 x R262-ZA0
1 x CPU heatsink
1 x Rail kit
Shipping weight13.61 kg
Package size889 × 635 × 254 mm

Questions about this item

Will my AMD EPYC 7002 processor fit the Socket SP3 on this R262-ZA0-rev-A00?

Yes, the board supports both AMD EPYC 7002 and 7003 series processors in the single Socket SP3, with a maximum of one CPU installed.

How do I confirm the 24 front 2.5-inch bays and 16 DIMM slots are detected after assembly?

Check the BIOS main screen: it should show 16 populated DDR4 3200 DIMM slots across 8 channels and list all 24 front SATA/SAS ports plus the 8 rear and 2 U.2 ports.

Which drive types can I install in the 40 hot-swap bays without extra controllers?

The 24 front and 8 rear bays accept 2.5-inch SATA or SAS SSDs; the 2 rear U.2 bays take Gen4 U.2 NVMe drives; the 8 internal bays take 2.5-inch SATA or SAS SSDs. A SAS card is required to enable the SAS ports.
