GIGABYTE R183-Z92-AAD1 barebone server AMD EPYC 9004 dual socket 12-bay NVMe/SATA/SAS

Dual-Socket EPYC 9004 Barebone Server

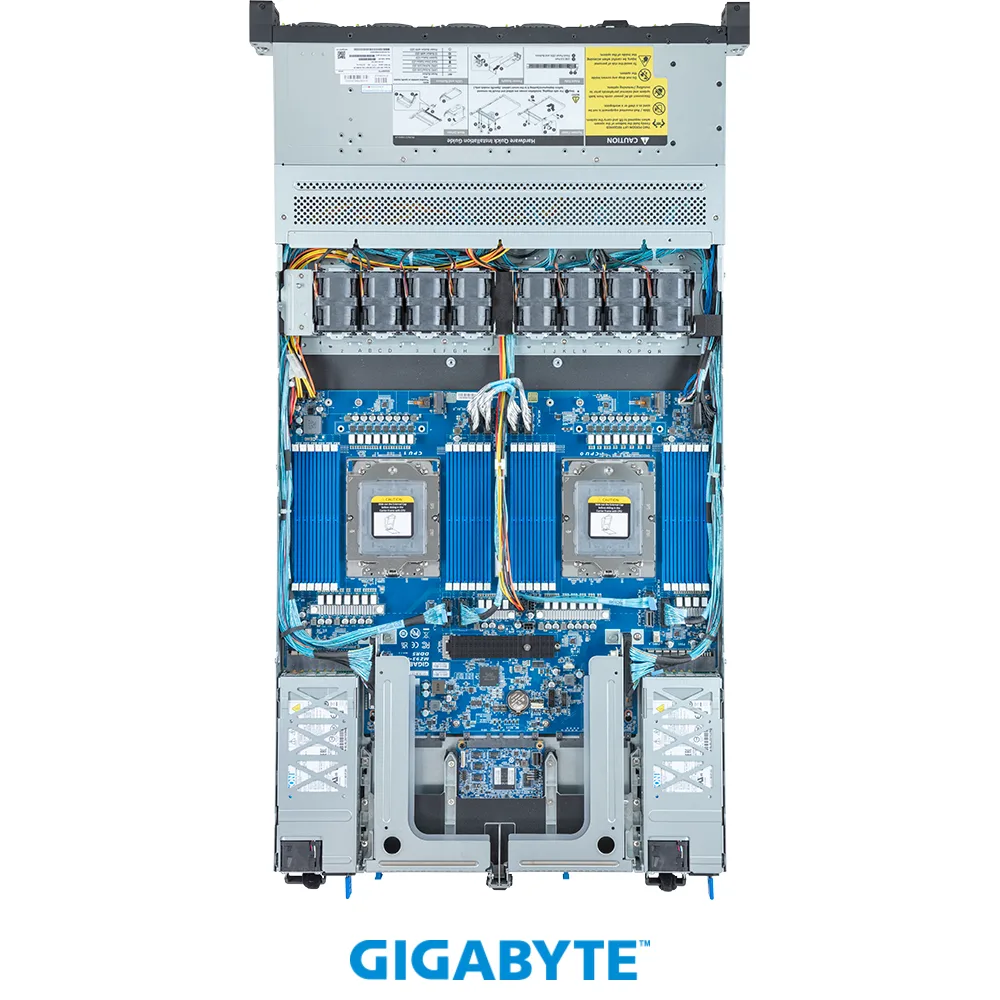

The GIGABYTE R183-Z92-AAD1 is a 1U rackmount barebone system built around dual AMD EPYC 9004 series processors in SP5 sockets. It targets organisations deploying general-purpose workloads that need high core counts and 5 nm process technology in a compact chassis. The platform supports 24 DDR5 RDIMM slots across twelve memory channels for large memory footprints.

Verify CPU Cooler Clearance and Power Infrastructure

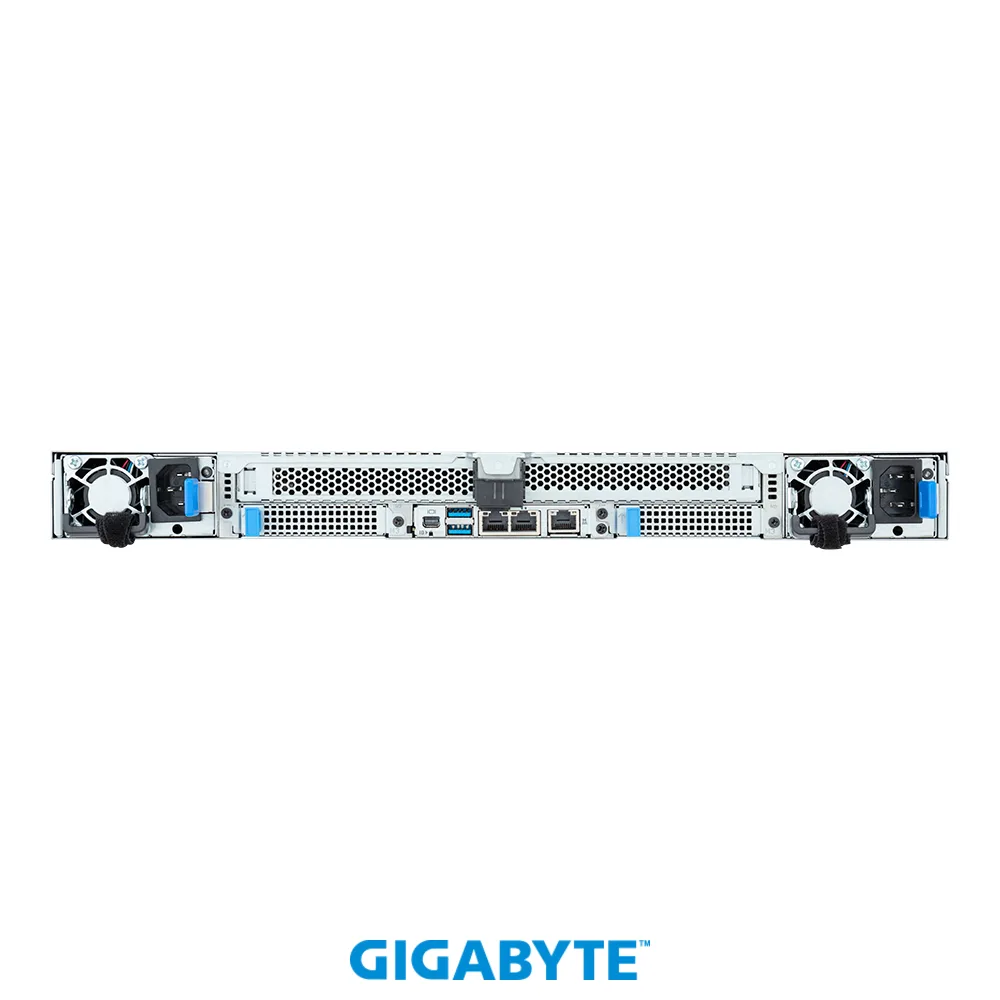

Confirm that your chosen SP5 heatsinks fit the 1U height and that your rack power distribution can supply two EPYC 9004 CPUs simultaneously. The board provides dual 1 Gb/s LAN ports via an Intel I350-AM2 controller plus a dedicated management port for out-of-band access. Ensure your operating system and hypervisor have current drivers for the AMD 3D V-Cache enabled processors.

Twelve Hot-Swap Bays Free PCIe Slots for Networking

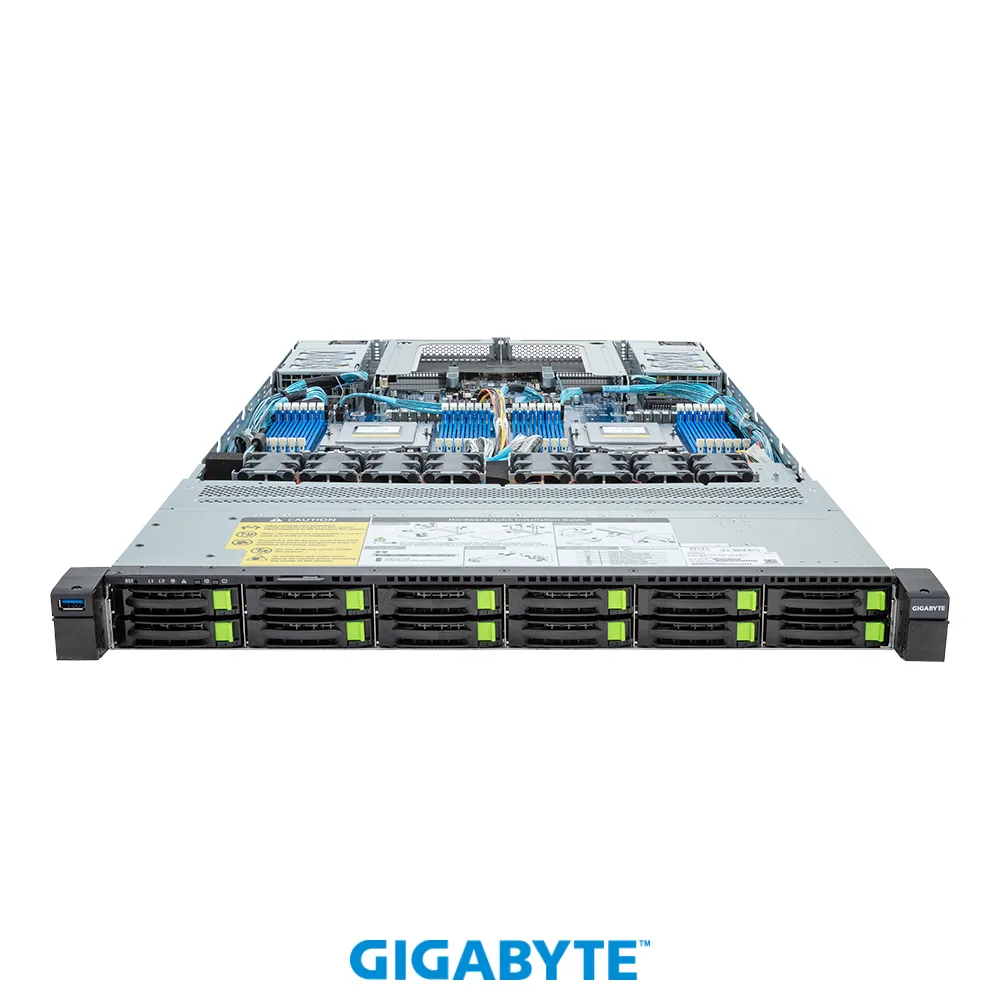

Twelve front-accessible 2.5-inch bays accept Gen4 NVMe, SATA or SAS drives without consuming internal PCIe expansion slots. This leaves the rear PCIe area available for additional network adapters, HBAs or accelerators. Dual ROM architecture aids firmware resilience during updates, while the single management port simplifies remote monitoring in dense racks.
