GIGABYTE R163-SG2-AAC1 1U Barebone Server, Single Xeon, 16 DIMM, 10 Bays, 1 GPU
1U rackmount barebones server supports a single Xeon Scalable or Xeon CPU Max processor, 16 DDR5 DIMM slots, ten 2.5-inch hot-swap drive bays and one dual-slot PCIe Gen5 GPU
- Form Factor1U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeSupports: - 5th Generation Intel Xeon Scalable Processors -
- CPU SocketLGA 4677
- Installed CPUNo CPU Installed
- Max Processors1
- Single-socket 350 W Xeon platform for dense compute
- 16 DDR5 RDIMM slots with eight-channel bandwidth up to 5600 MT/s
- 10 hot-swap 2.5" bays including four Gen5 NVMe/SATA/SAS-4 slots
- Dual-slot PCIe Gen5 x16 GPU support for AI acceleration
- OCP 3.0 Gen5 x16 plus M.2 PCIe Gen3 x4 for flexible I/O
1U Rack Server with Dual-Slot Gen5 GPU Support

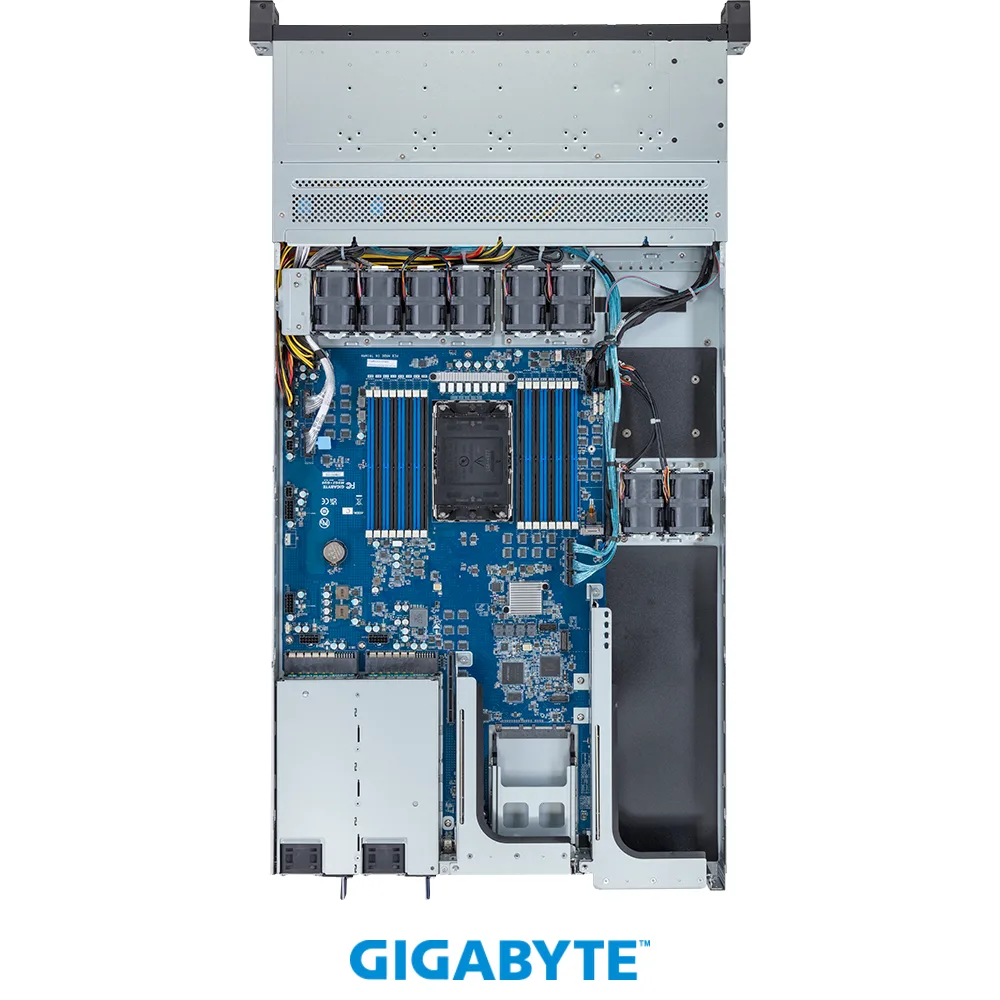

The GIGABYTE R163-SG2-AAC1 is a 1U barebone server designed for compute-intensive workloads. It accommodates a single 5th or 4th Generation Intel Xeon Scalable processor or an Intel Xeon CPU Max Series with HBM. The platform provides 16 DDR5 RDIMM slots across eight channels and includes a PCIe 5.0 x16 slot for a full-height, full-length dual-slot GPU. Ten hot-swap 2.5-inch drive bays and an M.2 slot complete the storage foundation.
Suited for AI Inference and HPC.
This server targets teams deploying GPU-accelerated AI inference, deep learning, or high-performance computing in a dense 1U form factor. It suits builders who need Gen5 NVMe speed and a single high-TDP processor up to 350 W. Buyers requiring dual-processor scaling, more than one double-width accelerator, or 3.5-inch drive carriers should evaluate alternative chassis.
Single LGA 4677 Processor with 350 W TDP Limit
The platform supports exactly one processor in an LGA 4677 socket with a thermal design power ceiling of 350 W. This constraint determines which Xeon Scalable or Xeon CPU Max Series parts can be installed and directly governs the cooling and power infrastructure the build requires.
Highlights
- Single-socket 350 W Xeon platform for dense compute
- 16 DDR5 RDIMM slots with eight-channel bandwidth up to 5600 MT/s
- 10 hot-swap 2.5" bays including four Gen5 NVMe/SATA/SAS-4 slots
- Dual-slot PCIe Gen5 x16 GPU support for AI acceleration
- OCP 3.0 Gen5 x16 plus M.2 PCIe Gen3 x4 for flexible I/O
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | R163-SG2-AAC1 |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Supports: - 5th Generation Intel Xeon Scalable Processors - 4th Generation Intel Xeon Scalable Processors - Intel Xeon CPU Max Series |
| CPU Socket | LGA 4677 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| CPU Features | Single processor, TDP up to 350W |
| North Bridge | Intel C741 |
| Memory Slots | 16 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | 5th Gen Intel Xeon: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Channel Supported | 8 Channel |
| Registered | Yes |
| Installed HDD | No Storage Installed |
| SATA RAID | RAID 0/1/5/10 |
| M.2 | 1 x M.2 slot: - M-key - PCIe Gen3 x4, from PCH - Supports 2280/22110 cards |
| PCI Express | 1 x FHFL PCIe Gen5 x16 slot for GPUs 1 x FHFL PCIe Gen5 x16 slot 1 x FHHL PCIe Gen5 x16 slot 1 x OCP 3.0 Gen5 x16 slot |

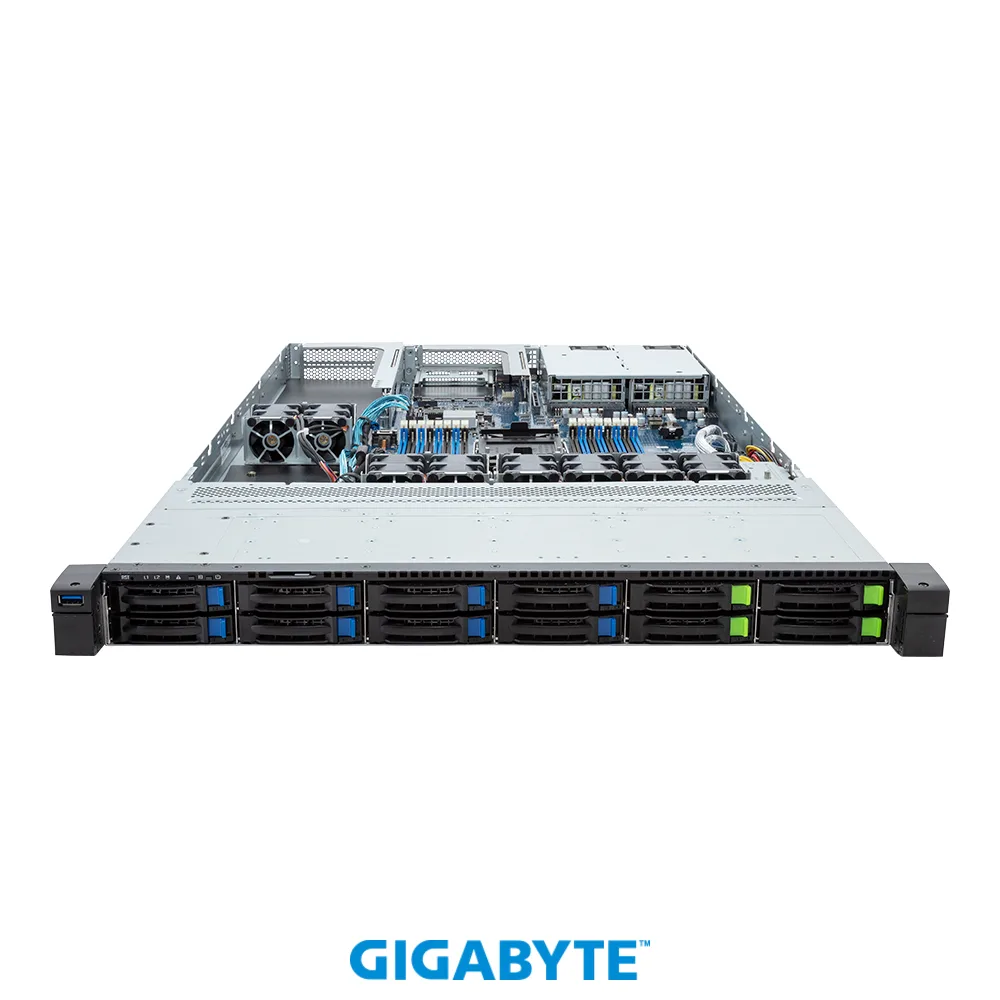

| Hot-Swap Bays | 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays 8 x 2.5" SATA/SAS-4 hot-swappable bays |
| Buttons | 1 x Reset button |
| LEDs | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED |
| Front USB | 1 x USB 3.2 Gen1 |
| Rear USB | 2 x USB 3.2 Gen1 |
| Other Ports | 1 x MLAN |
| DisplayPort | 1 x Mini DisplayPort |

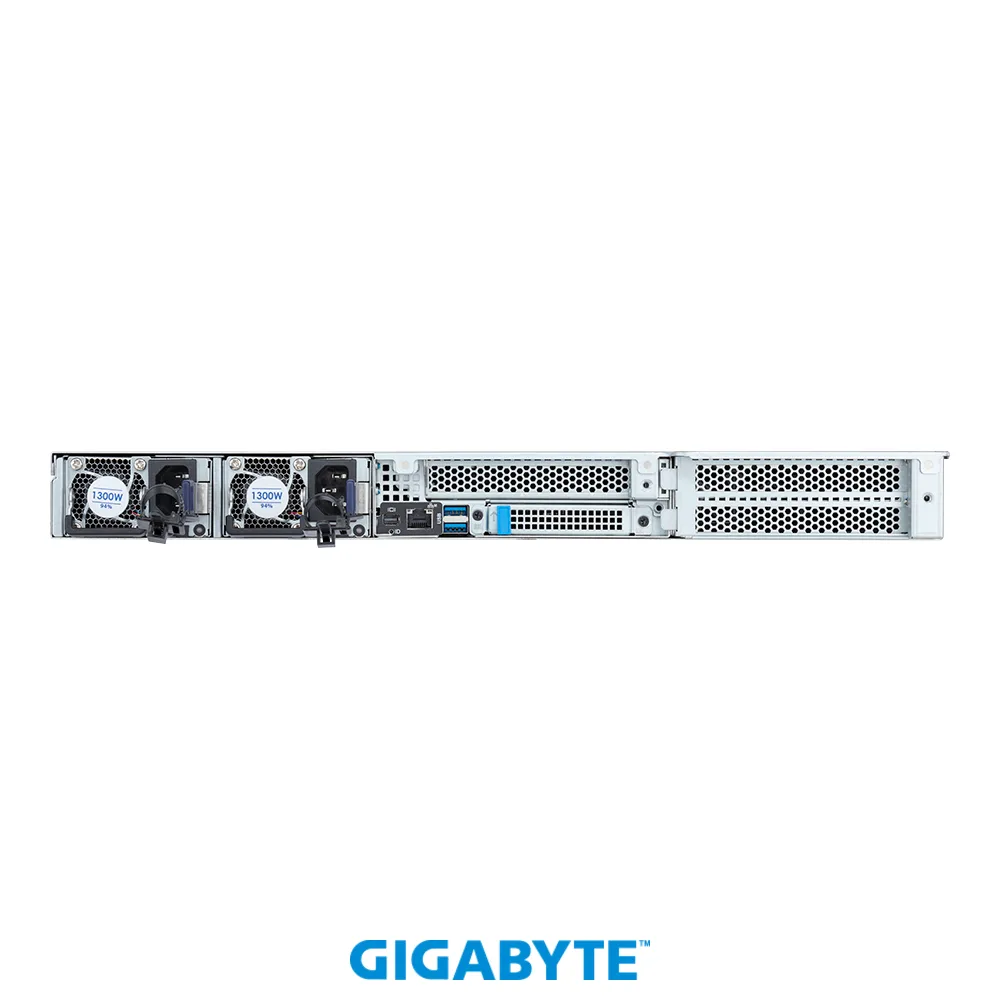

| Max. Power | 1+1 1300W 80 PLUS Platinum redundant power supplies |
| Fans | 8 x 40x40x56mm (32,000rpm) |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 1.71" x 17.24" x 32.09" |
| Weight | 46.61 lbs. |
| Package Contents | 1 x R163-SG2-AAC1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 400mm) 3 x Carriers 1 x 2-Section Rail kit |
| Shipping weight | 23.14 kg |
| Package size | 1038 × 588 × 238 mm |
Questions about this item
Should I pick the 4 x 2.5" Gen5 NVMe/SATA/SAS-4 bays or the 8 x 2.5" SATA/SAS-4 bays for my storage pool?
Use the 4 Gen5 bays for NVMe drives that need PCIe 5.0 bandwidth; the 8 SATA/SAS-4 bays suit high-capacity hard drives or SATA SSDs where Gen5 speed is not required.
What does the 5600 MT/s DDR5 figure mean once the server is built?
With a 5th Gen Xeon and one DIMM per channel the memory runs at 5600 MT/s; populating two DIMMs per channel drops the speed to 4400 MT/s.
How does the OCP 3.0 Gen5 x16 slot limit network card choices?
The slot provides a PCIe 5.0 x16 link to the CPU, so any OCP 3.0 NIC that operates at Gen5 x16 or lower will run at its rated throughput.
