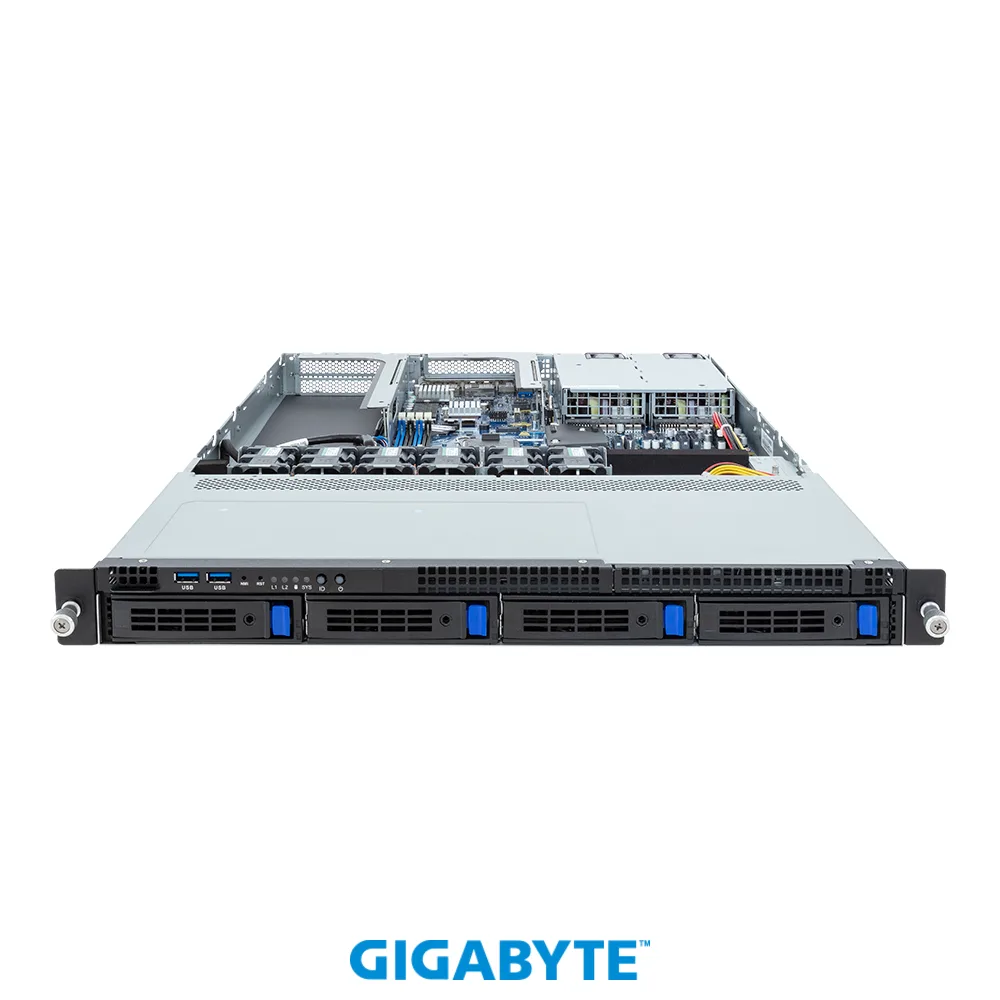

Silver 1U rackmount barebones server with four front drive bays

GIGABYTE

GIGABYTE R133-X13-AAB1 barebone server 1U Xeon E-2400 1 GPU

SKU CH-CQWM-VG0Z4 MPN R133-X13-AAB1

A 1U rackmount barebones server supporting one Xeon E-2400 processor, four DDR5 ECC UDIMM slots, four hot-swap SATA bays, one M.2 slot and a dual-slot PCIe Gen5 GPU

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports - Intel Xeon 6300-Series Processors - Intel Xeon E-
  • CPU SocketLGA 1700
  • Installed CPUNo CPU Installed
  • Max Processors1
  • 1U rackmount density saves rack space
  • Supports Xeon E-2400 up to 95 W TDP
  • Dual-channel DDR5 ECC UDIMM up to 4400 MT/s
  • Four 3.5"/2.5" hot-swap SATA bays with RAID 0/1/5/10
  • One dual-slot PCIe Gen5 GPU or two x8 cards

1U Barebone for Xeon E-2400

The GIGABYTE R133-X13-AAB1 is a 1U rackmount barebone that accepts a single Intel Xeon E-2400 or Pentium Gold G7400 processor up to 95W TDP. It targets integrators building general-purpose servers who need GPU acceleration in a compact form factor.

Dual-slot Gen5 GPU under sustained load

A single dual-slot PCIe Gen5 GPU fits in the full-height full-length slot, with the option to split the lane into two x8 links. Automatic fan speed control adjusts individual fans based on internal temperature sensors to maintain thermal stability during continuous compute workloads.

Check CPU, memory and power before ordering

No CPU or memory is installed; you must supply a compatible LGA 1700 processor and DDR5 ECC UDIMMs within the supported speed grades. Verify that your power infrastructure can sustain the chosen GPU and that the single 1GbE LAN pair meets your connectivity needs.

Highlights

  • 1U rackmount density saves rack space
  • Supports Xeon E-2400 up to 95 W TDP
  • Dual-channel DDR5 ECC UDIMM up to 4400 MT/s
  • Four 3.5"/2.5" hot-swap SATA bays with RAID 0/1/5/10
  • One dual-slot PCIe Gen5 GPU or two x8 cards

Specifications

BrandGIGABYTE
ModelR133-X13-AAB1
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports
- Intel Xeon 6300-Series Processors
- Intel Xeon E-2400 Processors
- Intel Pentium Gold G7400 / G7400T Processor
CPU SocketLGA 1700
Installed CPUNo CPU Installed
Max Processors1
CPU FeaturesSingle processor, TDP up to 95W
North BridgeIntel C262
Memory Slots4 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedUDIMM: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
Channel SupportedDual Channel
Installed HDDNo Storage Installed
SATA RAIDRAID 0/1/5/10
M.21 x M.2 (2280/22110), PCIe Gen4 x4, from CPU
First LANIntel I210-AT
Second LANIntel I210-AT
Max. LAN Speed1 Gigabit
Hot-Swap Bays4 x 3.5" / 2.5" SATA
Buttons1 x NMI button
1 x Reset button
LEDs1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Front USB2 x USB 3.2 Gen1 ports (Type-A)
DisplayPort1 x Mini DisplayPort
Rear USB2 x USB 3.2 Gen1 ports (Type-A)
RJ452
Other Ports1 x MLAN
Max. Power1+1 800W 80 PLUS Platinum redundant power supplies
Fans4 x 40x40x56mm (29,700rpm)
2 x 40x40x56mm (32,000rpm)
TemperatureOperating temperature: 10°C to 30°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions1.71" x 17.24" x 27.95"
Package Contents1 x R133-X13-AAB1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 700mm)
1 x 2-Section Rail kit
Shipping weight22.96 kg
Package size977 × 588 × 236 mm

Questions about this item

How loud and hot does the 1U chassis run when the 95 W Xeon E-2400 and a dual-slot Gen5 GPU operate continuously?

Automatic Fan Speed Control adjusts individual fans based on internal temperature sensors, so noise and heat scale with actual load rather than running at a fixed maximum.

Which components must I supply because they are not installed in the barebones unit?

You must provide a LGA 1700 Xeon E-2400 or Pentium Gold G7400 processor, DDR5 ECC UDIMMs up to 4400 MT/s, SATA drives for the four hot-swap bays, and an M.2 2280/22110 PCIe Gen4 x4 module.

Can I keep my existing SATA RAID arrays and 1 GbE cabling when moving them into this server?

Yes, the C262 chipset offers SATA RAID 0/1/5/10 across four hot-swap bays, and the two Intel I210-AT ports maintain 1 GbE connectivity without re-cabling.
