GIGABYTE R113-C10-AC02 barebone server 1U 4-bay SATA 400W AM5 DDR5
A 1U rack barebone with four 2.5" SATA bays, AM5 socket for EPYC 4004 or Ryzen 7000 CPUs, four DDR5 ECC DIMM slots, dual 1GbE LAN, M.2 PCIe Gen5 x4 and a 400W 80 PLUS Gold PSU
- Form Factor1U
- WorkloadGeneral Purpose Server
- CPU TypeAMD Ryzen 7000 Series
- CPU Socket1 x AM5, Single processor, 5nm technology
- Installed CPUNo CPU Installed
- CPU FeaturesTDP up to 105W Note: Overclocking not supported due to therm
- Single-socket AM5 supports Ryzen 7000 and EPYC 4004/4005 CPUs up to 105W TDP
- Four DDR5 UDIMM slots deliver dual-channel ECC or non-ECC memory up to 5200 MT/s
- Four 2.5-inch SATA bays — two hot-swap, two internal — with RAID 0/1/10
- PCIe Gen5 x16 full-height slot plus M.2 2242/2280 Gen5 x4 for fast expansion
- Dual Intel I210 1GbE ports and dedicated management LAN powered by 400W 80 PLUS Gold PSU
Compact 1U AMD barebone with four SATA bays

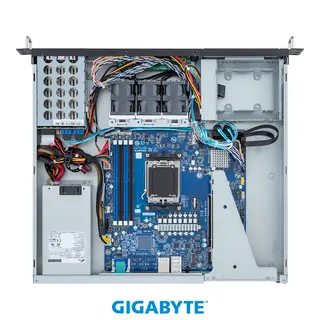

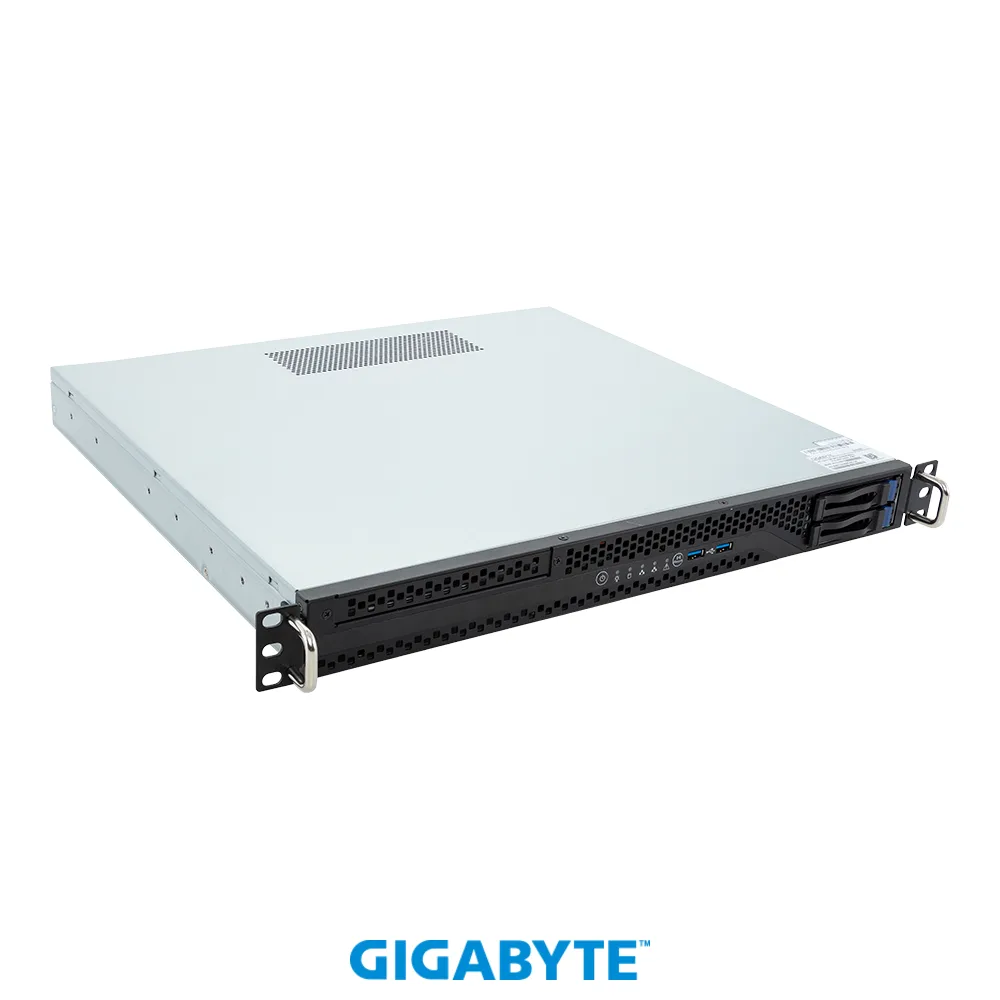

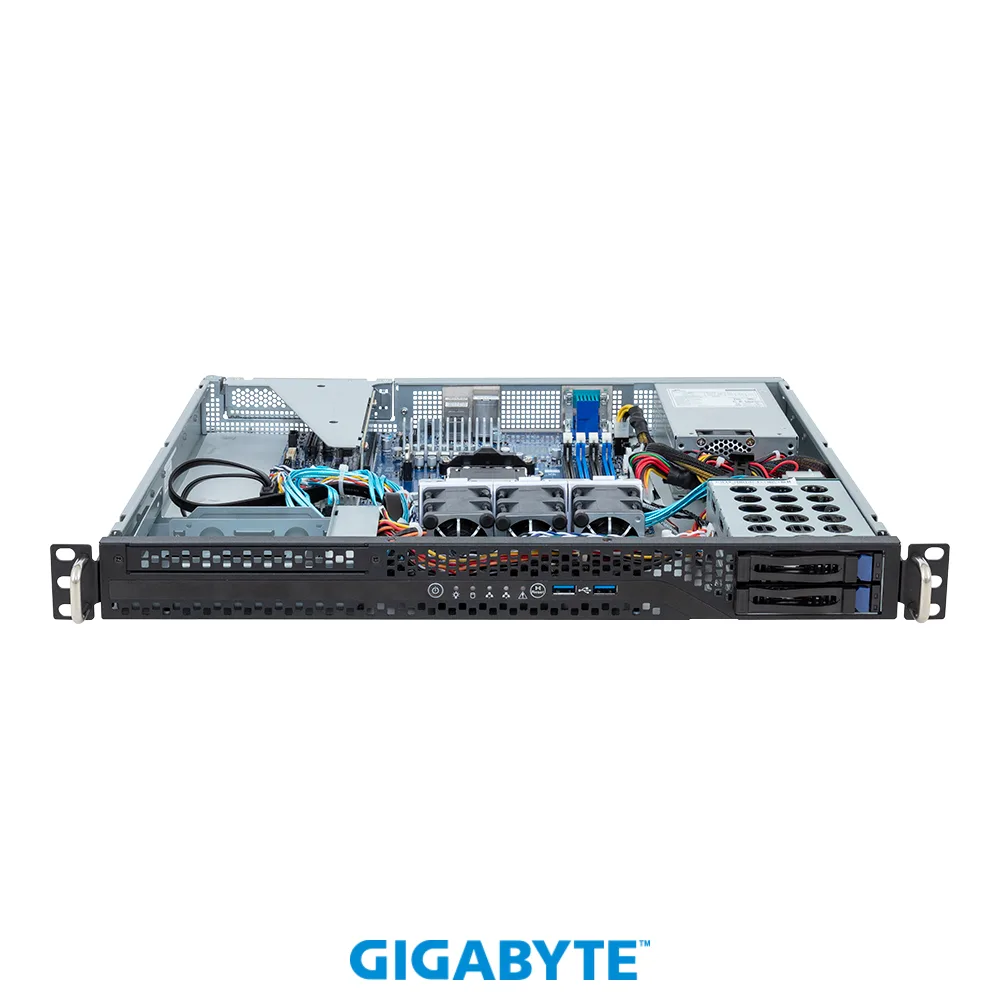

The GIGABYTE R113-C10-AC02 is a 1U rack-mount barebone designed for AMD EPYC 4004/4005 and Ryzen 7000/9000 processors in the AM5 socket. It ships with a single 400W 80 PLUS Gold power supply and no CPU or memory installed. The chassis provides two hot-swap and two internal 2.5-inch SATA drive bays, a single M.2 slot with PCIe Gen5 x4 connectivity, and one full-height PCIe Gen5 x16 expansion slot.
Suits single-socket AMD builds needing dense SATA
This platform fits system integrators deploying networking, hybrid-cloud or private-cloud workloads that rely on SATA SSDs or hard drives and dual 1 Gb/s LAN links. It supports dual-channel DDR5 ECC and non-ECC UDIMMs up to 32 GB per DIMM at speeds up to 5200 MT/s. Buyers who need 10 Gb/s networking, additional PCIe expansion slots, redundant power supplies, or GPU compute density should look at larger 2U or multi-node chassis instead.
CPU TDP ceiling of 105 W defines cooler
The socket is rated for processors up to 105 W TDP and the vendor notes that overclocking is not supported due to thermal limits. This constraint determines which AM5 CPUs can be used reliably in the 1U airflow path and rules out higher-wattage workstation or server SKUs. Select a compatible EPYC 4004/4005 or Ryzen 7000/9000 part at or below 105 W to match the cooling capacity.
Highlights
- Single-socket AM5 supports Ryzen 7000 and EPYC 4004/4005 CPUs up to 105W TDP
- Four DDR5 UDIMM slots deliver dual-channel ECC or non-ECC memory up to 5200 MT/s
- Four 2.5-inch SATA bays — two hot-swap, two internal — with RAID 0/1/10
- PCIe Gen5 x16 full-height slot plus M.2 2242/2280 Gen5 x4 for fast expansion
- Dual Intel I210 1GbE ports and dedicated management LAN powered by 400W 80 PLUS Gold PSU
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | R113-C10-AA02 |
| Form Factor | 1U |
| Workload | General Purpose Server |
| CPU Type | AMD Ryzen 7000 Series |
| CPU Socket | 1 x AM5, Single processor, 5nm technology |
| Installed CPU | No CPU Installed |
| CPU Features | TDP up to 105W Note: Overclocking not supported due to thermal limitation. |
| North Bridge | AMD B650E |
| Memory Slots | 4 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR5 memory supported only Dual Channel memory architecture DIMM up to 32GB supported ECC UDIMM 1Rx8/2Rx8 supported Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 supported Memory speed: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC) |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
| SATA RAID | RAID 0/1/10 |
| M.2 | 1 x M.2 slot: - M-key - PCIe Gen5 x4, from CPU - Supports 2242/2280 cards |
| GPU/VPU | Integrated in Aspeed AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| PCI Express | 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU |
| First LAN | 2 x 1Gb/s LAN ports (2 x Intel I210-AT) Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Max. LAN Speed | 1 Gigabit |
| 2.5" Bays | 2 x 2.5" SATA bays |
| Hot-Swap Bays | 2 x 2.5" SATA hot-swappable bays |
| Buttons | 1 x Power button 1 x Reset button |
| LEDs | 1 x Power LED 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Front USB | 2 x USB 3.2 Gen1 |
| COM | 1 |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen1 |
| RJ45 | 2 |
| Other Ports | Rear 1 x MLAN 1 x ID button with LED |
| Max. Power | Single 400W 80 PLUS Gold power supply |
| System Compatibility | Windows 10 21H2 (x64) Windows 11 (x64) |
| Fans | 3 x 40x40x56mm (29,700rpm) |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 430 x 43.5 x 393.2 mm |
| Package Contents | 1 x R113-C10-AA02 1 x CPU heatsink |
| Shipping weight | 15.11 kg |
| Package size | 800 × 597 × 229 mm |
Questions about this item
How do I install the CPU into the AM5 socket and which step is most often missed?
Align the processor triangle with the socket marker, lower the retention arm fully, then secure the cooler using the four captive screws in a cross pattern. The step most often missed is torquing those screws to the specified value so the IHS makes even contact across all cores.
What maintenance will the 400 W 80 PLUS Gold power supply need over time?
The single 400 W unit is not hot-swap, so plan a scheduled shutdown to replace it if fan noise rises or voltages drift. Keep the intake mesh clean; dust buildup is the main cause of premature wear on this non-redundant supply.
What thermal limit appears first when the 105 W CPU runs sustained loads in this 1U chassis?
The chassis airflow path and single 400 W supply are sized for the 105 W TDP ceiling. Under continuous all-core work the VRM and socket region hit their thermal budget first, triggering firmware throttling before the CPU reaches its own maximum junction temperature.
