2U 4-node barebone server, silver rackmount chassis with front drive bays

GIGABYTE

GIGABYTE H263-S64-IAW1 2U 4-node barebone server 16 DIMMs 8×2.5" NVMe/SATA/SAS

SKU CH-BR0Q-BG4X0 MPN H263-S64- IAW1

A 2U chassis holding four server nodes, each with dual Xeon processors, sixteen DDR5 DIMM slots and eight 2.5-inch NVMe, SATA or SAS hot-swap bays

  • Immersion-ready density packs four compute nodes into 2U
  • Dual Xeon Scalable CPUs per node deliver high core counts
  • Sixteen DDR5 RDIMM slots per node support large memory capacity
  • Eight hot-swap 2.5″ bays handle NVMe SATA SAS drives
  • Dual ROM architecture adds firmware redundancy per node

2U 4-node immersion barebone

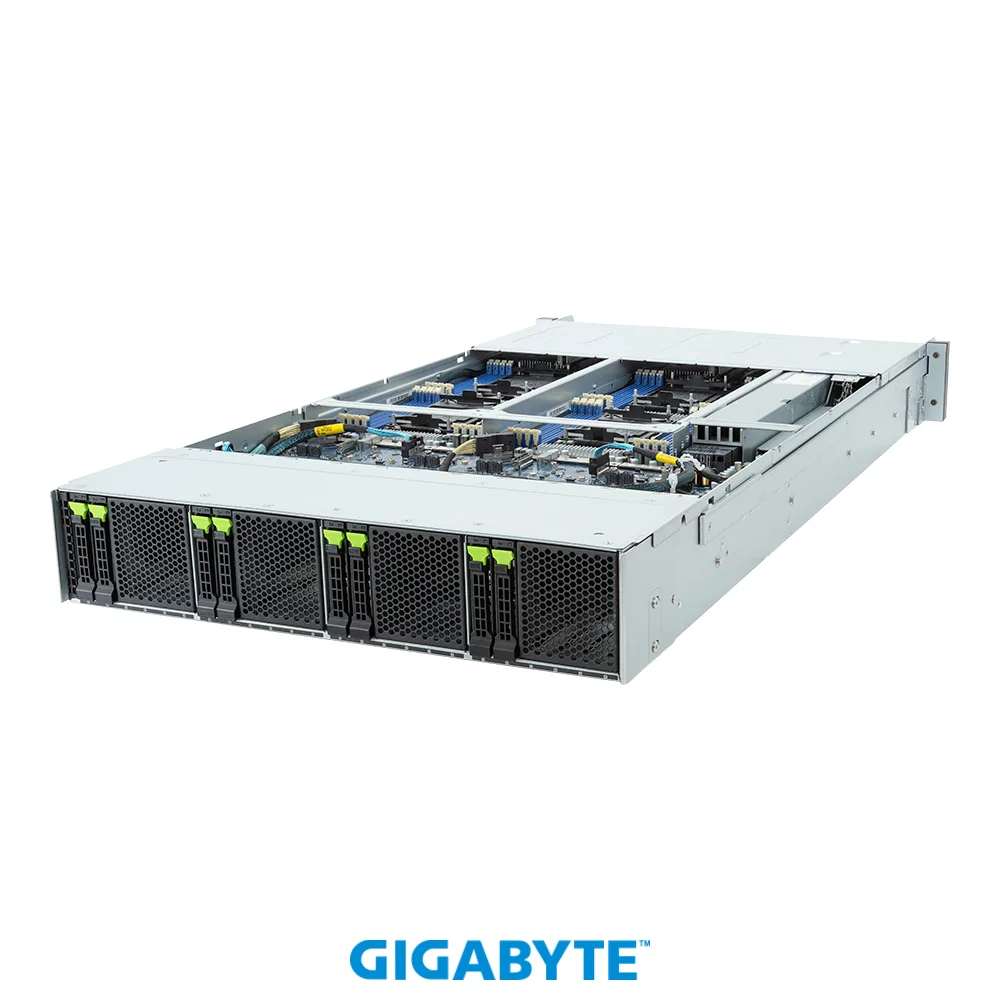

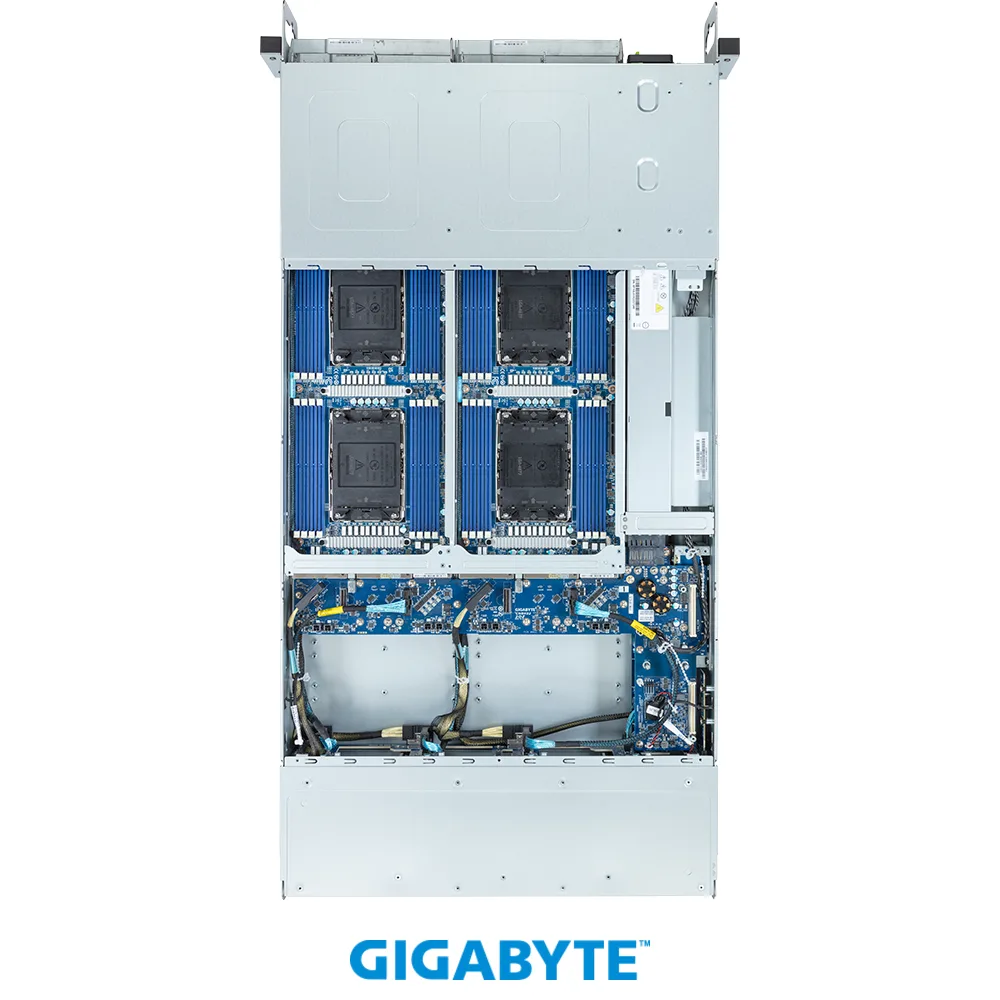

The GIGABYTE H263-S64-IAW1 is a 2U immersion-cooled barebone that holds four independent server nodes in a single rack unit. Each node accepts dual Xeon Scalable processors and supports the Xeon CPU Max Series for workloads that need integrated high-bandwidth memory. It is aimed at density-focused deployments where liquid immersion replaces conventional air cooling.

16 DDR5 RDIMM slots per node

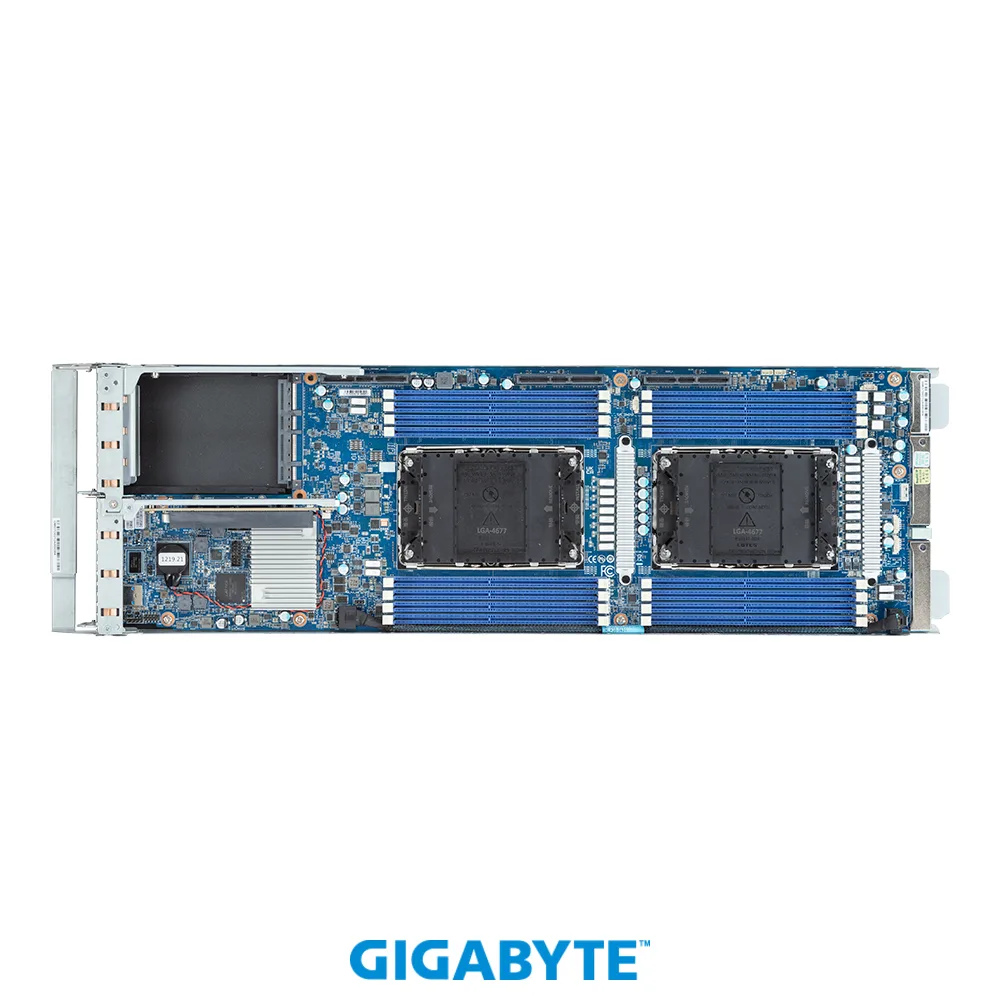

Every node provides 16 DDR5 RDIMM slots across eight memory channels, giving a total of 64 DIMM positions across the chassis. This capacity ceiling is the specification that determines whether the platform can hold the working set for large-scale virtualization, in-memory databases or HPC jobs without spilling to slower storage tiers.

8 hot-swap bays for NVMe SATA SAS

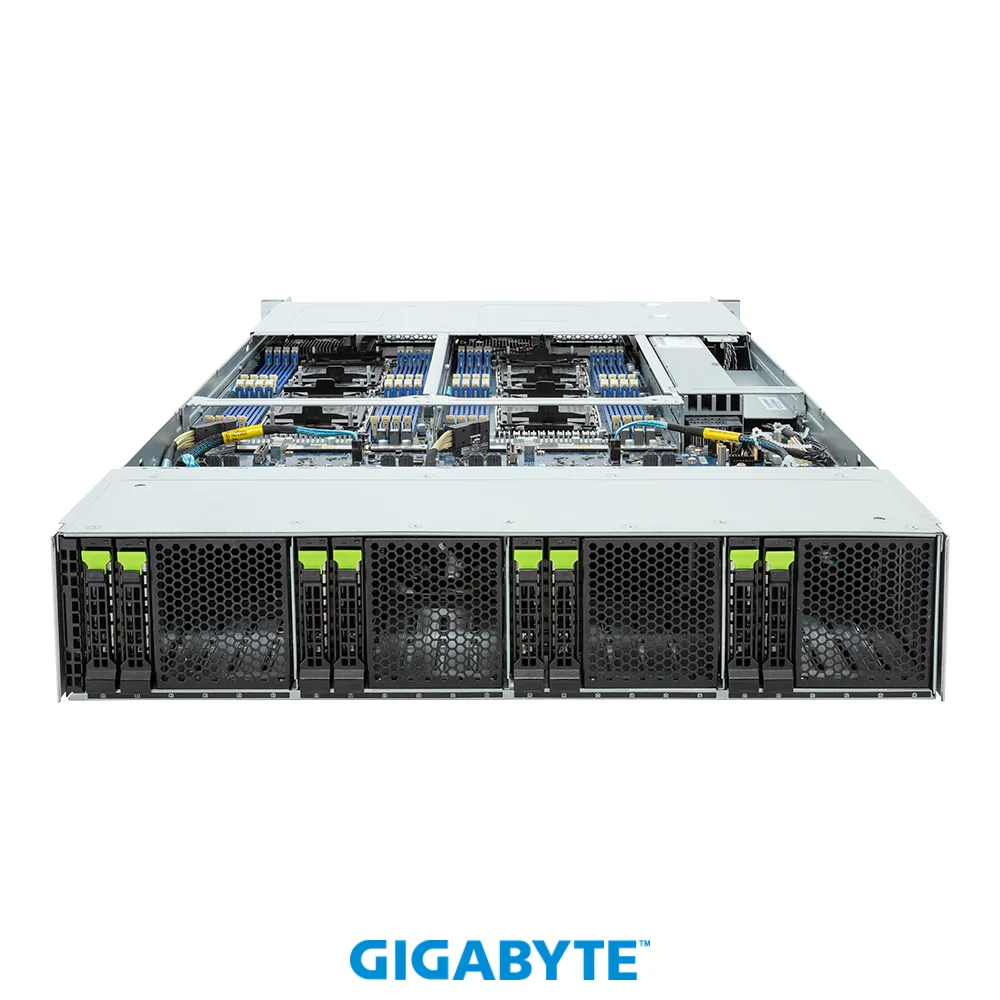

The front panel presents 8 hot-swap 2.5-inch bays that accept Gen4 NVMe, SATA or SAS drives, letting each node mix flash and capacity tiers as the workload demands. A single CMC port handles chassis-level management, while dual ROM architecture provides firmware redundancy. Builders must supply processors, memory, drives and immersion-compatible coolant infrastructure to complete the system.

Highlights

  • Immersion-ready density packs four compute nodes into 2U
  • Dual Xeon Scalable CPUs per node deliver high core counts
  • Sixteen DDR5 RDIMM slots per node support large memory capacity
  • Eight hot-swap 2.5″ bays handle NVMe SATA SAS drives
  • Dual ROM architecture adds firmware redundancy per node

Specifications

No published specifications for this item yet.

Questions about this item

How many DIMM slots does each node provide for memory?

Each node has 16 DIMM slots supporting DDR5 RDIMM across eight channels.

What drive interfaces do the eight 2.5-inch bays support?

The bays accept Gen4 NVMe, SATA and SAS drives with hot-swap capability.

What is the overall rack height and node count of this chassis?

It is a 2U chassis containing four independent server nodes.
