GIGABYTE G482-Z51-rev-A00 4U barebone server
A 4U rackmount barebone server supporting dual AMD EPYC 7003 or 7002 processors with 32 DDR4 3200 memory slots and 10 hot-swap SATA bays
- Form Factor4U Rackmount
- WorkloadAI/ML/HPC
- CPU TypeSupports AMD EPYC 7003 series processor family Compatible wi
- CPU SocketSocket SP3
- Installed CPUNo CPU Installed
- Max Processors2
- Dual AMD EPYC 7003/7002 support for heavy AI workloads
- 32 DDR4 3200 slots across eight channels deliver massive memory bandwidth
- Eight PCIe Gen4 x16 slots ready for multi-GPU acceleration
- Ten 2.5" SATA hot-swap bays enable high-density storage scaling
- Triple 2200W 80 PLUS Platinum PSUs provide redundant power protection
4U Rackmount Barebone for AI Workloads
The GIGABYTE G482-Z51-rev-A00 is a 4U rackmount server barebone designed for AI, machine learning and high-performance computing workloads. It supports up to two AMD EPYC 7003 or 7002 series processors in Socket SP3 and provides 32 DDR4 3200 memory slots across eight channels. Three 2200W 80 PLUS Platinum redundant power supplies are included.
Suits GPU-Dense Training and Inference
This platform suits builders who need eight PCIe Gen4 x16 slots for GPU accelerators and ten 2.5-inch SATA hot-swap bays for local storage. Dual 10 Gigabit and dual 1 Gigabit Ethernet ports handle data and management traffic. Buyers who require storage interfaces other than SATA or more than ten drive bays should evaluate other platforms.
Eight PCIe Gen4 x16 GPU Slots
The defining specification is the eight full-length PCIe Gen4 x16 slots, which determine how many double-width accelerators the chassis can host. Populate the two SP3 sockets, fill the 288-pin DDR4 slots and add GPUs to match the workload.
Highlights
- Dual AMD EPYC 7003/7002 support for heavy AI workloads
- 32 DDR4 3200 slots across eight channels deliver massive memory bandwidth
- Eight PCIe Gen4 x16 slots ready for multi-GPU acceleration
- Ten 2.5" SATA hot-swap bays enable high-density storage scaling
- Triple 2200W 80 PLUS Platinum PSUs provide redundant power protection
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | G482-Z51-rev-A00 |
| Form Factor | 4U Rackmount |
| Workload | AI/ML/HPC |
| CPU Type | Supports AMD EPYC 7003 series processor family Compatible with AMD EPYC 7002 series processor family |
| CPU Socket | Socket SP3 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| Memory Slots | 32 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR4 3200 |
| Channel Supported | 8 Channel |
| Installed HDD | No Storage Installed |
| Serial ATA | 10 x SATA 600 |
| GPU/VPU | Aspeed AST2500 |
| PCI Express | 8 x PCIe x16 slots (Gen4 x16 bus) for GPUs |
| First LAN | Intel X550-AT2 |
| Second LAN | Intel I350-AM2 |
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 10 x 2.5" SATA hot-swappable HDD/SSD bays NOTE: SATA devices supported only |
| Front USB | 2 x USB 3.0 |
| VGA | 1 |
| RJ45 | Rear Side: 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2) 1 x 10/100/1000 management LAN Front Side: 2 x 1Gb/s BASE-T LAN ports (Intel I350-AM2) |
| Other Ports | Internal I/O 1 x TPM header 1 x Front panel header |

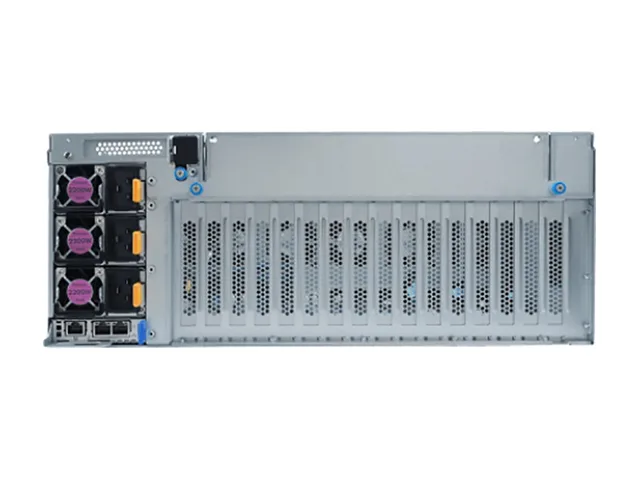

| Max. Power | 3 x 2200W redundant PSUs, 80 PLUS Platinum |

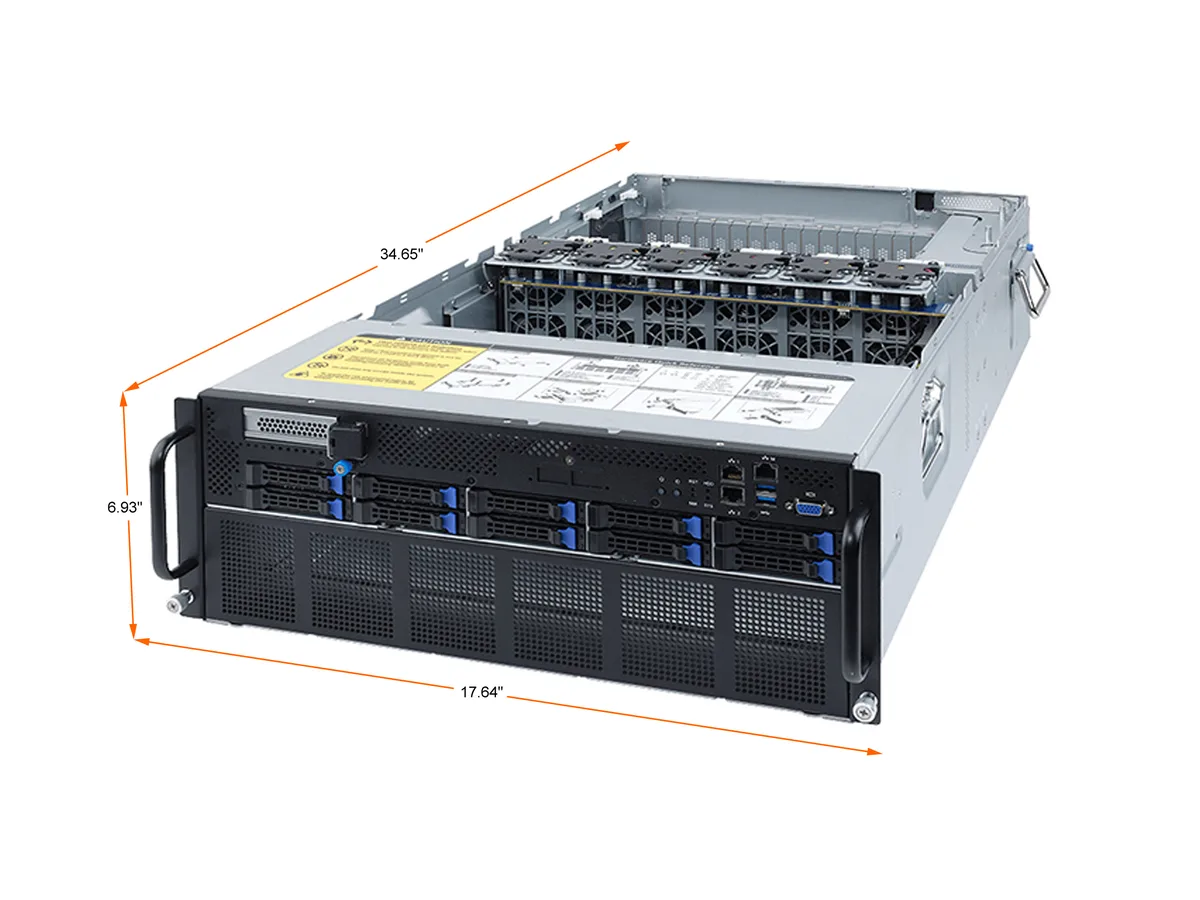

| Dimensions | 17.64" x 6.93" x 34.65" |
| Package Contents | 1 x G482-Z51 2 x CPU fan-sinks 1 x Rail kit |
| Shipping weight | 49.35 kg |
| Package size | 1092 × 610 × 432 mm |
Questions about this item
How loud or hot does the 4U server get when the three 2200 W Platinum PSUs run continuously?
Three 2200 W 80 PLUS Platinum units share the load, so each operates well below peak; expect moderate fan noise and heat typical for a densely packed 4U AI chassis under full GPU load.
Which AMD EPYC processors and DDR4-3200 modules must I supply to populate the dual SP3 sockets and 32 DIMM slots?
You need one or two EPYC 7002 or 7003 series CPUs plus up to 32 DDR4-3200 288-pin RDIMMs across eight memory channels.
Can my existing 2.5" SATA SSDs use the ten hot-swap bays while the eight PCIe Gen4 x16 slots host current GPUs?
Yes — the bays accept only SATA drives, and the eight PCIe Gen4 x16 slots are wired for full-length GPUs, so both legacy storage and modern accelerators fit simultaneously.
