GIGABYTE
GIGABYTE G293-Z42(rev. AAP1) barebone server 2U 8 GPU EPYC 9004
2U rackmount barebones server for AI and HPC workloads, accepting dual EPYC 9004 CPUs and eight dual-slot Gen5 GPUs with twelve-channel DDR5 memory
- Form Factor2U Rackmount
- WorkloadAI/ML/HPC
- CPU TypeAMD EPYC 9004 series processors
- CPU SocketSocket SP5
- Installed CPUNo CPU Installed
- Max Processors2
- Dual EPYC 9004 CPUs deliver 64 threads per socket for heavy compute
- Eight dual-slot Gen5 GPUs fit in a 2U chassis for dense acceleration
- Twelve-channel DDR5 across 24 DIMM slots feeds memory-hungry workloads
- Four Gen5 NVMe hot-swap bays plus four SATA/SAS bays give flexible fast storage
- Dual 10 GbE LAN ports plus a dedicated management port keep data moving
2U AI server barebone for EPYC 9004
This 2U rackmount barebone is built for AI, machine learning and high-performance computing workloads. It accepts up to two AMD EPYC 9004 series processors in Socket SP5, each offering up to 32-core and 64 threads with a TDP up to 210W. No CPU or memory comes installed, so integrators choose the exact configuration. The platform targets training, inference and HPC clusters.
Dual 3000W Titanium PSU and twelve-channel DDR5

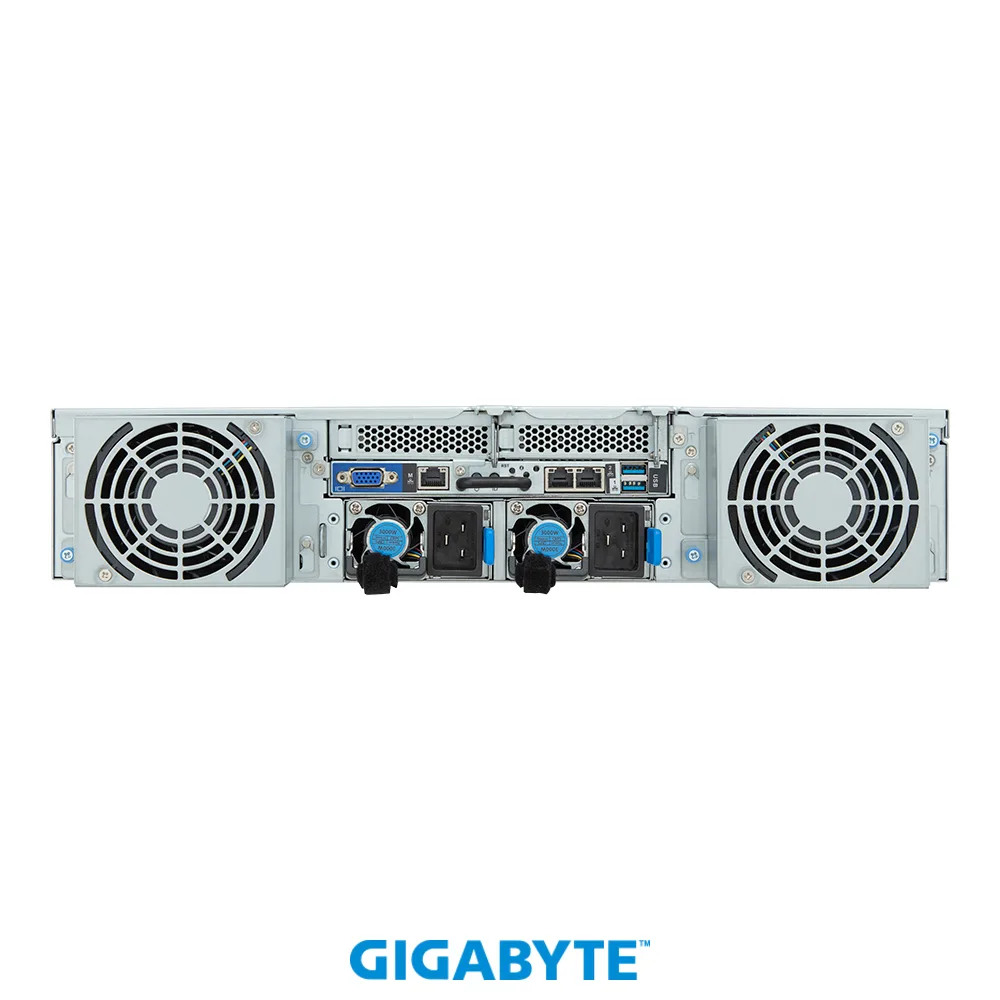

Redundant dual 3000W 80 PLUS Titanium power supplies (240V) feed the system. Twenty-four 288-pin DIMM slots run across twelve DDR5 channels, supporting RDIMM up to 96GB and 3DS RDIMM up to 256GB per module. Eight dual-slot PCIe Gen5 GPU cards mount internally. Networking uses two 10 Gigabit BASE-T ports via Broadcom BCM57416 plus a dedicated management port, with VGA and two USB 3.2 Gen1 ports at the rear.
Eight hot-swap bays split by CPU

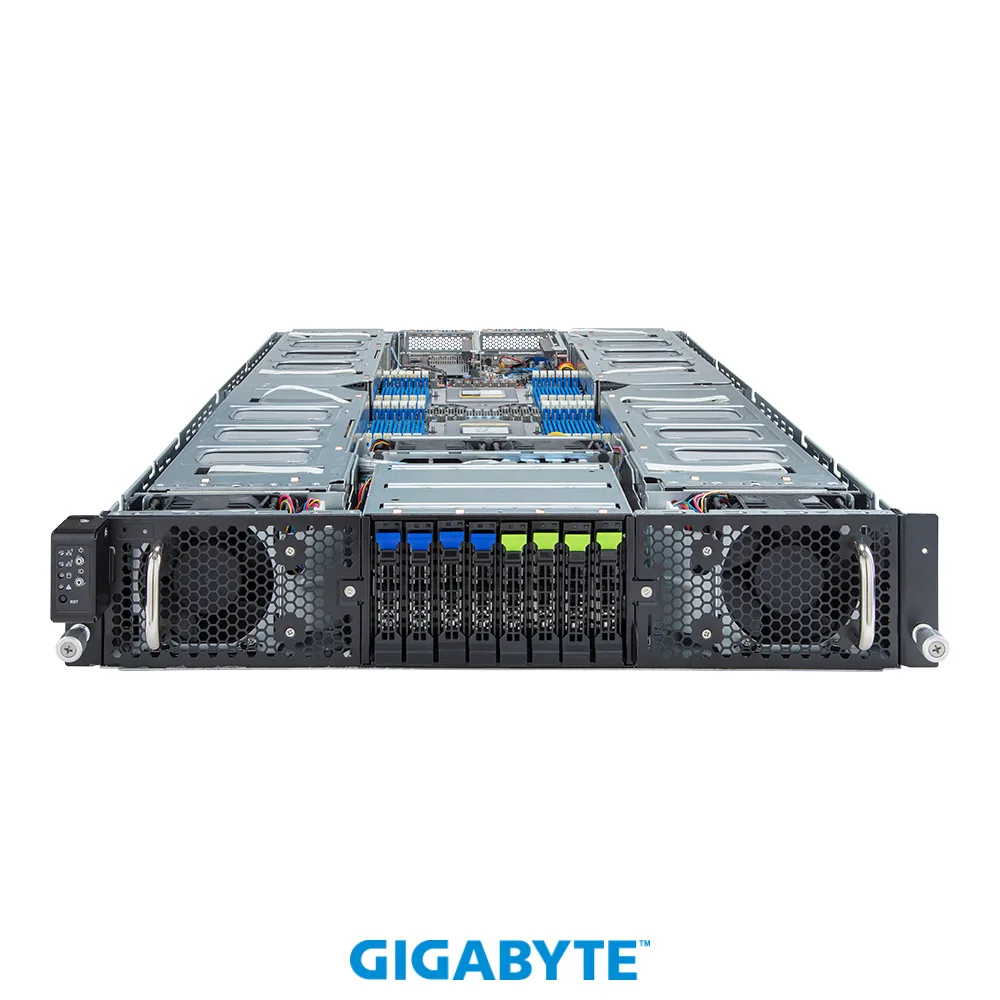

Storage uses four 2.5-inch Gen5 NVMe/SATA/SAS hot-swap bays wired to CPU 1 and four 2.5-inch SATA/SAS hot-swap bays also from CPU 1. No drives are installed. The board requires two EPYC 9004 CPUs and DDR5 RDIMM or 3DS RDIMM modules to populate the 24 slots. Buyers needing single-socket operation, PCIe Gen4 GPUs, or pre-installed drives should look elsewhere.
Highlights
- Dual EPYC 9004 CPUs deliver 64 threads per socket for heavy compute
- Eight dual-slot Gen5 GPUs fit in a 2U chassis for dense acceleration
- Twelve-channel DDR5 across 24 DIMM slots feeds memory-hungry workloads
- Four Gen5 NVMe hot-swap bays plus four SATA/SAS bays give flexible fast storage
- Dual 10 GbE LAN ports plus a dedicated management port keep data moving
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | G293-Z42 |
| Form Factor | 2U Rackmount |
| Workload | AI/ML/HPC |
| CPU Type | AMD EPYC 9004 series processors |
| CPU Socket | Socket SP5 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| CPU Features | Dual processor, 5nm technology Up to 32-core, 64 threads per processor CPU TDP up to 210W |
| Memory Slots | 24 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported |
| Channel Supported | 12 Channel |
| Installed HDD | No Storage Installed |
| GPU/VPU | 8 x Dual slot Gen5 GPU cards |
| First LAN | Broadcom BCM57416 |
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays 4 x 2.5" SATA/SAS hot-swappable bays - (NVMe from CPU_1, SATA from CPU_1) |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen1 |
| RJ45 | 2 |
| Other Ports | 1 x MLAN |
| Max. Power | Dual 3000W (240V) 80 PLUS Titanium redundant power supply |
| System Compatibility | SUSE Linux Enterprise Server 15 SP4 (x64) Windows Server 2022 (x64) |
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 17.64" x 3.44" x 31.5" |
| Shipping weight | 20.00 kg |
| Package size | 800 × 448 × 87 mm |
Questions about this item
What PCIe generation do the eight dual-slot GPU slots use, and what does that limit in practice?
The eight dual-slot GPU slots run at PCIe Gen5, which sets the maximum link speed each graphics card can negotiate with the CPU.
What physical space and power connectors must the chassis provide for the eight dual-slot Gen5 GPU cards?
The 2U rackmount chassis fits eight dual-slot cards and includes dual 3000W 80 PLUS Titanium redundant power supplies to feed them.
How are the AMD EPYC 9004 processors installed in the Socket SP5 sockets, and what step is often missed?
Install each processor into its SP5 socket, apply thermal interface material, then attach the heatsink; the step often missed is populating all twelve memory channels per CPU with matched DDR5 RDIMMs.
