GIGABYTE G292-280 2U barebone server, 24 DDR4 slots, 8 GPU slots, 10GbE
A 2U rackmount barebone supporting two Xeon processors, 24 DDR4 slots, eight dual-slot GPU cards and 10GbE networking
- Form Factor2U Rackmount
- CPU TypeSupports 3rd Generation Intel Xeon Scalable Processors
- CPU SocketLGA 4189
- Installed CPUNo CPU Installed
- Max Processors2
- North BridgeIntel C621A
- Supports dual 3rd Gen Intel Xeon Scalable processors for high compute density
- 24 DDR4 3200 slots enable up to 256 GB memory capacity
- Eight PCIe Gen4 GPU slots accommodate dual-slot accelerator cards
- Dual 10 GbE BASE-T ports via Intel X710-AT2 controller
- Eight 2.5" hot-swap bays with four supporting Gen4 NVMe drives
2U GPU Server Barebone for Dual Xeon

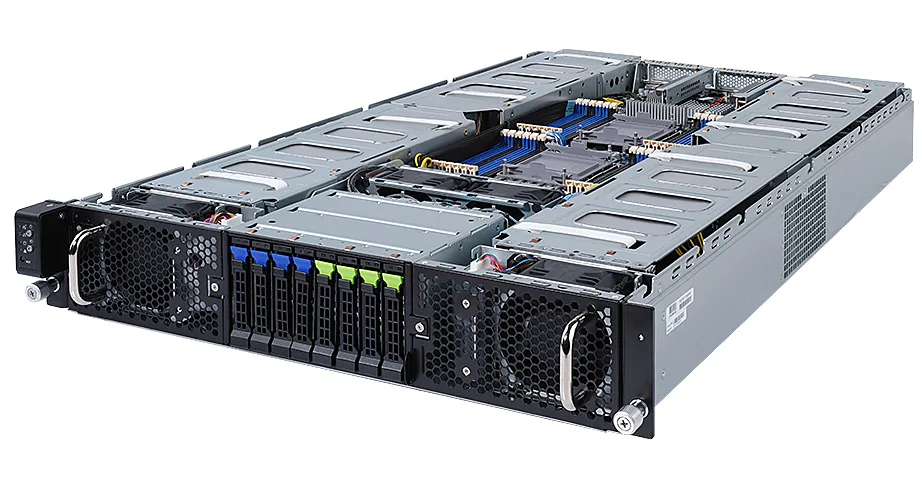

The GIGABYTE G292-280 is a 2U rackmount barebone designed for dual 3rd Generation Intel Xeon Scalable processors on LGA 4189 sockets. It targets workloads that need up to eight dual-slot GPU cards alongside 24 DDR4 3200 memory channels. No CPU, memory or storage is installed.
Install CPUs, Memory and GPUs in a 2U Chassis

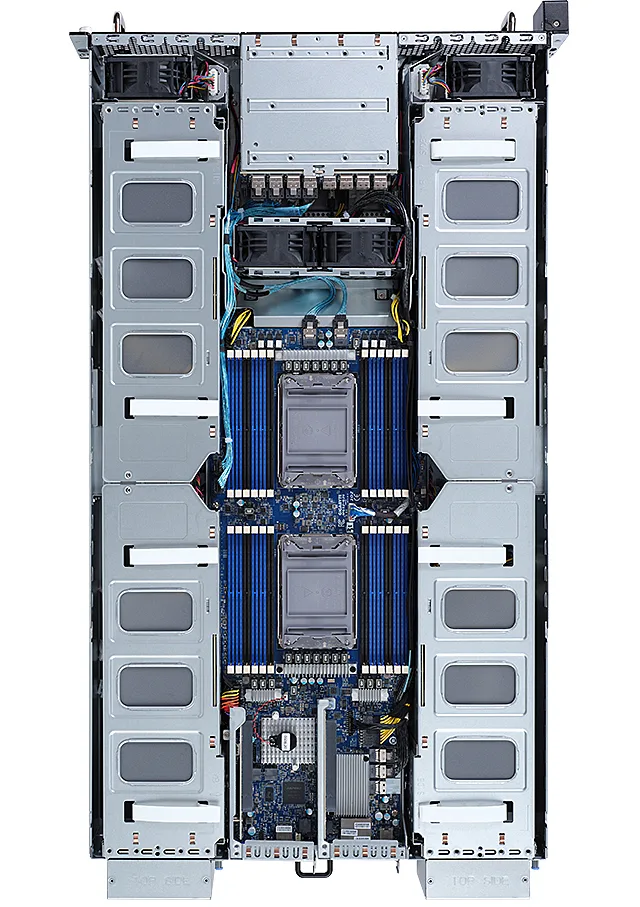

Installing two processors and 24 DIMMs demands careful alignment in the dense 2U layout; the 288-pin slots are keyed for DDR4 3200 RDIMM or LRDIMM modules only. Eight full-length PCIe Gen4 GPU slots require matching dual-slot cards and adequate airflow, while the two half-length low-profile slots suit add-on controllers. A SAS controller card must be added before SAS drives will function.
Verify Rack Depth, Power and Cooling Before Order
Confirm the rack provides enough depth for a 2U unit with eight double-slot GPUs and eight 2.5-inch hot-swap bays split between SATA/SAS-only and SATA/SAS/Gen4 NVMe trays. Dual 10GbE BASE-T ports use the Intel X710-AT2 controller. The Aspeed AST2600 provides VGA and remote management. Ensure the power infrastructure can support the chosen CPU and GPU combination.
Highlights
- Supports dual 3rd Gen Intel Xeon Scalable processors for high compute density
- 24 DDR4 3200 slots enable up to 256 GB memory capacity
- Eight PCIe Gen4 GPU slots accommodate dual-slot accelerator cards
- Dual 10 GbE BASE-T ports via Intel X710-AT2 controller
- Eight 2.5" hot-swap bays with four supporting Gen4 NVMe drives
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | G292-280 |
| Form Factor | 2U Rackmount |
| CPU Type | Supports 3rd Generation Intel Xeon Scalable Processors |
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| North Bridge | Intel C621A |
| Memory Slots | 24 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 256GB |
| Memory Type Supported | DDR4 3200 |
| Channel Supported | 8 Channel |
| Installed HDD | No Storage Installed |
| Serial ATA | 8 x SATA/SAS/Gen4 NVMe ports |
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Aspeed AST2600 |

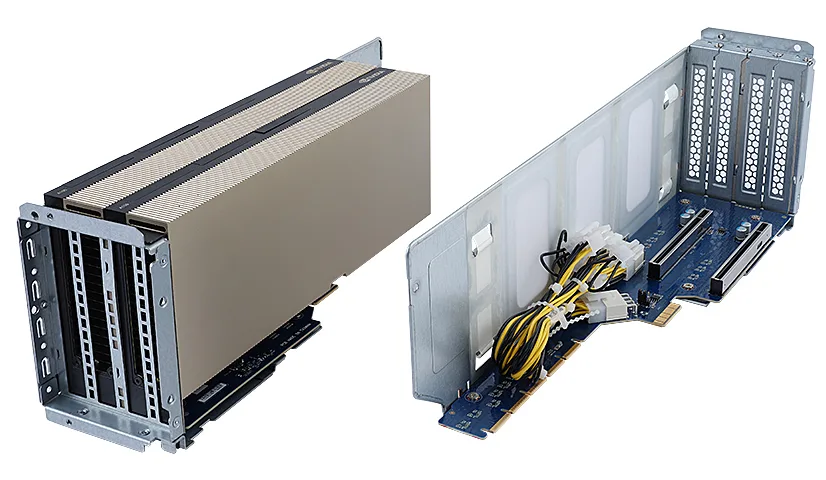

| PCI Express | 8 x PCIe Gen4 expansion slots for GPUs 2 x PCIe x16 Half-length low-profile slots for add-on cards |
| First LAN | Intel X710-AT2 |
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 8 x 2.5" hot-swappable HDD/SSD bays - 4 x blue HDD trays compatible with SATA/SAS devices only - 4 x green HDD trays compatible with SATA/SAS/Gen4 NVMe devices SAS card is required for SAS devices support |
| VGA | 1 |
| Rear USB | 2 x USB 3.0 |

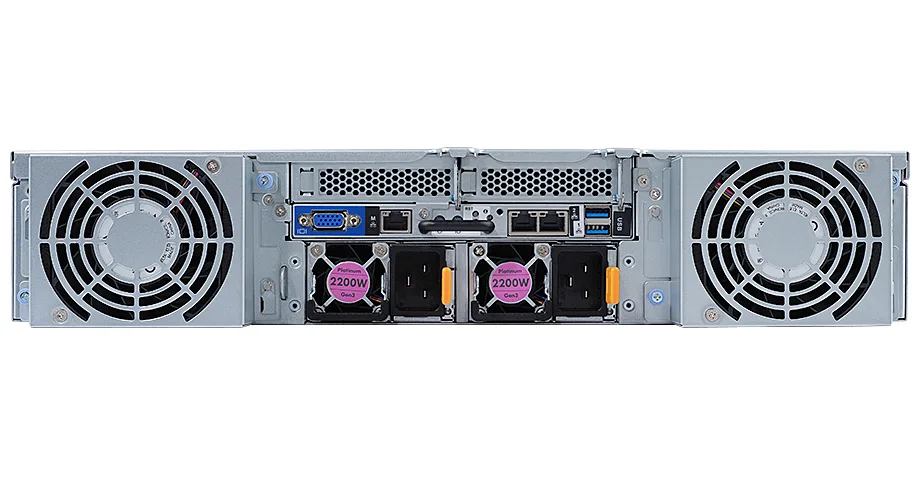

| RJ45 | 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2) 1 x 10/100/1000 management LAN |
| Other Ports | Internal I/O 1 x 18-pin power connector 1 x 14-pin power connector 2 x 8-pin power connectors 2 x 4-pin power connectors 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x HDD back plane board header 1 x 12-pin front panel header 1 x 23-pin front panel header 1 x JTAG header 2 x SATA SGPIO headers 1 x Front VGA header 1 x Serial header 1 x IPMB connector 1 x P12V standby connector 1 x PMBus selection jumper 1 x Clear CMOS jumper 1 x LT debug jumper |
| Max. Power | 2 x 3200W 80 PLUS Platinum power supply |
| Dimensions | 17.64" x 3.44" x 31.50" |
| Package Contents | 1 x G292-280 2 x CPU heatsinks 1 x Rail kit |
| Shipping weight | 36.58 kg |
| Package size | 1133 × 724 × 261 mm |
Questions about this item
How do I verify the G292-280 is working after installing CPUs and memory?
After powering on, check the Aspeed AST2600 remote management interface for POST codes, confirm 24 DDR4 3200 modules are detected, and verify both 10GbE ports show link status.
What ships with the barebone and which parts must I source separately?
The 2U chassis includes the C621A motherboard, 8 GPU PCIe Gen4 slots, 2 add-in card slots, 8 hot-swap 2.5" trays (4 NVMe-ready), dual 10GbE LAN and AST2600 graphics. You must buy two LGA 4189 Xeon CPUs, DDR4 3200 RDIMMs or LRDIMMs, storage drives, GPU cards and a SAS controller if using SAS drives.
Which memory capacity should I choose for the 24 DDR4 slots?
Populate all 24 slots with DDR4 3200 RDIMMs or LRDIMMs to reach the 256GB maximum; mixing capacities is possible but full population ensures 8-channel performance per processor.
