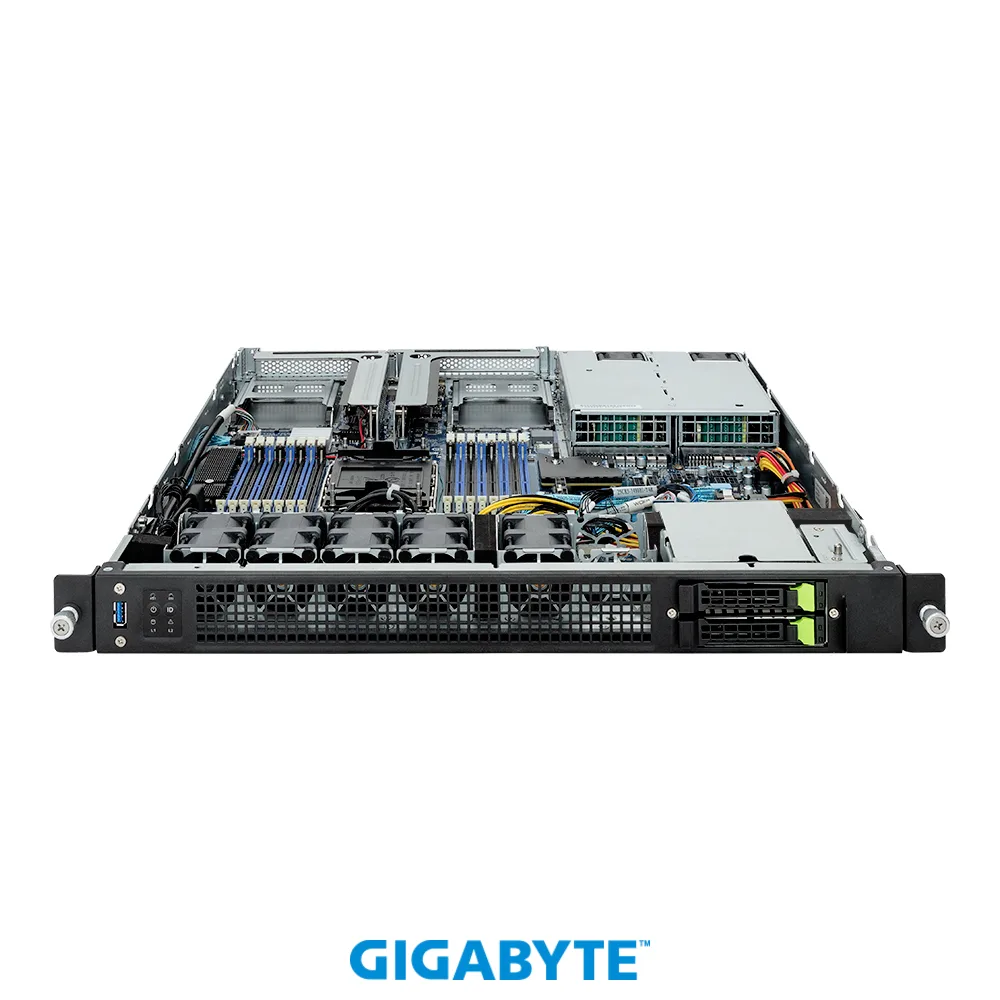

Silver 1U rackmount barebone server with two front 2.5-inch drive bays

GIGABYTE

GIGABYTE E163-S30-AAG1 1U barebone server 16 DDR5 slots 2×2.5" Gen4 NVMe/SATA/SAS

SKU CH-QMZ0-2DTC5 MPN E163-S30-AAG1

1U rackmount barebone server with 16 DDR5 slots, dual 2.5" Gen4 NVMe/SATA/SAS bays, and two PCIe 5.0 x16 expansion slots

  • Form Factor1U Rackmount
  • WorkloadEdge Server
  • CPU Type5th / 4th Generation Intel Xeon Scalable Processors and Inte
  • CPU SocketLGA 4677
  • Installed CPUNo CPU Installed
  • Max Processors1
  • 16 DDR5 slots support high-capacity memory
  • Single LGA 4677 socket fits 5th/4th Gen Xeon Scalable or Xeon CPU Max Series
  • Two 2.5" bays accept Gen4 NVMe, SATA or SAS drives
  • Two FHHL PCIe Gen5 x16 slots plus two OCP 3.0 Gen5 x16 slots
  • Aspeed AST2600 GPU/VPU provides base display output

1U edge server barebone

The GIGABYTE E163-S30-AAG1 is a 1U rackmount barebone designed for edge workloads. It accepts a single 5th or 4th generation Intel Xeon Scalable processor or an Intel Xeon CPU Max Series chip in an LGA 4677 socket with up to 350 W TDP. The Intel C741 chipset provides eight-channel DDR5-5600 support across sixteen 288-pin RDIMM slots. No CPU or memory is installed.

Dual hot-swap bays and Gen5 expansion

Two 2.5-inch front bays accept Gen4 NVMe, SATA or SAS drives with hot-swap capability. A single M.2 M-key slot runs at PCIe Gen3 x4 from the PCH and fits 2280 or 22110 cards. Expansion includes two full-height half-length PCIe Gen5 x16 slots and two OCP 3.0 Gen5 x16 slots. The Aspeed AST2600 handles graphics and management. A single 1 GbE port via Intel I210-AT provides baseline connectivity.

Verify CPU cooler clearance and power budget

Confirm that your chosen LGA 4677 cooler fits the 1U height and aligns with the 350 W TDP limit. Ensure the power supply can deliver enough wattage for the processor, sixteen DDR5 RDIMMs and all installed add-in cards. Check that any OCP 3.0 mezzanine cards match the Gen5 x16 electrical interface. Storage caddies for the 2.5-inch bays are not included and must be sourced separately.

Highlights

  • 16 DDR5 slots support high-capacity memory
  • Single LGA 4677 socket fits 5th/4th Gen Xeon Scalable or Xeon CPU Max Series
  • Two 2.5" bays accept Gen4 NVMe, SATA or SAS drives
  • Two FHHL PCIe Gen5 x16 slots plus two OCP 3.0 Gen5 x16 slots
  • Aspeed AST2600 GPU/VPU provides base display output

Specifications

BrandGIGABYTE
ModelE163-S30-AAG1
Form Factor1U Rackmount
WorkloadEdge Server
CPU Type5th / 4th Generation Intel Xeon Scalable Processors and Intel Xeon CPU Max Series
CPU SocketLGA 4677
Installed CPUNo CPU Installed
Max Processors1
CPU FeaturesSingle processor, TDP up to 350W
North BridgeIntel C741
Memory Slots16 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedDDR5 5600
Channel Supported8 Channel
RegisteredYes
Installed HDDNo Storage Installed
M.21 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards
GPU/VPUAspeed AST2600
PCI Express2 x FHHL PCIe Gen5 x16 slots
2 x OCP 3.0 Gen5 x16 slots
Max. LAN Speed1 Gigabit
2.5" Bays2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
Buttons1 x NMI button
1 x Reset button
LEDs1 x Power button with LED
1 x ID button with LED
1 x LAN activity LED
1 x Storage activity LED
1 x System status LED
Front USB1 x USB 3.2 Gen1
DisplayPort1 x Mini DisplayPort
Rear USB2 x USB 3.2 Gen1
RJ451
Other Ports1 x MLAN
Max. Power1+1 850W 80 PLUS Titanium redundant power supplies
Fans5 x 40x40x56mm (30,000rpm)
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions1.71" x 17.24" x 20.47"
Weight29.1 lbs.
Shipping weight15.20 kg
Package size782 × 588 × 212 mm

Questions about this item

What CPU socket and generation does this 1U server use?

It uses the LGA 4677 socket for a single 5th or 4th Generation Intel Xeon Scalable processor or Intel Xeon CPU Max Series up to 350W TDP.

What drive bays and M.2 slot does the chassis provide?

Two front 2.5-inch hot-swappable bays support Gen4 NVMe, SATA or SAS drives; one M-key M.2 slot takes 2280 or 22110 cards at PCIe Gen3 x4 from the PCH.

How are the DDR5 modules installed and what mistake should be avoided?

Populate the 16 x 288-pin slots across the 8 memory channels with registered DDR5 5600 RDIMMs; a common error is leaving channels unbalanced or mixing RDIMM capacities.
