GIGABYTE 6BXJRDXXWMR-00 barebone server Celeron N5105 DDR4 16GB
Compact barebone server with Intel Celeron N5105, DDR4 support to 16 GB, dual M.2 slots, 2.5 GbE LAN and dual-band Wi-Fi
- Form FactorCompact
- CPU TypeIntel Celeron
- Installed CPUIntel Celeron N5105
- Max Processors1
- CPU Features4C/4T (TDP 10W)
- Memory Slots1 x 240Pin
- Compact barebone with Intel Celeron N5105 quad-core 10 W processor
- Supports up to 16 GB DDR4 2933 memory in single 240-pin slot
- M.2 2280 slot accepts PCIe X2 or SATA storage drives
- Dual-band 802.11 AC Wi-Fi and Bluetooth pre-installed in M.2 2230 slot
- 1 GbE plus 2.5 GbE LAN ports with HDMI 2.0a and mini DisplayPort 1.2a video outputs
Compact server barebone for edge workloads
The GIGABYTE GB-BMCE-5105 is a compact barebone server built around an Intel Celeron N5105 processor with four cores and four threads at a 10 W TDP. It targets deployments that need a small, fanless-friendly chassis with a single 240-pin DDR4 slot supporting up to 16 GB at 2933 MT/s. No memory or storage is installed.
One M.2 2280 slot and pre-installed Wi-Fi card
A single M.2 2280 slot accepts PCIe x2 or SATA drives for primary storage. A second M.2 2230 A-E key slot is already occupied by the dual-band 802.11 AC wireless and Bluetooth module, leaving no room for an additional Wi-Fi card. Video output is provided through one HDMI 2.0a port and one mini DisplayPort 1.2a connector.
Tool-less access and 65 W external power
The chassis opens without tools for memory and storage installation, and the 65 W external adapter accepts AC 100-240 V input. Installers must source DDR4 2933 SO-DIMM modules and a compatible M.2 drive separately. Operating temperature is rated 0 °C to 35 °C, so airflow planning is required for enclosed cabinets.
Highlights
- Compact barebone with Intel Celeron N5105 quad-core 10 W processor
- Supports up to 16 GB DDR4 2933 memory in single 240-pin slot
- M.2 2280 slot accepts PCIe X2 or SATA storage drives
- Dual-band 802.11 AC Wi-Fi and Bluetooth pre-installed in M.2 2230 slot
- 1 GbE plus 2.5 GbE LAN ports with HDMI 2.0a and mini DisplayPort 1.2a video outputs
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GB-BMCE-5105 |
| Part Number | 6BXJRDXXWMR-00 |
| Form Factor | Compact |
| CPU Type | Intel Celeron |
| Installed CPU | Intel Celeron N5105 |
| Max Processors | 1 |
| CPU Features | 4C/4T (TDP 10W) |
| Memory Slots | 1 x 240Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 16GB |
| Memory Type Supported | DDR4 2933 |
| Installed HDD | No Storage Installed |
| M.2 | 1 x M.2 slot (2280_storage) PCIe X2/SATA 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |
| GPU/VPU | Intel UHD Graphics 605 |
| Onboard Audio | Realtek ALC255 |
| First LAN | Realtek 8111HS |
| Max. LAN Speed | 1 Gigabit |
| WLAN | Dual Band Wireless-802.11 AC |

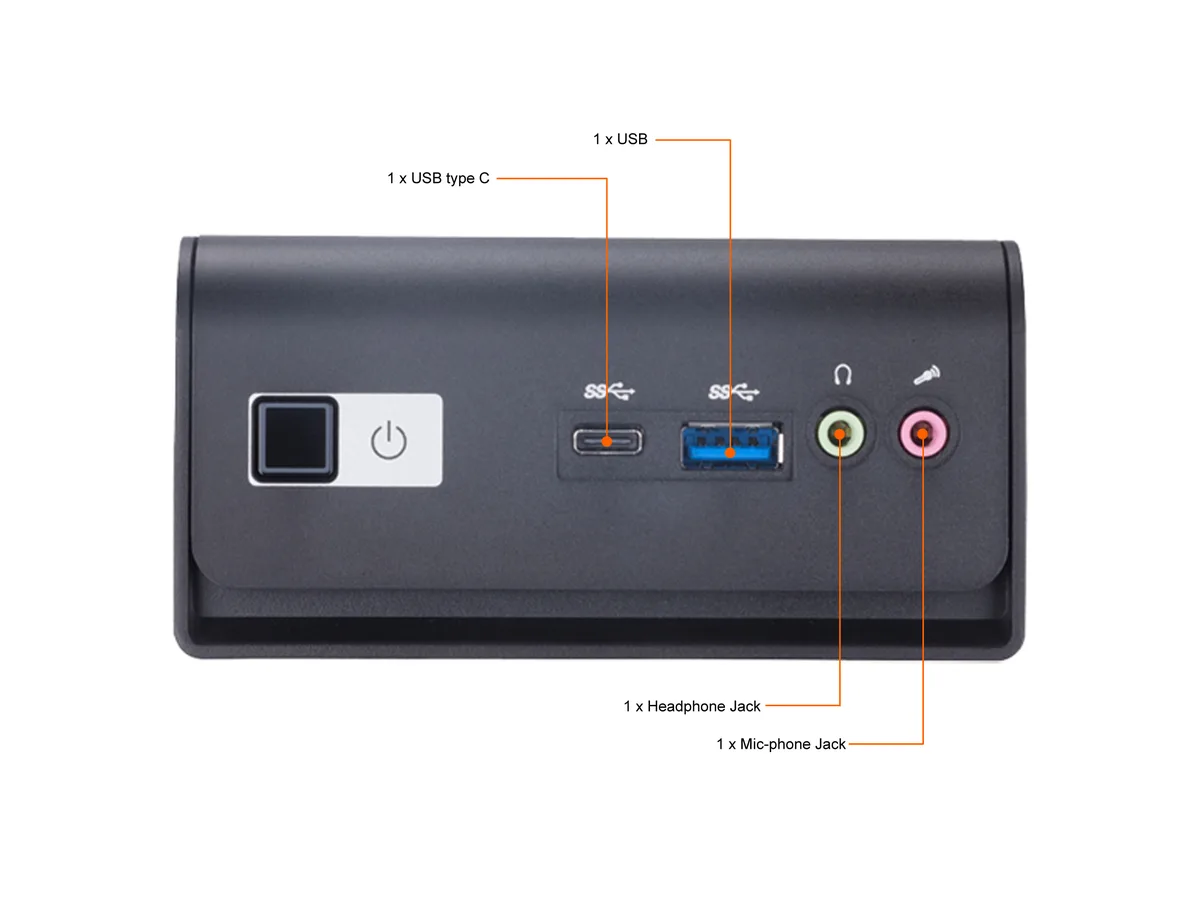

| Front USB | 1 x USB3.0 1 x USB3.0 type C |
| Front Audio Ports | 1 x Headphone jack 1 x Microphone jack |
| DisplayPort | 1 x mini DisplayPort (1.2a) |

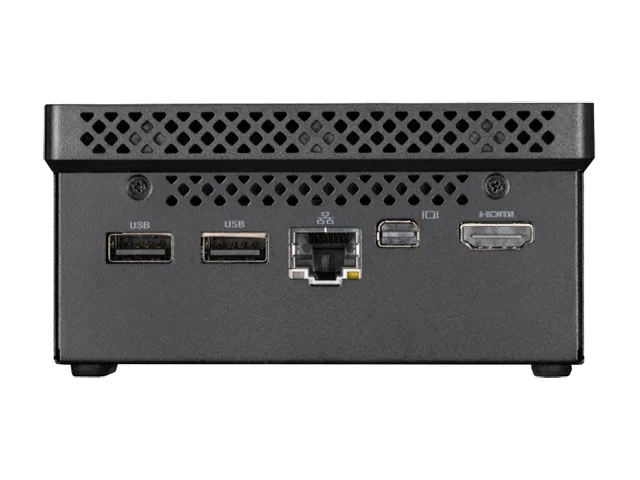

| Rear USB | 2 x USB 3.0 |
| RJ45 | 1 x 2.5 GbE RJ45 |
| Other Ports | 1 x HDMI(2.0a) |
| Max. Power | Input: AC 100-240V Output: DC 19V/3.42A, 65W |
| Temperature | Operating Temperature: 0°C to +35°C Storage Temperature: -20°C to +60°C |

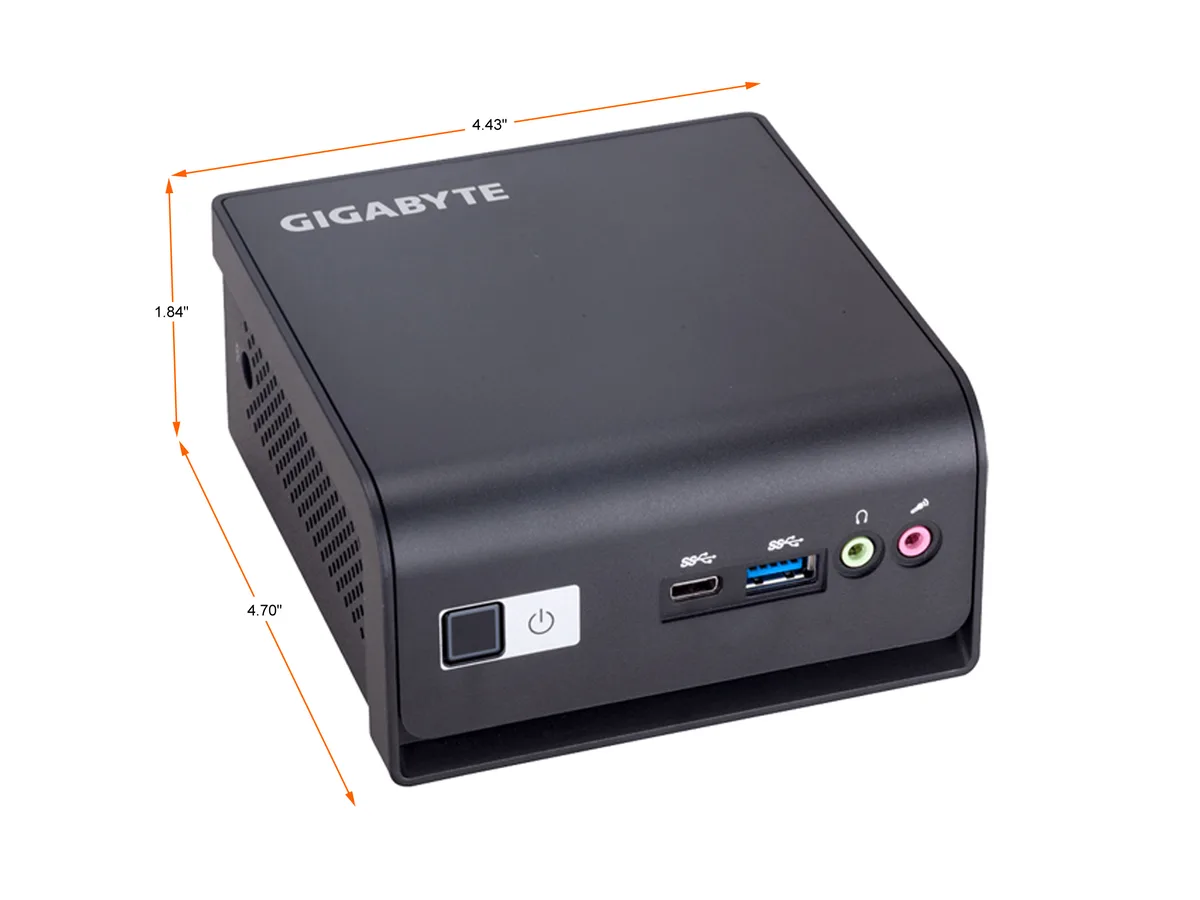

| Dimensions | 2.21" x 4.06" x 4.59" |
| Shipping weight | 1.15 kg |
| Package size | 282 × 165 × 78 mm |
Questions about this item
Will the Intel Celeron N5105 processor ever need replacement or is it socketed?
The Intel Celeron N5105 is soldered to the board and not socketed, so it cannot be replaced separately from the motherboard.
What limits sustained performance first — the 10W TDP or the 35°C operating ceiling?
The 10W TDP of the Intel Celeron N5105 sets the performance ceiling before the 0°C to +35°C operating temperature range is reached.
How loud and hot does the barebone get when running 24/7 on the 65W adapter?
With a 10W TDP CPU and a 65W (19V/3.42A) power supply, heat output stays low and the compact chassis runs quietly under continuous load.
