Compact white desktop firewall appliance with front RJ45 ports and status LEDs

Fortinet

Fortinet FG-70F-BDL-950-36 firewall appliance

SKU CH-CS7V-22B2H MPN FG-70F-BDL-950-36

Desktop firewall appliance with 9 Gigabit ports, 10 Gbps throughput and 3-year FortiCare Premium plus FortiGuard UTP bundle

  • TypeWired
  • Form FactorDesktop
  • Encryption StandardSSL
  • Ports9
  • WAN Ports2 x GE RJ45 WAN Ports
  • VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/1

Model FortiGate 70F

Option w/ FortiCare Premium, FortiGuard Unified Threat Protection (3-Y)

  • Intrusion prevention blocks threats with real-time inspection
  • 9 Gigabit Ethernet ports connect wired devices directly
  • 25 GB/s SSL firewall throughput secures encrypted traffic
  • 3-year FortiCare Premium bundle includes 24×7 support
  • 3-year FortiGuard UTP bundle delivers unified threat protection

FortiGate 70F desktop firewall bundle

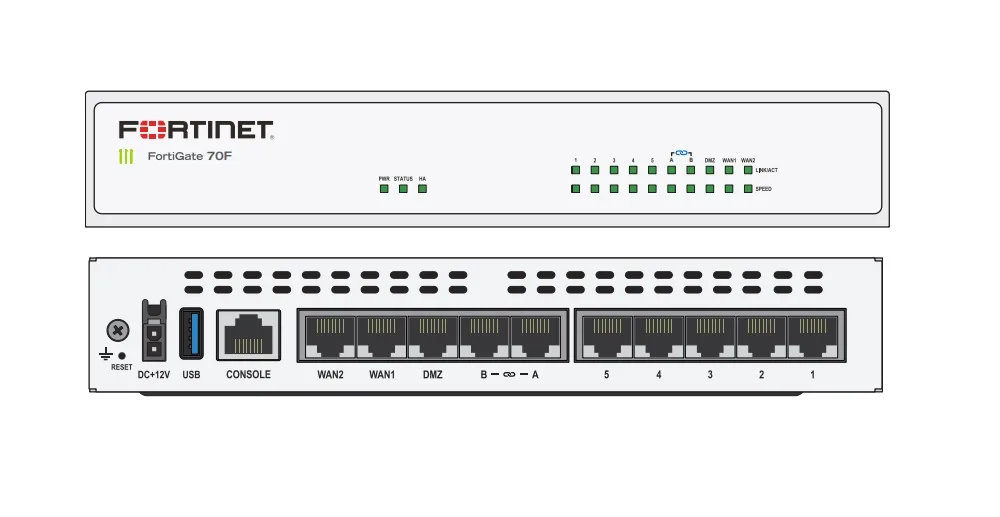

The FortiGate 70F is a desktop security appliance with nine Gigabit Ethernet ports and two dedicated WAN interfaces. It ships with a three-year FortiCare Premium and FortiGuard Unified Threat Protection bundle for small to medium businesses and distributed enterprise sites.

Gigabit port limits and throughput ceilings

Nine 10/100/1000Base-T ports cap LAN and WAN links at 1 Gbps each. Firewall throughput reaches 10 Gbps for 1518-byte packets and 6 Gbps for 64-byte packets, with 9 Mpps packet rate and 1.5 million concurrent sessions.

Replaces older 100 Mbps edge boxes

The jump is worth it when sites need full Gigabit WAN capacity, SSL inspection at 700 Mbps, or up to 200 concurrent SSL-VPN tunnels. Buyers who need multi-gigabit uplinks, higher session counts, or rack-mount form factors should look elsewhere.

Highlights

  • Intrusion prevention blocks threats with real-time inspection
  • 9 Gigabit Ethernet ports connect wired devices directly
  • 25 GB/s SSL firewall throughput secures encrypted traffic
  • 3-year FortiCare Premium bundle includes 24×7 support
  • 3-year FortiGuard UTP bundle delivers unified threat protection

Specifications

BrandFortinet
SeriesFortiGate 70F Series
ModelFORTIGATE 70F w/ FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
Part NumberFG-70F-BDL-950-36
TypeWired
Form FactorDesktop
Encryption StandardSSL
Ports9
WAN Ports2 x GE RJ45 WAN Ports
VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/10/6 Gbps
Firewall Latency (64 byte UDP packets): 2.54 µs
Firewall Throughput (Packets Per Second): 9 Mpps
Concurrent Sessions (TCP): 1.5 M
New Sessions/Second (TCP): 35 000
Firewall Policies: 5000
IPsec VPN Throughput (512 byte): 6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 500
SSL-VPN Throughput: 405 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
SSL Inspection Throughput (IPS, avg. HTTPS): 700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 3 500
SSL Inspection C
CertificationsUSGv6/IPv6
ComplianceFCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Power InputPower Rating: 12VDC, 3A
Power Required: Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current: 100VAC/1.0A, 240VAC/0.6A
Power Consumption (Average / Maximum): 10.17 W / 12.43 W
FeaturesFortiGuard Unified Threat Protection (UTP) with FortiCare Premium bundle offers foundational security services tailored for small to medium-sized businesses and distributed enterprises. This edition provides the essential tools needed to defend against common and emerging cyber threats of malware, phishing, and network intrusions, ensuring a safe and secure digital environment for business operations.
Dimensions1.5 x 8.5 x 6.3 (inches)
Weight2.23 lbs (1.01 kg)
Shipping weight2.27 kg
Package size305 × 254 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which FortiGate 70F bundle should I pick for a small office needing threat protection and support?

The FG-70F-BDL-950-36 includes three years of FortiCare Premium 24×7 support and three years of FortiGuard Unified Threat Protection, covering IPS, application control, web filtering and antivirus in one SKU.

What does the 10 Gbps firewall throughput figure mean when I put this box in my rack?

That 10 Gbps rate is measured with 1518-byte UDP packets; with 512-byte packets it stays at 10 Gbps, and with 64-byte packets it drops to 6 Gbps, while latency sits at 2.54 µs.

What do the nine RJ-45 ports and two dedicated WAN ports actually limit in daily use?

All nine ports are 10/100/1000Base-T, so each link caps at 1 Gbps; the two labelled WAN ports simply give you dual-uplink redundancy without sacrificing LAN port count.
