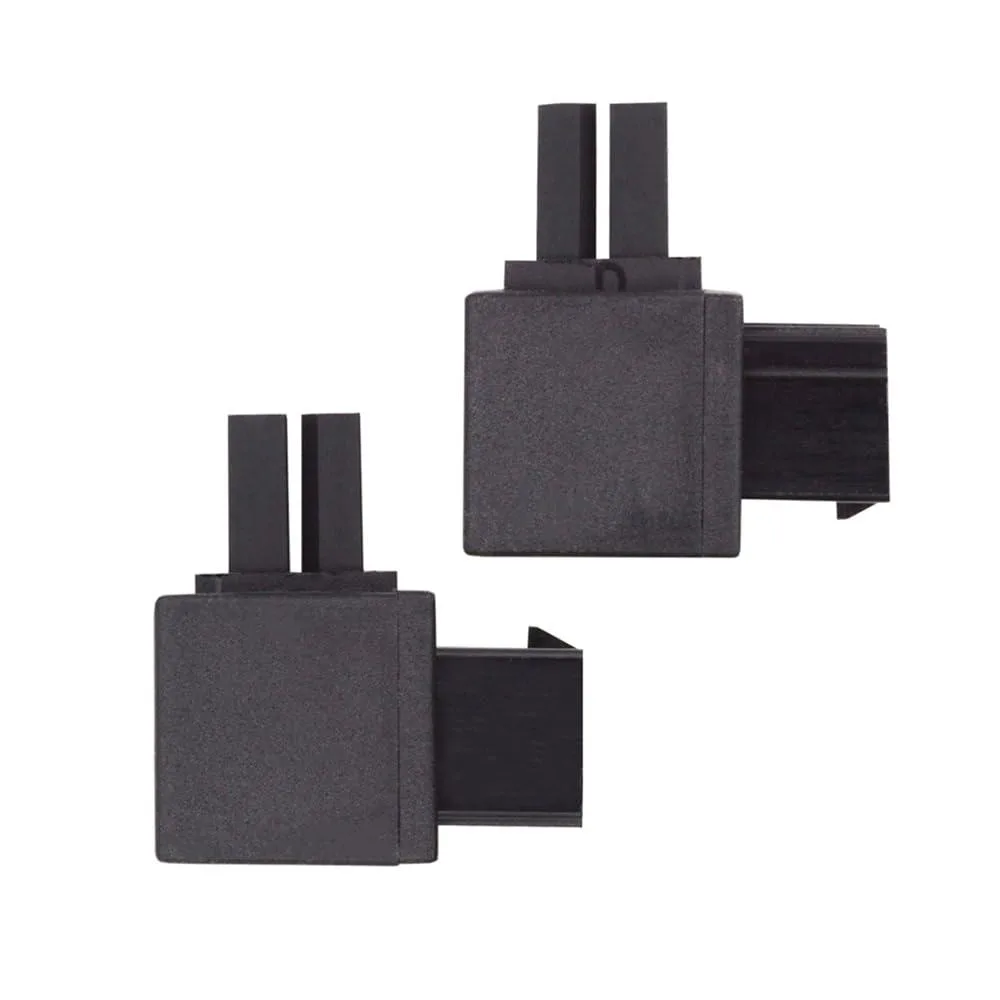

Two black right-angled 8-pin CPU power adapters, one up one down

Fervit

Fervit ATX 8P EPS 90° Angled Power Adapter 2pcs

SKU CH-MAKA-FESP8

Pair of 90-degree angled ATX 12V CPU power adapters (up and down) for tight chassis clearance

  • Routes CPU power cable horizontally for low-profile cases
  • 90° angled connectors fit tight clearances around motherboard header
  • Includes one up-angled and one down-angled adapter
  • Designed specifically for ATX 12V EPS 8-pin CPU power
  • Not compatible with PCI-E graphics card power connectors

Fervit ATX 8P EPS 90° Adapter Pair

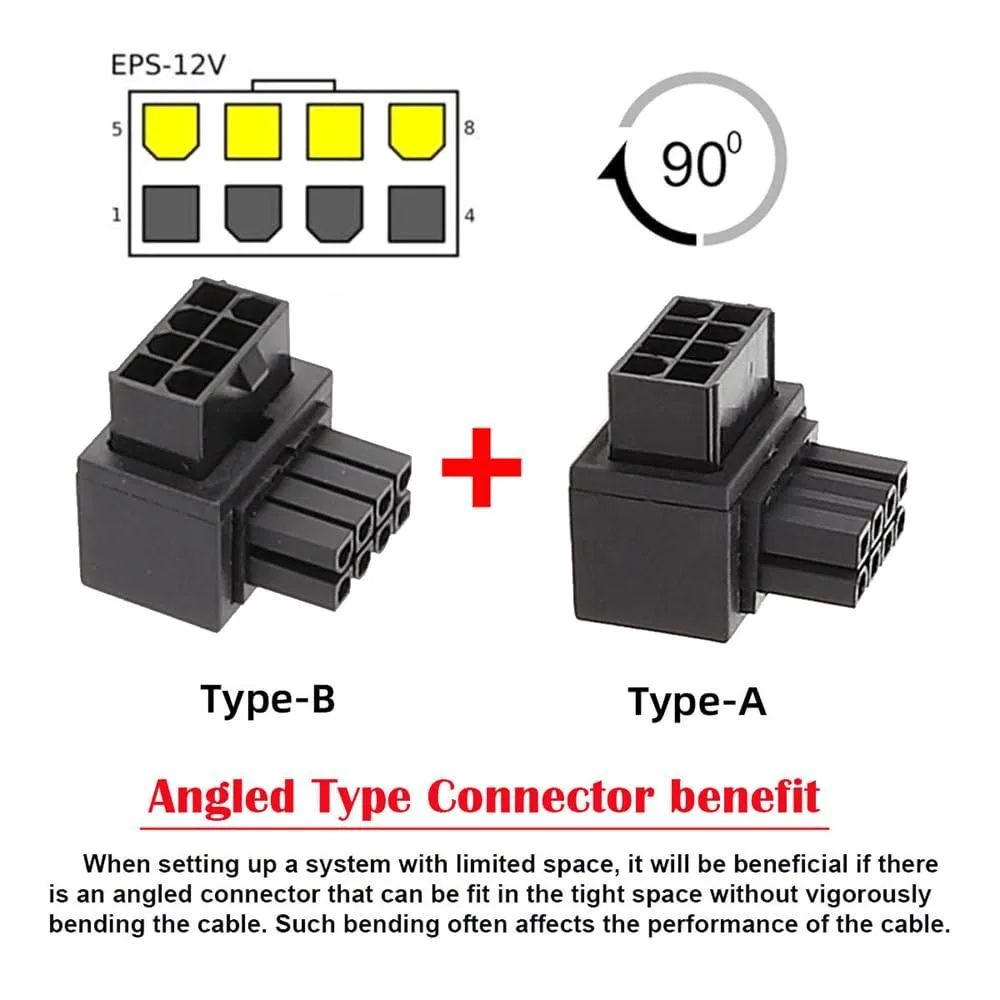

This two-piece adapter set redirects a motherboard CPU 12V power header by ninety degrees. It suits builders working in low-profile chassis where vertical clearance above the socket is restricted. One adapter angles upward and the other downward, giving routing flexibility for tight layouts. The connectors are keyed for the standard eight-pin EPS socket only.

Installation and compatibility notes

Each adapter plugs directly between the motherboard header and the existing power cable without tools. The ninety-degree turn moves the cable into a horizontal plane, which can relieve strain on the connector in cramped cases. These adapters are not wired for PCIe graphics-card power and must not be used for that purpose. Polarity follows the EPS specification, so orientation is fixed by the keyed housing.

Behaviour under sustained load

The short signal path adds no active components, so electrical characteristics match the cable and motherboard header ratings. Heat rise depends on the current drawn by the CPU and the gauge of the attached cable, not on the adapter itself. In a sustained heavy workload the adapter remains passive, and any thermal limit will be set by the power supply and motherboard VRM cooling. Builders needing more than one eight-pin EPS connection should verify their motherboard layout before purchase.

Highlights

  • Routes CPU power cable horizontally for low-profile cases
  • 90° angled connectors fit tight clearances around motherboard header
  • Includes one up-angled and one down-angled adapter
  • Designed specifically for ATX 12V EPS 8-pin CPU power
  • Not compatible with PCI-E graphics card power connectors

Specifications

BrandFervit

Questions about this item

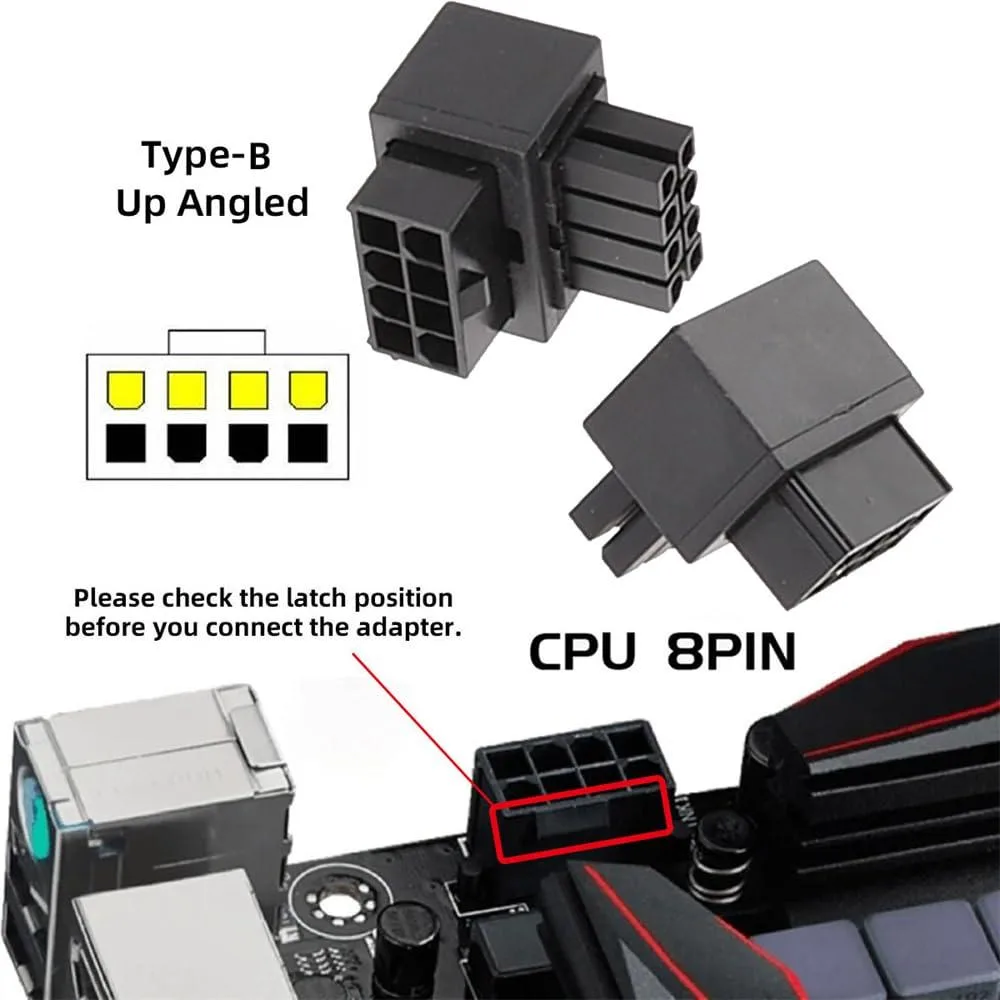

How can I verify the adapter is correctly seated after routing the CPU 12V cable horizontally in a low-profile case?

The 90 degree bend lets the cable run flat along the motherboard; once the latch clicks into the 8-pin EPS header and the PSU connector locks on the other side, the system will post normally.

What exactly is included in the pack and do I need any extra cables or tools?

The pack contains two adapters — one Type-B up-angled and one Type-A down-angled — ready to use with your existing CPU 12V power cable; no additional parts are required.

Which of the two angled versions should I pick for my build?

Choose the up-angled Type-B when the header points toward the side panel, and the down-angled Type-A when it points toward the board edge; both are supplied so you can match the clearance.
