Black rectangular security DVR unit with front panel labels and indicator lights

Eyemax

Eyemax Prestige TVST PVT 16CH 5MP DVR 8 TB

SKU CH-PGN7-CA0TX

Records 16 channels at up to 5MP using H.265 compression with TVI, AHD, CVI and 960H support, includes 8 TB storage and Magic Viewer app access

  • Recording TypeVideo Recorder

Options 8 TB

  • Supports TVI, AHD, CVI and 960H cameras for flexible analog integration
  • H.265 compression reduces storage needs while keeping 5 MP detail
  • 16 channels with individual resolution and frame-rate settings per camera
  • 8 TB drive stores weeks of footage with auto-deletion management
  • Magic Viewer app enables remote live view and playback from mobile

16-channel 5MP DVR with 8 TB storage

This Eyemax Prestige TVST PVT recorder handles sixteen analogue cameras at up to 5MP resolution using TVI, AHD, CVI or 960H signals. An internal 8 TB drive provides continuous recording capacity for multi-camera sites. The H265 compression codec reduces bandwidth and storage demand without sacrificing detail. It is suited to installers and property managers who need a single hybrid recorder for mixed legacy and HD-analogue cameras.

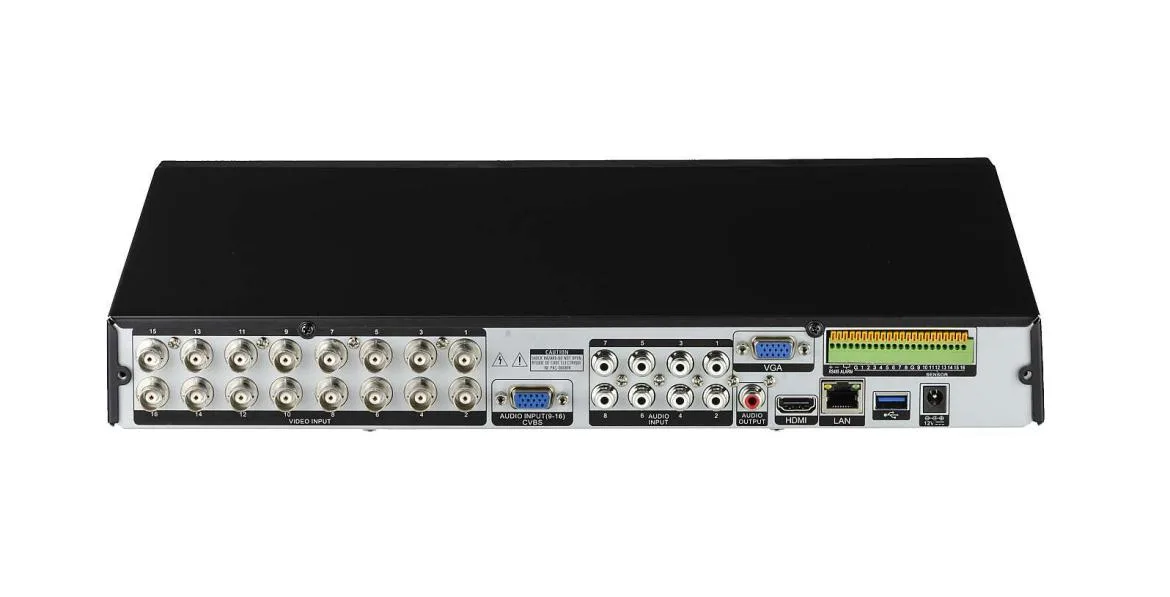

Hybrid BNC inputs and dual video outputs

Sixteen BNC ports accept any combination of TVI, AHD, CVI or 960H cameras, so existing cabling can stay in place while newer sensors are added. One HDMI and one VGA port drive the main display simultaneously, and a programmable composite SPOT output serves a dedicated monitor or modulator. RS-485 enables PTZ control over the same coaxial run, and a relay alarm output connects to external sirens or access-control systems. The full GUI with alpha blending supports mouse control and twenty-two languages.

Verify camera formats and app compatibility

Confirm that every camera you plan to connect outputs TVI, AHD, CVI or 960H; other analogue formats are not supported. The Magic Viewer mobile app provides P2P remote viewing, so check that your network allows the required outbound connections. Eight multi-user accounts with individual authority levels are available — plan the access hierarchy before deployment. The weekly scheduler with holiday blocks and the 576-zone motion grid should be configured to match the site’s operational hours.

Highlights

  • Supports TVI, AHD, CVI and 960H cameras for flexible analog integration
  • H.265 compression reduces storage needs while keeping 5 MP detail
  • 16 channels with individual resolution and frame-rate settings per camera
  • 8 TB drive stores weeks of footage with auto-deletion management
  • Magic Viewer app enables remote live view and playback from mobile

Specifications

Recording TypeVideo Recorder

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which video standards does the 16-channel recorder accept and what resolution does it record at?

It accepts TVI, AHD, CVI and 960H cameras and records up to 5 MP per channel.

What monitor connections are on the back of the unit?

One HDMI, one VGA and one programmable composite SPOT output.

How do I add the recorder to the Magic Viewer app and what step is often missed?

Enable P2P in the network menu, scan the QR code on the unit, then enter the device password — skipping the password step is the common mistake.
