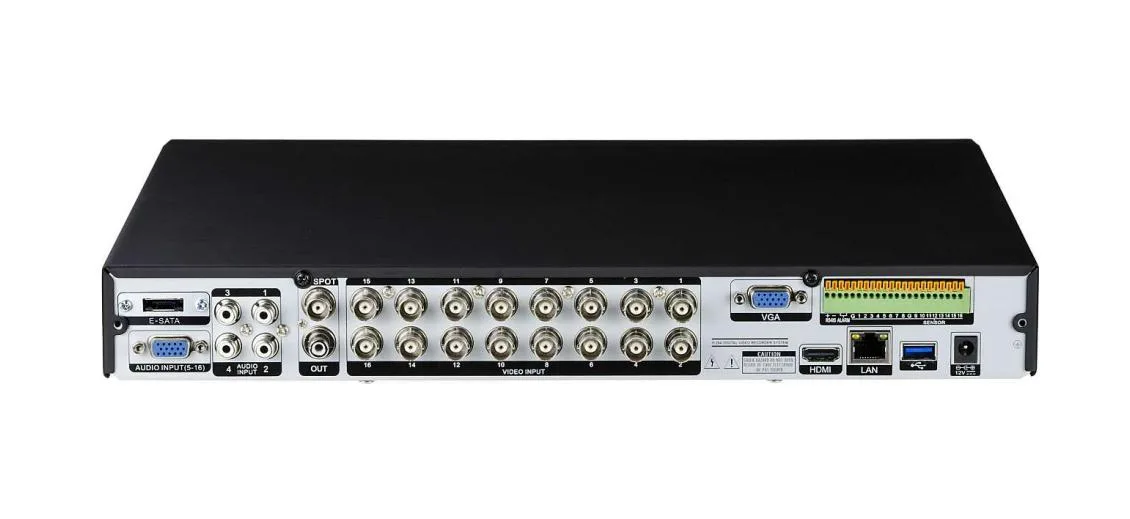

Black rectangular 16 channel 4K DVR unit with front panel controls

Eyemax

Eyemax Prestige TVST PVT 16CH 4K 8M UHD DVR 4 TB

SKU CH-4X6W-V6Z91

16-channel 4K UHD DVR records H.265 video with RAID 1 mirroring and 4 TB storage

  • Recording TypeVideo Recorder

Options 4 TB

  • 4K video output at up to 60 frames per second for crisp monitoring
  • H.265 recording codec delivers up to 30 percent more recording time
  • RAID 1 mirroring protects footage against drive failure
  • Sixteen audio inputs capture sound from every connected camera
  • Motion detection with 576 configurable zones reduces false alerts

16-channel 4K UHD DVR with 4 TB storage

The Eyemax Prestige TVST PVT recorder handles sixteen analogue and high-definition cameras in a single unit. It records H.265 video at up to 8 megapixels per channel and supports HD-TVI, CVI, AHD and 960H formats mixed on the same system. The 4 terabyte drive provides local storage for continuous or scheduled recording.

H.265 compression and Gigabit Ethernet limits

H.265 encoding reduces bit-rate by roughly 30 percent compared with older codecs, extending retention on the installed drive. Gigabit Ethernet caps network throughput at one gigabit per second, so remote viewing of sixteen 4K streams simultaneously may require lower resolutions or frame rates. RAID 1 mirroring protects against a single drive failure but halves usable capacity.

Check camera types, cabling and monitor inputs

Verify that every camera you plan to connect uses HD-TVI, CVI, AHD or 960H signalling; other analogue standards are not supported. Confirm that coaxial runs stay within the distance limits for the chosen format and that power supplies match each camera. Ensure your monitor accepts HDMI, VGA or composite input at 4K@60 or lower for the programmable spot-out function.

Highlights

  • 4K video output at up to 60 frames per second for crisp monitoring
  • H.265 recording codec delivers up to 30 percent more recording time
  • RAID 1 mirroring protects footage against drive failure
  • Sixteen audio inputs capture sound from every connected camera
  • Motion detection with 576 configurable zones reduces false alerts

Specifications

Recording TypeVideo Recorder

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 16-channel 8M model or a smaller 8-channel version?

The 16-channel 8M unit records up to 16 cameras at 4K resolution and includes a 4 TB drive, while the 8-channel versions support half the camera count with the same 8M recording capability.

What does 4K@60 on the programmable spot output mean for live viewing?

You can assign any camera to a dedicated HDMI, VGA or Composite monitor at 4K resolution and 60 frames per second for smooth, high-detail spot monitoring.

How does the Gigabit Ethernet port limit remote access and camera bandwidth?

The Gigabit link caps total network throughput at 1 Gbps, so combined remote viewing, playback and camera streams cannot exceed that bandwidth in practice.
