Silver 1U rack-mount network switch with 48 RJ-45 ports and two QSFP28 stacking ports

Extreme

Extreme 5520-12MW-36W 48-port 90W PoE network switch

SKU CH-1ZGF-WEJMD MPN 5520-12MW-36W

Managed 48-port PoE switch with 12 multi-rate 2.5/5GbE and 36 gigabit ports, dual QSFP28 stacking, and up to 90W per port

  • Network Management TypeManaged
  • Management Interface12 x 100M/1/2.5/5GBASE-T 802.3bt (90W) PoE ports 36 x 10/100
  • PoEYes
  • PoE Ports48 x PoE
  • PoE Power Budget1 x 715W: 464W 2 x 715W: 1049W 1 x 1100W: 849W 2 x 1100W: 17
  • Max Power Consumption4095W

Model 5520-12MW-36W

Struck-through versions exist but are not stocked here.

  • Managed 48-port switch with 90W PoE on every port
  • 12 multi-rate ports deliver 2.5Gb and 5Gb speeds for high-density access points
  • Dual QSFP28 stacking ports enable 200Gb system stacking for scalable fabric
  • Flexible power supplies scale PoE budget from 464W to 3549W
  • Cloud, on-premises or on-box management via Extreme Platform ONE, ExtremeCloud IQ or local GUI

Extreme 5520 48-port 90W PoE switch

The Extreme 5520-12MW-36W is a managed network switch delivering 48 Power over Ethernet ports compliant with 802.3bt 90W. It targets enterprises and campuses needing high-density power for wireless access points, cameras and IoT endpoints without separate electrical cabling.

12 multi-rate ports plus dual QSFP28 stacking

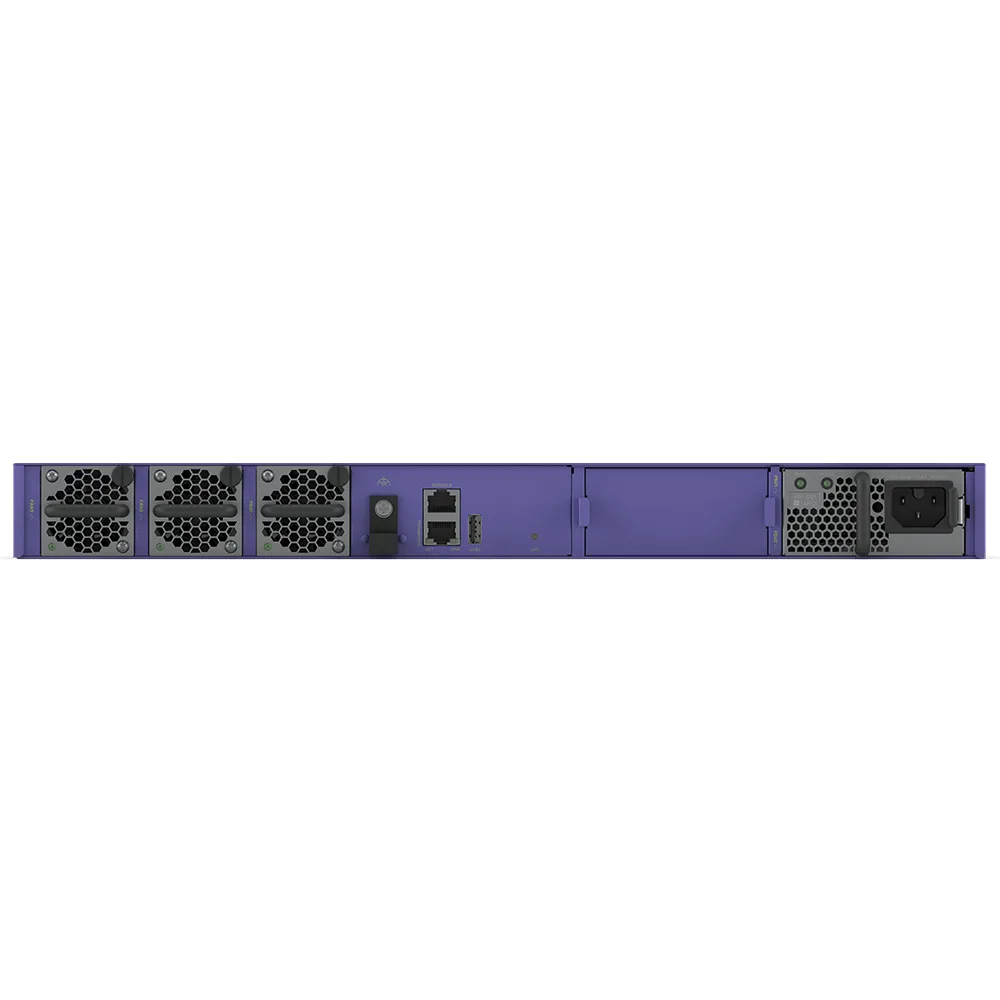

Twelve ports operate at 100M, 1, 2.5 and 5GBASE-T while thirty-six ports provide 10/100/1000BASE-T, all MACsec-capable. Two unpopulated QSFP28 ports enable 200Gb stacking of up to eight units using qualified cables or transceivers. Base software license, three fan modules and a VIM slot are included; two modular PSU bays remain empty for chosen power supplies.

PoE budget scales with installed power supplies

A single 715W supply yields 464W PoE budget, dual 715W supplies yield 1049W, while dual 2000W supplies at 200-240VAC deliver 3549W. Maximum chassis draw reaches 4095W. Buyers needing higher port density or non-PoE uplink options should evaluate other models.

Highlights

  • Managed 48-port switch with 90W PoE on every port
  • 12 multi-rate ports deliver 2.5Gb and 5Gb speeds for high-density access points
  • Dual QSFP28 stacking ports enable 200Gb system stacking for scalable fabric
  • Flexible power supplies scale PoE budget from 464W to 3549W
  • Cloud, on-premises or on-box management via Extreme Platform ONE, ExtremeCloud IQ or local GUI

Specifications

BrandExtreme Networks
Series5520 Series
Model5520-12MW-36W
Part Number5520-12MW-36W
Network Management TypeManaged
Management Interface12 x 100M/1/2.5/5GBASE-T 802.3bt (90W) PoE ports
36 x 10/100/1000BASE-T 802.3bt (90W) PoE ports
Full-Duplex
MACsec-capable
2 x Stacking/QSFP28 ports* (unpopulated)
1 x Serial console port (RJ-45)
1 x 10/100/1000BASE-T out-of-band management port
2 x USB A ports for management or external USB flash
1 x USB Micro-B console port
1 x VIM slot
PoEYes
PoE Ports48 x PoE
PoE Power Budget1 x 715W: 464W
2 x 715W: 1049W
1 x 1100W: 849W
2 x 1100W: 1751W
1 x 2000W @ 100-120VAC: 849W
1 x 2000W @ 200-240VAC: 1749W
2 x 2000W @ 100-120VAC: 1839W
2 x 2000W @ 200-240VAC: 3549W
Max Power Consumption4095W
DimensionsChassis Only
Height: 44 mm (1.73 in.)
Width: 441 mm (17.36 in.)
Depth: 442 mm (17.42 in.)
With PSU
Height: 44 mm (1.73 in.)
Width: 441 mm (17.36 in.)
Depth: 449 mm (17.68 in.)
Weight6.33 kg (13.96 lb.)
Shipping weight4.54 kg
Package size585 × 550 × 165 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often do the three fan modules need cleaning or replacement in a dusty rack?

The chassis ships with three hot-swappable fan modules; Extreme does not publish a fixed service interval, so plan inspection every six months and replace any module that shows bearing noise or reduced airflow.

Which resource saturates first when all 48 PoE ports run at 90 W continuously?

The PoE power budget is the limiting factor — with two 2000 W supplies at 200-240 VAC the switch delivers 3549 W, enough for 39 ports at 90 W, so the 40th device would exceed the budget before port bandwidth or stacking links are saturated.

What are the typical heat output and acoustic levels when the switch operates 24/7 with dual 2000 W PSUs?

Maximum draw is 4095 W, so nearly all of that becomes heat in the rack; with dual 2000 W PSUs the fans run at higher speed to maintain the 44 mm chassis temperature, producing noticeable but data-centre-typical noise.
