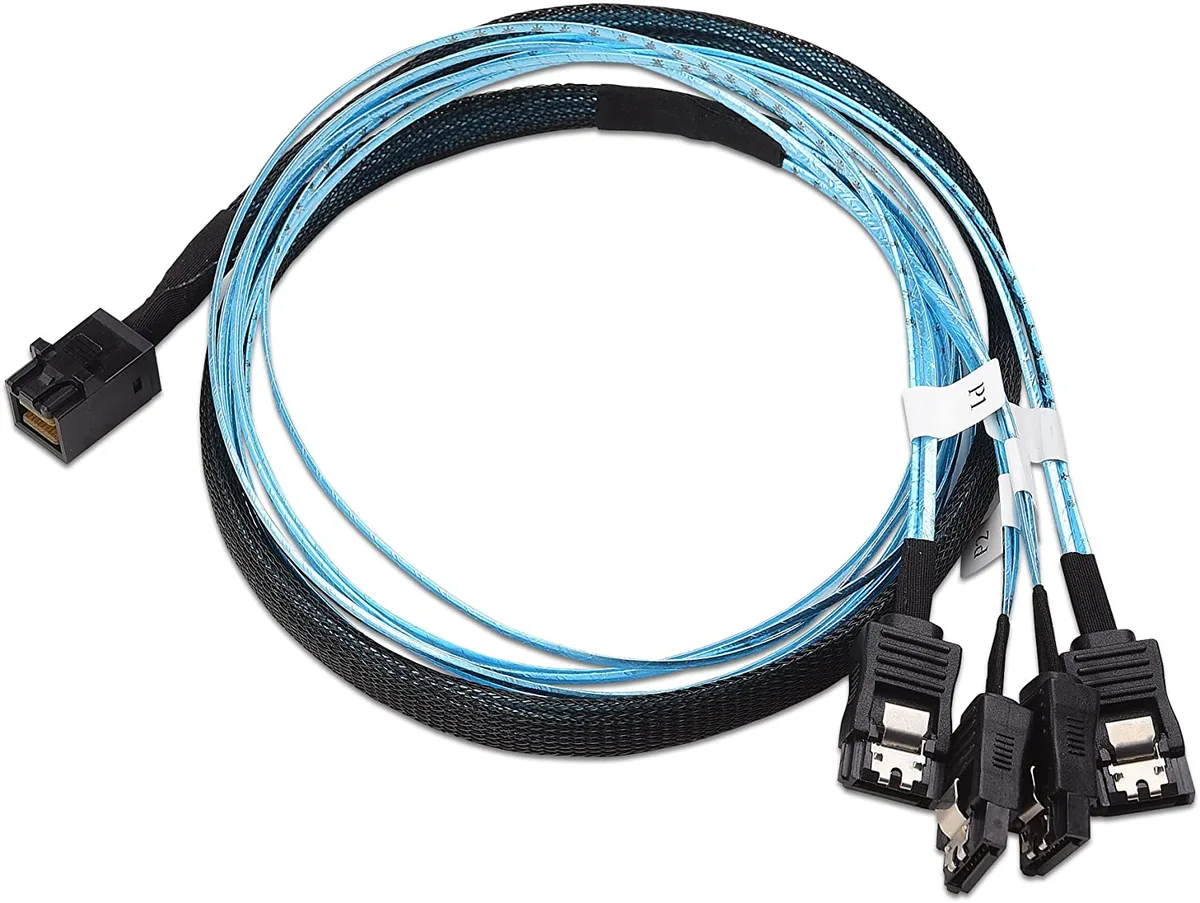

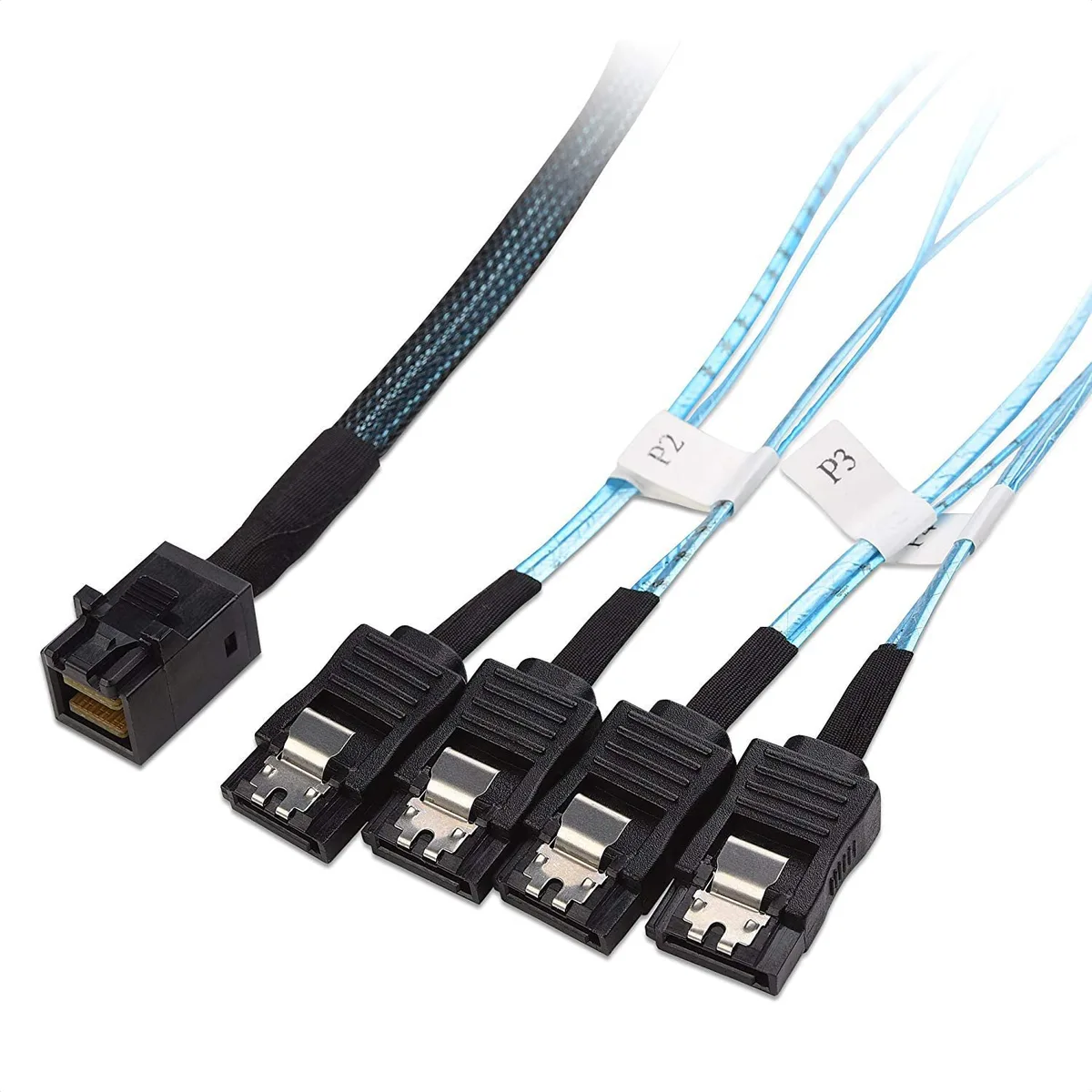

Internal HD Mini SAS SFF-8643 to four SATA cable, 1 metre, woven mesh sleeve

ETopSell

ETopSell Internal HD Mini SAS SFF-8643 to 4X SATA Cable 1M

SKU CH-NQ8H-7SBGM

Connects a 12 Gbps SAS controller with SFF-8643 to four SATA drives at 6 Gbps

Length 1 Meter

  • Connect 4 SATA drives to one SFF-8643 port
  • Supports 6 Gbps and 3 Gbps data rates
  • Locking SFF-8643 and SATA connectors stay secure
  • 30 AWG ribbon with woven mesh sheath
  • 1 metre length for internal chassis routing

SFF-8643 to 4× SATA internal cable

This one-metre cable links a Mini SAS HD SFF-8643 host port to four SATA drives. It is built for system integrators and server administrators who need to connect a 12 Gbps RAID controller or HBA to direct-attached SATA storage inside a chassis. The 30 AWG ribbon design with woven mesh sleeve keeps airflow clear while the locking latches secure each connection.

Suits 6 Gbps and 3 Gbps SATA drives on a 12 Gbps

The assembly supports both 6 Gbps and 3 Gbps SATA devices, so it works with existing drives as well as newer ones. Actual throughput depends on the controller and the drives installed. Buyers who need to power the drives must add a separate SATA power splitter, as this cable carries data only. Not for external connections or for linking SAS drives directly.

36-pin SFF-8643 host connector

The hybrid high-density connector splits a single 36-pin SFF-8643 interface into four standard SATA data ports. This layout delivers multiple lanes of 6 Gbps or 3 Gbps traffic through one cable run, simplifying internal cabling in dense storage configurations.

Highlights

  • Connect 4 SATA drives to one SFF-8643 port
  • Supports 6 Gbps and 3 Gbps data rates
  • Locking SFF-8643 and SATA connectors stay secure
  • 30 AWG ribbon with woven mesh sheath
  • 1 metre length for internal chassis routing

Specifications

No published specifications for this item yet.

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my controller need an SFF-8643 port for this cable to work?

Yes, the cable plugs into a 12 Gbps host bus adapter or RAID controller with an SFF-8643 connector on one end.

Will my existing 3 Gbps SATA drives work with this 6 Gbps cable?

The hybrid design provides both 3 Gbps and 6 Gbps compatibility so older SATA drives will function normally.

How can I confirm the cable is delivering 6 Gbps speeds after installation?

Check the negotiated link speed in your RAID controller BIOS or operating system drive properties to verify 6 Gbps operation.
