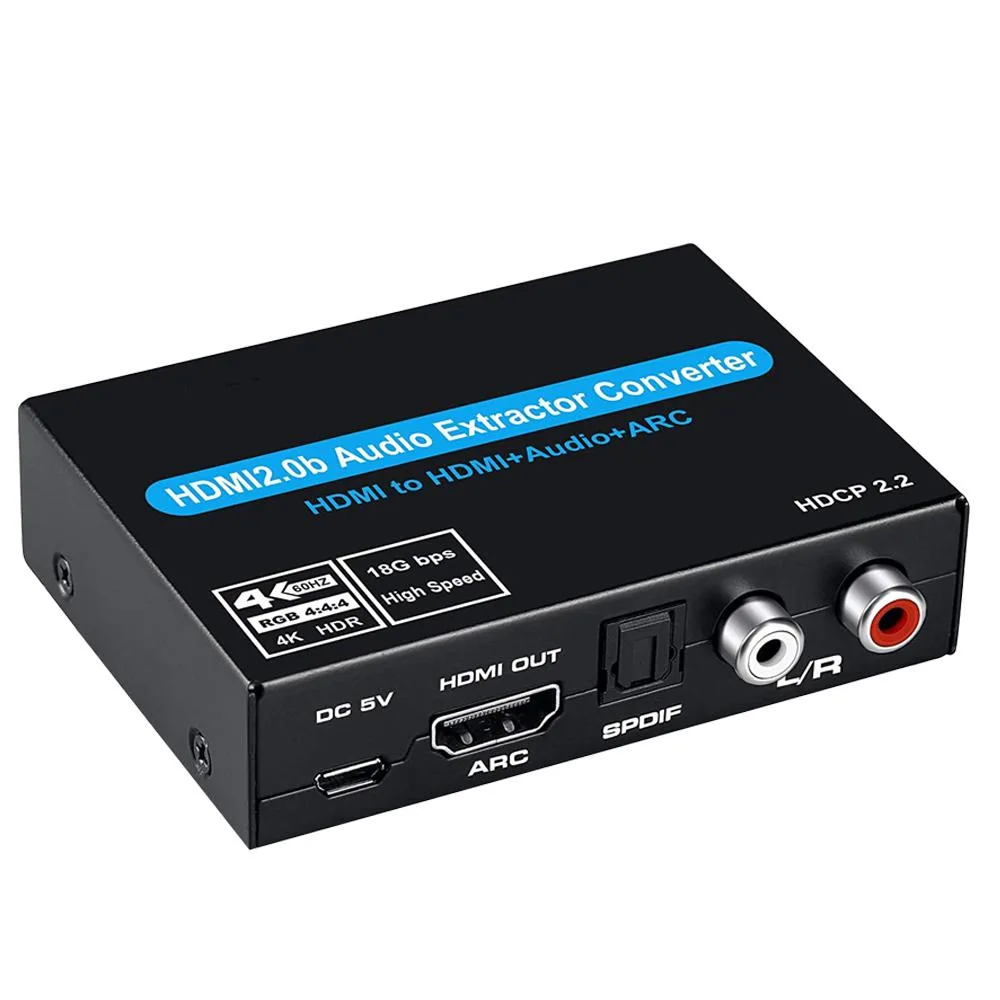

Small black rectangular box with HDMI, optical, RCA and 3.5 mm ports

ESTONE

ESTONE OZV8-2 4K HDMI Audio Extractor ARC Black

SKU CH-WAKY-KCMA9

Extracts audio from a 4K 60 Hz HDMI signal to HDMI ARC, optical, RCA and 3.5 mm outputs

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extracts audio via HDMI ARC, optical, RCA and 3.5 mm jack
  • Passes 4K at 60 Hz with YUV 4:4:4 and HDR 10 plus Dolby Vision
  • Supports Dolby Atmos and DTS-HD with 7.1 channel LPCM
  • Handles deep colour up to 36 bit and 3D video
  • Compact unit measuring 3.35 by 2.68 by 0.79 inches

What this HDMI audio extractor does

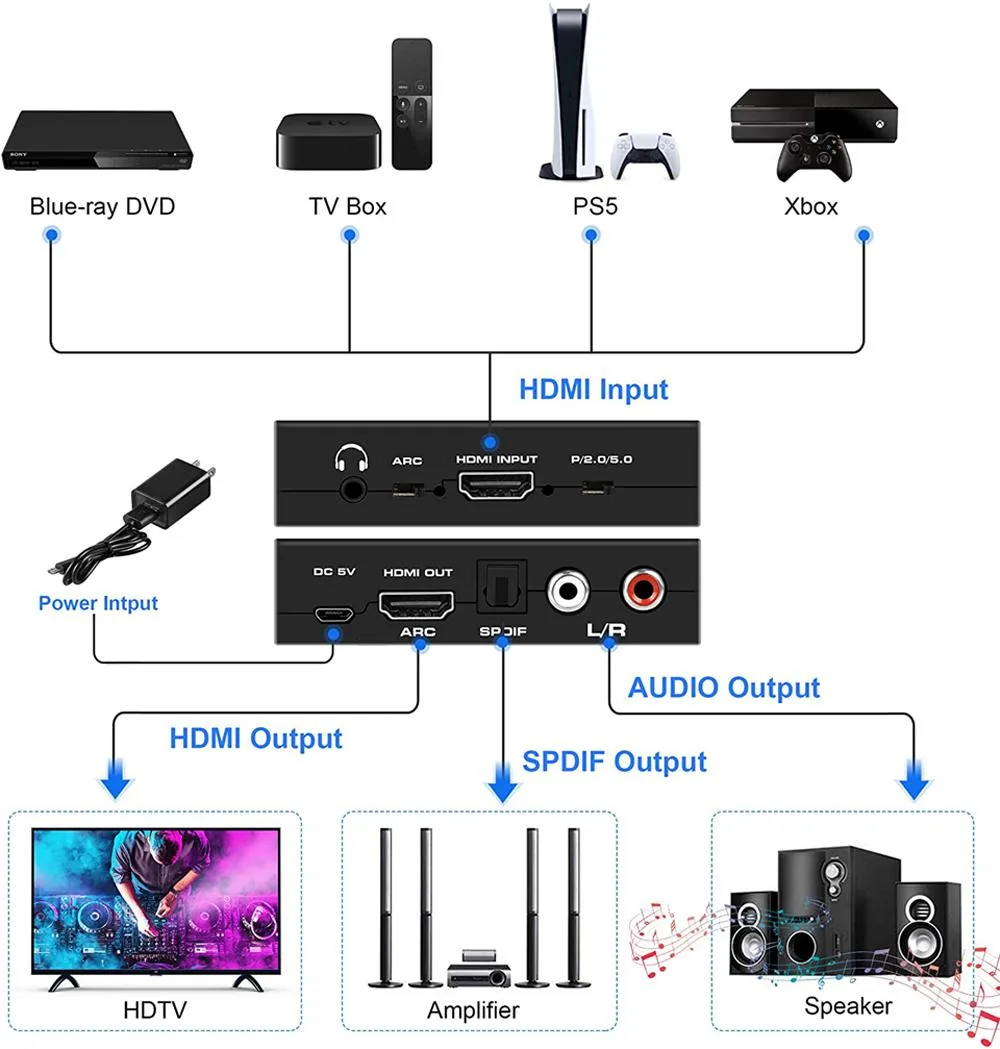

The ESTONE OZV8-2 takes one HDMI source and splits it to an HDMI ARC display plus optical, stereo RCA and 3.5 mm analogue outputs. It handles 4K at 60 Hz with HDR10 and Dolby Vision pass-through. A 5 V power adapter is included for reliable operation.

Who this suits and who it does not

Ideal for connecting a Blu-ray player, console or streamer to a soundbar or AV receiver that lacks HDMI inputs. Buyers who need multiple HDMI inputs or switching between sources should look at a different device. It also does not add HDMI outputs for additional displays.

The spec that decides compatibility

Maximum supported bandwidth is 600 MHz with a 18.5 Gbps data rate and HDCP 2.2 compliance. Input and output cables up to 10 m using AWG26 HDMI 2.0a standard cable are supported. If your source exceeds these limits the extractor will not pass the signal.

Highlights

  • Extracts audio via HDMI ARC, optical, RCA and 3.5 mm jack
  • Passes 4K at 60 Hz with YUV 4:4:4 and HDR 10 plus Dolby Vision
  • Supports Dolby Atmos and DTS-HD with 7.1 channel LPCM
  • Handles deep colour up to 36 bit and 3D video
  • Compact unit measuring 3.35 by 2.68 by 0.79 inches

Specifications

BrandESTONE
ModelOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack
Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.

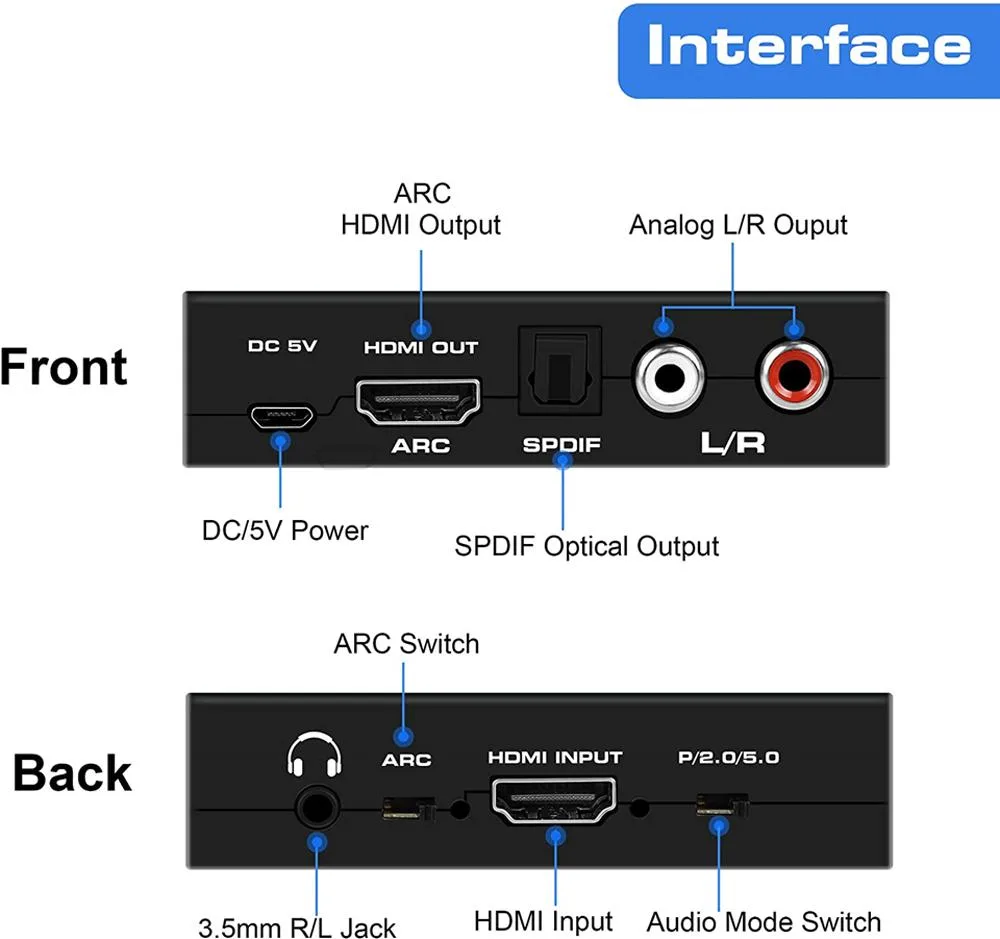

Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More Delica
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

Will the ESTONE OZV8-2 pass 4K 60 Hz video from my older Blu-ray player to a new TV while sending audio to a legacy receiver?

Yes, the extractor accepts one HDMI input up to 4K 60 Hz YUV4:4:4 and outputs HDMI with ARC plus SPDIF, RCA stereo and 3.5 mm jack simultaneously.

How can I verify the OZV8-2 is correctly extracting Dolby Atmos or DTS-HD after I connect everything?

Check that the TV shows an HDR or Dolby Vision signal at 4K 60 Hz and that your receiver displays the corresponding Dolby Atmos, DTS-HD or LPCM 7.1 format on its front panel.

Does the box include the power supply and cables I need, or must I buy them separately?

The package contains the extractor, a 5 V 1 A power adapter and a user manual; HDMI, optical, RCA and 3.5 mm audio cables are not included.
