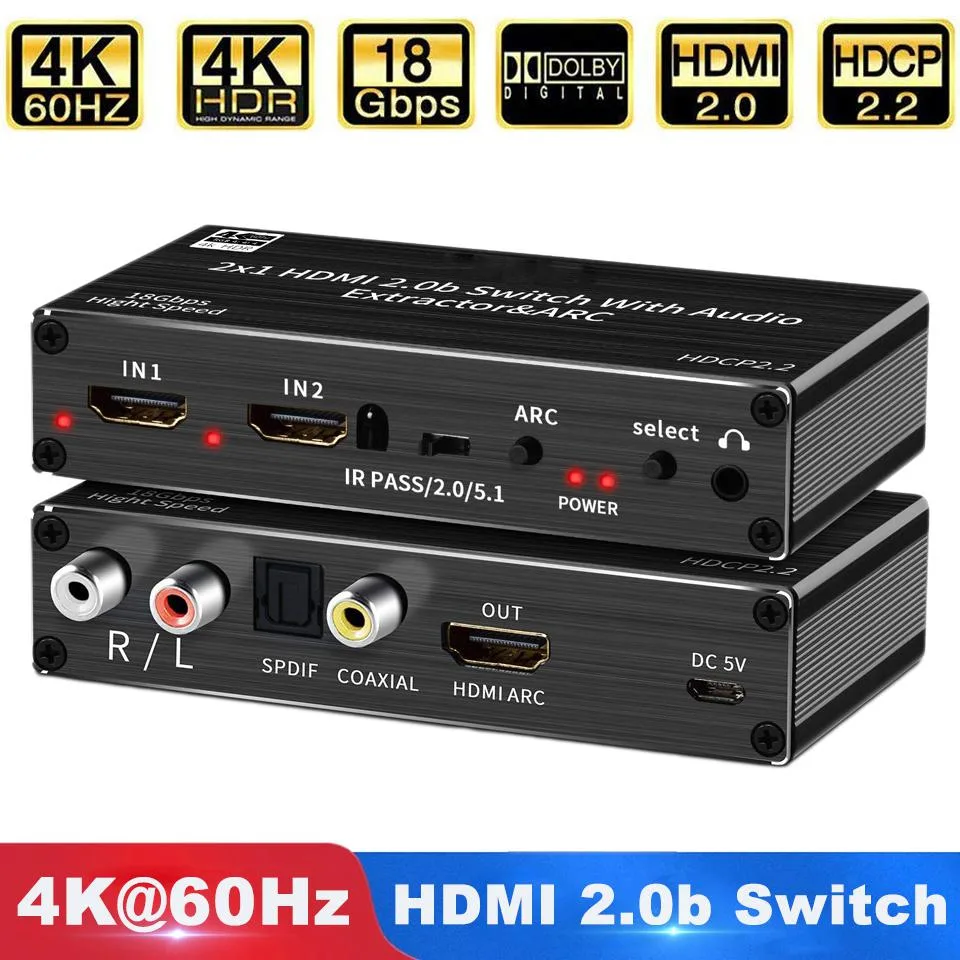

Small black box with two HDMI inputs, one HDMI output, optical, coaxial, RCA and 3.5 mm audio ports, plus a remote control

ESTONE

ESTONE OZV2 4K@60Hz 2x1 HDMI Switch Audio Extractor

SKU CH-CEHK-41SQ4

Switches two HDMI 2.0b sources to one display at 4K 60 Hz while extracting audio via optical, coaxial, RCA and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Switch two HDMI sources to one display
  • Extract audio via optical, coaxial, RCA or 3.5 mm
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth
  • Support HDR and HDCP 2.2 for protected content
  • Includes IR remote and 5 V power adapter

2-Port 4K HDMI Switch with Audio Extraction

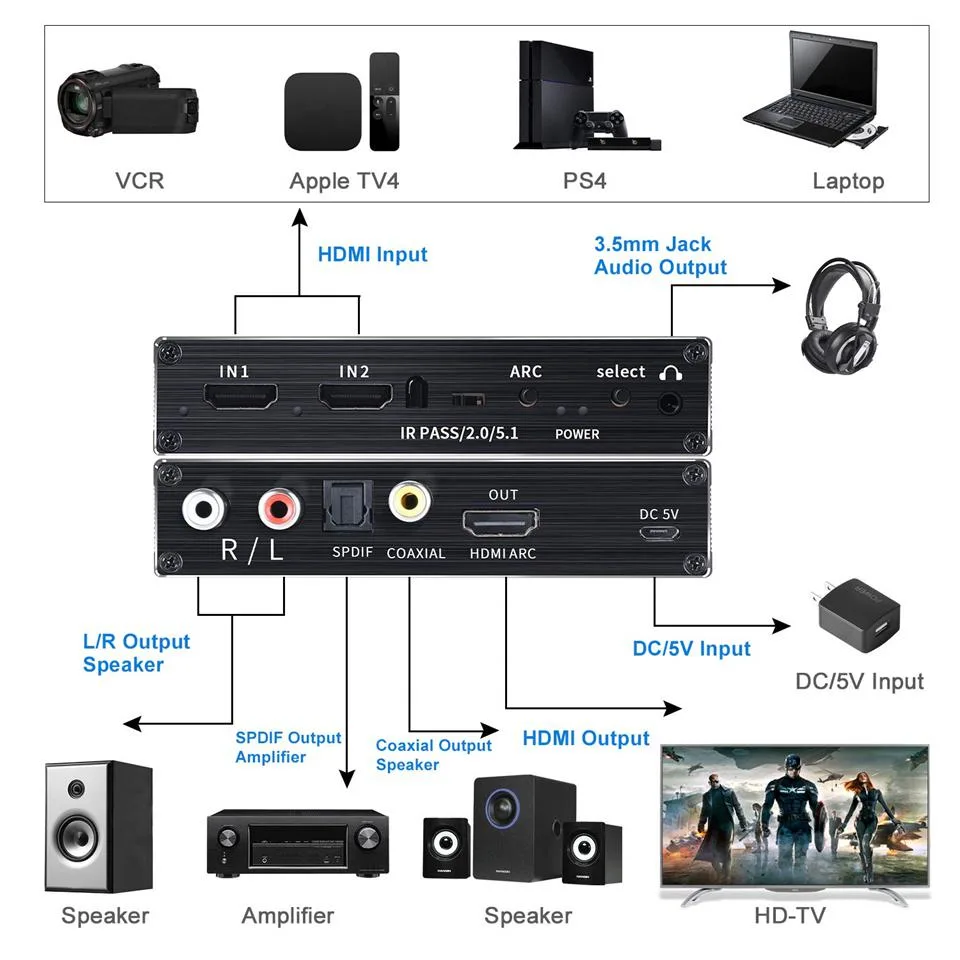

The ESTONE OZV2 is a 2x1 HDMI 2.0b switch that routes two sources to one display at up to 3840 x 2160 resolution and 60 Hz. It extracts audio from the HDMI stream and provides optical Toslink, coaxial, RCA stereo and 3.5 mm analogue outputs. An IR remote and 5 V power supply are included.

Home-theatre owners who need manual source switching

This unit suits setups where two HDMI devices such as a game console and a streaming box share a single TV or projector and the user wants multi-format audio breakout. It does not suit installations that require automatic input detection, more than two sources, or HDMI 2.1 features such as higher refresh rates or variable refresh rate.

18.5 Gbps bandwidth and HDCP 2.2 compliance

The 18.5 Gbps maximum bandwidth and HDCP 2.2 support determine whether protected 4K HDR content at 60 Hz will pass through without handshake issues. If the source or display demands HDMI 2.1 bandwidth or HDCP 2.3, this switch will not meet the requirement.

Highlights

  • Switch two HDMI sources to one display
  • Extract audio via optical, coaxial, RCA or 3.5 mm
  • Pass 4K at 60 Hz with 18.5 Gbps bandwidth
  • Support HDR and HDCP 2.2 for protected content
  • Includes IR remote and 5 V power adapter

Specifications

BrandESTONE
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

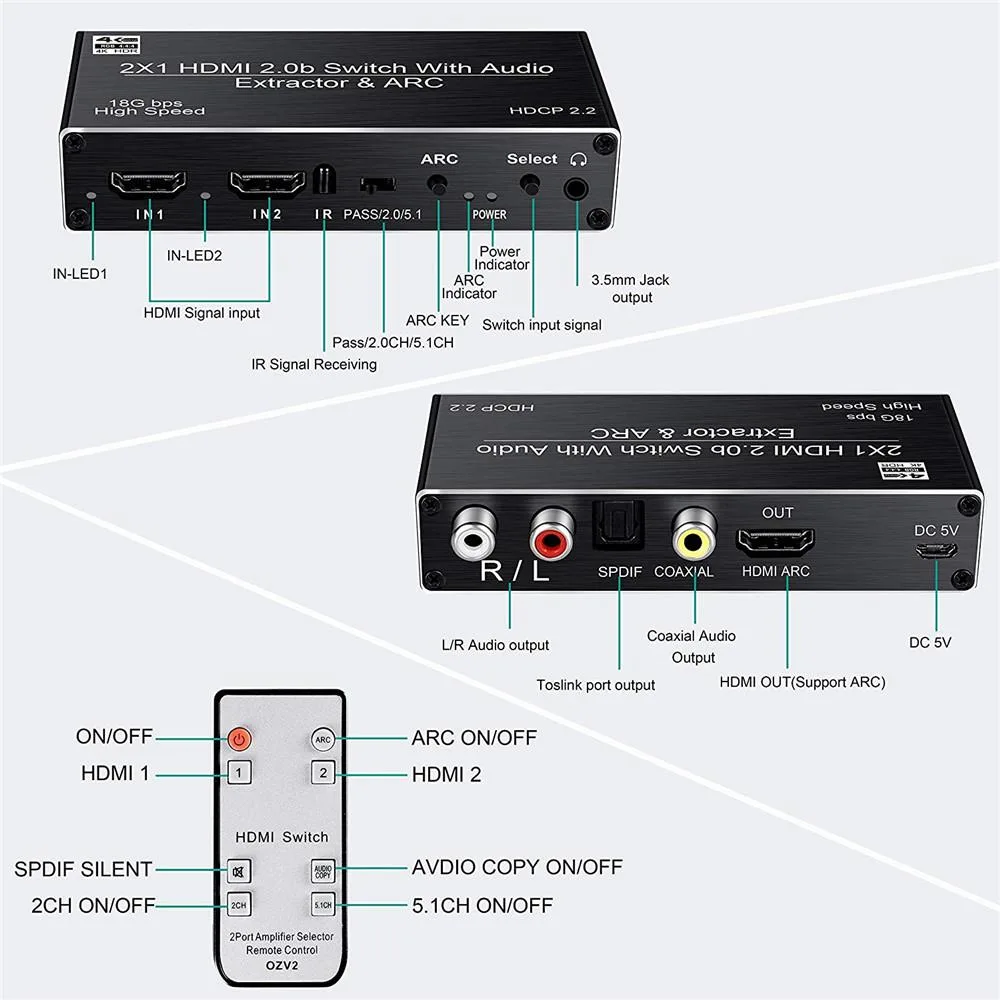

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What cables and accessories come in the box with the ESTONE OZV2?

The package includes the 2x1 HDMI switch with audio extractor, a 5V/1A DC power adapter, an IR remote control (battery not included), and a user manual.

Should I use the optical TOSLINK, coaxial, 3.5 mm or RCA outputs for my sound system?

Use optical TOSLINK or coaxial for 5.1-channel digital audio and ARC return; use the 3.5 mm jack or RCA L/R for two-channel analogue extraction only.

What does the 18.5 Gbps bandwidth mean for my 4K display?

It carries full 4K at 60 Hz with 24-bit RGB or YCbCr 4:4:4, plus HDR, so the switch will not limit the video quality from a 4K@60 Hz source.
