ESTONE

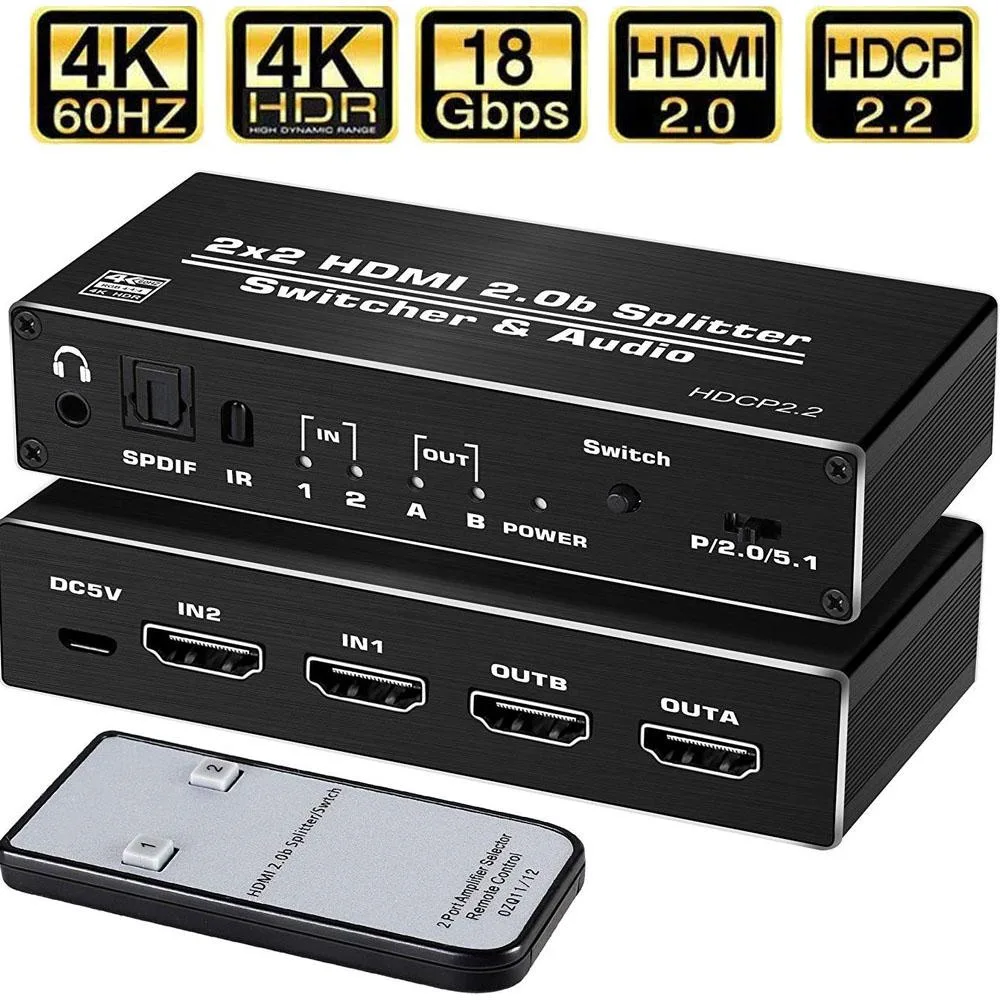

ESTONE OZQ11 2x2 HDMI Switch 4K60 Audio Extractor
Routes two HDMI sources to two displays at 4K 60 Hz with optical and 3.5 mm audio extraction
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- Input Connector2 x HDMI
- Output Connector2 x HDMI
- Switches two sources to two displays with zero lag
- Extracts audio via optical SPDIF and 3.5 mm jack
- Downscaling lets one output stay 4K while the other drops to 1080p
- Runs 4K at 60 Hz over 18.5 Gbps bandwidth
- Includes IR remote and front button for instant source changes
2x2 HDMI matrix for dual displays

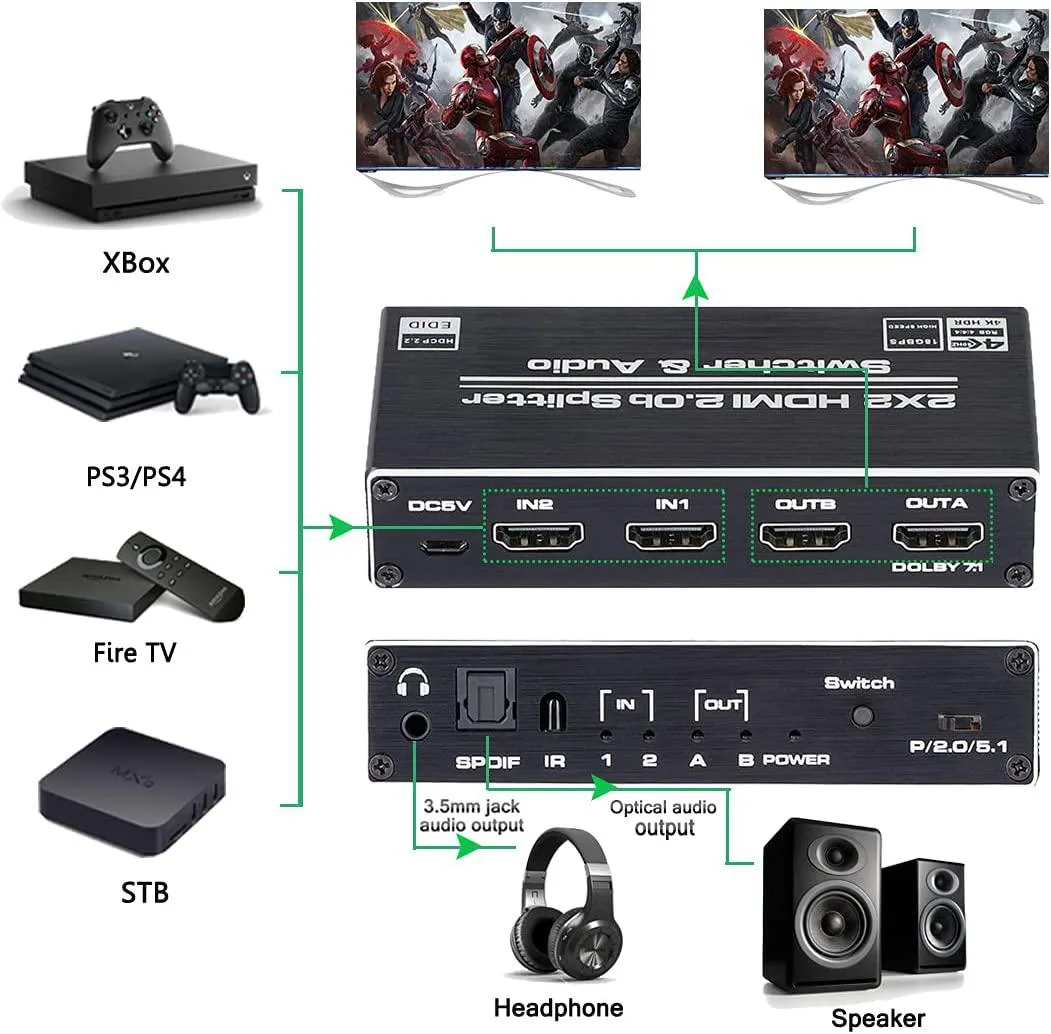

The ESTONE OZQ11 routes two HDMI sources to two displays simultaneously at up to 4K 60Hz. It supports HDMI 2.0b and HDCP 2.2 with 18.5Gbps bandwidth. Downscaling lets one screen show 4K while the other shows 1080p. Audio extracts to optical SPDIF and 3.5mm jack with DTS-HD and Dolby TrueHD pass-through.
Suited for multi-room or dual-monitor setups
Home-theatre owners who need the same source mirrored on two screens will benefit from the matrix switching and signal amplification. Installers requiring IR remote or front-panel switching gain flexible control. It does not serve buyers who need independent source-to-display routing for different content on each screen.
Handles 4K 60Hz up to 10 metres
The switch maintains 4K 60Hz 4:4:4 over 10 metre cables and 1080p up to 20 metres. Deep colour 8/10/12-bit and 3D formats pass through without lag. Optical and 3.5mm outputs carry LPCM and compressed surround up to 5.1; DTS 7.1 is not supported. Power comes from an included 5V 1A adapter.
Highlights
- Switches two sources to two displays with zero lag
- Extracts audio via optical SPDIF and 3.5 mm jack
- Downscaling lets one output stay 4K while the other drops to 1080p
- Runs 4K at 60 Hz over 18.5 Gbps bandwidth
- Includes IR remote and front button for instant source changes
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZQ11 |
| Model | OZQ11 |
| Part Number | OZQ11 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Downscaling ( can output 4K and 1080p at the same time ) Support HDMI 2.0 / HDCP 2.2 Support 3D video format Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4 Support 3.5mm earphone jack and optical audio output Support 18Gbps data rate and Tmds clock up to 600MHz Support video format: 8 / 10 / 12 bit deep color Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x HDMI Switch Splitter 2 in 2 out 1 x IR Remote Control 1 x 5V / 1A Power adapter 1 x User Manual |
Questions about this item
Which sources do I need to connect to the two HDMI inputs for the switch to work?
You need two HDMI source devices such as a games console, streaming box, Blu-ray player or PC — any device with an HDMI output up to 4K at 60 Hz.
Will my 1080p projector work alongside a 4K TV on the two HDMI outputs?
Yes, the downscaling feature lets one output show 4K while the other shows 1080p simultaneously.
How can I confirm the optical SPDIF output is passing Dolby TrueHD or DTS-HD correctly?
Play a test file with those codecs and check your AV receiver or soundbar displays the matching format indicator.
