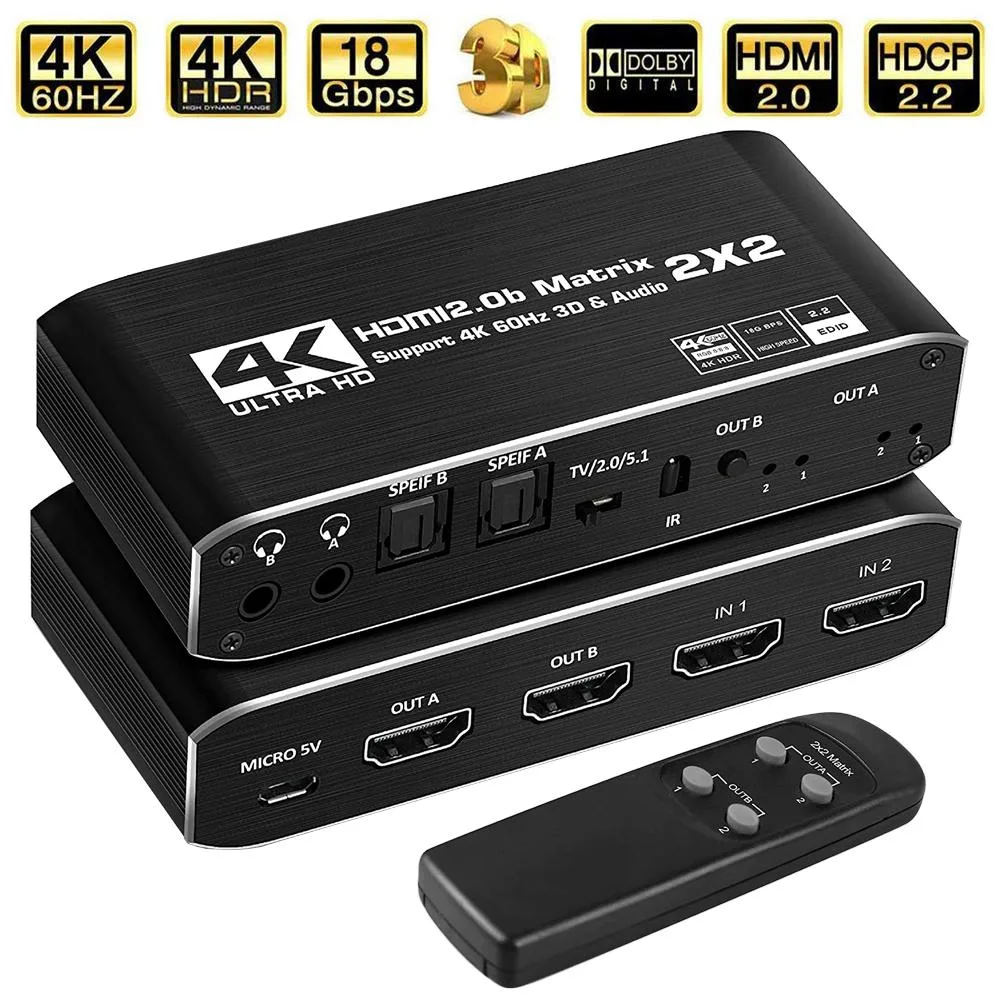

Black rectangular HDMI matrix switch, 2 in 2 out, IR remote included

ESTONE

ESTONE OZJ6 2x2 HDMI Matrix Switch 4K 60Hz

SKU CH-V3EG-SQF3Y

Routes two HDMI sources to two displays at 4K 60 Hz with HDR, auto downscaling, IR remote and dual SPDIF plus 3.5 mm audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Switch any source to either display with 2×2 matrix routing
  • View 4K 60 Hz HDR10 content at full 3840×2160 resolution
  • Extract audio via twin SPDIF optical and 3.5 mm stereo outputs
  • Control the matrix from the sofa using the included IR remote
  • Auto downscale 4K signals to 1080p for mixed-display setups

2x2 HDMI Matrix for 4K 60Hz Setups

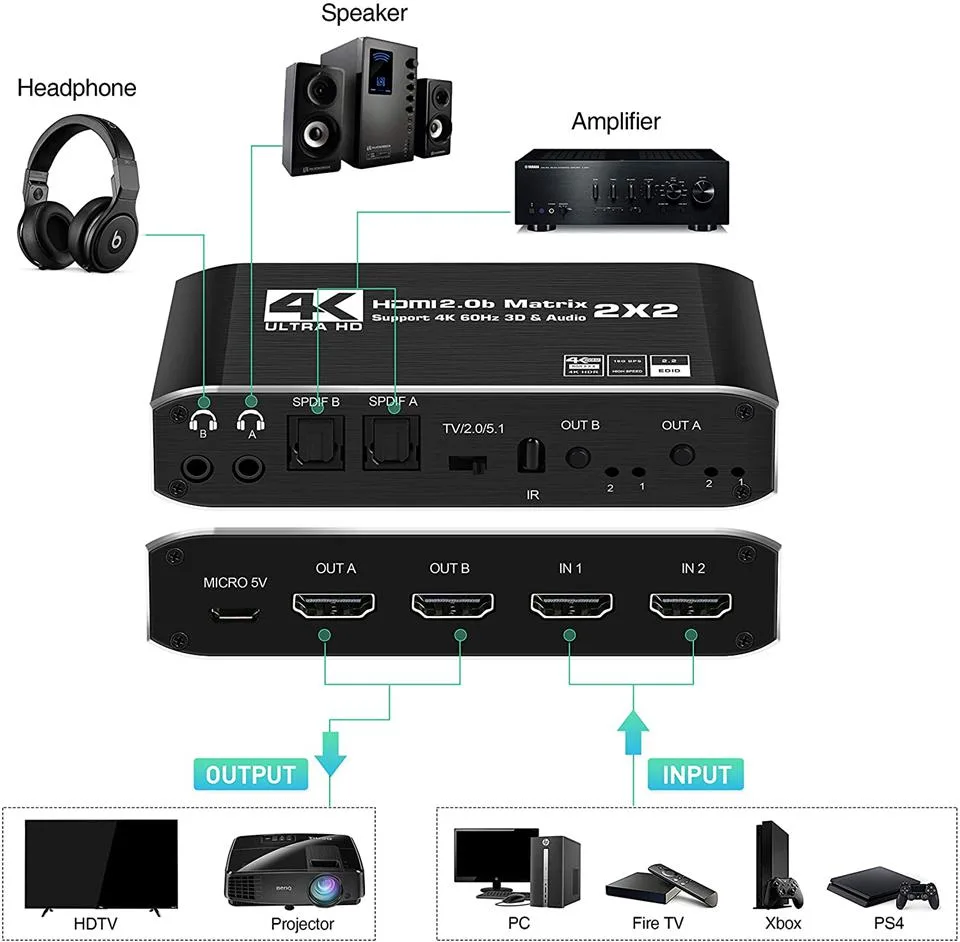

The ESTONE OZJ6 routes two HDMI sources to two displays independently. It handles 4K at 60Hz with HDR10 and deep-colour formats up to 48-bit. Audio can be extracted from either output through optical SPDIF or 3.5mm stereo ports. An IR remote switches inputs without touching the box.

Upgrading from a Simple Splitter or Selector

A basic splitter mirrors one source to both screens; a selector only picks one source for one screen. This matrix lets each display show a different 4K source at the same time. The jump is worth it when you need simultaneous, independent routing — for example a media player on one TV and a game console on another. It does not add more than two inputs or two outputs.

Limits of the HDMI 2.0b Interface

Bandwidth tops out at 18.5Gbps with a TMDS clock of 600MHz, so 4K 60Hz 4:4:4 is the ceiling. HDCP 2.2 protects premium content but older 1.4 sinks may block it. The downscaler converts 4K to 1080p for legacy displays, yet it cannot up-convert. Cable runs are reliable to 10 metres with AWG26 cable; longer runs need active fibre or equalisers not included here.

Highlights

  • Switch any source to either display with 2×2 matrix routing
  • View 4K 60 Hz HDR10 content at full 3840×2160 resolution
  • Extract audio via twin SPDIF optical and 3.5 mm stereo outputs
  • Control the matrix from the sofa using the included IR remote
  • Auto downscale 4K signals to 1080p for mixed-display setups

Specifications

BrandESTONE
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What clearance does the 5.91 x 2.36 x 0.79 inch chassis need for the IR remote sensor?

The IR remote requires line-of-sight to the front panel; allow at least 2 inches in front of the unit so the sensor is not blocked by cables or rack rails.

Which HDMI 2.0b handshake step causes a blank screen if skipped during first power-up?

Power on both source devices first, then the matrix, then the displays; this lets HDCP 2.2 authenticate before the 18.5 Gbps video stream starts.

When should the 3.5 mm and SPDIF audio ports be checked for dust or oxidation?

Inspect the two 3.5 mm L/R jacks and two Toslink ports every 12 months; compressed air keeps the optical lenses clear for 5.1 channel passthrough.
