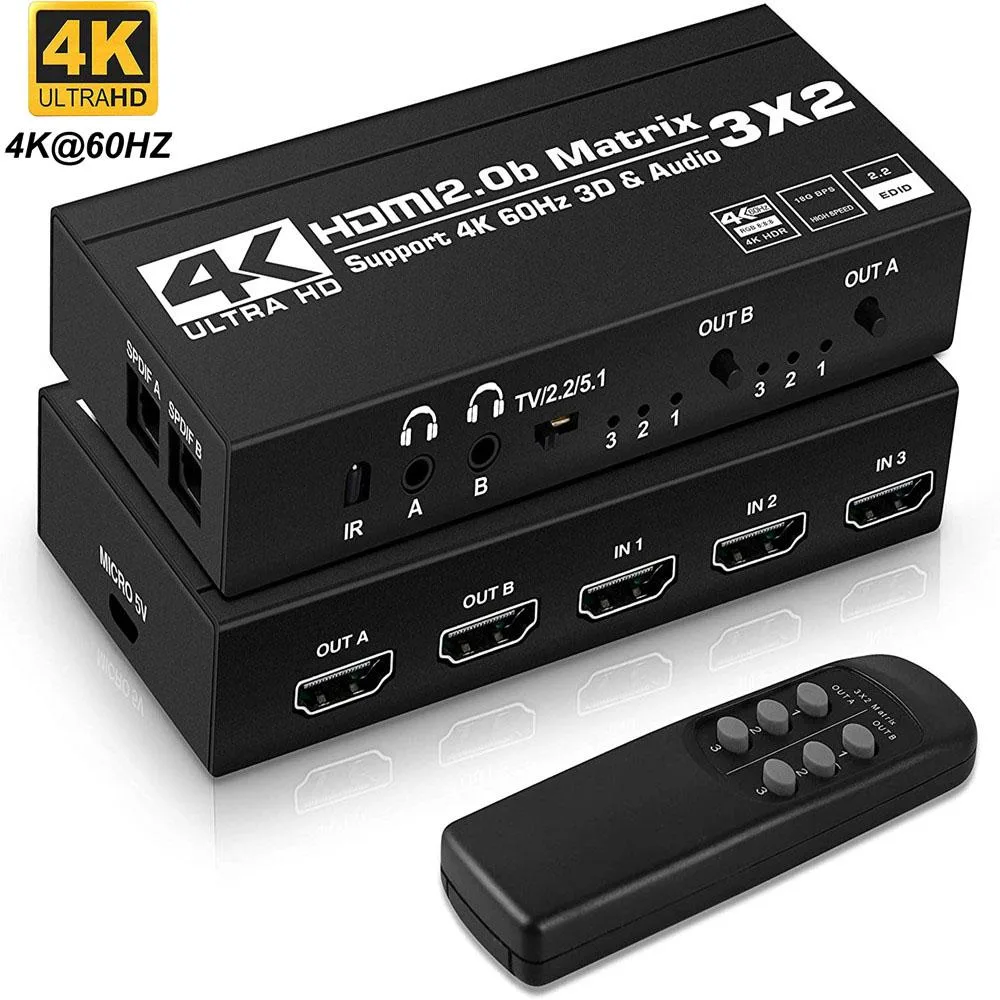

Black rectangular box with three HDMI inputs and two HDMI outputs on the back

ESTONE

ESTONE OZJ5 3x2 HDMI Matrix Switch 4K 60Hz

SKU CH-W1T6-XHK7T

Routes three 4K 60 Hz HDMI sources to two displays with independent audio extraction via optical and 3.5 mm outputs, controlled by IR remote or front button

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Routes three 4K sources to two displays independently
  • Extracts audio via SPDIF optical or 3.5 mm stereo jack
  • Supports 4K 60 Hz HDR with 18.5 Gbps bandwidth
  • IR remote and front-panel buttons for instant switching
  • Compact 170 × 56 × 24 mm unit runs on DC 5 V

Three-input HDMI matrix switch

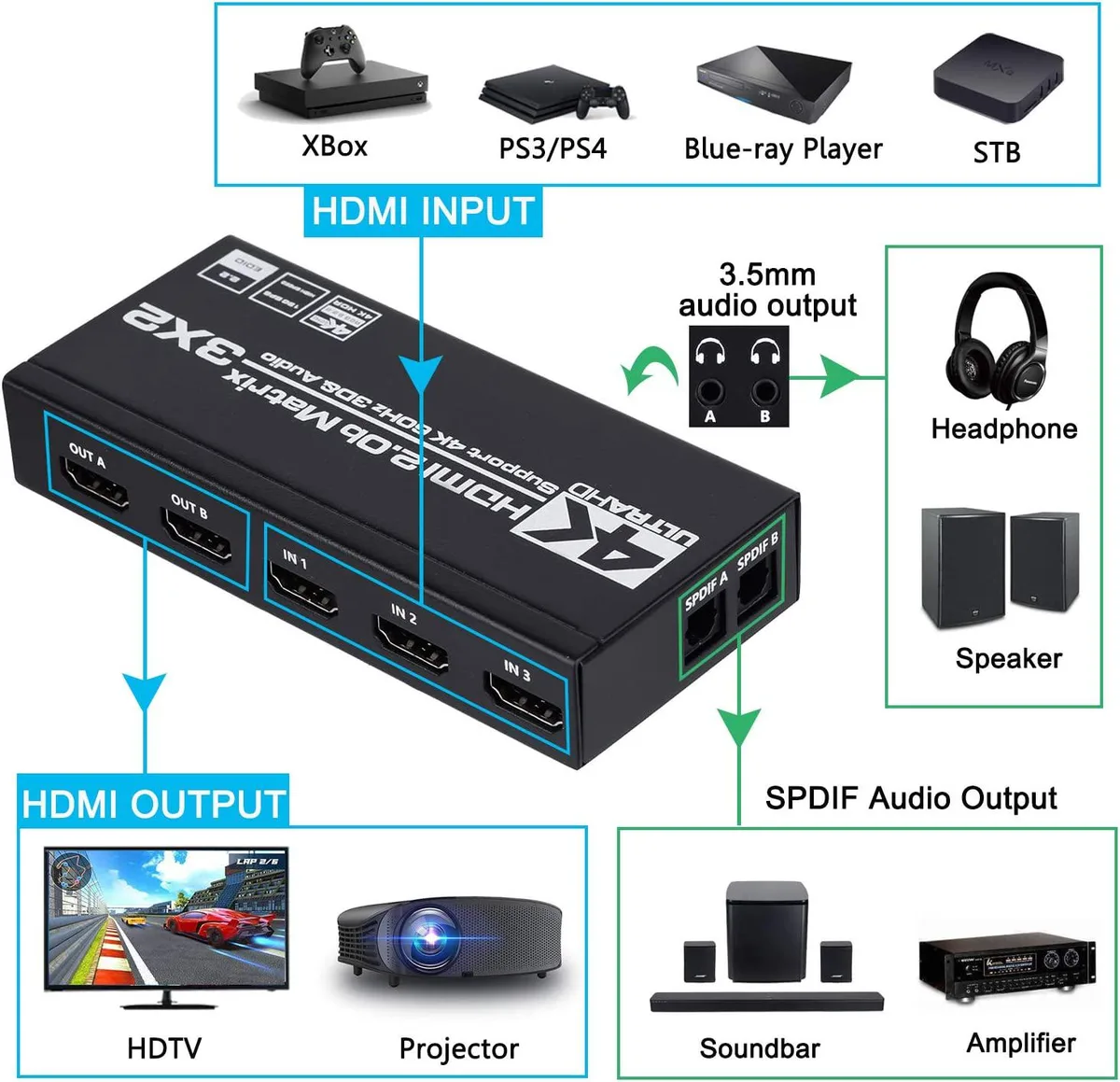

The ESTONE OZJ5 is a 3x2 HDMI matrix switch that routes three 4K HDR sources to two displays independently. It suits installers and home-theatre owners who need to share consoles, players or PCs across a projector and a TV without re-plugging cables.

Audio extraction and EDID control

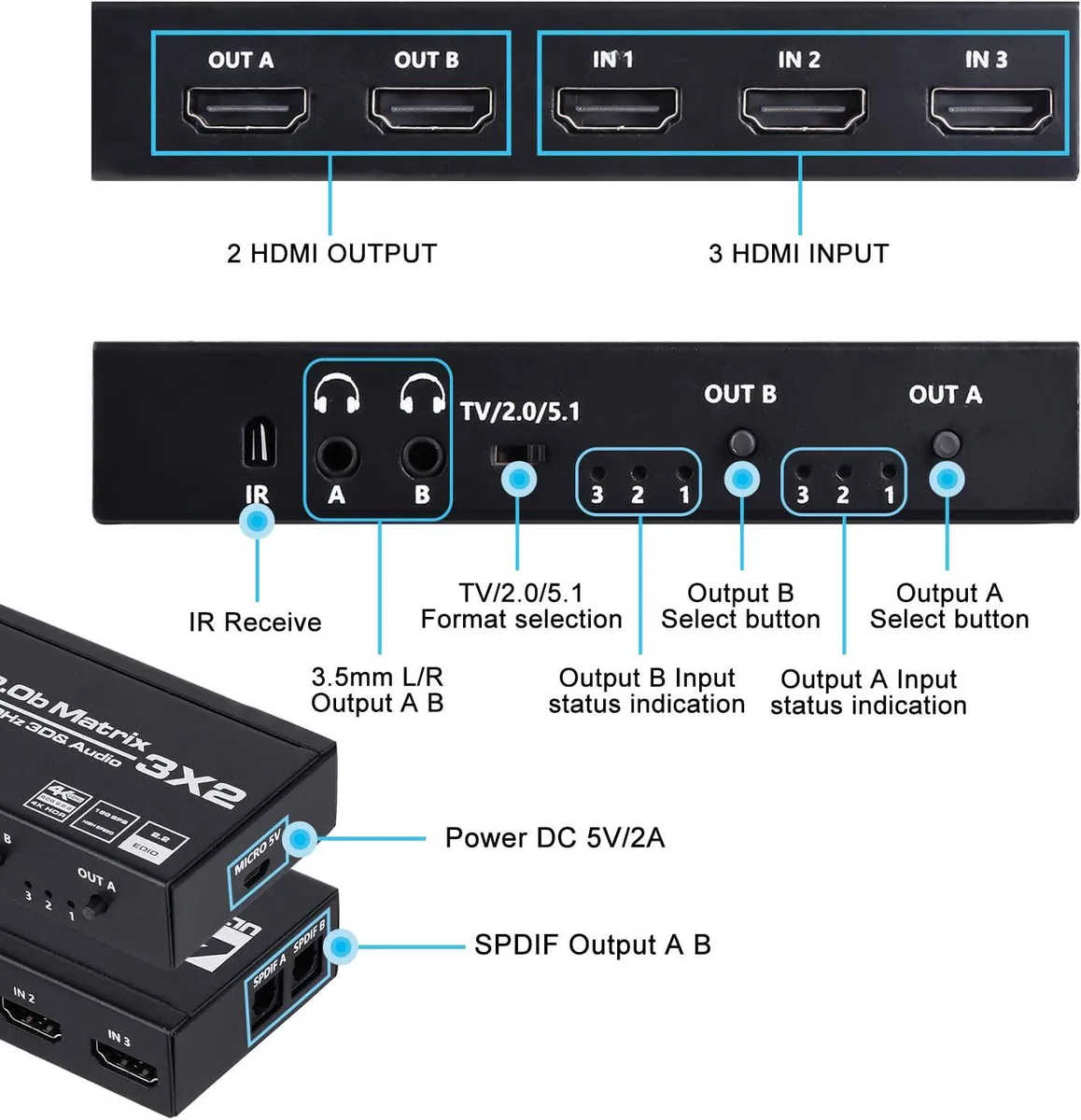

Bundled IR remote and front-panel buttons let users switch or split sources from the sofa. Two SPDIF optical outputs and two 3.5 mm stereo jacks extract LPCM 2.1 or Dolby/DTS 5.1 audio from any input simultaneously. Smart EDID management ensures each source sees a compatible sink profile.

HDMI 2.0b bandwidth ceiling

The 18.5 Gbps link caps video at 4K 60 Hz RGB 4:4:4; 10-bit or 12-bit HDR at higher frame rates is not possible. Maximum certified cable reach is 10 m using AWG26 HDMI 2.0b leads. Operation is limited to -15 °C to +45 °C ambient temperature.

Highlights

  • Routes three 4K sources to two displays independently
  • Extracts audio via SPDIF optical or 3.5 mm stereo jack
  • Supports 4K 60 Hz HDR with 18.5 Gbps bandwidth
  • IR remote and front-panel buttons for instant switching
  • Compact 170 × 56 × 24 mm unit runs on DC 5 V

Specifications

BrandESTONE
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the DC 5 V power adapter need replacing after long use?

The unit draws a maximum of 600 mA from its DC 5 V supply, so any future adapter must meet that current rating and voltage.

What is the longest HDMI cable length supported at full 4K 60 Hz bandwidth?

The specification lists a maximum of 10 m using AWG26 HDMI 2.0b standard cable for 4K@60Hz signals.

How hot does the enclosure get when the matrix runs continuously at 18.5 Gbps?

The operating temperature range is rated from -15 °C to +45 °C, indicating the chassis is designed to stay within that envelope under sustained load.
