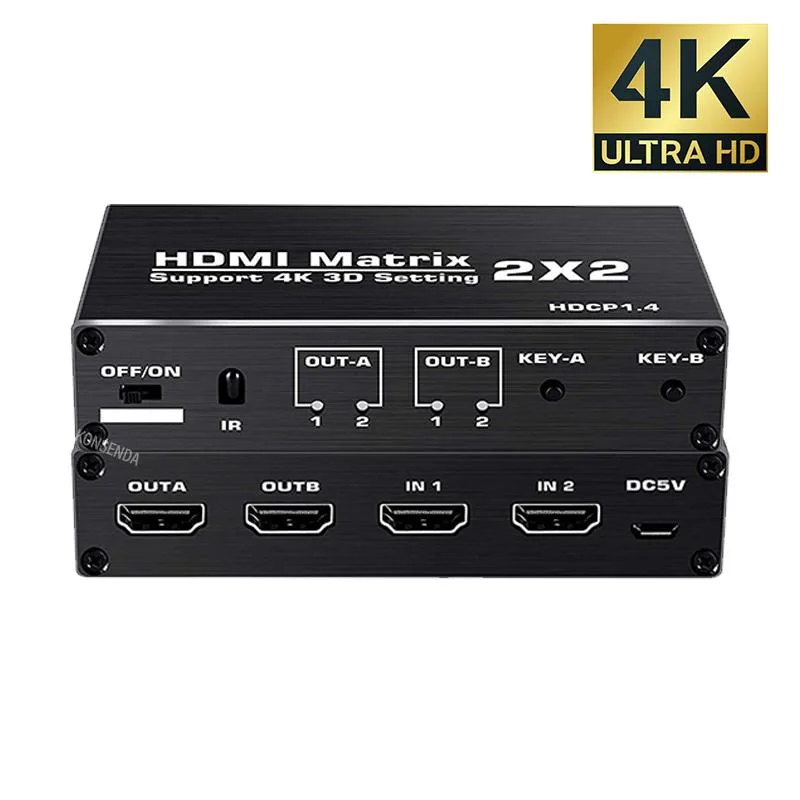

Black rectangular HDMI matrix switch with two inputs and two outputs, IR remote included

ESTONE

ESTONE OZJ3 2x2 HDMI Matrix Switch 4K 60Hz

SKU CH-4HMB-9833W

A 2×2 HDMI matrix routes two sources to two displays independently or duplicates one source on both screens at 4K 60 Hz with HDR and 7.1 audio

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two sources to two displays independently or mirrored
  • 4K 60 Hz video with 18.5 Gbps bandwidth and HDR
  • HDMI 2.0b and HDCP 1.4 keep protected content flowing
  • IR remote switches inputs without leaving your seat
  • Supports 7.1-channel LPCM, Dolby and DTS audio formats

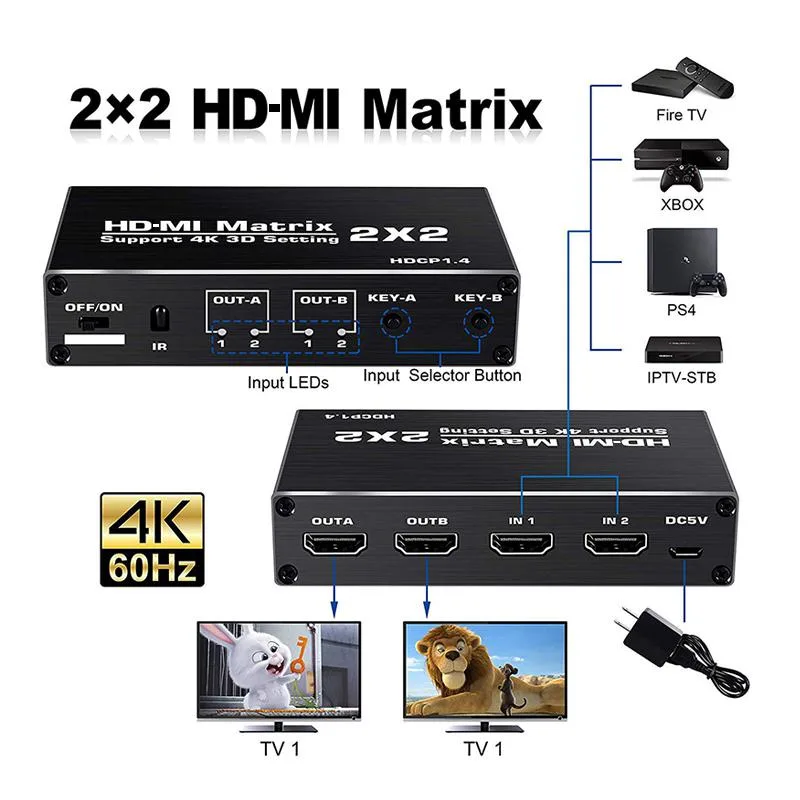

ESTONE OZJ3 2×2 HDMI Matrix Switch

The ESTONE OZJ3 is a 2×2 HDMI matrix switch that routes two HDMI sources to two displays independently or mirrors one source to both screens. It suits home-theatre, conference-room and digital-signage setups where flexible 4K distribution is required.

Thermals noise and power draw

The unit draws a maximum of 600 mA from its included DC 5 V supply and operates between -15 °C and 45 °C. With no moving parts it runs silently and adds negligible heat to an equipment rack or cabinet.

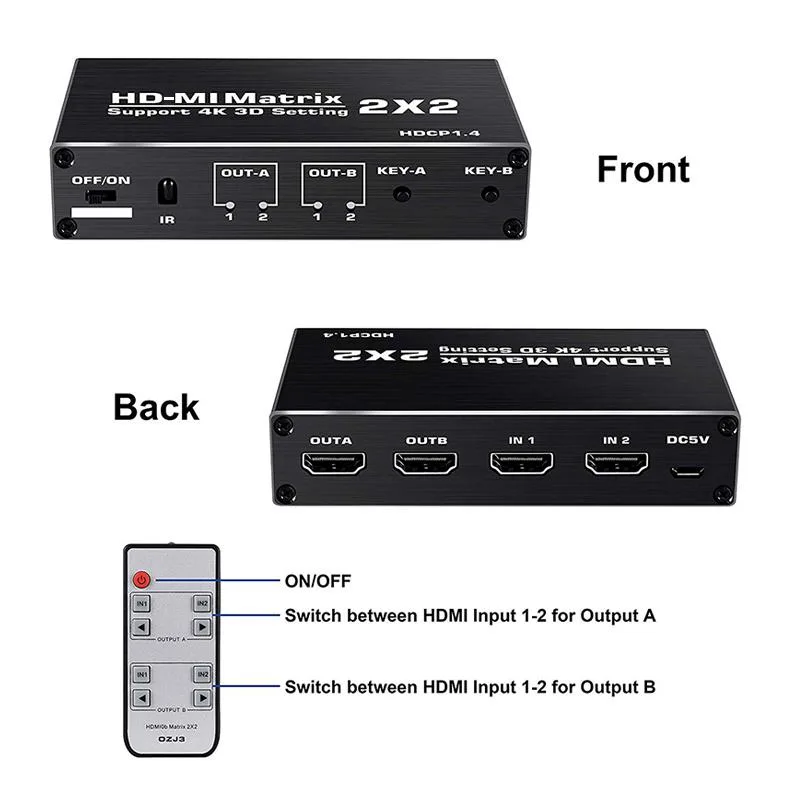

Bundled IR remote and deep-colour support

An IR remote is included for front-panel-free switching between sources and outputs. The switch passes deep-colour formats up to 48-bit and LPCM, Dolby or DTS 7.1 audio, preserving full signal fidelity through the 18.5 Gbps bandwidth path.

Highlights

  • Routes two sources to two displays independently or mirrored
  • 4K 60 Hz video with 18.5 Gbps bandwidth and HDR
  • HDMI 2.0b and HDCP 1.4 keep protected content flowing
  • IR remote switches inputs without leaving your seat
  • Supports 7.1-channel LPCM, Dolby and DTS audio formats

Specifications

BrandESTONE
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I connect the DC 5V power supply and the two HDMI sources to the OZJ3 matrix, and what step is often missed?

Connect the included DC 5V adapter first, then link each source to the two HDMI inputs and each display to the two HDMI outputs; the step often missed is powering the unit before plugging in the HDMI cables so the EDID handshake completes correctly.

What maintenance will the OZJ3 need over time, and which component is most likely to require replacement?

The only serviceable part is the external DC 5V power adapter; if the unit loses signal or the IR remote stops responding, replace the adapter with one rated for at least 600mA at 5V.

What is the first limit I will hit when running 4K 60Hz content continuously through the OZJ3?

The 10-metre maximum cable length for AWG26 HDMI 2.0b cables is the first practical limit; beyond that distance the 18.5Gbps bandwidth cannot be maintained at 3840×2160/60Hz.
