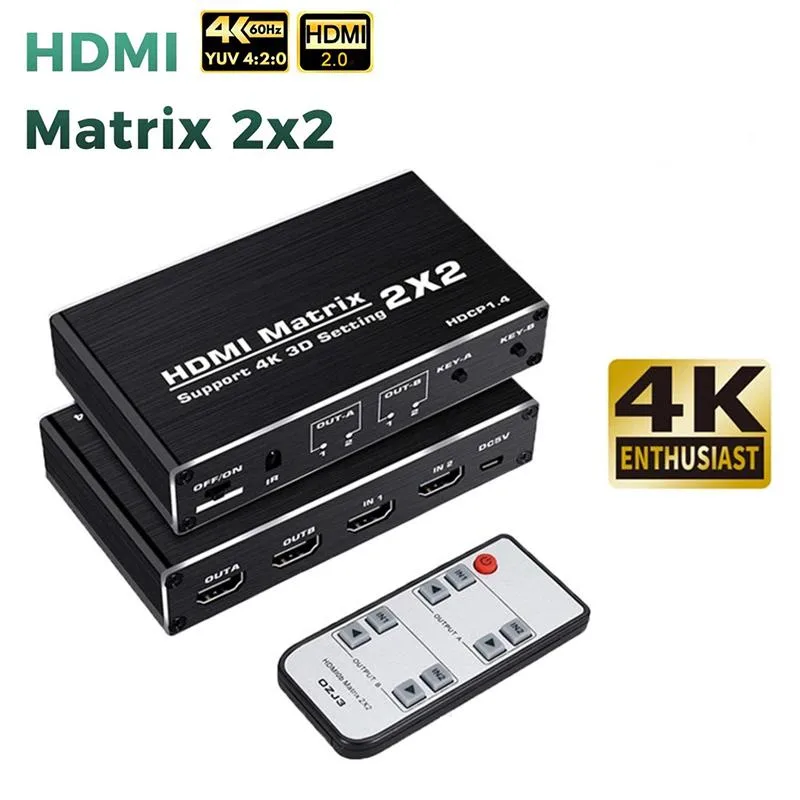

Small black metal box with four HDMI ports and IR sensor

ESTONE

ESTONE OZJ3 2×2 HDMI Matrix Switch 4K@60Hz

SKU CH-N2AB-C3F7T

Routes two HDMI sources to two displays independently or mirrored up to 4K 60 Hz with IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Route any of two sources to either of two displays independently
  • Split one source to both screens simultaneously at 4K@60Hz

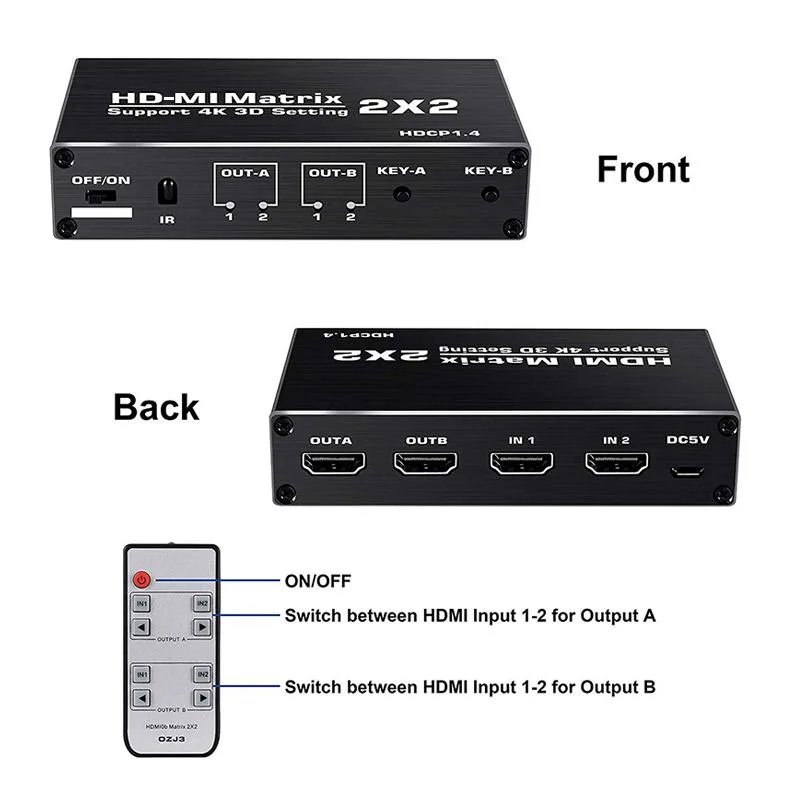

  • Control switching from across the room with included IR remote
  • Transmits 18.5Gbps bandwidth with deep color up to 48-bit depth
  • Compact 5.91 x 2.36 x .79 inch unit operates from -15°C to +45°C

2×2 HDMI Matrix with IR Remote

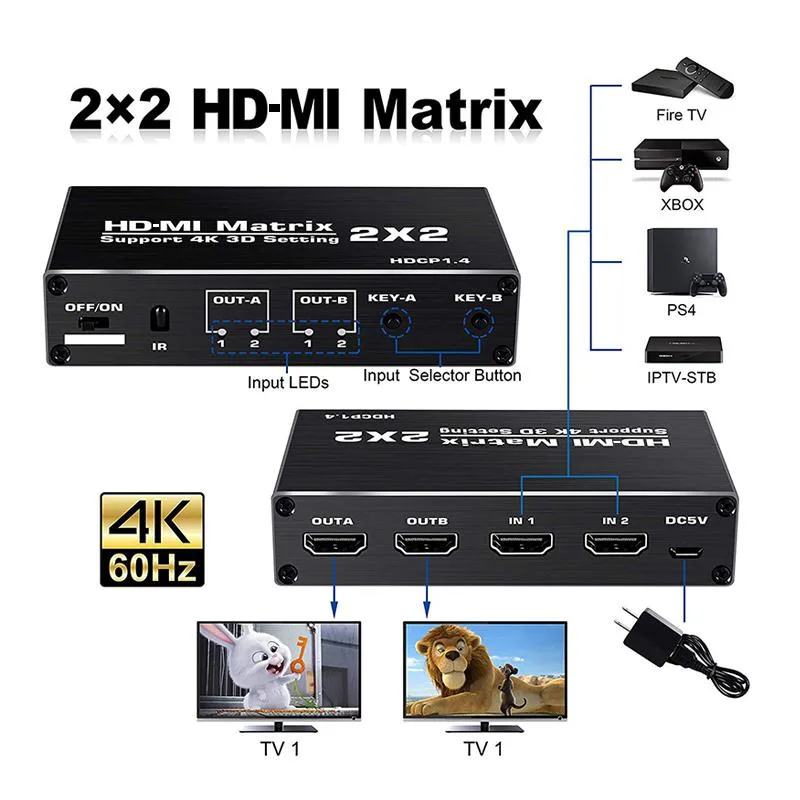

The ESTONE OZJ3 is a true 2×2 HDMI matrix switch that routes two sources to two displays independently or mirrors one source to both. It supports 4K@60Hz video up to 3840×2160, 18.5 Gbps bandwidth, HDR, 3D and deep colour up to 48-bit. HDCP 1.4 compliance and LPCM 7.1 / Dolby / DTS audio pass-through are included. A DC 5 V supply and IR remote are provided for front-of-room control.

Installers needing flexible 4K distribution

This unit suits home-theatre, conference-room and digital-signage installations that require any-to-any switching between two 4K@60Hz sources and two displays. It also works as a 1×2 splitter for duplicated output. Buyers who need more than two inputs or two outputs, or who require HDCP 2.2 protected-content handling, should look at a larger matrix or a model that specifies HDCP 2.2 support.

10-metre 4K cable limit

The matrix guarantees 4K@60Hz transmission over a maximum 10 m AWG26 HDMI 2.0b cable run. Longer cables or thinner gauges may reduce the achievable resolution or cause signal drop-out, so verify the cable length in your installation before purchase.

Highlights

  • Route any of two sources to either of two displays independently
  • Split one source to both screens simultaneously at 4K@60Hz
  • Control switching from across the room with included IR remote
  • Transmits 18.5Gbps bandwidth with deep color up to 48-bit depth
  • Compact 5.91 x 2.36 x .79 inch unit operates from -15°C to +45°C

Specifications

BrandESTONE
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the box include HDMI cables or only the matrix switch, power supply and IR remote?

The package contains the OZJ3 matrix switch, a DC 5V power supply and an IR remote control; HDMI cables are not included and must be purchased separately.

Should I choose this 2×2 matrix or a simpler 2×1 switch for two sources and one display?

Select the 2×2 matrix when you need to route either source to either of two displays independently or show the same source on both screens; a 2×1 switch only sends one source to a single display.

What does the 18.5 Gbps bandwidth mean for 4K 60 Hz HDR content on my TV?

The 18.5 Gbps bandwidth carries 4K 60 Hz 8-bit HDR (YUV 4:2:0) and 1080p 60 Hz with 7.1-channel LPCM/Dolby/DTS audio without compression.
