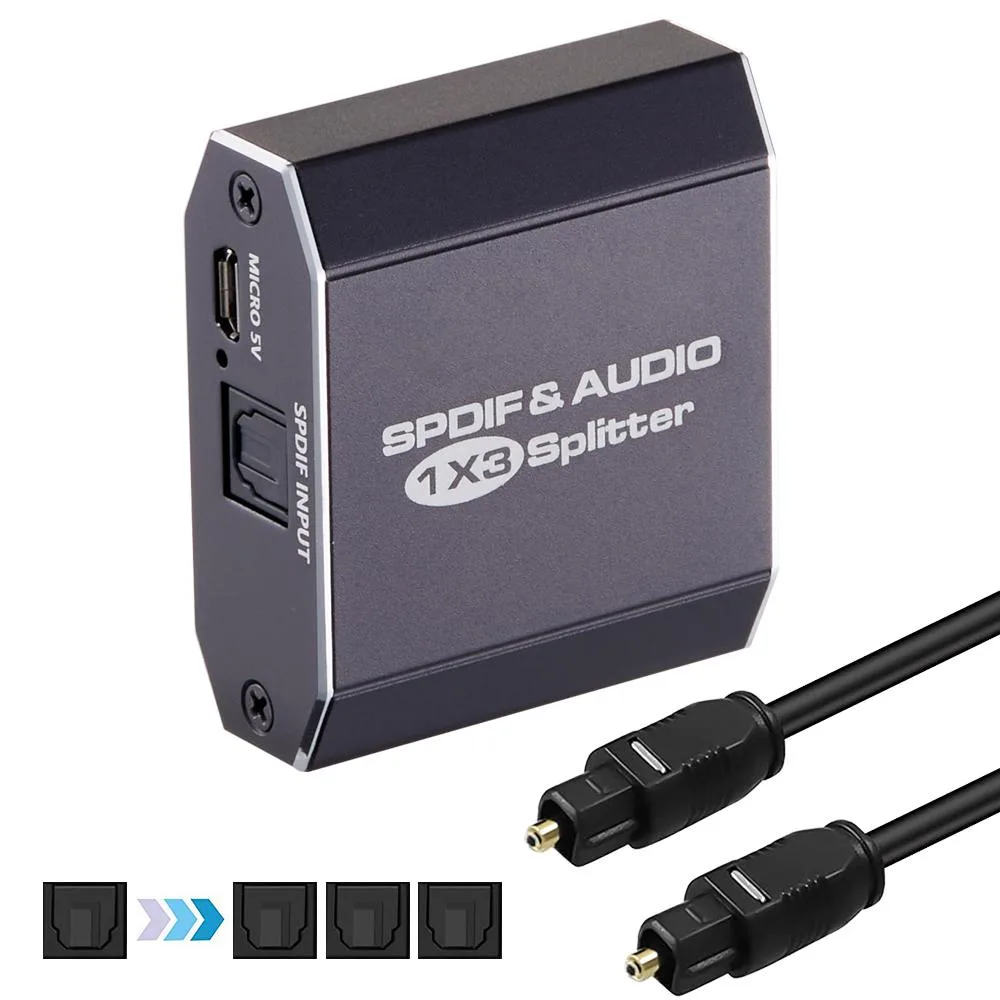

Small black rectangular optical audio splitter with four Toslink ports and a DC power input, aluminum alloy finish

ESTONE

ESTONE OZG1 1x3 Optical Audio Splitter Black

SKU CH-HY7G-83S64

Splits one optical audio source into three Toslink outputs supporting LPCM2.0, DTS and Dolby-AC3 up to 40 m with 0.2 dB/m loss

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical signal to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal transmission up to 40 metres with .2 dB/m loss
  • Plug-and-play with Apple TV, Xbox, PlayStation and Blu-ray players
  • Includes optical cable, USB power cable and user manual

One-to-Three Optical Splitter

The ESTONE OZG1 splits a single SPDIF TOSLINK input into three optical outputs. It supports LPCM2.0, DTS and Dolby-AC3 audio formats for multi-room or multi-device listening. A USB power cable is included for the DC 5V port. Plug-and-play operation works with common media players, consoles and amplifiers.

Upgrade from Single-Output Devices

Replaces a direct one-to-one optical link when the same source must feed three zones or components simultaneously. The jump is worth it when a Blu-ray player, console or streamer needs to drive an amplifier, a soundbar and a second receiver without manual cable swapping. Signal retiming and ESD protection maintain integrity across the split.

Sustained Transmission up to 40 Metres

Peak wavelength of 650 nm and a maximum baud rate of 16 Mbps support runs of 40 metres with loss below 0.2 dB per metre. Maximum working current is 100 mA, so the USB power supply remains stable during extended sessions. Automatic balance keeps output levels consistent over long periods without drift or delay.

Highlights

  • Splits one optical signal to three devices
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal transmission up to 40 metres with .2 dB/m loss
  • Plug-and-play with Apple TV, Xbox, PlayStation and Blu-ray players
  • Includes optical cable, USB power cable and user manual

Specifications

BrandESTONE
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

How much space does the 5.59 x 3.15 x 1.26 inch splitter need behind my TV cabinet?

The unit measures 5.59 inches wide, 3.15 inches deep and 1.26 inches high, so allow at least that footprint plus a little clearance for the three TOSLINK cables and the USB power lead.

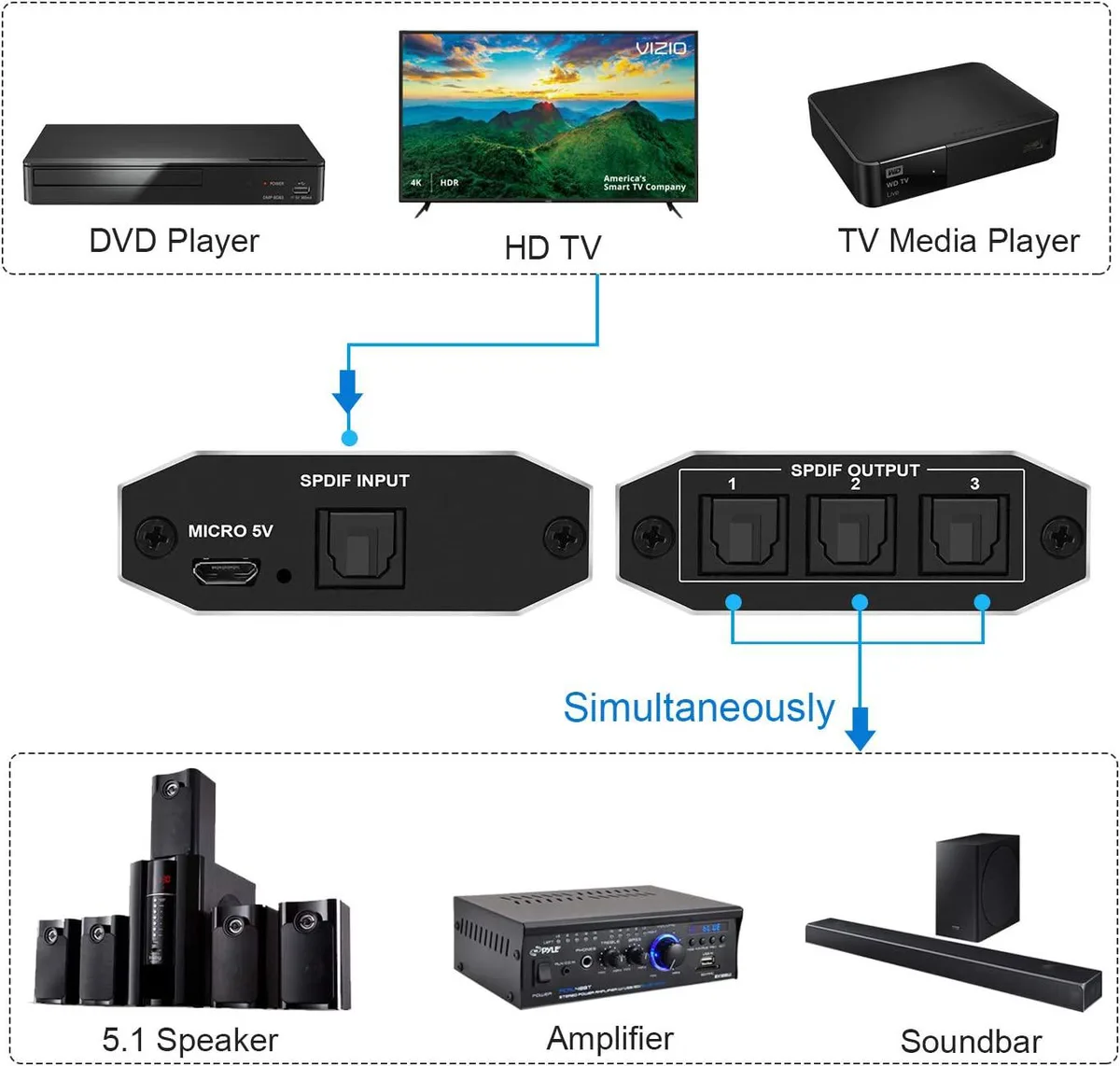

Which port do I plug the source into and which three go to my soundbar, headphones and amplifier?

Connect the single SPDIF TOSLINK IN to your source device, then run three separate optical cables from the three SPDIF TOSLINK OUT ports to each receiving device; the DC 5 V USB power cable must also be connected for the splitter to operate.

When should I replace the included optical cable if the signal starts dropping out?

The supplied cable supports runs up to 40 m with loss below .2 dB/m; if you exceed that length, notice intermittent audio or see visible kinks, swap it for a new low-loss TOSLINK cable.
