Compact black HDMI splitter with one input and two outputs, slim rectangular shape

ESTONE

ESTONE OZF2 1x2 HDMI Splitter 4K@30Hz Duplicate Mirror Only video splitter

SKU CH-CNXX-YAFMH

Splits one HDMI source to two displays at up to 4K@30Hz with audio, mirror-only operation

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 1.4a HDMI-compatible

Style 2 port - 4K 30Hz

  • Distributes one HDMI source to two displays simultaneously
  • Supports 4K resolution at 30 Hz refresh rate
  • Handles deep color up to 36 bit depth
  • Amplifies signal for reliable transmission over distance
  • Compact design measuring 5.59 x 3.15 x 1.26 inches

1x2 HDMI Splitter for 4K@30Hz Duplicate

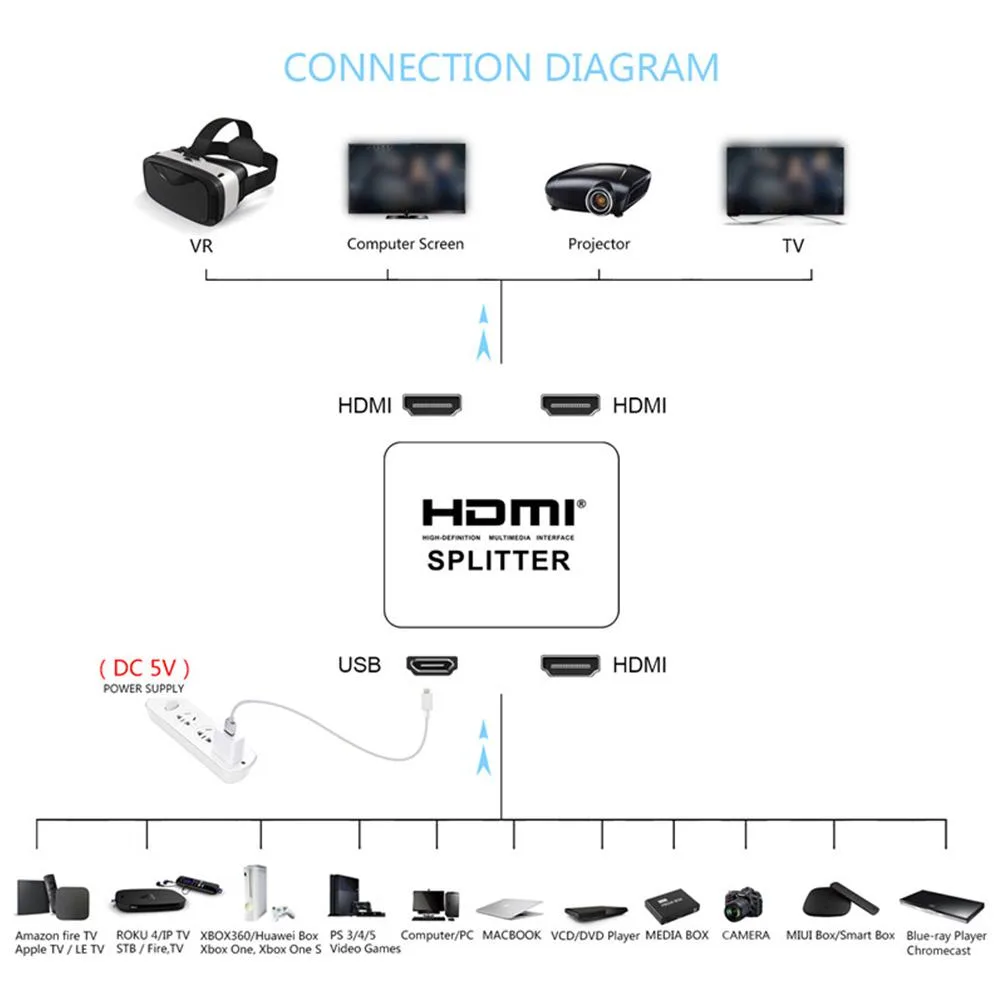

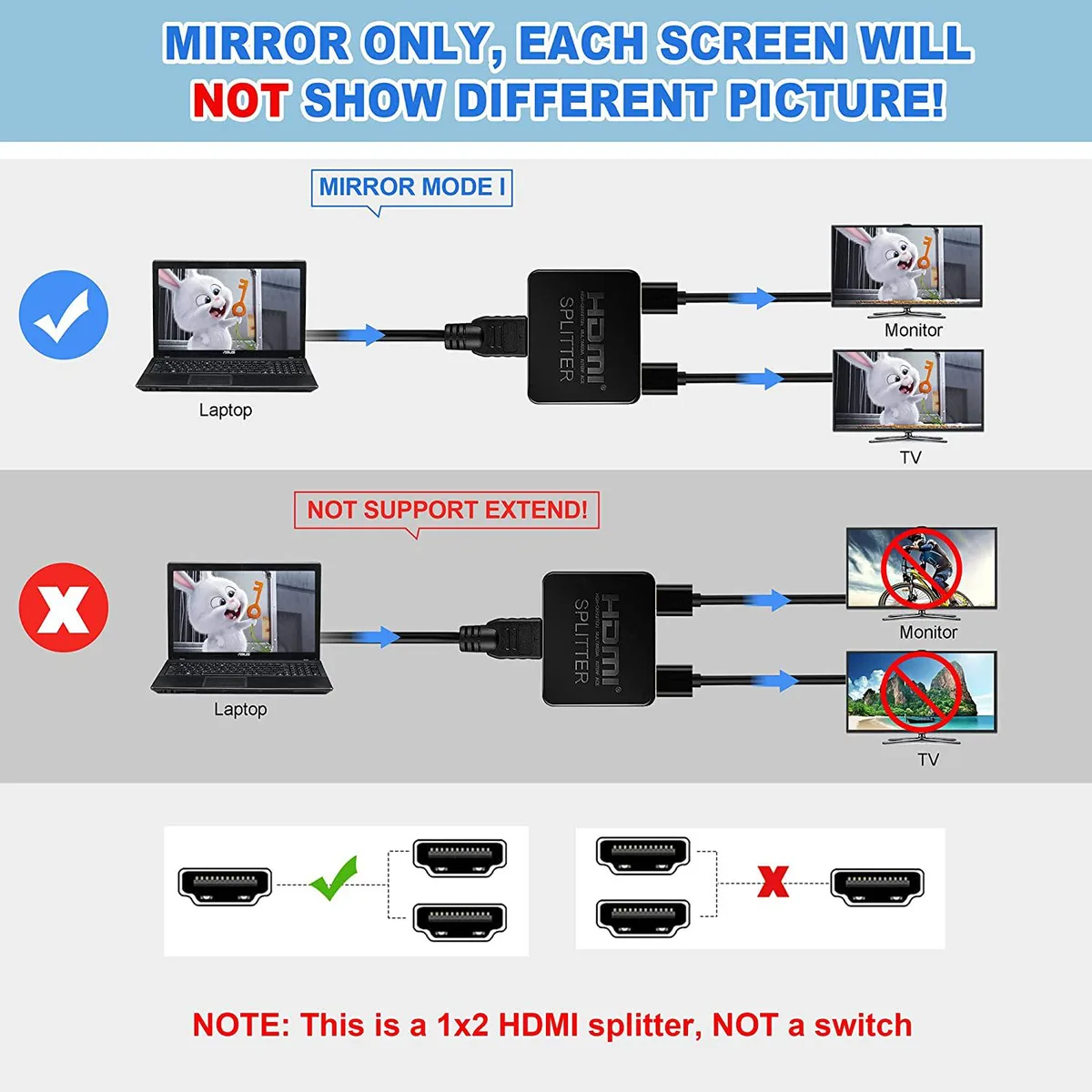

This ESTONE OZF2 splitter takes one HDMI source and mirrors it to two displays simultaneously. It transmits video and audio together with no loss or lag. The unit is designed for duplication only and does not support extended desktop modes or CEC control. It suits users who need identical output on two screens from a single source.

HDMI 1.4a with 18.5Gbps bandwidth

The splitter operates on HDMI 1.4a and provides 18.5Gbps bandwidth. It supports resolutions up to 3840 x 2160 at 30Hz and 1920 x 1080 at 60Hz. Deep colour up to 36bit is handled, along with audio formats including DTS-HD, Dolby TrueHD, DSD and standard Dolby AC3. HDCP 1.2 is supported, but HDCP 2.2 is not.

USB-powered portable unit

The compact black enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces. It draws power from an included USB cable, so no external power supply is required. One HDMI input connects to the source and two HDMI outputs feed the displays. The package includes the splitter, USB cable and user manual. It is not a switcher and cannot combine multiple sources onto one screen.

Highlights

  • Distributes one HDMI source to two displays simultaneously
  • Supports 4K resolution at 30 Hz refresh rate
  • Handles deep color up to 36 bit depth
  • Amplifies signal for reliable transmission over distance
  • Compact design measuring 5.59 x 3.15 x 1.26 inches

Specifications

BrandESTONE
SeriesOZF2
ModelOZF2
Part NumberOZF2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 1.4a
HDMI-compatible resolution:UP TO 1920*1080/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensati
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesPortable, slim design
Supports 4K, 3D, and HDMI
4K resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 4K@30Hz rating mean when I connect this splitter to my displays?

The splitter mirrors one source to two screens at up to 3840 x 2160 resolution, but the 4K signal is limited to 30 Hz; 1080p can run at 60 Hz.

Which HDMI version does the splitter use and what bandwidth does that provide?

It uses HDMI 1.4a with a maximum bandwidth of 18.5 Gbps, which caps 4K output to 30 Hz while allowing 1080p at 60 Hz.

What physical space and power connection does the unit need?

The box measures 5.59 x 3.15 x 1.26 inches and is powered through the included USB cable, so a free USB port is required.
