Small black HDMI splitter box with one input and two output ports

ESTONE

ESTONE OZF2 1x2 HDMI Splitter 4K@30Hz 18.5Gbps

SKU CH-68BD-JGZJK

Splits one HDMI source to two displays at up to 4K@30Hz with 18.5Gbps bandwidth and 36bit deep color support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 1.4a HDMI-compatible

Style 2 port - 4K 30Hz

  • Splits one HDMI source to two displays simultaneously
  • Supports 4K resolution at 30Hz with 18.5Gbps bandwidth
  • Handles deep colour up to 36bit and 3D video formats
  • Compact portable design measuring 5.59 x 3.15 x 1.26 inches
  • USB powered with included cable for simple setup

1x2 HDMI Splitter for 4K Mirroring

The ESTONE OZF2 takes a single HDMI source and duplicates it across two displays simultaneously. It transmits video and audio together with no added latency. The unit supports resolutions up to 3840 x 2160 at 30 Hz and 1920 x 1080 at 60 Hz. A bandwidth of 18.5 Gbps handles deep colour up to 36 bit.

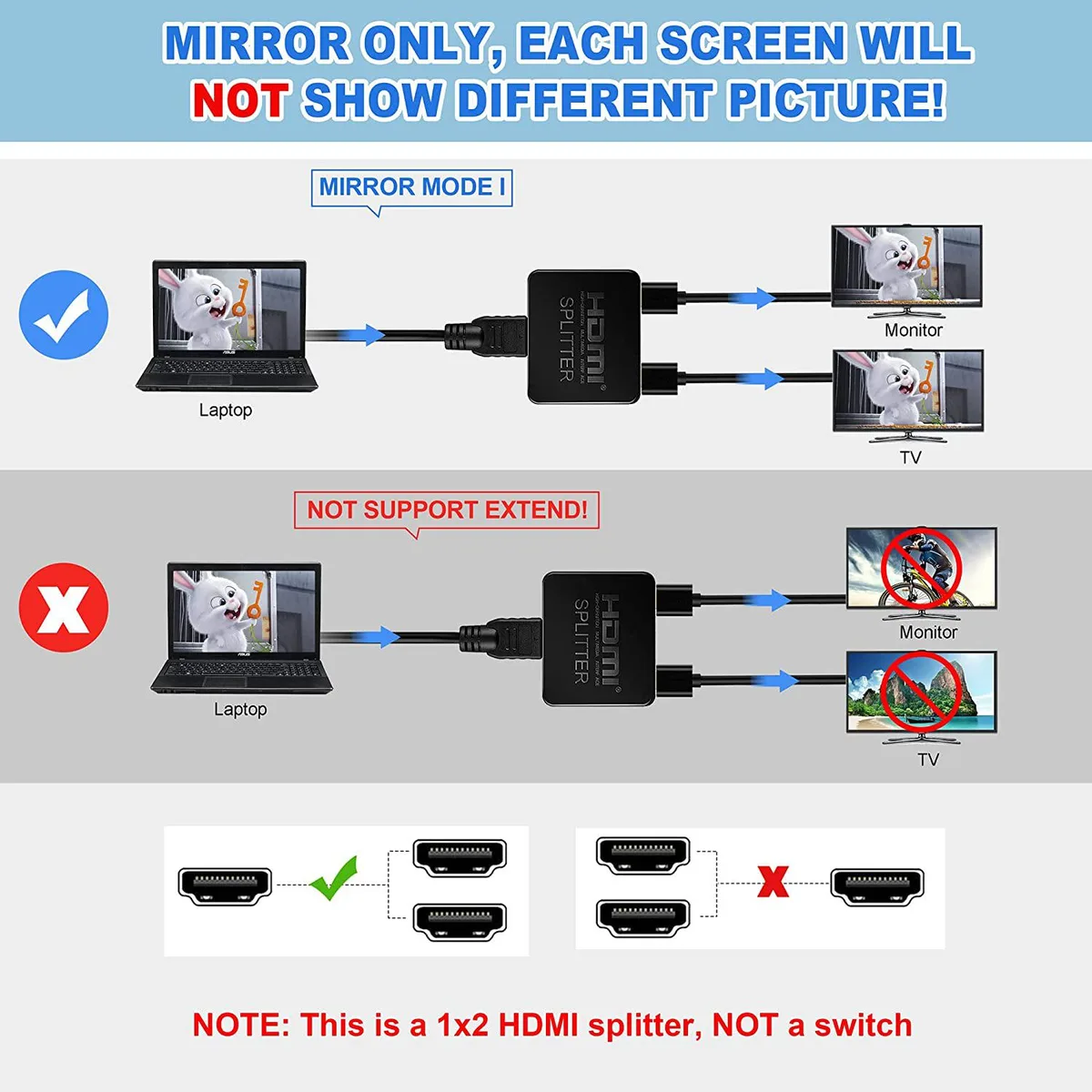

Suits dual-screen mirroring; not for extension

This splitter serves users who need identical content on two screens, such as digital signage, presentations or living-room duplication. It does not extend a desktop across monitors. Buyers who want independent displays or who must switch between several sources should look at a matrix switch instead. HDCP 2.2 protected streams are not supported.

USB-powered compact module for HDMI 1.4 chains

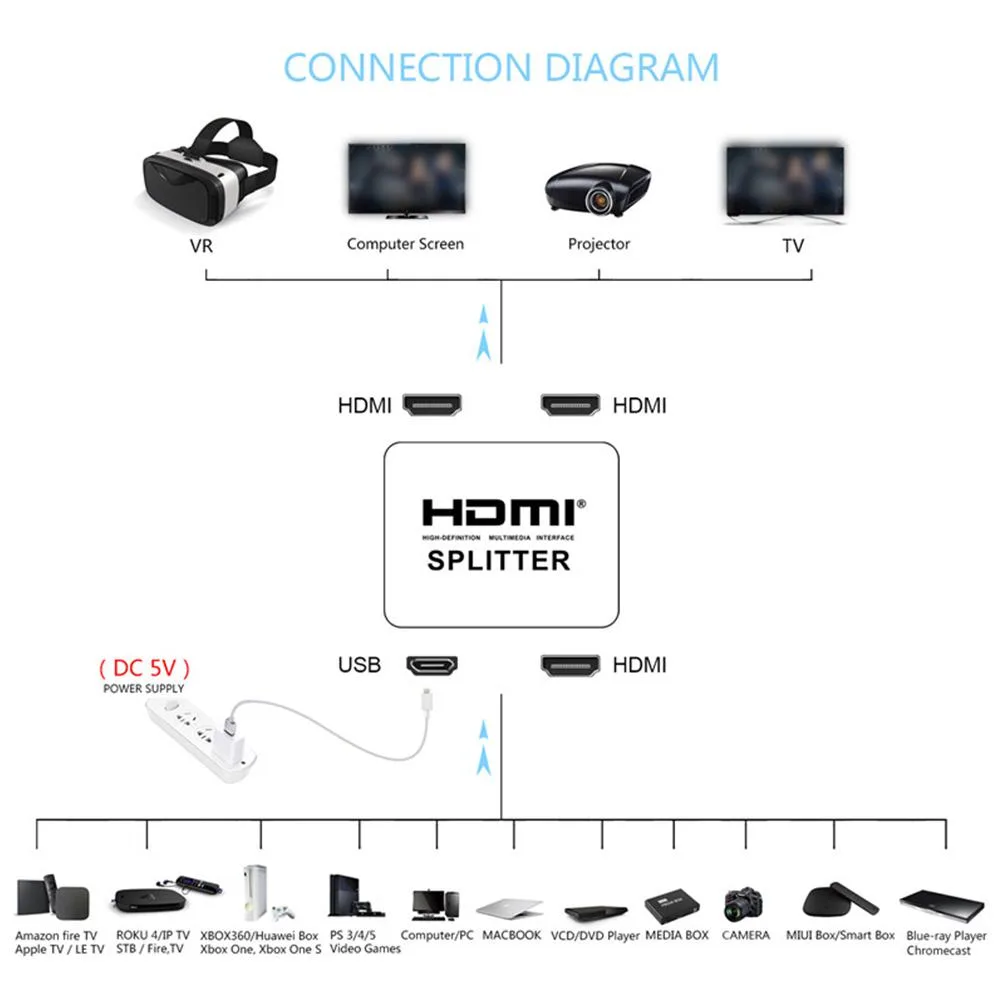

The aluminium enclosure measures 5.59 x 3.15 x 1.26 inches and draws power from the included USB cable, so no separate mains adapter is required. Connect the source to the single input and two sinks to the outputs using standard HDMI cables. The device complies with HDMI 1.4a and HDCP 1.2, fitting directly into existing 1080p or 4K@30 Hz signal paths.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Supports 4K resolution at 30Hz with 18.5Gbps bandwidth
  • Handles deep colour up to 36bit and 3D video formats
  • Compact portable design measuring 5.59 x 3.15 x 1.26 inches
  • USB powered with included cable for simple setup

Specifications

BrandESTONE
SeriesOZF2
ModelOZF2
Part NumberOZF2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 1.4a
HDMI-compatible resolution:UP TO 1920*1080/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensati
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesPortable, slim design
Supports 4K, 3D, and HDMI
4K resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need to supply power to the ESTONE OZF2 splitter through its USB port?

Yes, the unit requires USB power; a USB cable is included so you can connect it to a USB port on your TV, a charger or a power bank.

Will the splitter pass 4K at 60 Hz from my newer source to an older 1080p display?

No, the splitter is limited to 4K at 30 Hz and 1080p at 60 Hz, so a 4K 60 Hz signal will not be passed through.

How can I verify both outputs are showing an identical 4K 30 Hz picture after connecting everything?

Check each display's on-screen information menu; both should report 3840 x 2160 at 30 Hz with matching audio format such as Dolby TrueHD or DTS-HD.
