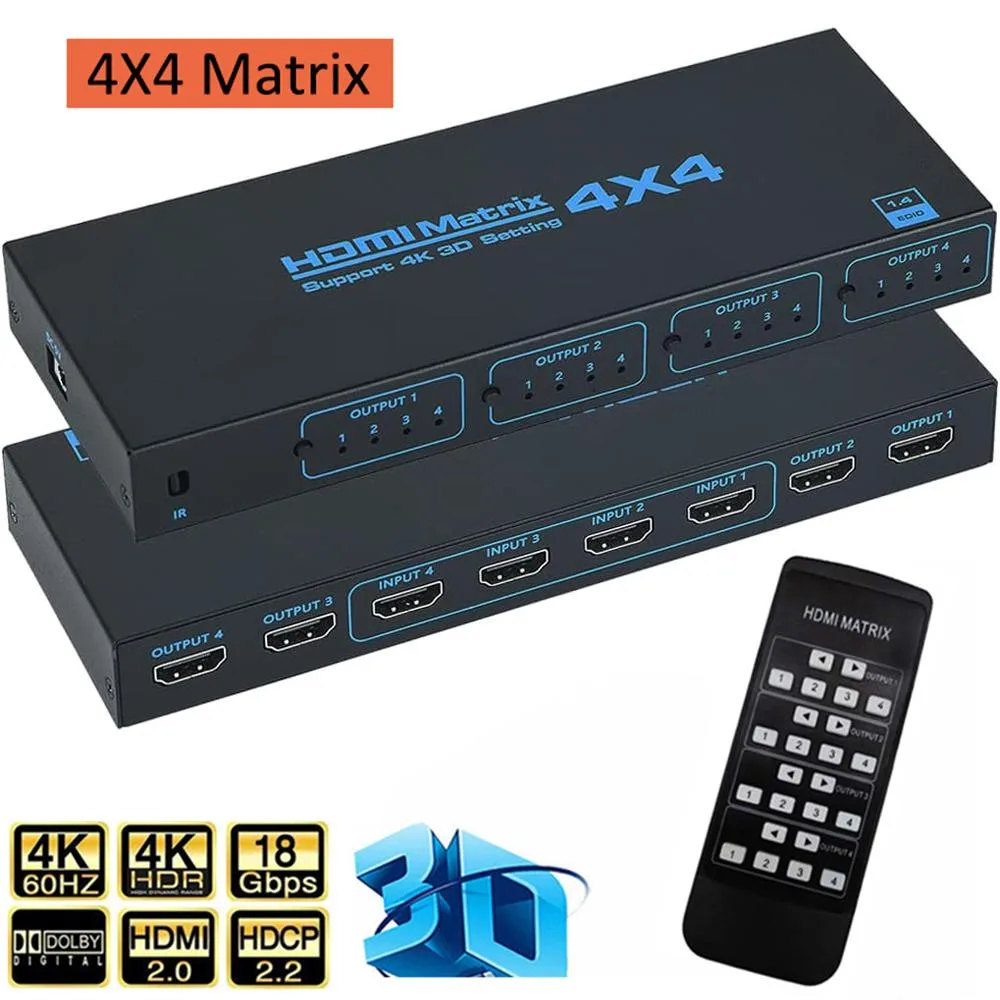

Black rectangular 4x4 HDMI matrix switch with front buttons and IR remote

ESTONE

ESTONE 4x4 HDMI Matrix Switch 4K@30Hz IR Remote

SKU CH-9RQW-PC1XM

Routes four HDMI sources to four displays independently at up to 4K@30Hz with IR remote and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes four sources to four displays independently
  • Handles 4K 3840×2160 at 30 Hz with 8/10-bit colour
  • Power-off memory restores the last routing automatically
  • Front-panel buttons and IR remote give two control options
  • HDMI 1.4 bandwidth of 10.2 Gbps supports 3D and 1080p 60 Hz

4x4 HDMI Matrix Switch 4K@30Hz

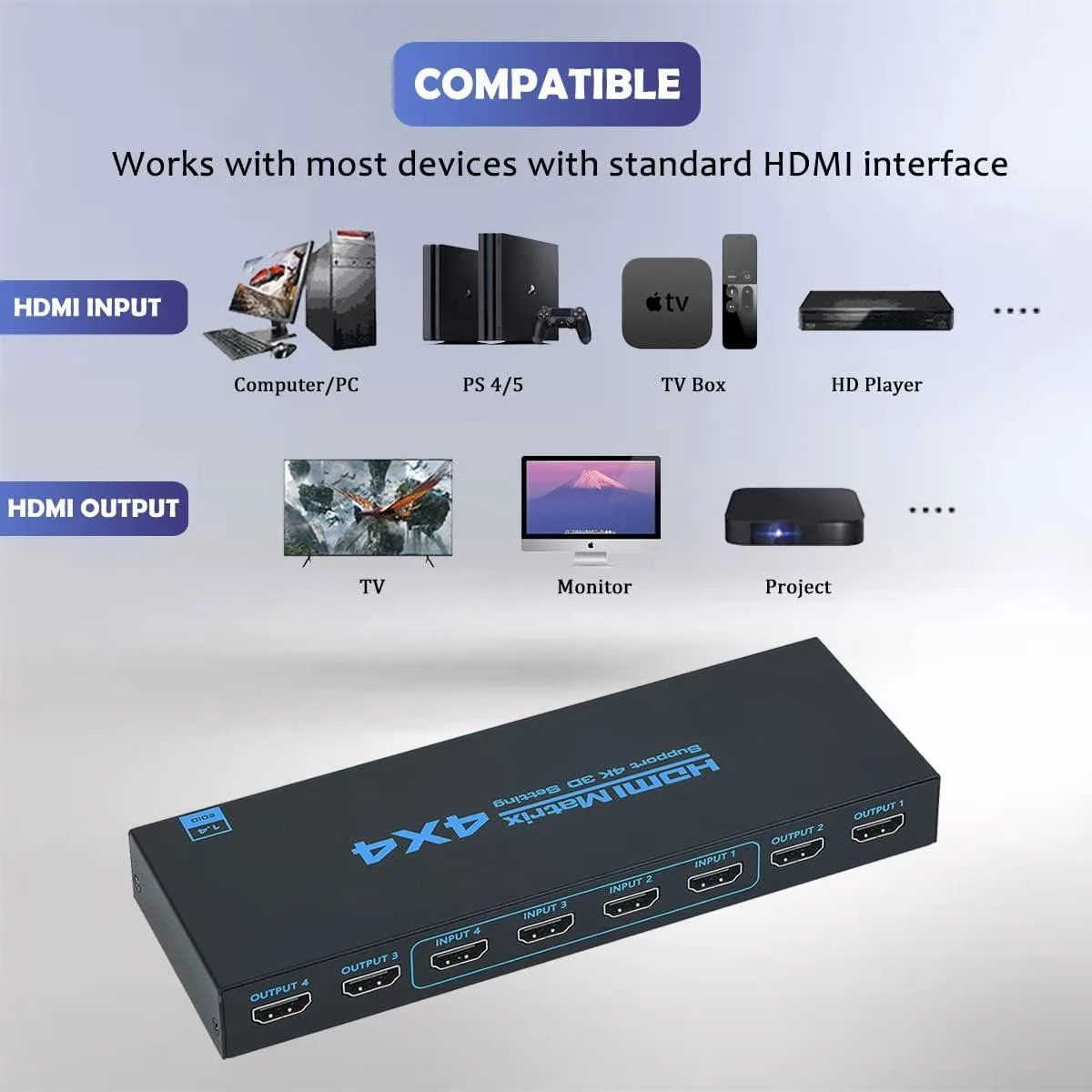

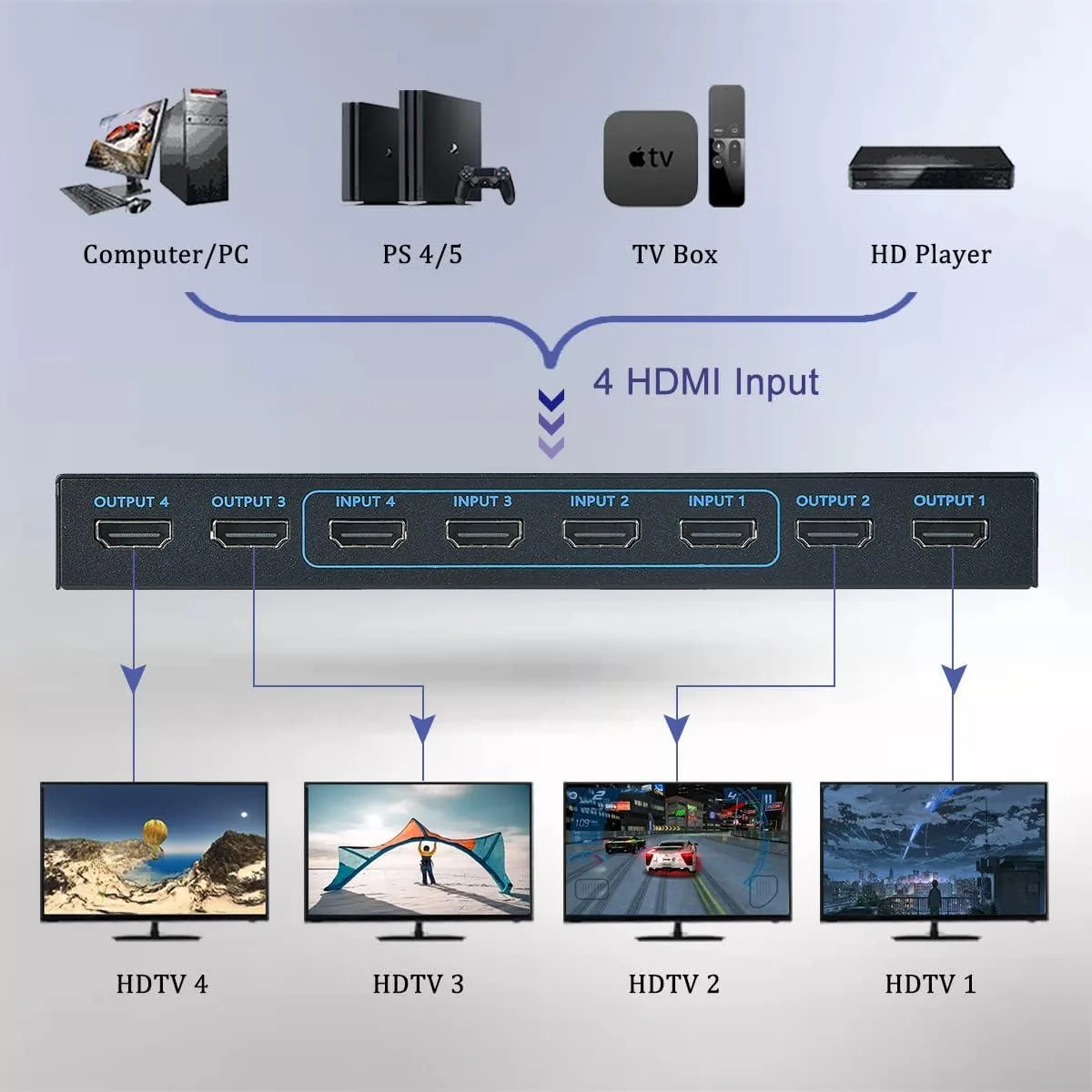

This ESTONE 4x4 HDMI matrix switch routes four HDMI sources to four displays independently, allowing each output to show the same or a different source at up to 4K@30Hz. It supports HDMI 1.4, 3D video and 8/10-bit deep colour with a maximum bandwidth of 10.2Gbps. Control is via front-panel buttons or the included IR remote, and a power-off memory function restores the last routing state on restart.

Who this suits and who it does not

Installers needing flexible distribution in home theatres, conference rooms, classrooms or digital-signage walls will appreciate the independent 4x4 routing and 8m cable reach per side. Buyers who require 4K@60Hz, 4:4:4 chroma, HDR metadata pass-through or HDCP 2.2 compliance should look elsewhere, as the HDMI 1.4 link tops out at 4K@30Hz YUV 4:2:0.

Deciding specification — HDMI 1.4 10.2Gbps limit

The single figure that determines compatibility is the 10.2Gbps maximum data rate of the HDMI 1.4 interface. It caps the switch at 4K@30Hz with 4:2:0 sampling and prevents 4K@60Hz, high-refresh 1080p or HDR signals from passing correctly. If your sources or displays need more bandwidth, this matrix will not meet the requirement.

Highlights

  • Routes four sources to four displays independently
  • Handles 4K 3840×2160 at 30 Hz with 8/10-bit colour
  • Power-off memory restores the last routing automatically
  • Front-panel buttons and IR remote give two control options
  • HDMI 1.4 bandwidth of 10.2 Gbps supports 3D and 1080p 60 Hz

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
Maximum Resolutions4096 x 2160

Questions about this item

What bandwidth does the HDMI 1.4 matrix handle and what resolution does that cap at?

The switch runs at 10.2 Gbps and 400 MHz, limiting output to 3840 x 2160 at 30 Hz.

What rack or shelf space does the 195 x 70 x 23 mm unit need and what power supply is required?

It fits in a 195 mm wide by 70 mm deep footprint and ships with a 100-240 V AC to 5 V 2 A DC adapter.

How do I assign sources to displays and which step is often missed?

Press an output button on the front panel or IR remote then press the desired input number; the step often missed is confirming the LED for that output changes to the new input.
