Green PCB adapter card with M.2 slot, SATA port and metal bracket

EN-Labs

EN-Labs PCIEM2BSATA PCIe x1 to M.2 SATA + SATA III Bracket

SKU CH-58ND-AB3AS

Adds a B-key M.2 SATA slot plus a SATA III port to a PCIe x1 lane using an ASM1061 controller

  • SpecificationsPCIe - PCIe-X1,support PCIE X2,X4,X8,X16 Output interface -
  • FeaturesM.2 Specification Revision 0.9 Serial ATA Specification Revi
  • Adds an M.2 SATA SSD and a SATA III drive simultaneously
  • Fits 2230 2242 2260 2280 B-key or B+M-key SATA modules
  • Runs on PCIe x1 with ASM1061 chipset for 6 Gbps throughput
  • Works with Windows 10 8 7 Vista XP 2003 2008 and Linux
  • Hot-swap capable and backward compatible with SATA I II III

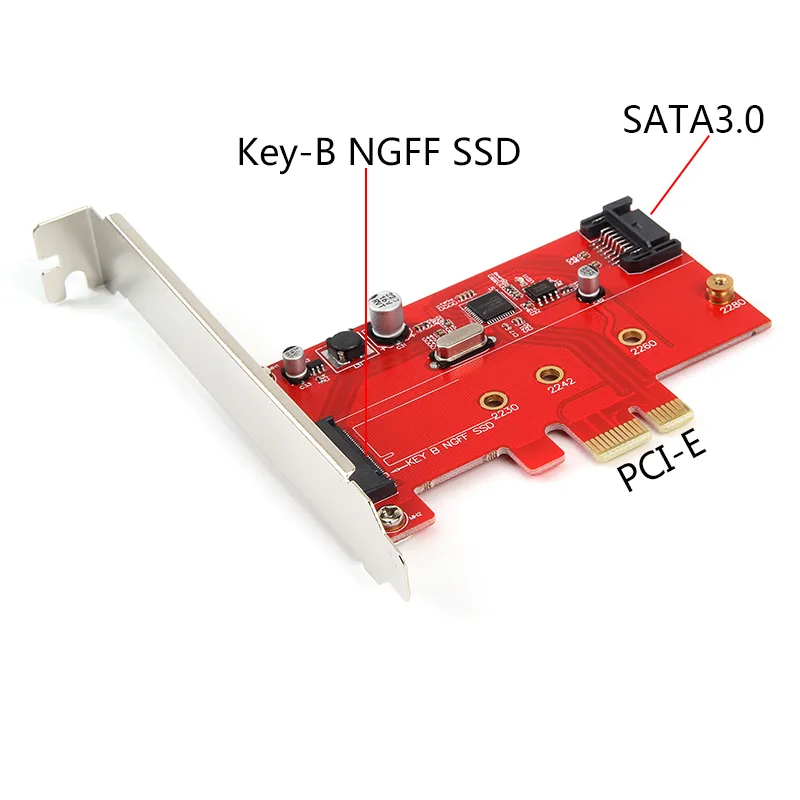

PCIe x1 to M.2 SATA and SATA III adapter

This adapter adds an M.2 B-key SATA slot and a standard SATA III port through a single PCIe x1 connection. It suits builders who need extra SATA storage on boards with limited native ports. The card fits any PCIe x1, x4, x8 or x16 slot and includes a standard-profile bracket. It does not support NVMe drives.

Capacity and headroom

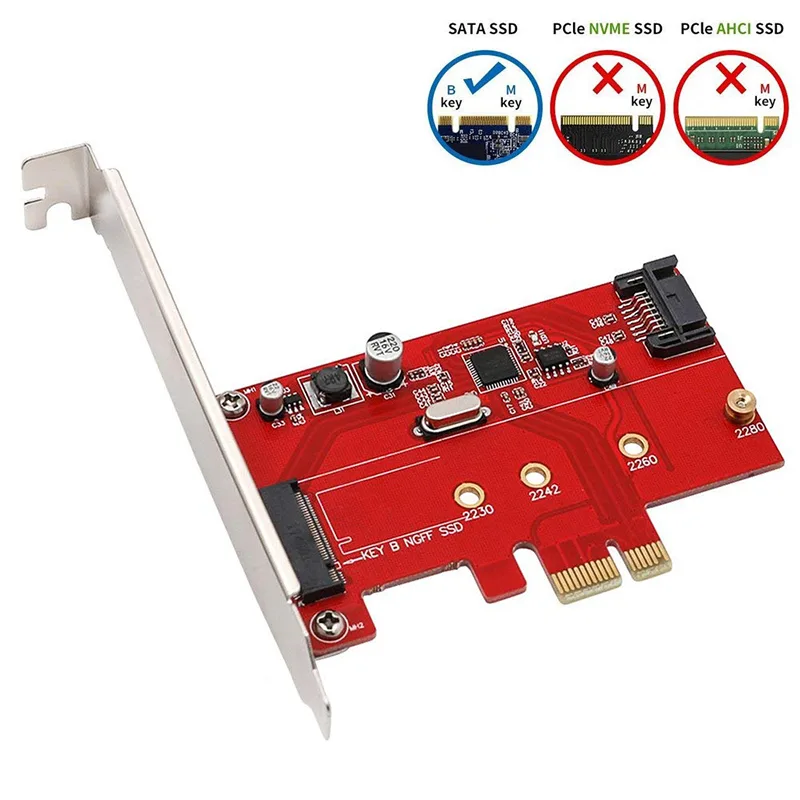

The M.2 slot accepts 2230, 2242, 2260 and 2280 B-key or B+M-key SATA SSDs. A second SATA III connector handles a 2.5-inch SSD, HDD or optical drive at up to 6 Gbps. Both devices can operate simultaneously, limited by the single PCIe x1 lane. NVMe SSDs and M-key-only modules will not function.

Thermals, noise and power

The ASM1061 controller runs passively without a fan, so the card adds no audible noise. Power is drawn entirely from the PCIe slot, requiring no extra cables. Actual throughput depends on the installed SATA SSD controller and drive capacity. Hot-swap and NCQ are supported for both ports.

Highlights

  • Adds an M.2 SATA SSD and a SATA III drive simultaneously
  • Fits 2230 2242 2260 2280 B-key or B+M-key SATA modules
  • Runs on PCIe x1 with ASM1061 chipset for 6 Gbps throughput
  • Works with Windows 10 8 7 Vista XP 2003 2008 and Linux
  • Hot-swap capable and backward compatible with SATA I II III

Specifications

BrandEn-Labs
ModelPCIEM2BSATA
SpecificationsPCIe - PCIe-X1,support PCIE X2,X4,X8,X16 Output interface - M.2 SATA SSD + SATA III OS - Windows10/8/7(32/64?)/ Vista(32/64?)/ XP/2003/2008/linux
FeaturesM.2 Specification Revision 0.9 Serial ATA Specification Revision 3.2 Supports M.2 B Key and B+ M key Card Type Support M.2 card size: 22*30 22*42 22*60 22*80 Built with ASM1061 Chipset Simultaneously Connect M.2 SSD and SATA HDD or CD Drive,Maximum 6Gbps Hot Swap Compatible with SATA I, II, III NCQ Supported Note: M.2 Port supports M.2 (NGAFF) SATA SSD only, DOES NOT support NVMe M.2 SSD The efficiency mainly depends on M.2 (NGAFF) SSD master IC and the size of the capacity

Questions about this item

Will this PCIe x1 adapter work in my older motherboard that only has PCIe 2.0 slots?

Yes, the PCIe x1 interface is backward-compatible with PCIe 2.0 and 1.0 slots, so it will function in older motherboards at the slot's native speed.

How can I confirm the ASM1061 chipset is recognised and both ports are active after installation?

Check Device Manager or `lspci` for an ASMedia ASM1061 SATA controller; both the M.2 SATA SSD and the SATA III port should appear as separate drives.

Does the bracket include cables for the SATA III port or do I need to buy them separately?

The product includes the standard-profile bracket and the adapter board only; you must supply your own SATA data and power cables for the SATA III port.
