Eaton
Eaton SRP-R-C25 44U server accessory 25 kW cooling
A 44U self-cooling modular data centre rack with a 25 kW active DX air-conditioning unit delivering 2,950 CFM airflow
- ColorBlack
- SpecificationsINPUT Input Connection Type: 3-wire / 4-wire + Ground Voltag
- 8 kW cooling capacity handles dense server loads
- 2,950 CFM airflow maintains consistent rack temperatures
- 44U deep rack fits equipment up to 48.7 inches deep
- 7-inch colour touchscreen gives direct control and monitoring
- 3,000 lb stationary weight capacity supports heavy configurations

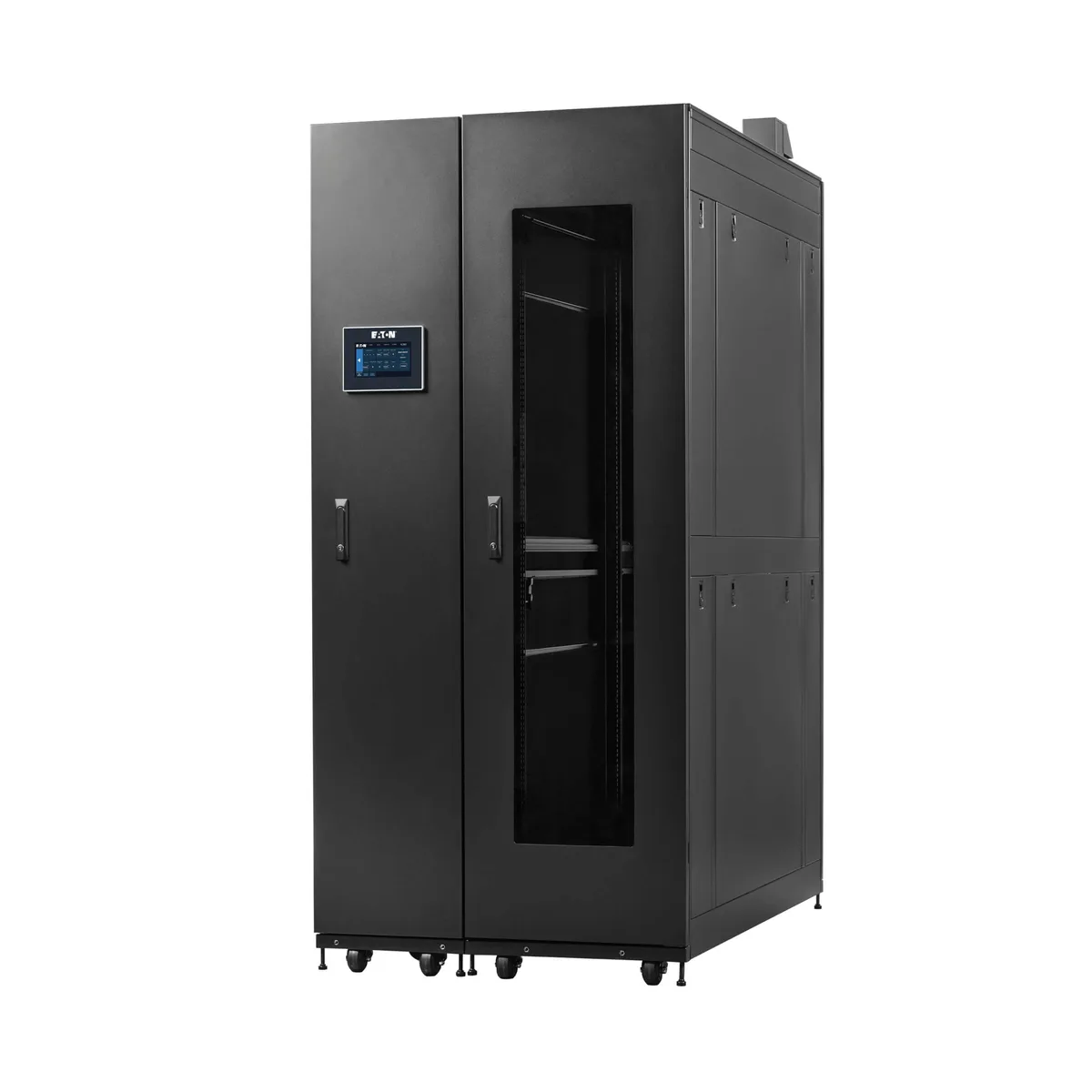

Pre-Configured 44U Modular Data Centre
The Eaton SRP-R-C25 is a self-cooling, pre-configured modular data centre housed in a 44U rack enclosure. It targets organisations that need a ready-to-deploy compute environment with integrated active cooling, removing the requirement for a separate computer room air-conditioning installation. The unit ships new and fully assembled for immediate placement.
208 V 60 Hz Three- or Four-Wire Input Constraint
Operation requires a 208 VAC supply at 60 Hz with either a three-wire or four-wire plus ground connection. Facilities without this specific voltage and phase arrangement cannot power the unit without additional electrical work. The fixed frequency compatibility also limits deployment to regions matching the 60 Hz standard.
25.8 kW Cooling Capacity with 48.7-Inch Device Depth
The direct-expansion R410A system delivers 25.8 kW (88,000 BTU) of cooling capacity and moves 2,950 CFM of air, supporting dense equipment loads up to the stationary weight limit of 3,000 lb. Maximum device depth is 48.7 in, so deeper servers or blade chassis will not fit. Operating temperature range is 18 °C to 40 °C with audible noise below 68 DBA.
Highlights
- 8 kW cooling capacity handles dense server loads
- 2,950 CFM airflow maintains consistent rack temperatures
- 44U deep rack fits equipment up to 48.7 inches deep
- 7-inch colour touchscreen gives direct control and monitoring
- 3,000 lb stationary weight capacity supports heavy configurations
Specifications
| Brand | Tripp Lite by Eaton |
|---|---|
| Model | SRP-R-C25 |
| Color | Black |
| Specifications | INPUT Input Connection Type: 3-wire / 4-wire + Ground Voltage Compatibility (VAC): 208 Input Frequency: 60 Hz OUTPUT Frequency Compatibility: 60 Hz COOLING Airflow: 2,950 CFM Cooling Type: Active Cooling Capacity (BTUs): 88000 Cooling Capacity (kW): 25.8 Refrigerant: R410A Full Cooling Specifications: Direct Expansion (DX) USER INTERFACE, ALERTS & CONTROLS Front Panel LCD Display: 7-inch color touchscreen PHYSICAL Color: Black Rack Height : 44U Rack Depth: Deep Maximum Device Depth (in.): 48.7 Unit Dimensions (hwd / in.): 95.070 x 40.390 x 64.880 Unit Weight (lbs.): 1447 Weight Capac |
| Shipping weight | 680.39 kg |
| Package size | 2591 × 1778 × 1219 mm |
Questions about this item
Should I choose the 44U rack height or a different capacity for my equipment?
This unit is a fixed 44U configuration with a maximum device depth of 48.7 inches and a stationary weight capacity of 3000 lbs, so choose it when your gear fits those dimensions.
What does the 25.8 kW cooling capacity mean once the unit is running in my data center?
It can remove up to 25.8 kW of heat (88000 BTU/h) while delivering 2950 CFM of airflow, keeping inlet temperatures within the 64° to 104°F operating range.
What does the 208 VAC, 60 Hz input cap in practice?
The 3-wire or 4-wire plus ground connection at 208 VAC and 60 Hz limits installation to North American three-phase service and sets the maximum cooling output at 25.8 kW.
