Dell YF-1206 12 V 6 A 72 W power adapter 5.5 × 2.5 mm

Dell YF-1206 12 V 6 A 72 W adapter

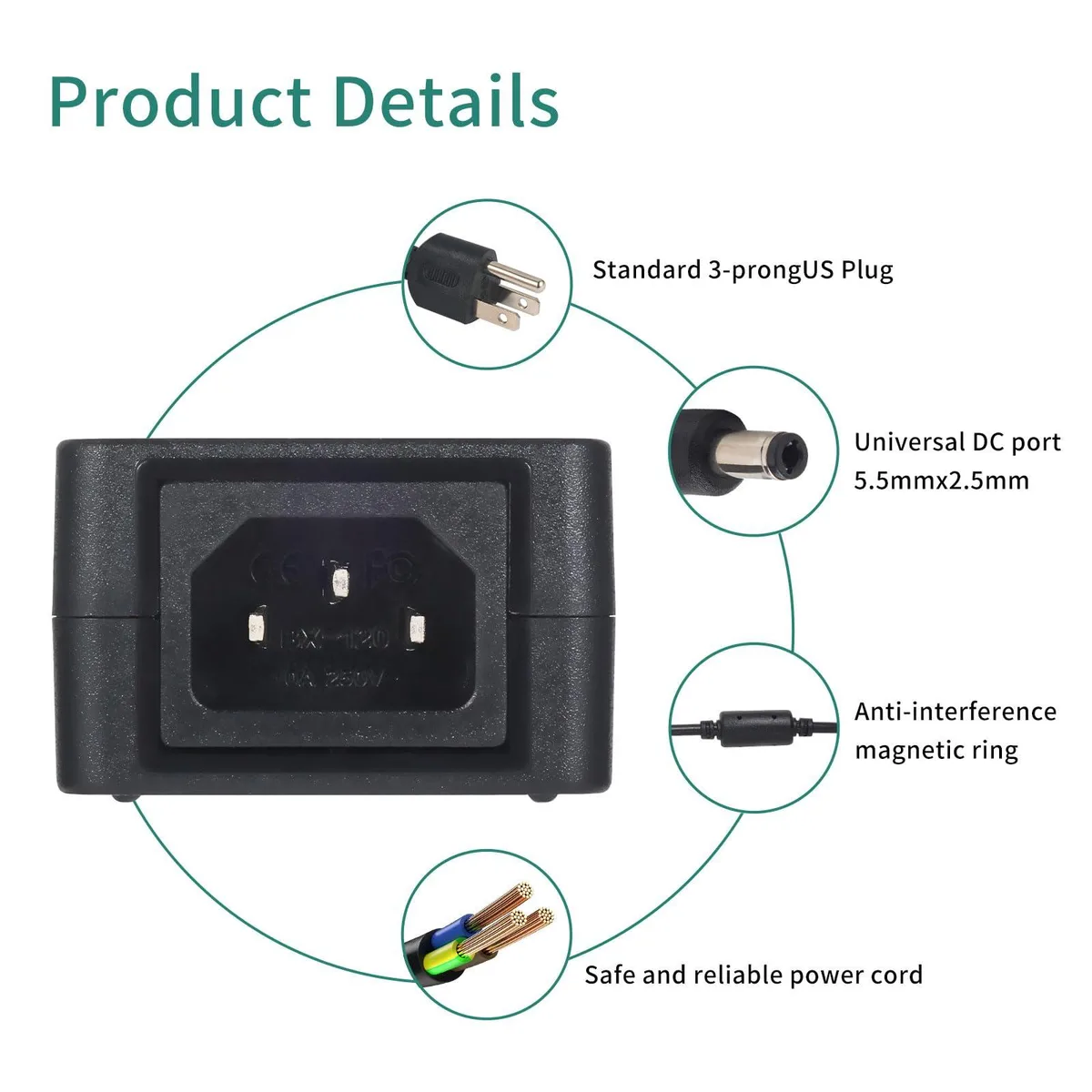

This Dell YF-1206 adapter converts 100-240 V AC at 50-60 Hz into a regulated 12 V DC supply rated for up to 6 A and 72 W. It is intended for devices such as LED strip lighting or CCTV cameras that draw less than 6000 mA at 12 V. The unit comes with a 5.5 mm × 2.5 mm centre-positive barrel plug that also fits 5.5 mm × 2.1 mm sockets.

Plug-and-play with polarity check

Installation is straightforward: connect the IEC mains lead, insert the barrel plug into the device, and switch on. The most common issue is a polarity or size mismatch; the adapter uses a centre-positive configuration, so verify that the target device expects the same arrangement. Built-in short-circuit, overcurrent, overheat and overload protection will shut the unit down if a fault occurs.

Verify connector size and current draw

Before ordering, confirm that the device you are powering uses a 5.5 mm outer-diameter barrel jack with either a 2.5 mm or 2.1 mm inner pin and requires centre-positive polarity. Ensure its maximum current draw does not exceed 6 A at 12 V. The adapter accepts worldwide mains voltages from 100 V to 240 V, so no separate voltage selector is needed.
